Description

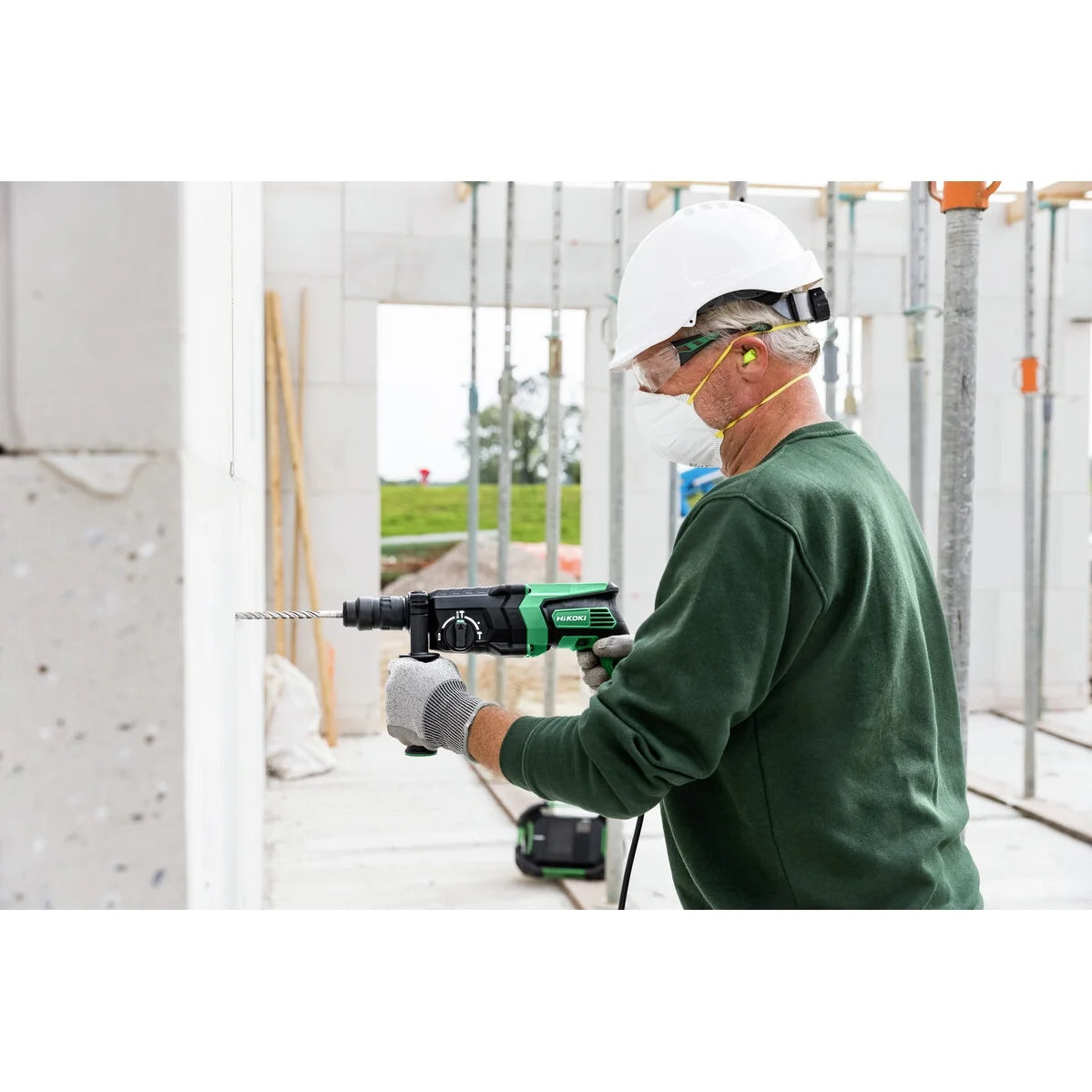

The Rotary hammer SDS-Plus DH26PMCWSZ is a versatile tool for concrete drilling up to 26 mm. It offers top class drilling speed for fastest working progress and can quickly change between the SDS-plus drill bit holder and the drill chuck holder for efficient use of the rotary hammer for various applications.
- Top class drilling speed

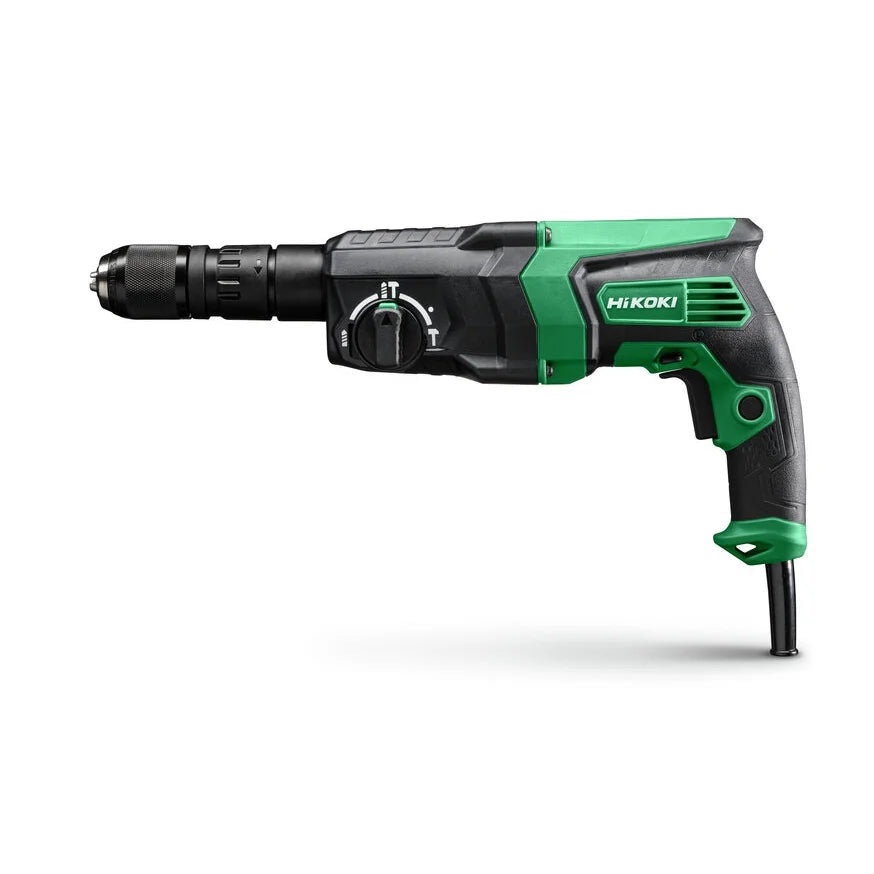

- Quick change between drill bit holder and drill chuck holder
- Three modes: rotary hammer, drill only or hammer only with selectable chisel position
- Compact and lightweight for optimum handling
- Variable drilling speed control

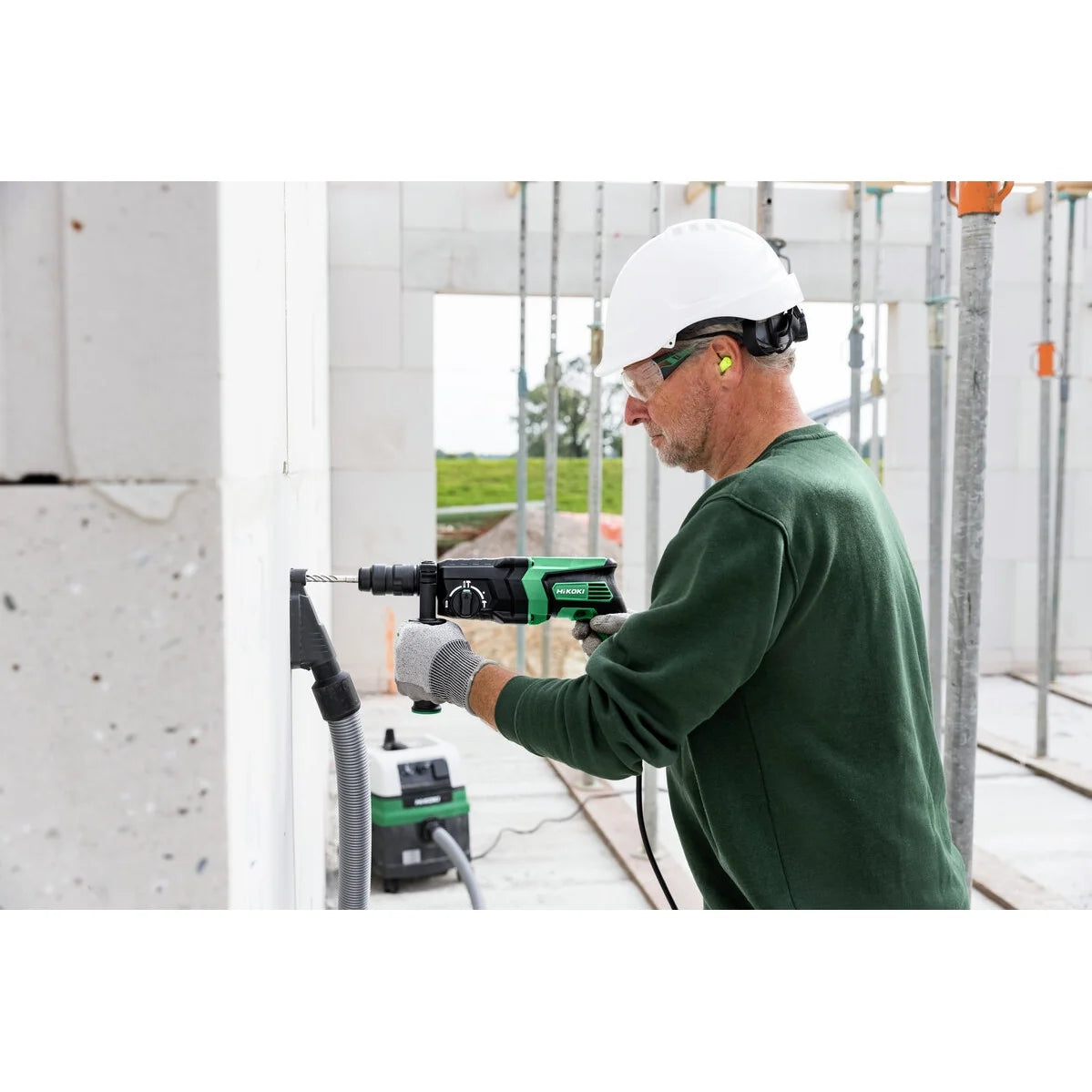

- Labyrinth ventilation windows reduce dust ingress
- Ergonomic soft grip handle
Technical Data
| Rated input power | 830 W |
|---|---|
| Voltage | 230 V |
| Power Frequency | 50/60 Hz |
| Impact energy (EPTA) | 2.9 J |
| No load speed (v1) | 0 - 1100 /min |
| Full load impact rate | 0 - 4300 /min |
| Drill diameter concrete | 3.4 - 26 mm |
| Drill diameter mild steel | 13 mm |

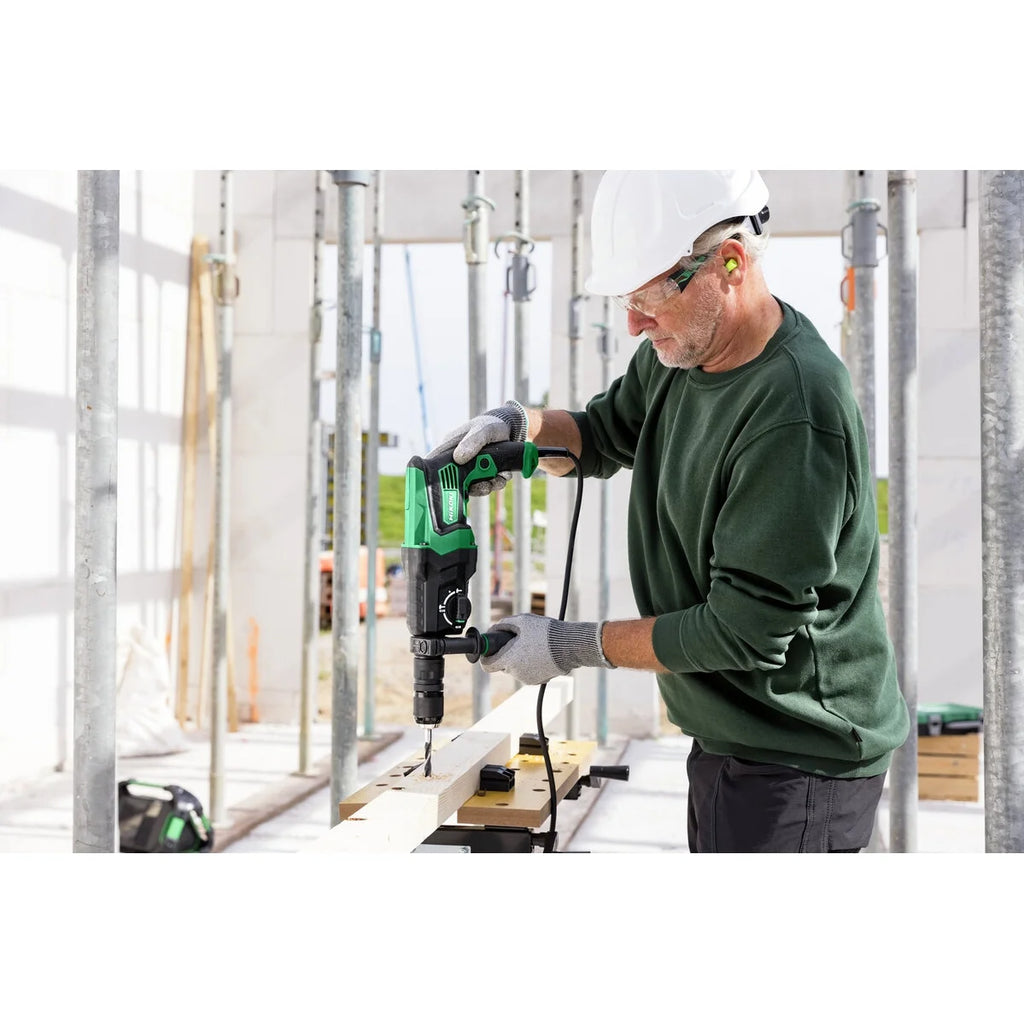

| Drill diameter wood | 32 mm |
| Tool weight | 3 kg |
| Cable length | 3.5 m |
| Tool length | 382 mm |
| Tool width | 83 mm |
| Tool height | 199 mm |
| Right- / left rotation | Forward / reverse rotation | Yes |
| Slip clutch | Yes |
| Lock-on function | Yes |
| EAN | 4966376400195 |
Includes
- Side handle
- Depth gauge
- Drill chuck holder
