Description
Introducing the Cordless jig saw CJ18DAW2Z, an efficient tool with a cutting capacity of 135 mm in wood and 10 mm in mild steel plate. It features a robust aluminium baseplate with 45° bevel adjustment (l/r), a 4-step orbital mode for fast progress in various materials, toolless blade change, and an integrated LED light.
- 4-step orbital mode
- Toolless blade change
- Robust aluminium baseplate with 45° bevel adjustment (l/r)
- Integrated LED light
- Highly efficient blow function
- Soft-touch housing and handle for safe guidance and good handling
- Control electronics (feedback control)
- Safety system (HMCP = HiKOKI Multiplex Circuit Protection)
Technical Data
| Battery voltage: | 18 V |
| No load stroke speed: | 0 - 2500 /min |
| Cutting capacity wood: | 135 mm |
| Cutting capacity mild steel plate: | 10 mm |
| Cutting capacity stainless steel: | 2.5 mm |
| Minimum cutting radius: | 25 mm |
| Maximum cutting angle: | 45 ° |
| Pendulum stroke levels: | 4 |
| Stroke length: | 26 mm |
| Weight (without battery pack): | 1.90 kg |
| Weight (with battery pack): | 2.28 kg |
| Tool length: | 266 mm |
| Tool width: | 81 mm |
| Tool height: | 202 mm |
| Handle type: | Loop Handle |
| Chip blower: | Yes |
| LED light: | Yes |
| EAN: | 4966376333615 |
Includes
- Blade No.41
- Hex.bar wrench 4mm
- Splinter guard
- Dust collector

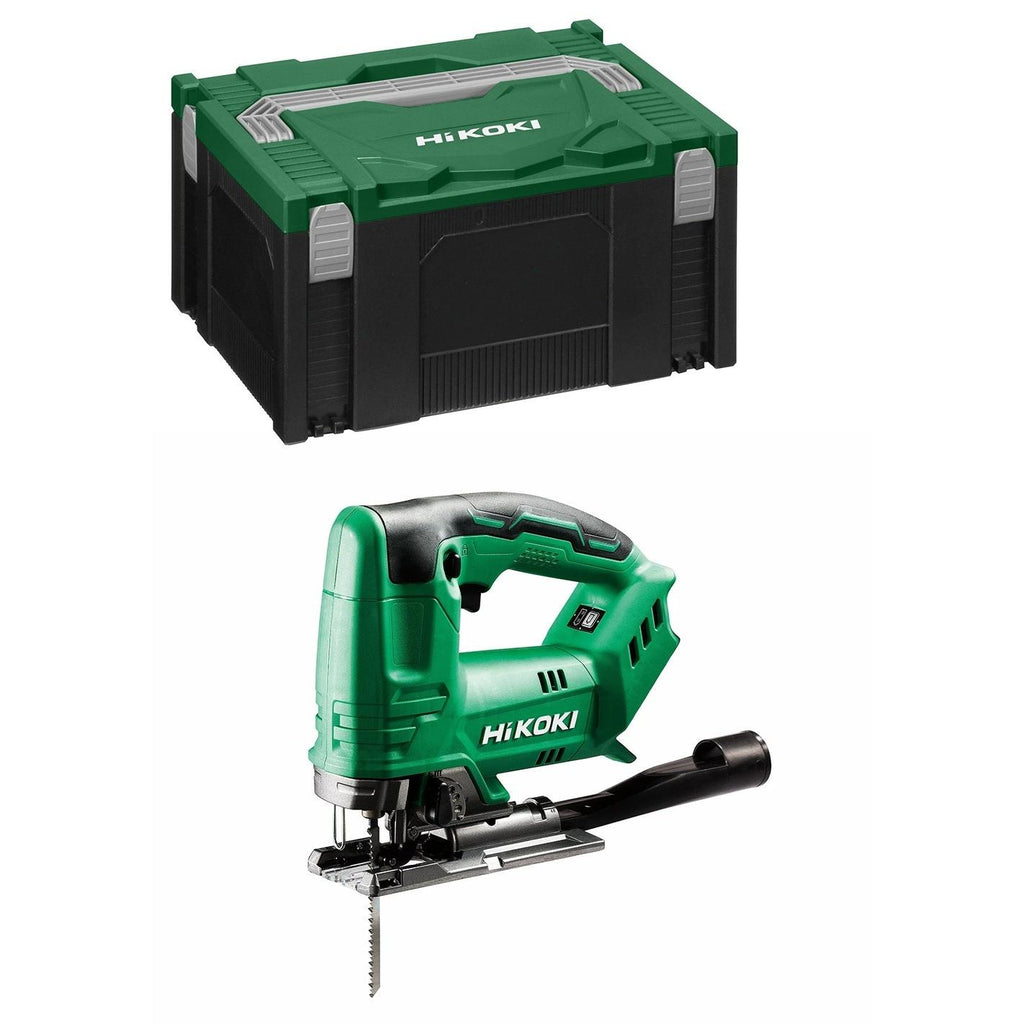

- Stackable System Case 3
