Description

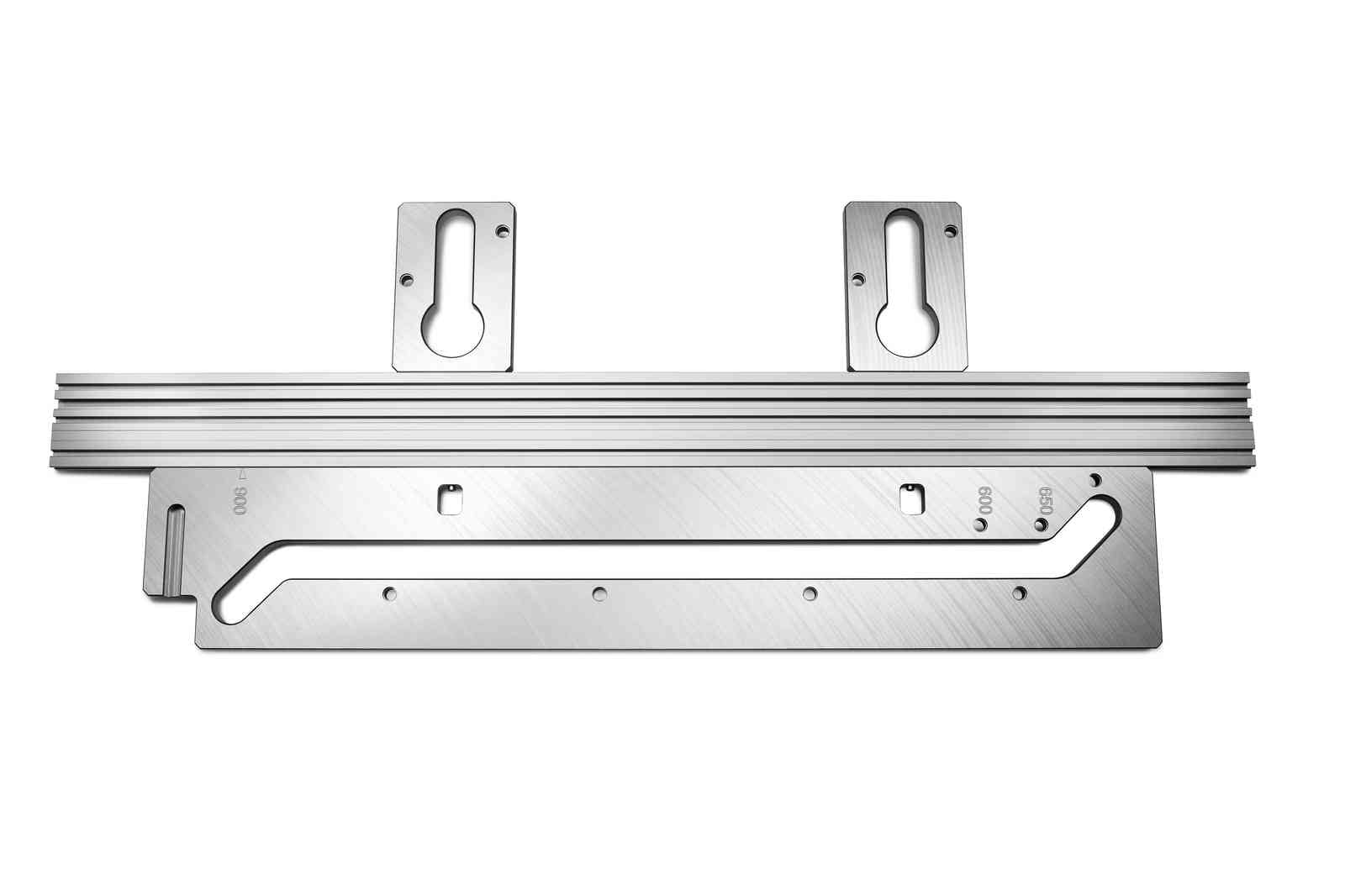

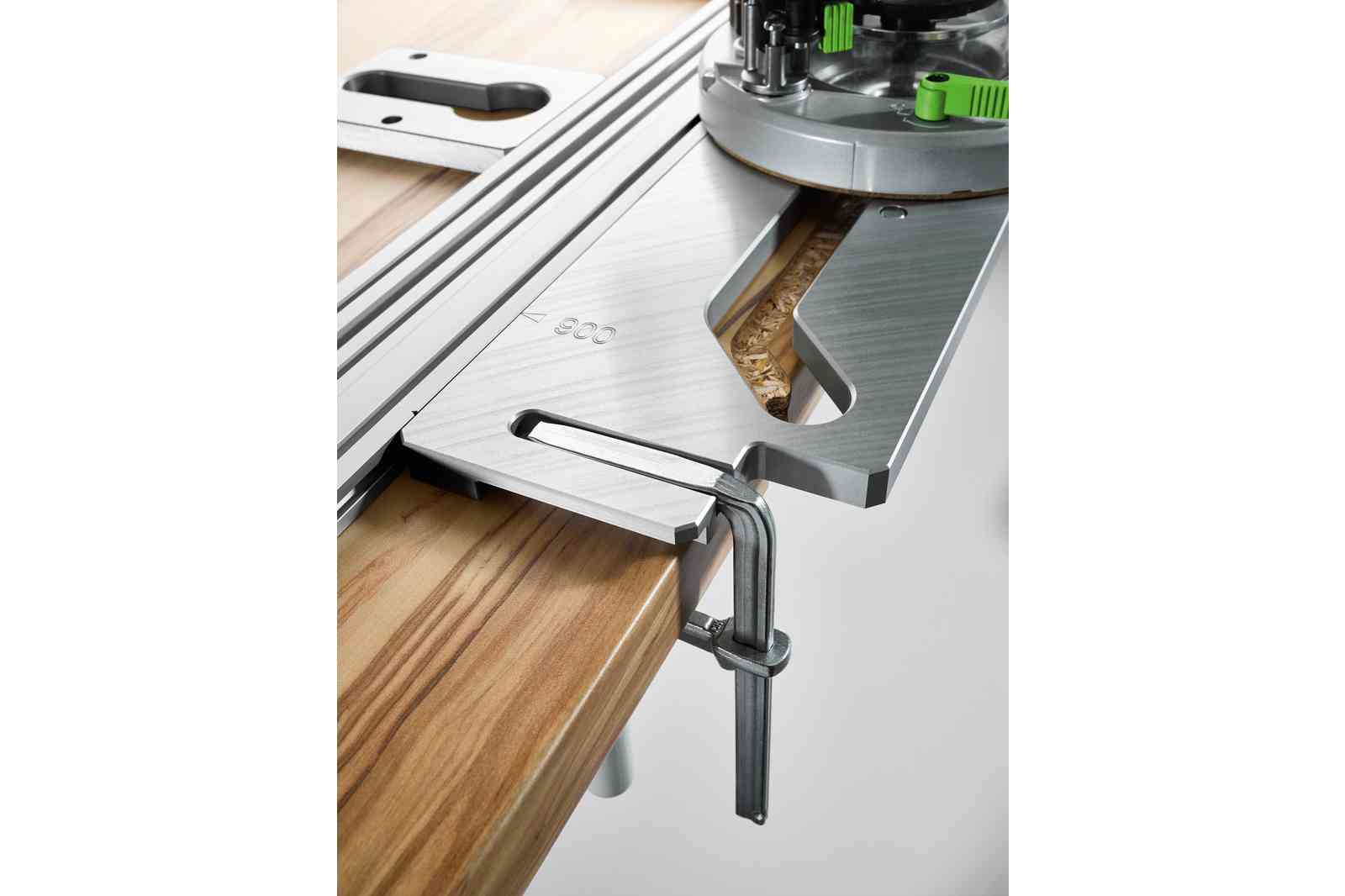

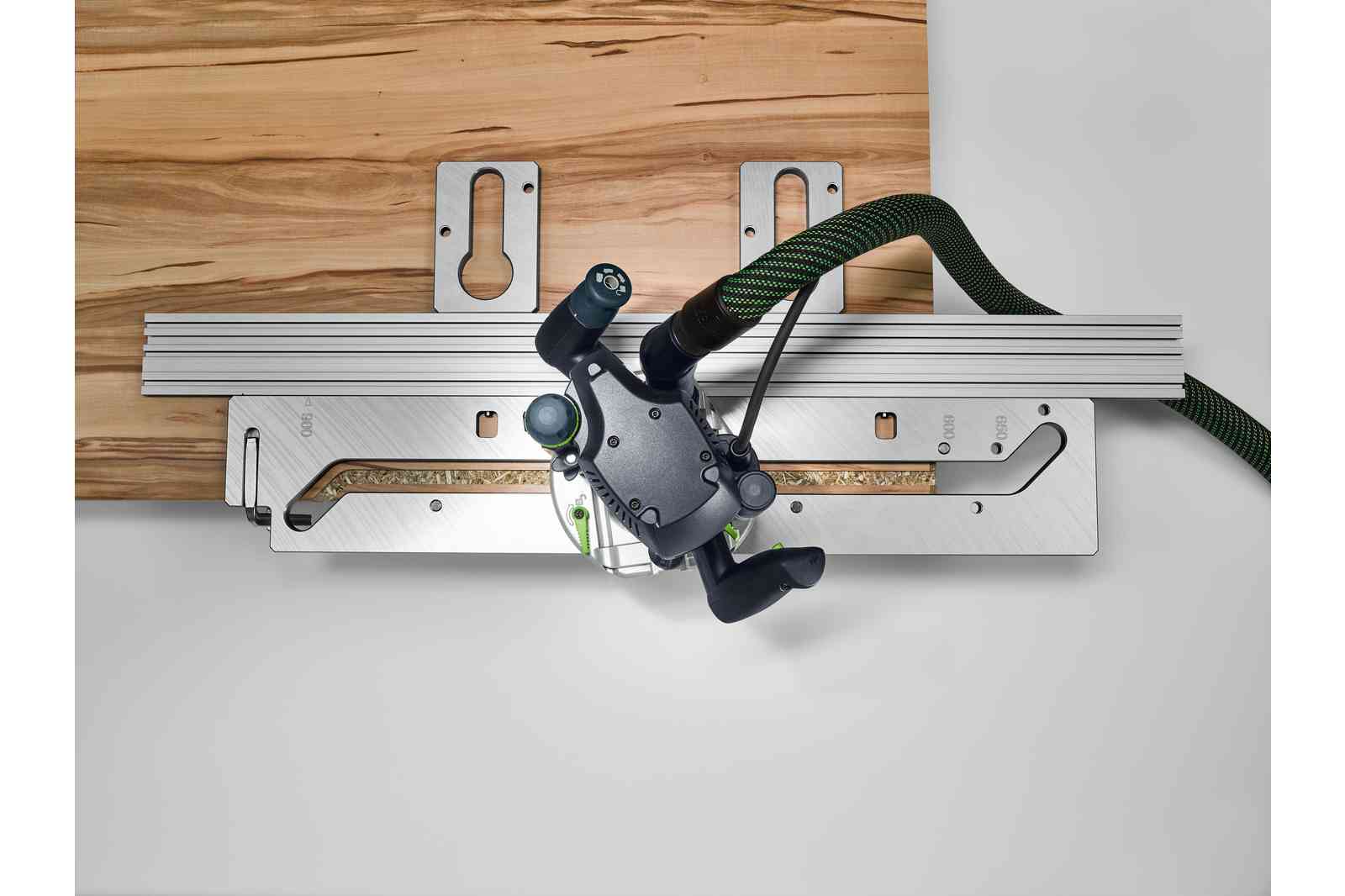

The APS worktop template makes flush connections of wooden panels at a 90° angle simple. The template is permanently fixed to the integrated clamp and thus enables precise results – even when the router passes several times along a single groove.
- Robust routing template made from aluminium
- For corner and panel joints with fixed fence with panel depths of 600 and 650 mm or, if moved, up to 900 mm
- Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
- Panel depths greater than 900 mm also possible using extension profiles
- For groove cutters with 14 mm diameter and copying rings with 30 mm diameter, recommended for OF 2200/1400 router
- for diameter of cutter 14 mm and copying ring 30 mm
Technical Data
| Panel depth with corner joints, with adjustment | 900.00 mm |
| For worktop connectors, bolt length | 65/150 mm |
| Panel depth with corner joints, without adjustment | 600/650 mm |
| Dimensions (L x W x H) |
1 000 x 380 x 16 mm
|

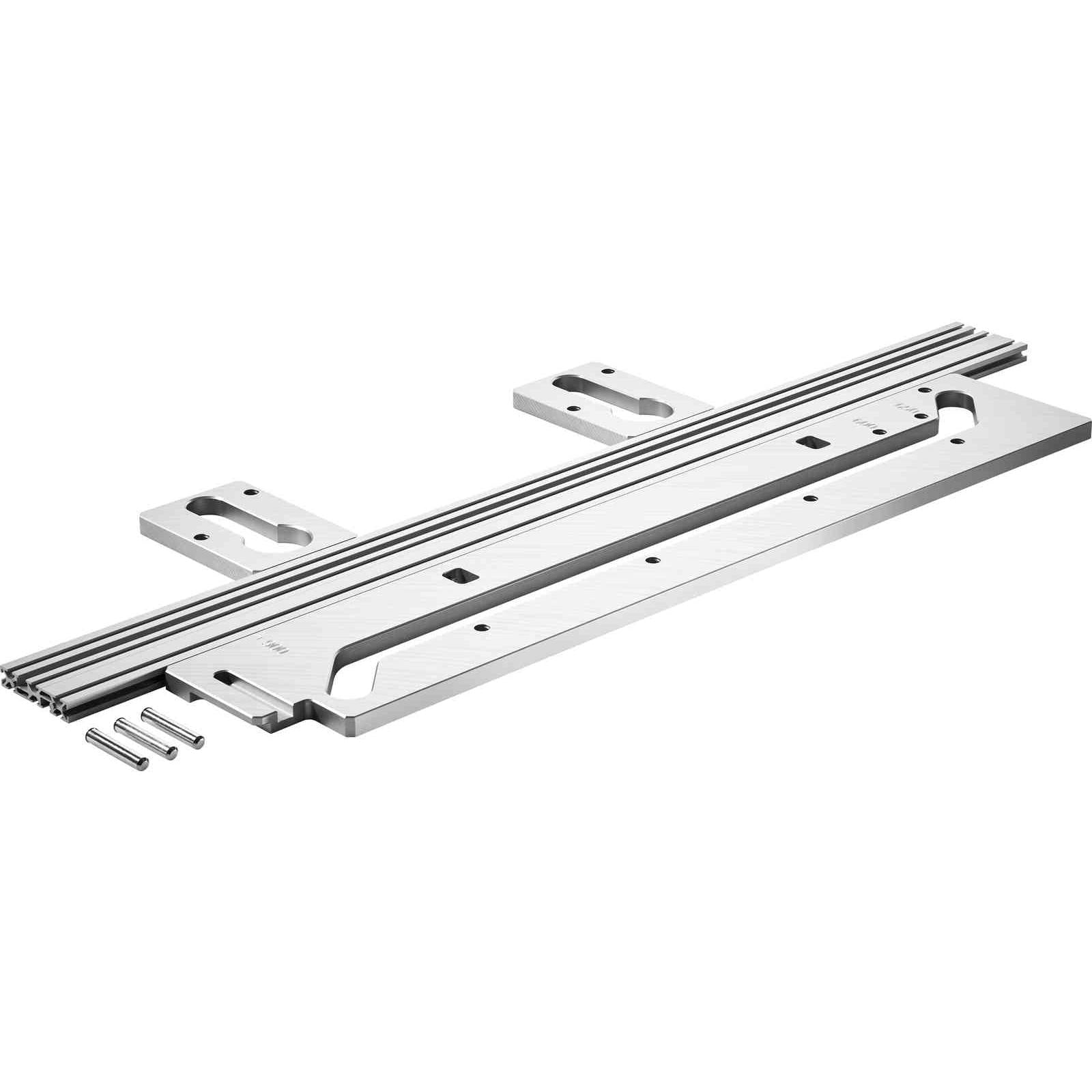

Includes
corner connection template
profile MFS-VP 1000
3x Bolt
Screwdriver
