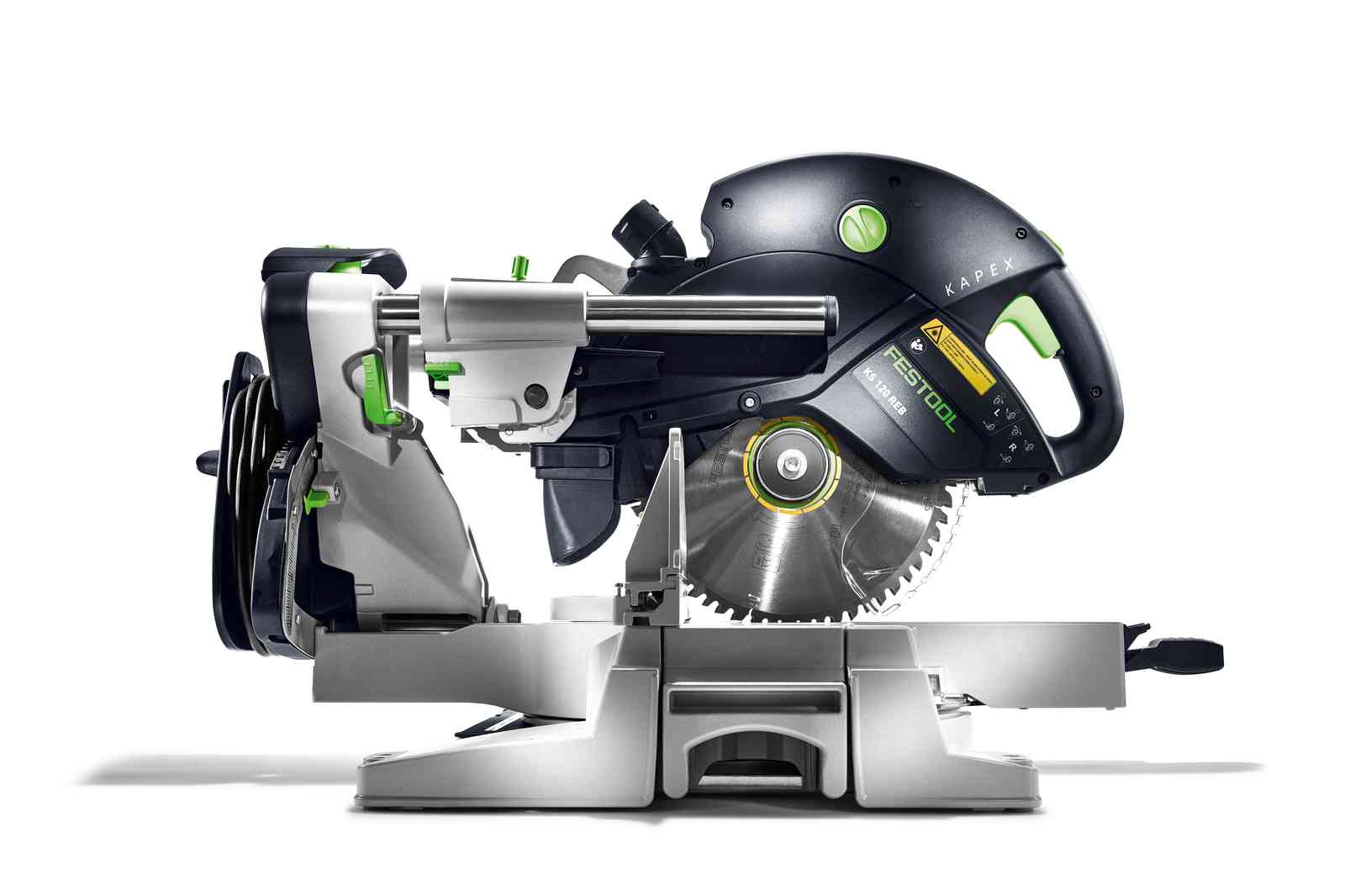

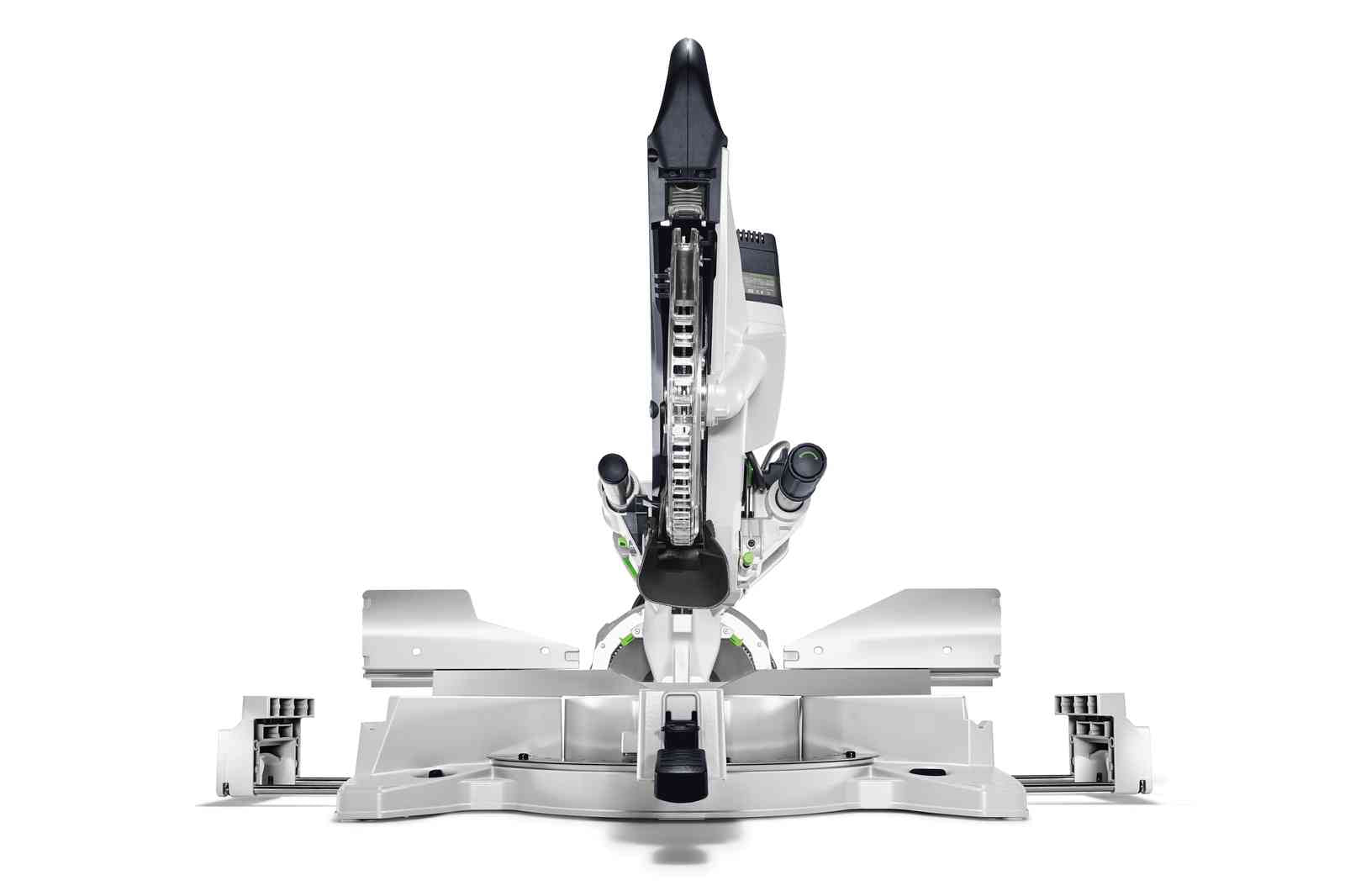

Description
Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

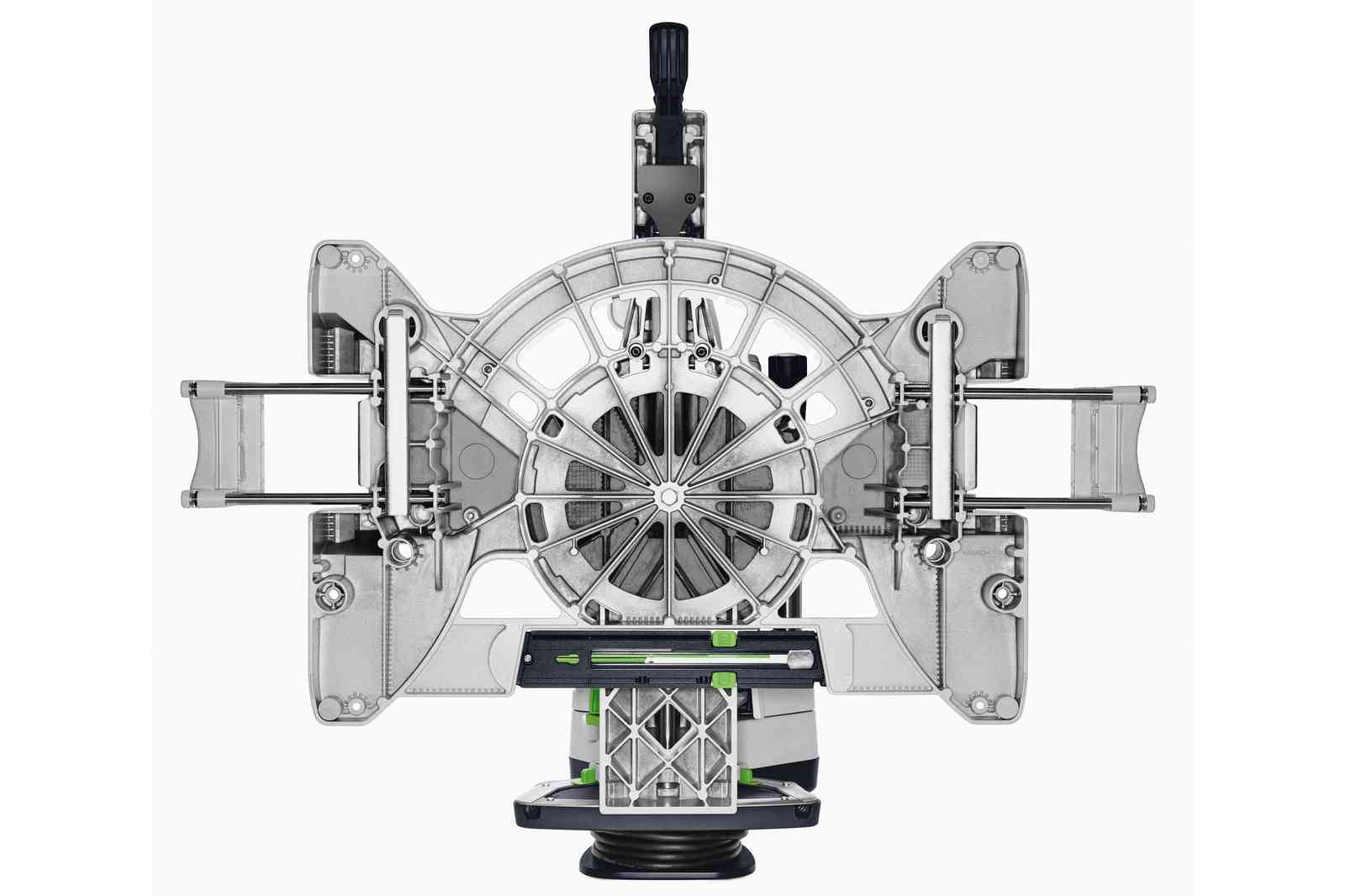

- Twin-column guide with two bearings for unique precision

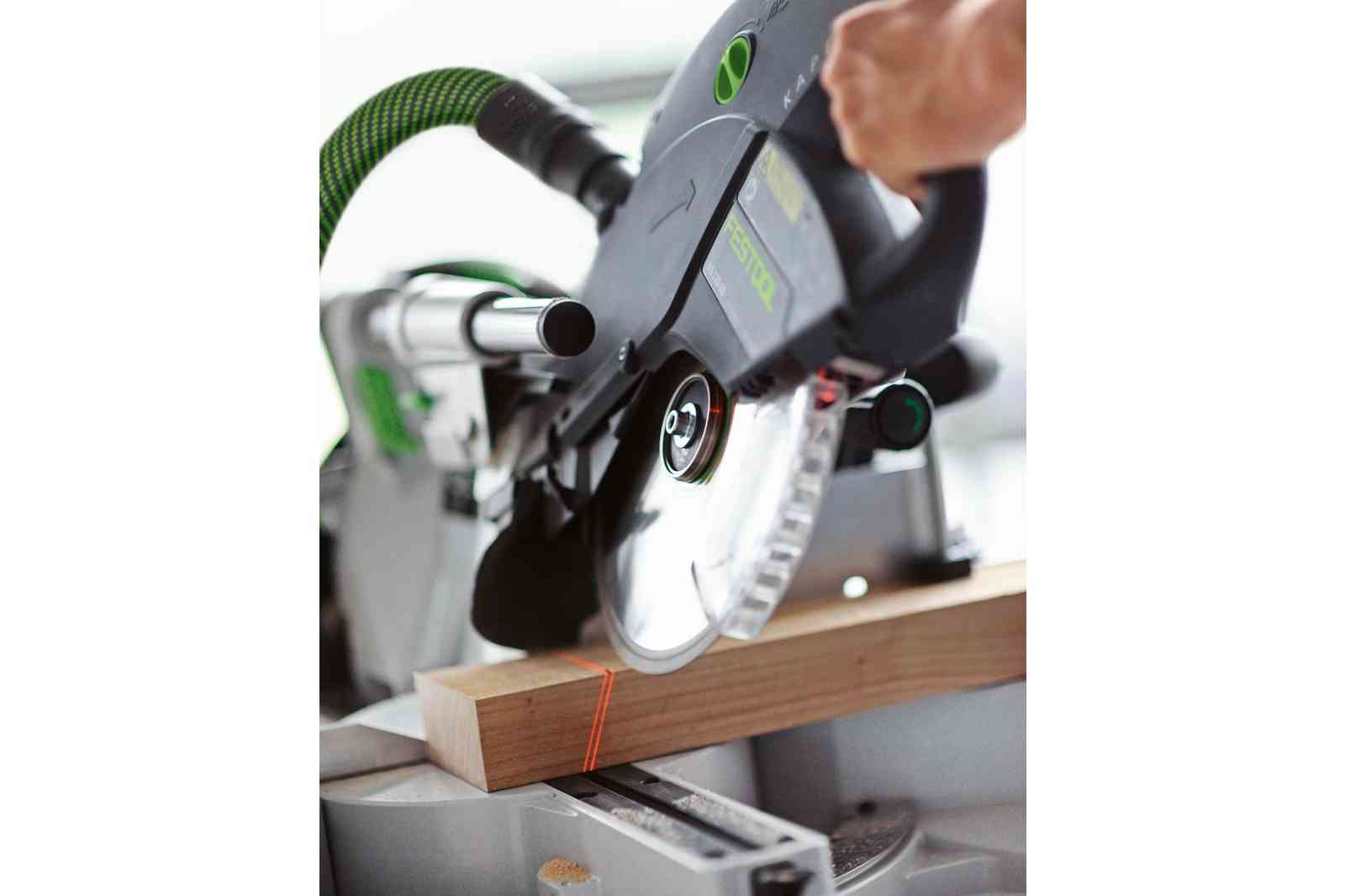

- Dual-line laser for an accurate indication of the cutting line
- Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
- Special cutting position for cutting depths up to 120 mm
- FastFix saw blade changing for adaptation to the working material
- Twin-column guide for accurate cuts

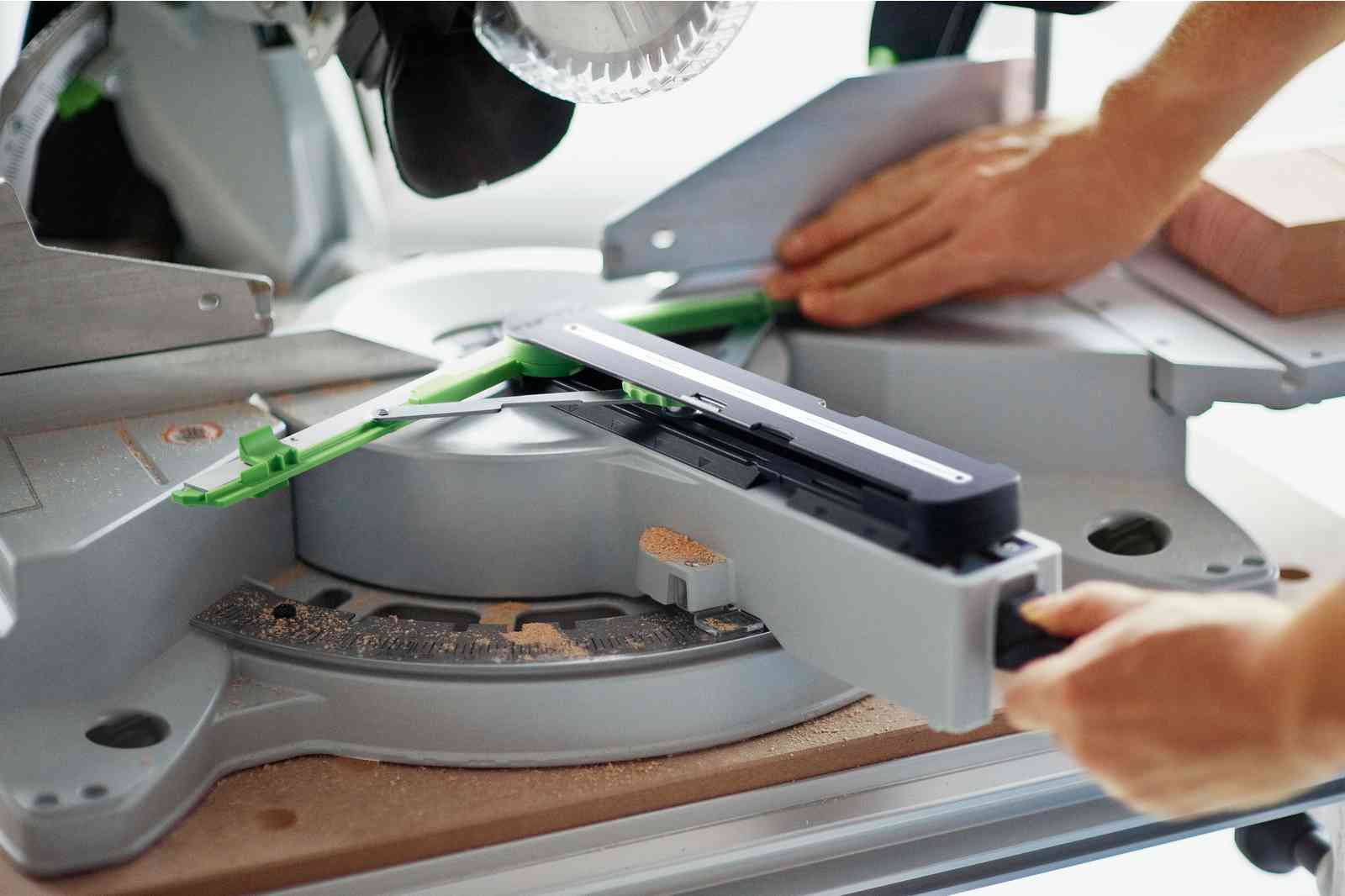

- Precision angle transfer via bevel and dual-line laser
- Compact, lightweight design for convenient transportation
- Safety brake
- (KA-UG-R, KA-UG-L and UG-KAPEX incl. in the contents)
Technical Data
| Power consumption | 1 600 W |
| Idle engine speed |
1 400 - 3 400 min⁻¹
|
| Saw blade diameter | 260.00 mm |
| Cutting depth 90°/90° | 305 x 88 mm |
| Cutting depth at 45°/90° | 215 x 88 mm |
| Special cutting depth 90°/90° | 60 x 120 mm |
| Crown moulding diagonal cut 45°/90° | 168.00 mm |
| Inclination angle | 47/47 ° |
| Mitre angle | 50/60 ° |
| Dimensions (W x D x H) |
713 x 500 x 470 mm
|
| Cable length | 3.50 m |
| Dust extraction connection diameter | 27/36 mm |
| Special cut. depth 45°/90° (left) | 40 x 120 mm |
| Special cutting depth 45°/90° (right) | 20 x 120 mm |
| Cutting depth 50°/90° (left) | 196 x 88 mm |
| Cutting depth 60°/90° (right) | 152 x 88 mm |
| Cutting depth 45°/45° (left) | 215 x 55 mm |
| Cutting depth 45°/45° (right) | 215 x 35 mm |
| Crown moulding diagonal cut at 90°/90° | 168.00 mm |
| Work height | 900.00 mm |
| Product weight without accessories | 24.30 kg |
| Drive type | Mains |
Includes
Saw blade HW 260x2,5x30 W60

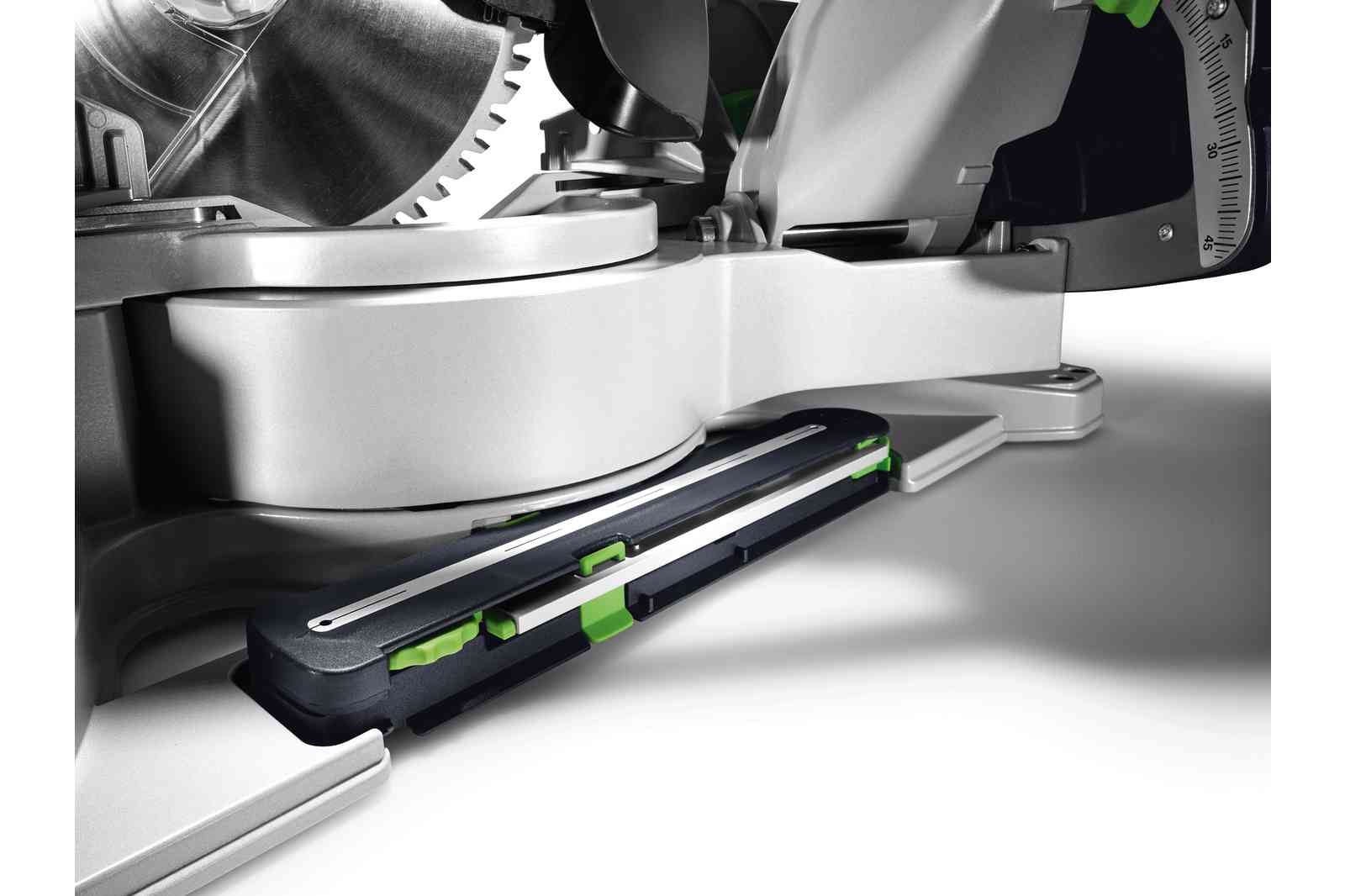

Bevel SM-KS
Terminal KL-KS 120
hex key, WAF 6

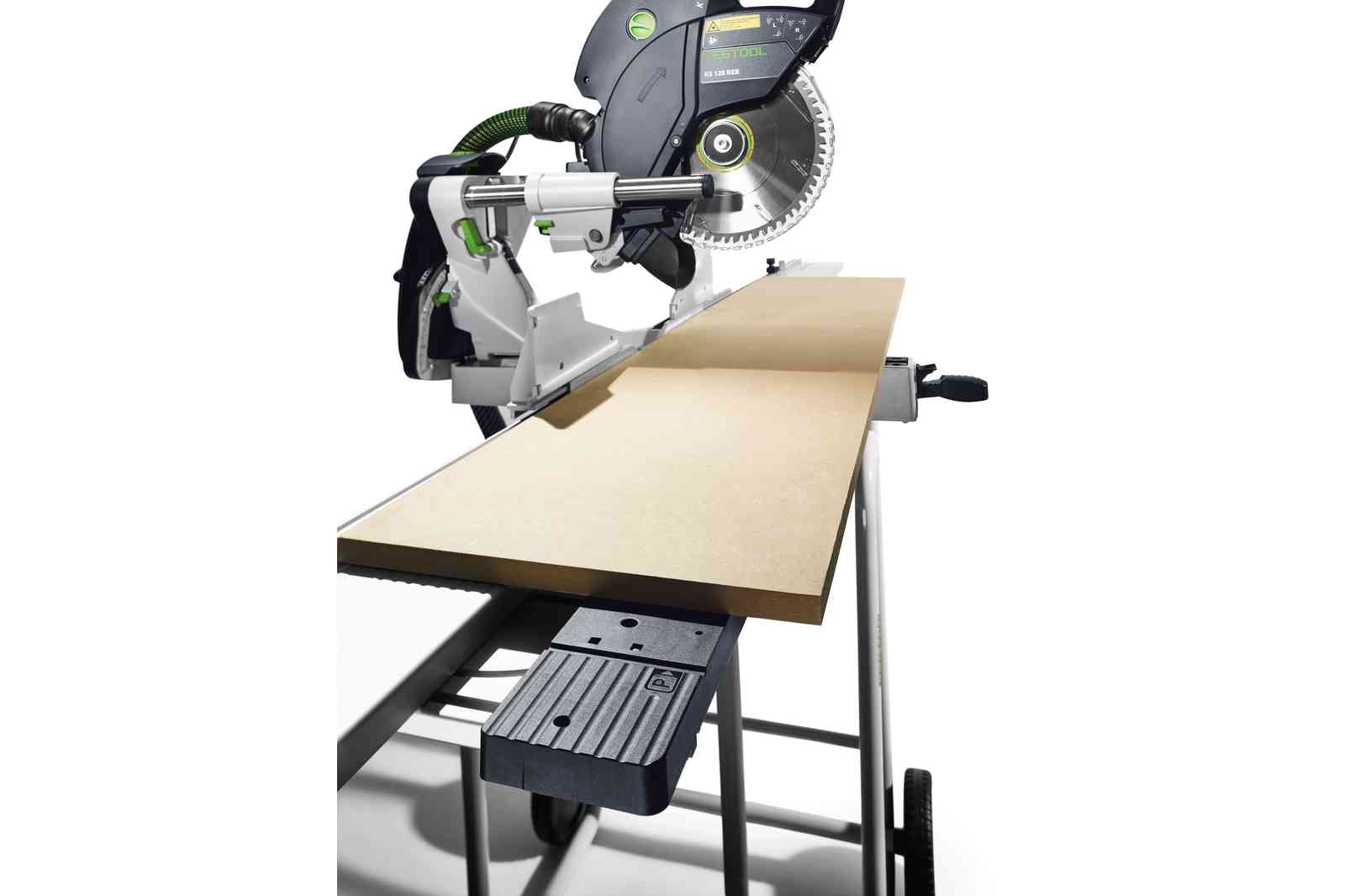

Underframe UG-KAPEX KS 120
Trimming attachment KA-UG-KS 120-R/L
