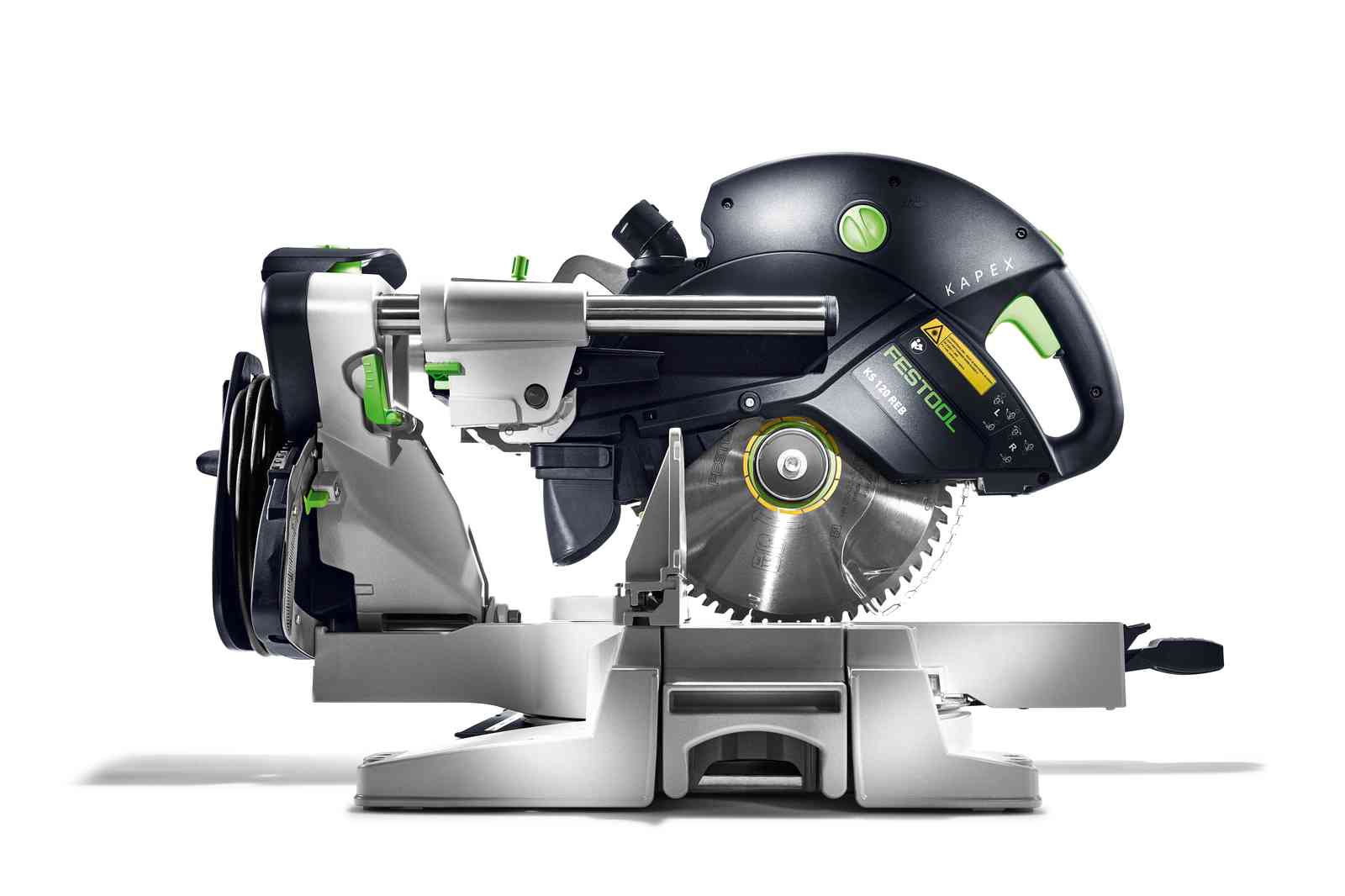

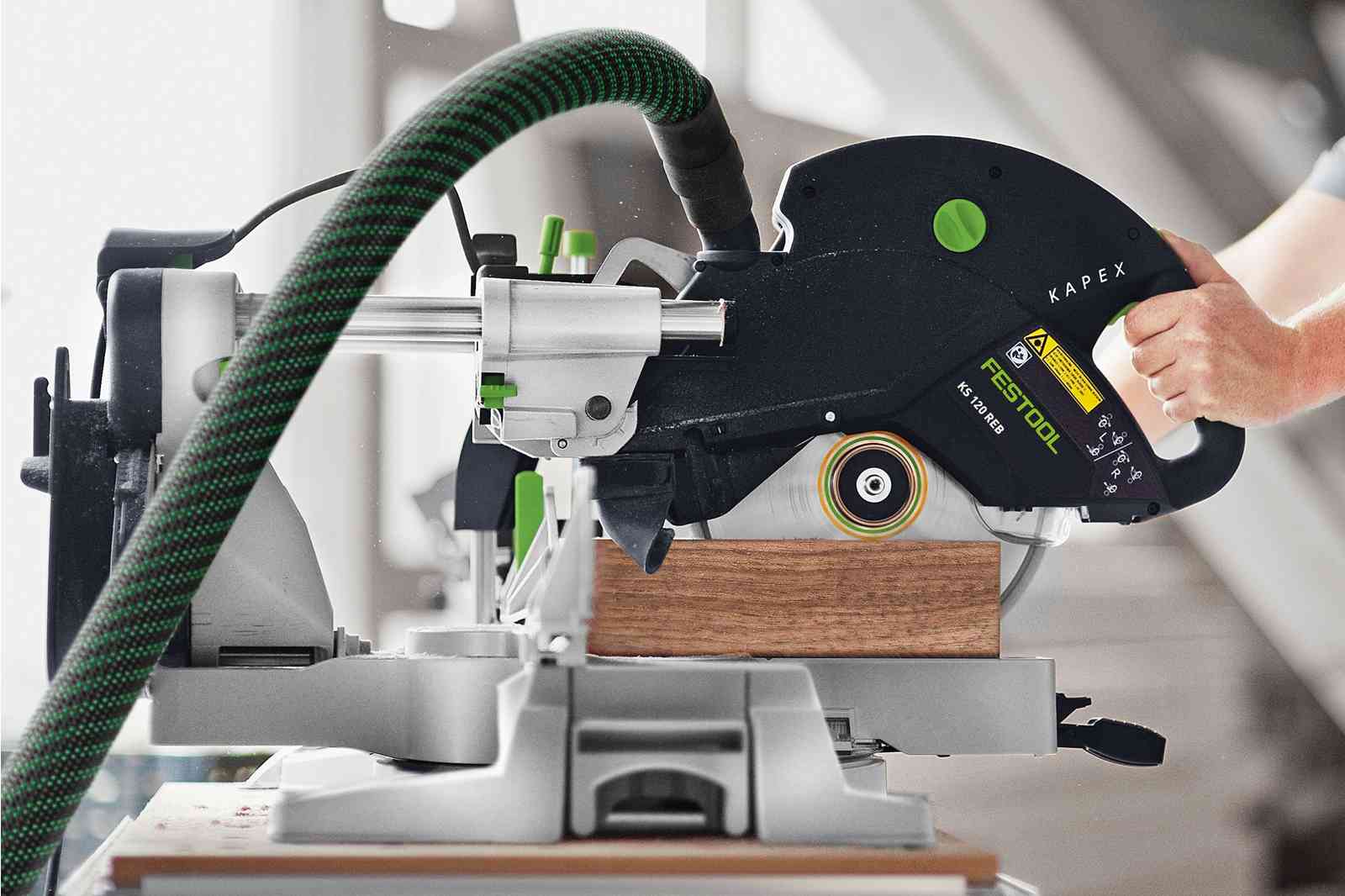

The Festool Sliding compound mitre saw KAPEX KS 120 REB 575302 Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.
- Twin-column guide with two bearings for unique precision
- Dual-line laser for an accurate indication of the cutting line
- Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
- Special cutting position for cutting depths up to 120 mm
- FastFix saw blade changing for adaptation to the working material
- Twin-column guide for accurate cuts
- Precision angle transfer via bevel and dual-line laser
- Compact, lightweight design for convenient transportation
- Safety brake
Maximum precision for the perfect cut
The KS 120 is impressive with its precise cuts thanks to the twin-column guide, powerful cutting capacity of up to 120 mm and light weight of 21.5 kg.

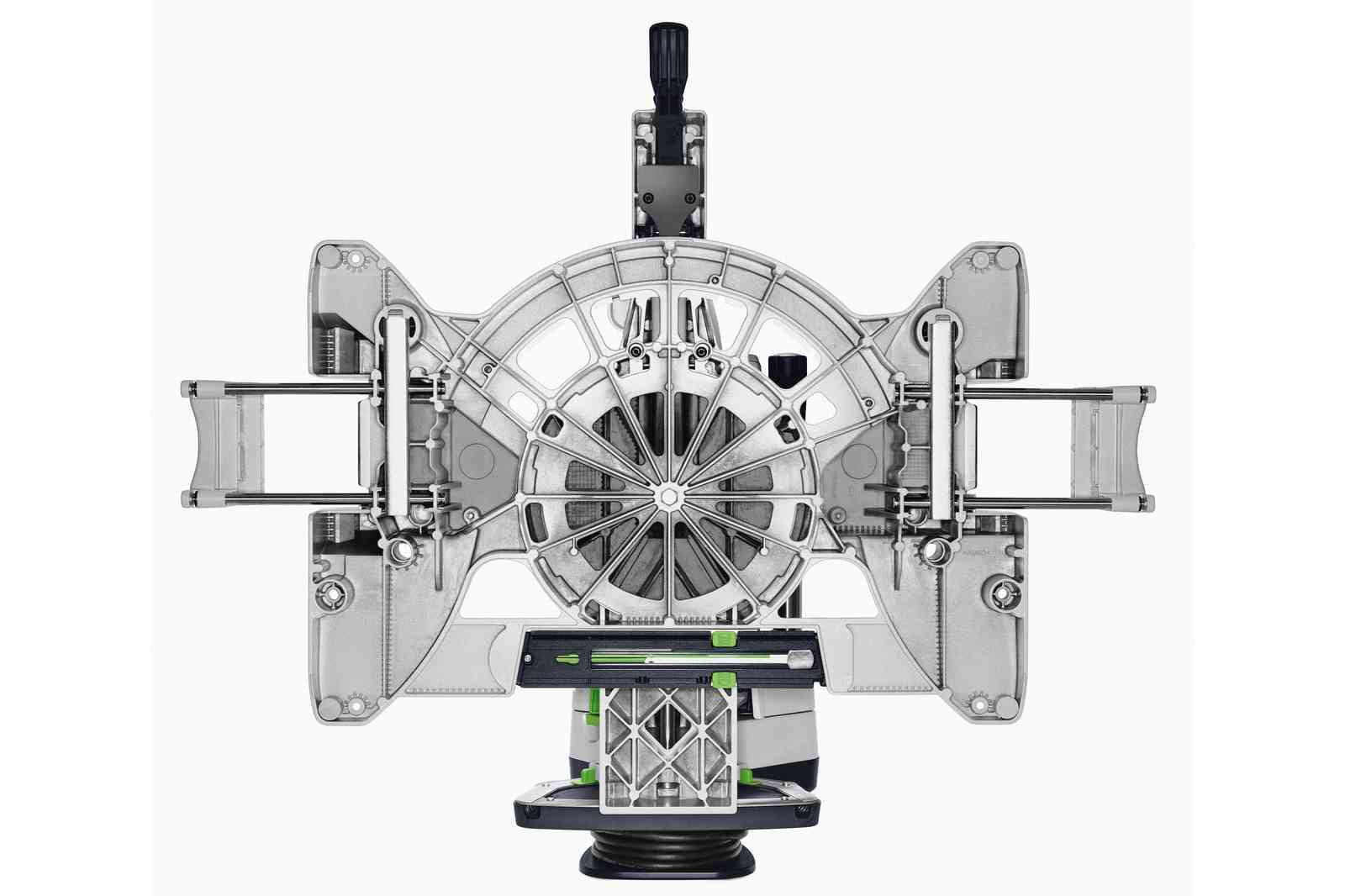

Extra large dimensions with dual ball bearings
The Festool twin-column guide guarantees reliable, smooth guidance of the saw blade and represents maximum precision.
Quality down to the finest detail

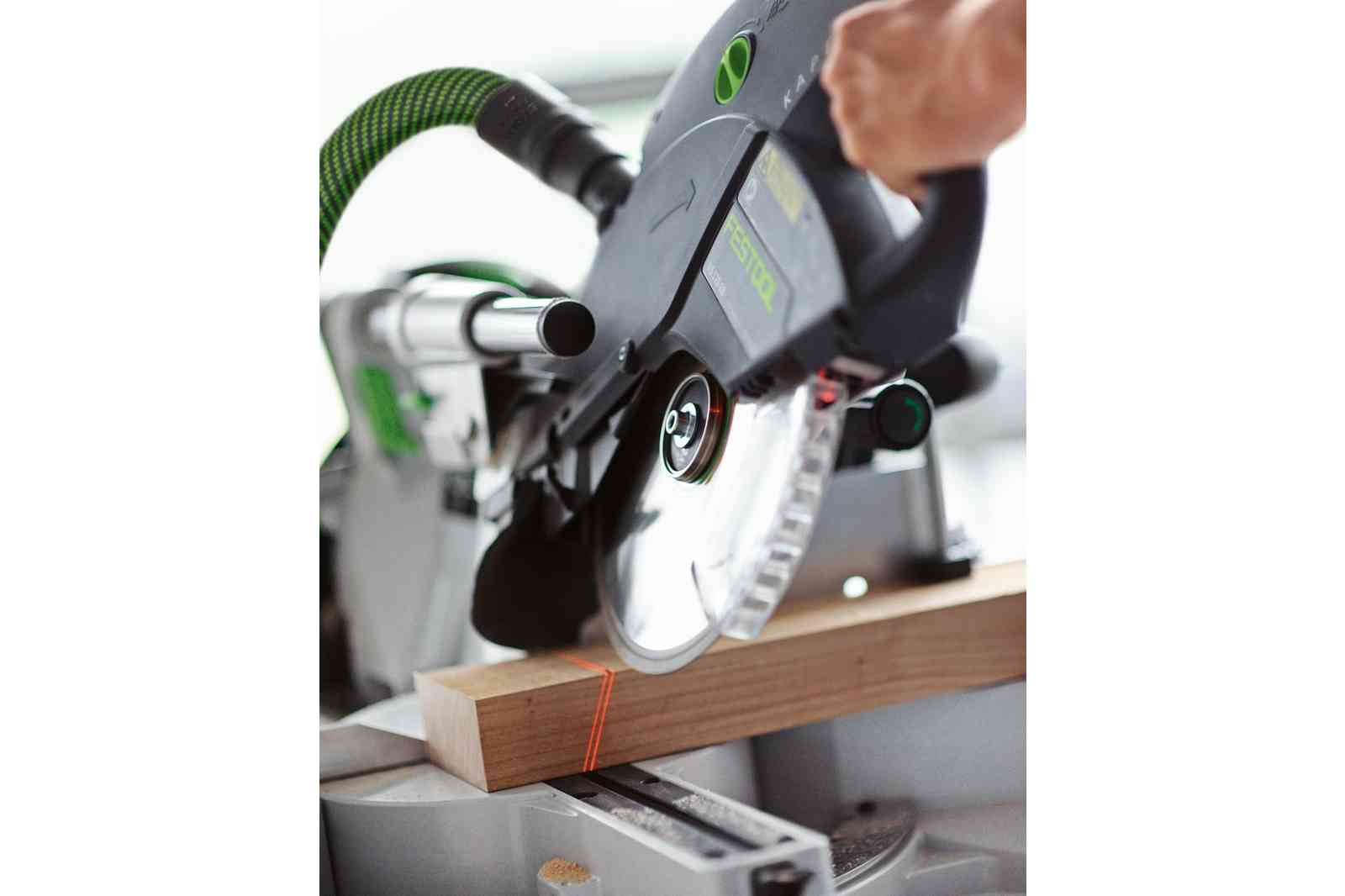

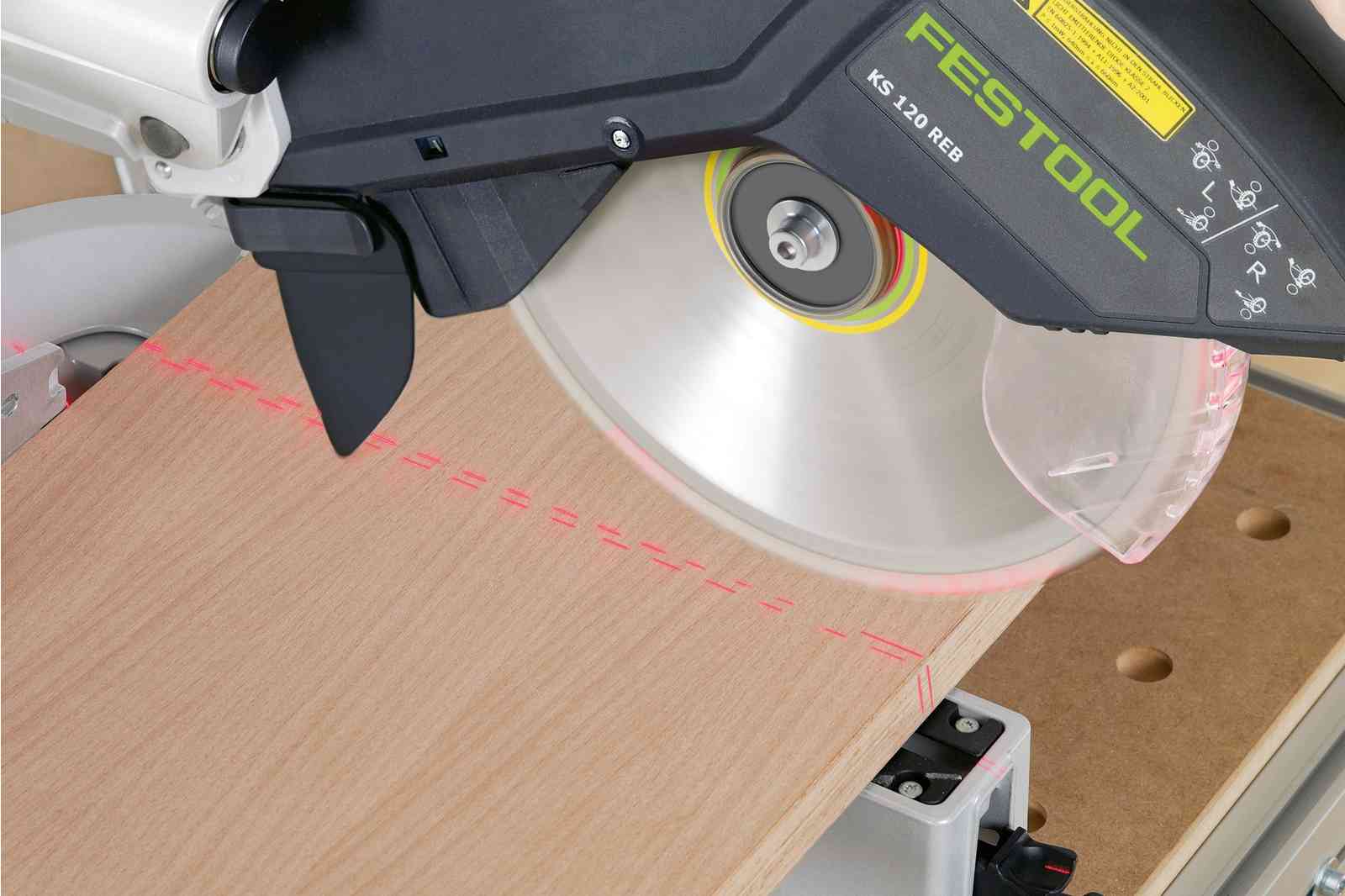

A double laser line precisely marks the saw cut.
Robust and mobile for harsh construction site applications
Ribbing and high-quality cast magnesium increase rigidity while keeping weight to a minimum.
Impressive cutting capacity
The special cutting position of the KS 120 allows you to cut strip material up to 120 mm vertically against the stop or cut coving and cornices in their "original wall position".
MMC electronics for safe working adapted to the material
Variable speed preselection, smooth start-up, overload protection and also with integrated quick-acting brake.
Short set-up times, good results
Always optimally prepared with FastFix for simple and quick replacement of the saw blade.
Even greater comfort
Fine adjustment for setting the saw blade angle accurate to the millimetre. As with all important control elements, it can be adjusted quickly and conveniently from the front of the machine.

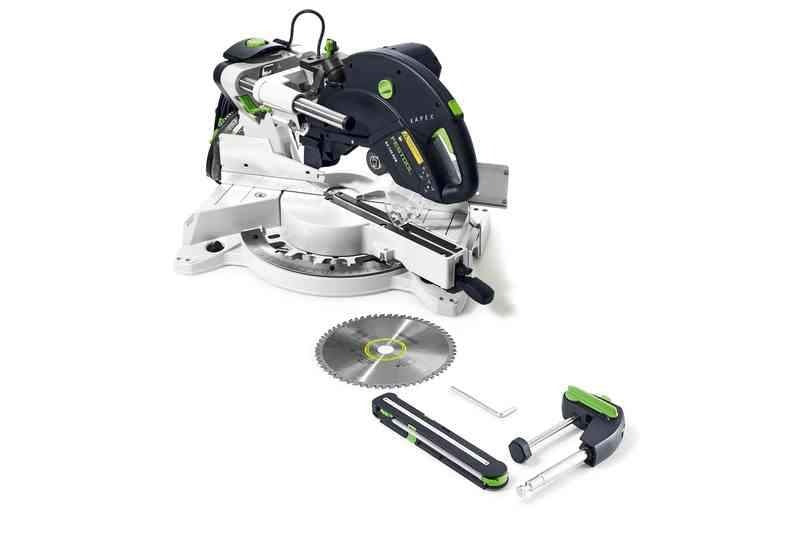

With ergonomic hand grips for left-handed and right-handed users, cord holder, transport safety device, clamp and an extremely compact, lightweight design.
Clear view of the workpiece and a dust-free environment
Extraction system and chip deflector funnel extract the chips from where they are produced.
Saves time and eliminates errors

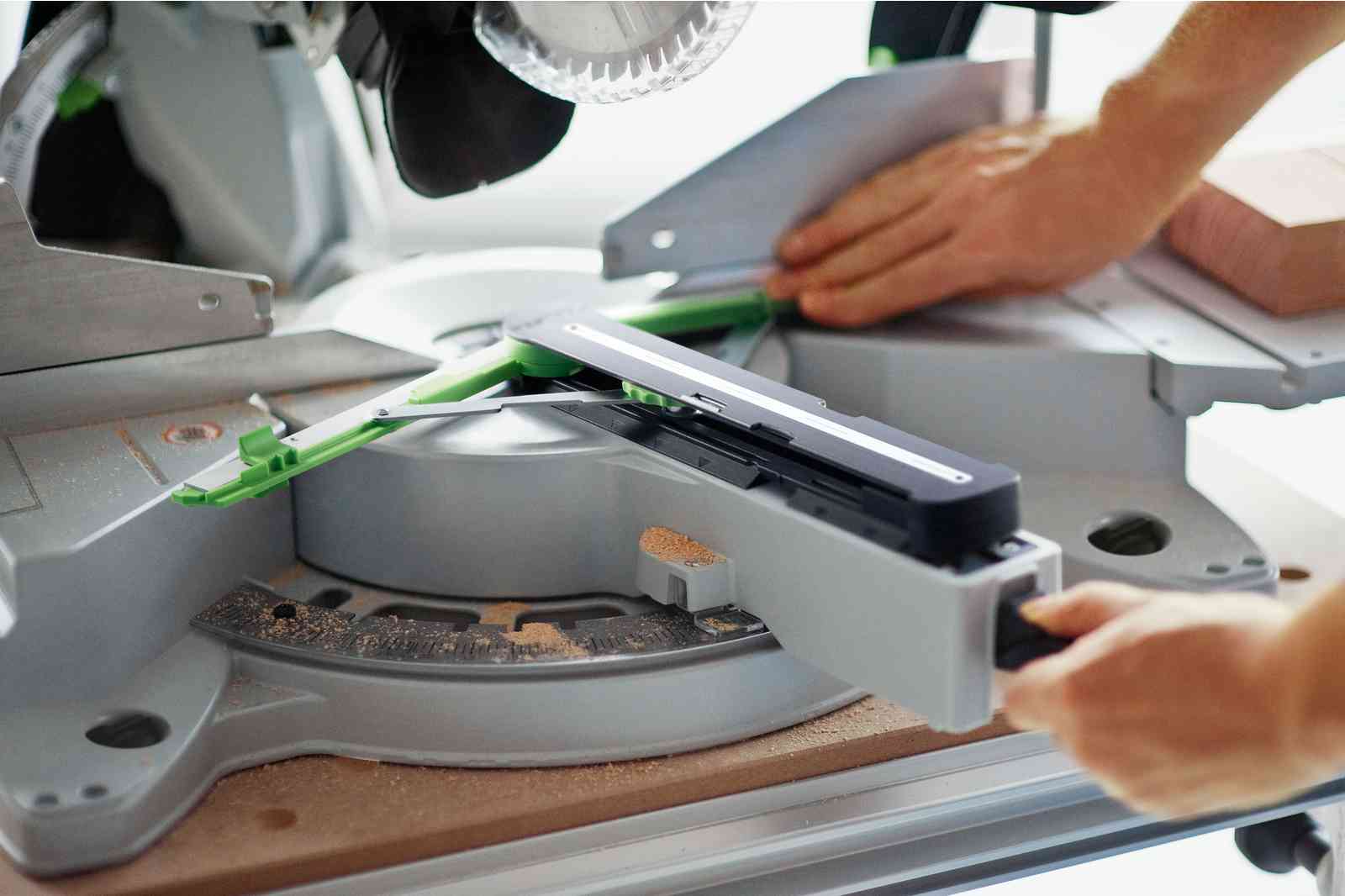

The bevel for rapid measurement of interior and exterior corners and subsequent simple and precise transfer to the saw.
Static and transport frame in one

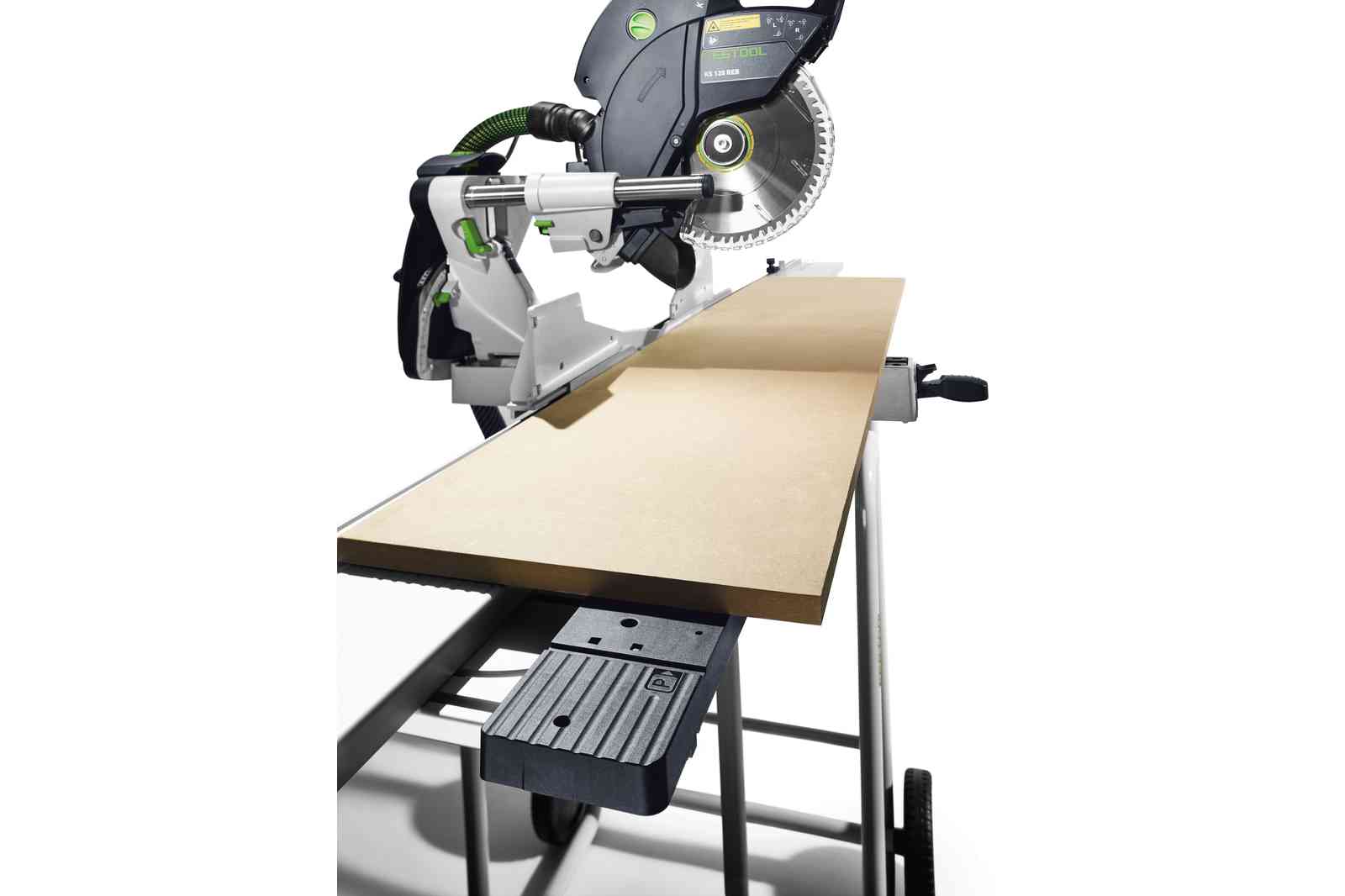

The base frame turns the KAPEX into a mobile unit that can be converted into a sawing station in three hand movements. With a trimming length of 2.40 m (including trimming attachment).
For working when standing
The KAPEX fits perfectly on the perforated top of the MFT 3 Kapex. It is secured in place using the clamping kit.
Also for long workpieces

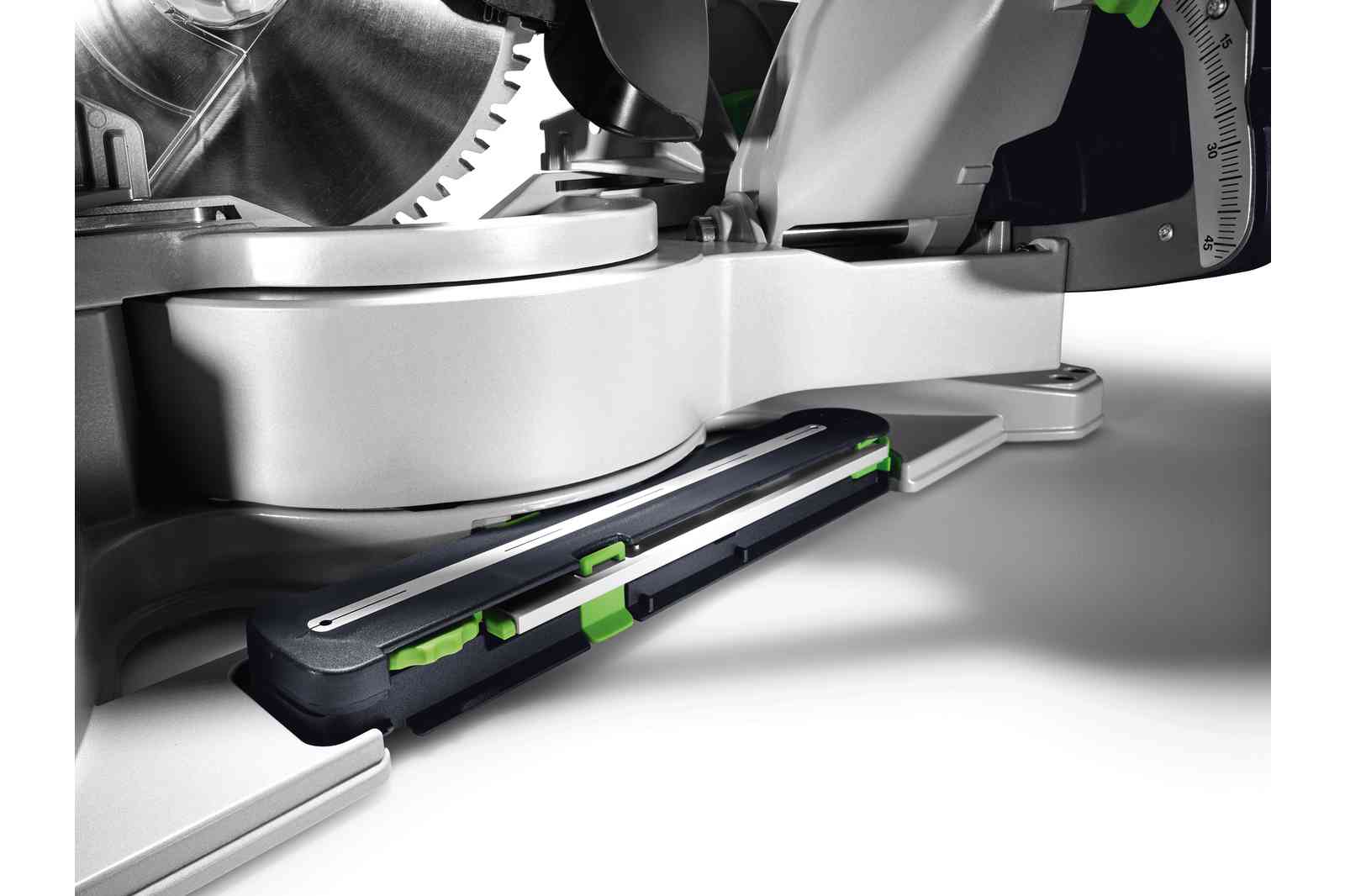

The extension table, which can be pulled out separately, provides reliable and accurate support for long workpieces as well.
Power consumption 1 600 W
Idle engine speed 1 400 - 3 400 min⁻¹
Saw blade diameter 260,00 mm
Cutting depth 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168,00 mm
Inclination angle 47/47 °
Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Weight 23,10 kg
Dust extraction connection dia. 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168,00 mm
Work height 900,00 mm
Drive type Mains
