Description

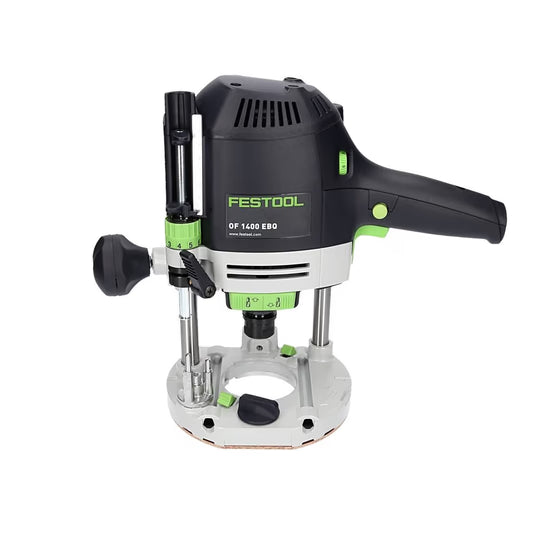

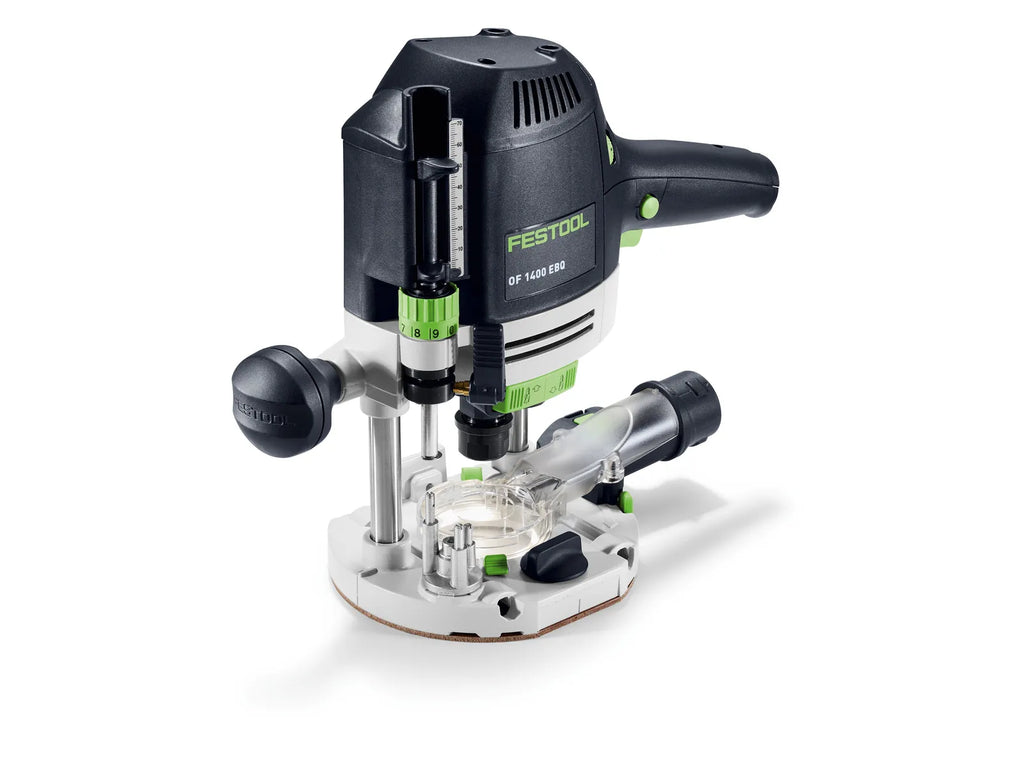

he handy multi-talent: The OF 1400 router weighs just 4.5 kg – one of the lowest machine weights in its class. The 70 mm routing stroke is impressive when making recesses for fittings or routing with templates. It also has a comprehensive set of equipment that enables it to master virtually any routing task.
Technical Data
| Power consumption | 1 400 W |
| Idle engine speed |
10 000 - 22 500 min
|
| Collet diameter | 6 - 12.7 mm |
| Routing stroke | 70,00 mm |
| Routing depth fine adjustment range | 8,00 mm |
| Bench opening | 63,00 mm |
| Dust extraction connection diameter | 27/36 mm |
| Weight | 4,30 kg |
| Drive type | Mains |

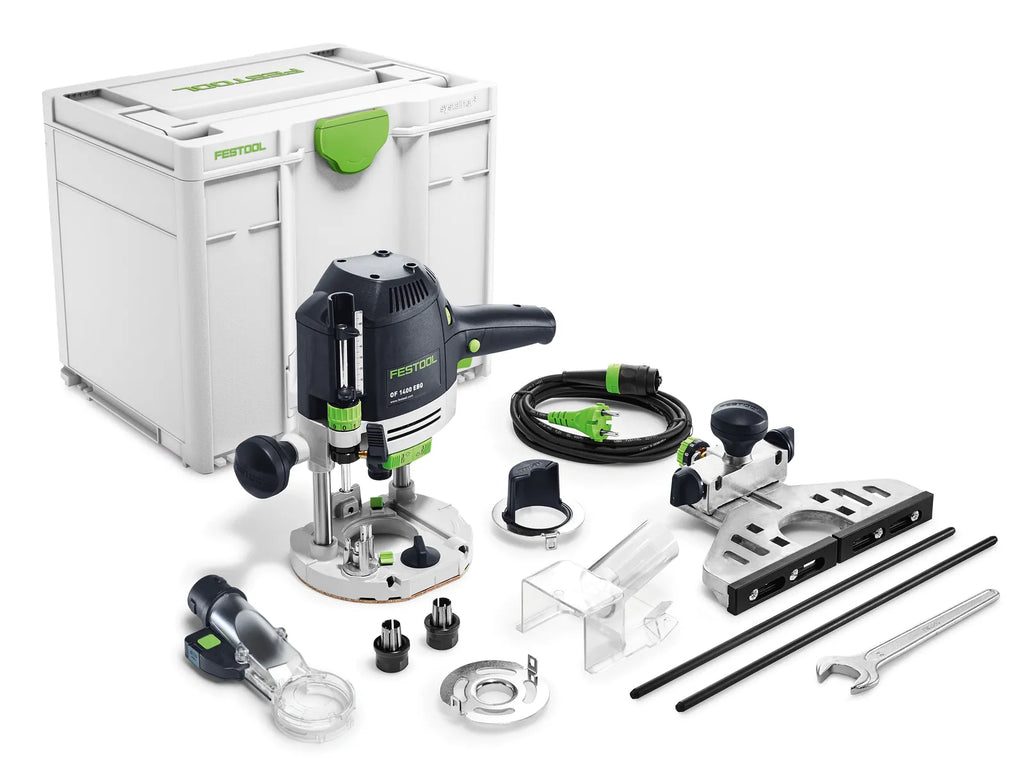

Includes
- Extraction bonnet with light module LM-OF 1400
- Collet SZ-D 8,0/OF 1400/2000/2200
- Collet SZ-D 12,0/OF 1400/2000/2200
- Parallel side fence SA-OF 1400
- Copying ring KR-D 30,0/OF 1400
- extraction hood, top
- Chip deflector KSF-OF 1400
- open ended spanner, WAF 24
- plug it-cable H05 RN-F-4
- Systainer³ SYS3 M 337
