Description

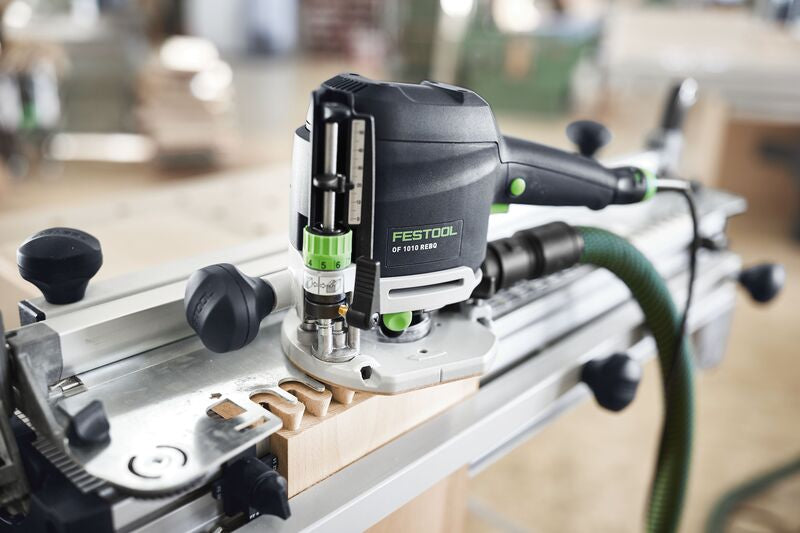

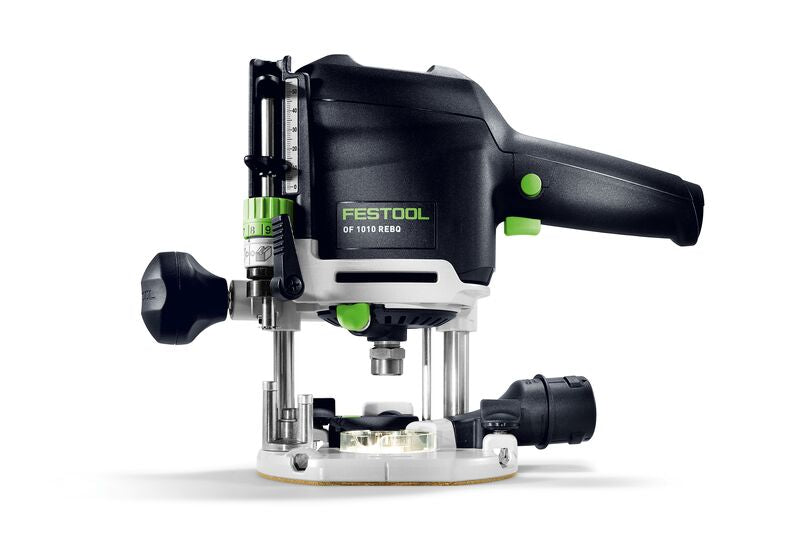

The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel side fence can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The ring provides shadow free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.
- Handy: Thanks to the compact design and low weight.
- Unobstructed view: Clearly visible routing area.
- Well lit: Thanks to the rechargeable LED work light in the base panel.
- In an instant: Quick and easy cutter changes.
- Precise: Simple routing depth adjustment, accurate to 1/10 mm.
- Steady: Torsionally rigid router table due to guide columns on both sides.

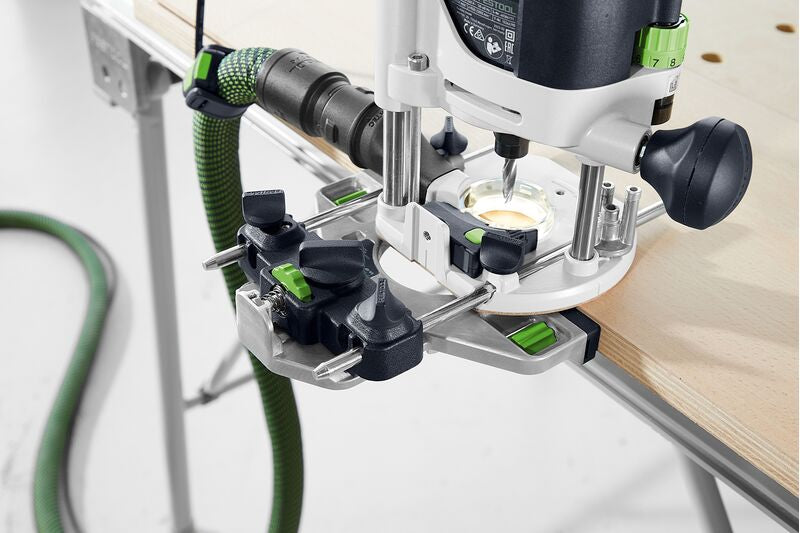

- Parallel side fence: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool free adjustable guidance jaws.
- Safer: Thanks to quick-acting brake and restart protection.
- Material specific: MMC electronics for optimal work and temperature monitoring.
- Integrated: Chip extraction system directly integrated into the router table for D 27 and D 36 hose diameters.
Technical Data
Power consumption | 1 010 W |
Idle engine speed |
9 500 - 23 000 min⁻¹
|
Collet dia. | 6 - 8 mm |
Routing stroke | 55.00 mm |
Routing depth fine adjustment range | 8.00 mm |
Bench opening | 50.00 mm |
Dust extraction connection diameter | 27/36 mm |
Cable length | 4.00 m |
Product weight without accessories | 3.20 kg |
Drive type | Mains |
Includes
- Parallel side fence SA-OF 1010/MFK
- Light module LM-OF 1010 R
- Collet SZ-D 8/OF 1010
- open ended spanner, WAF 19
- plug it-cable H05 RN-F-4
- Systainer³ SYS3 M 237
