Description

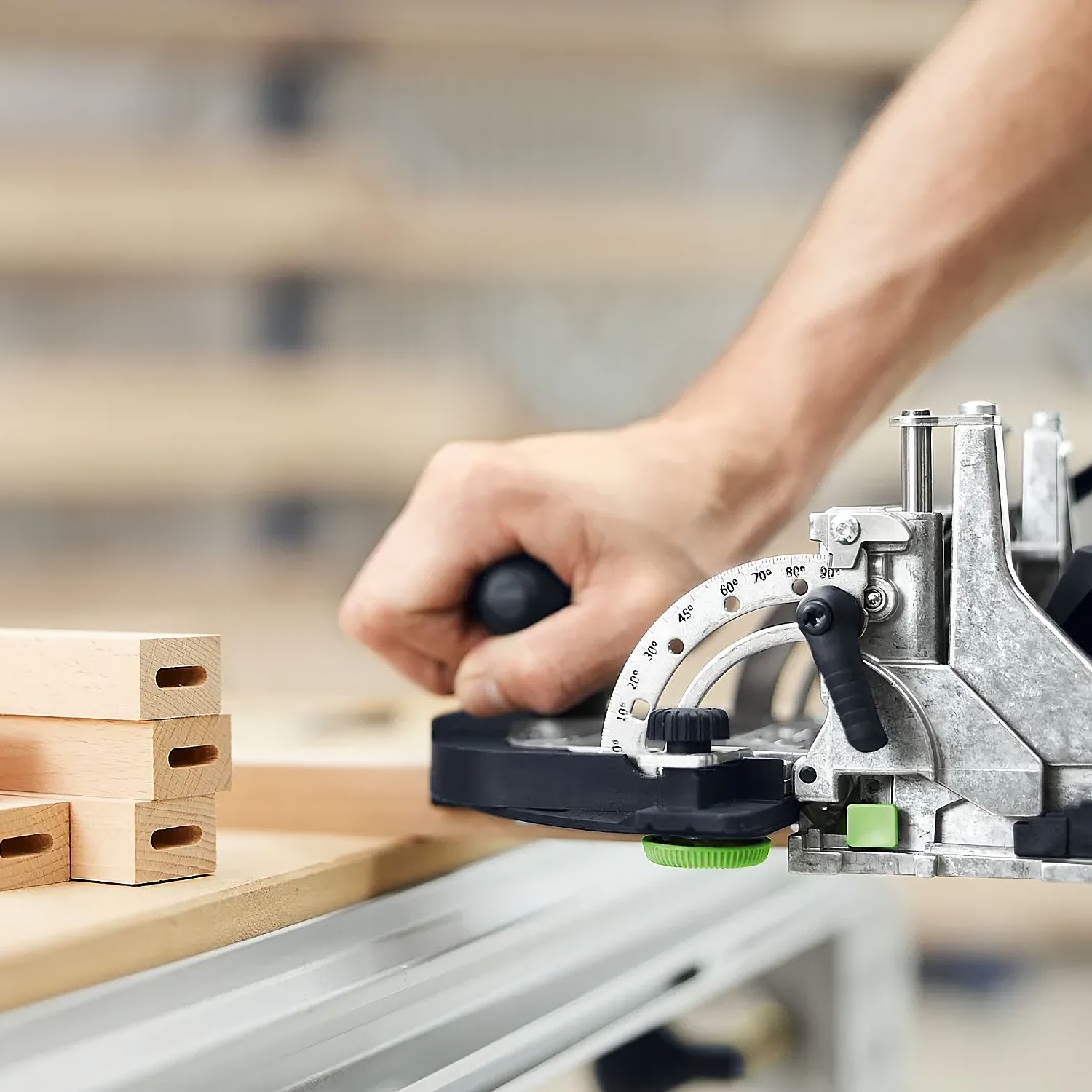

The DOMINO jointing system brings every wood joint's perks together, making your woodworking projects precise, quick, and easy. The unique pendulum routing action of the DOMINO joining machine carves out accurate elongated holes while the DOMINO dowel offers the strength of slot and mortise joints with the flexibility of flat dowels. Ideal for both delicate and hefty workpieces, whether inside or out.
- Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
- Quick and easy: Built-in stop pins for repeating dowel placement.
- Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
- Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.
- Sorted: The routing depths are just right for the dowel lengths and panel materials.
- Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
- System: Accessories are a perfect fit for the whole DOMINO system.
Technical Data
| Power consumption: | 420 W |
| Idle engine speed: | 25 500 min⁻¹ |
| Depth stop for routing depth: | 12, 15, 20, 25, 28 mm |
| Max. routing depth: | 28.00 mm |
| DOMINO groove cutter diameter: | 4, 5, 6, 8, 10 mm |
| Routing height adjustment: | 5 - 30 mm |
| Mitre routing: | 0 - 90 ° |
| Dust extraction connection diameter: | 27 mm |
| Cable length: | 4.00 m |
| Drive type: | Mains |
| Product weight without accessories: | 3.60 kg |
| Transport weight incl. accessories: | 6.10 kg |

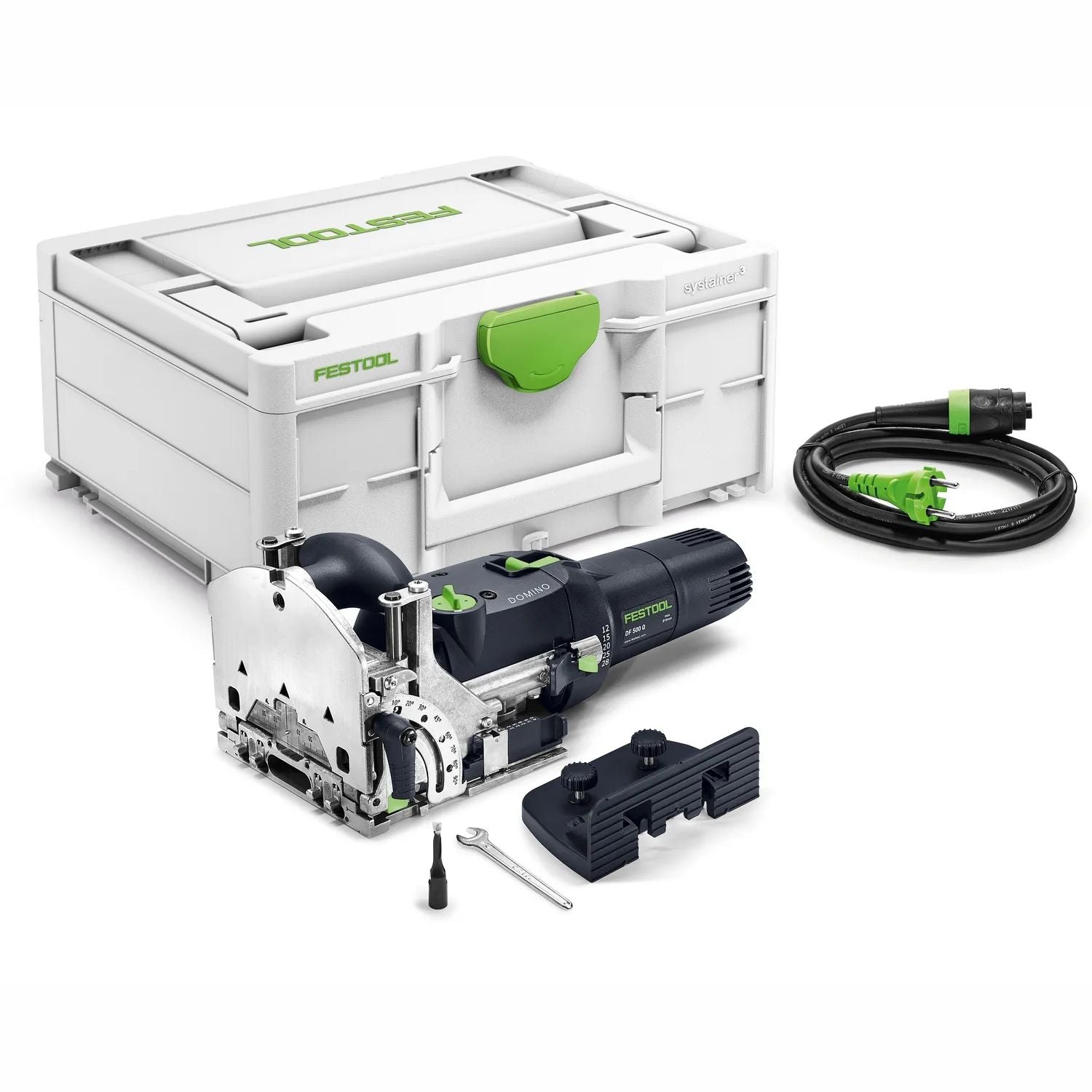

Includes

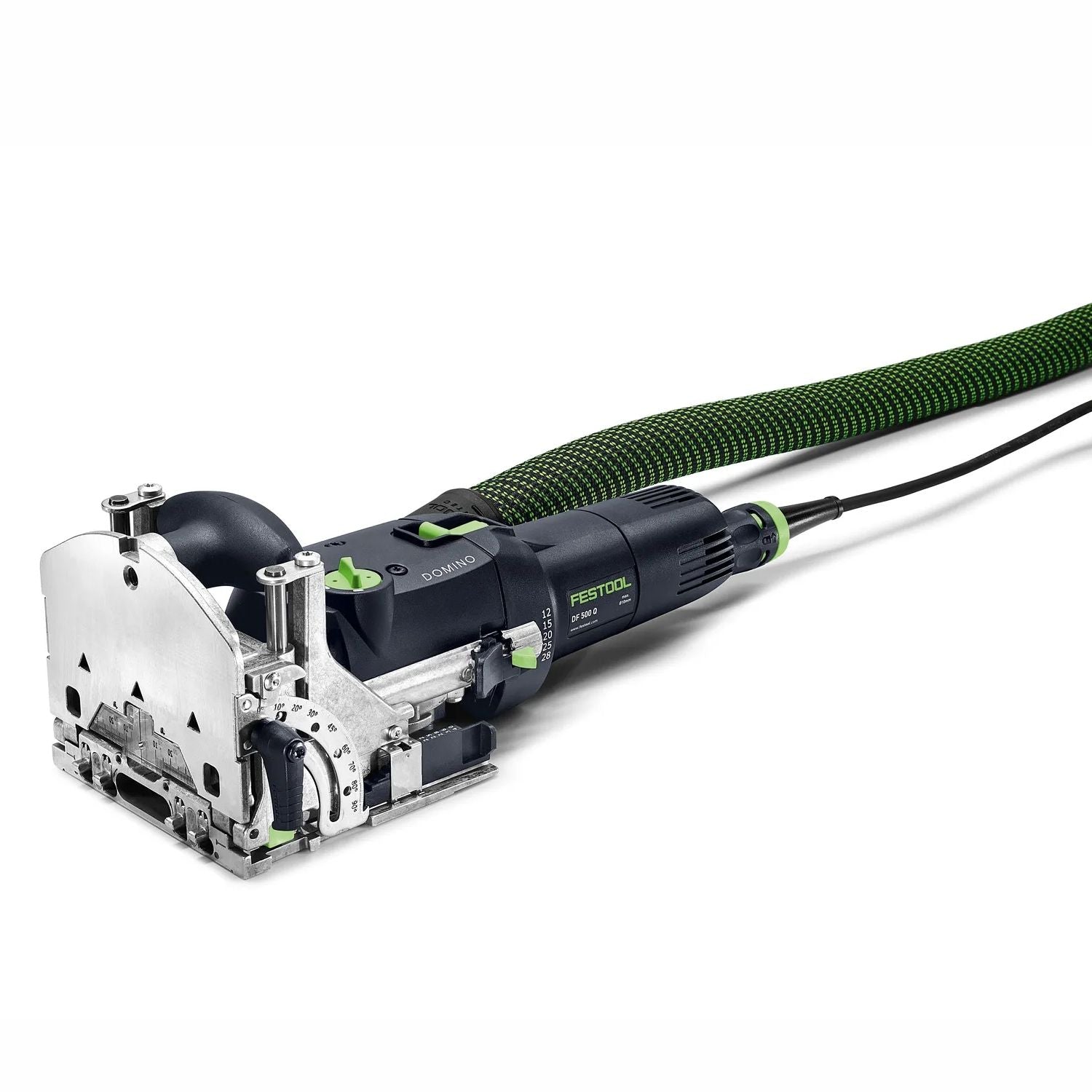

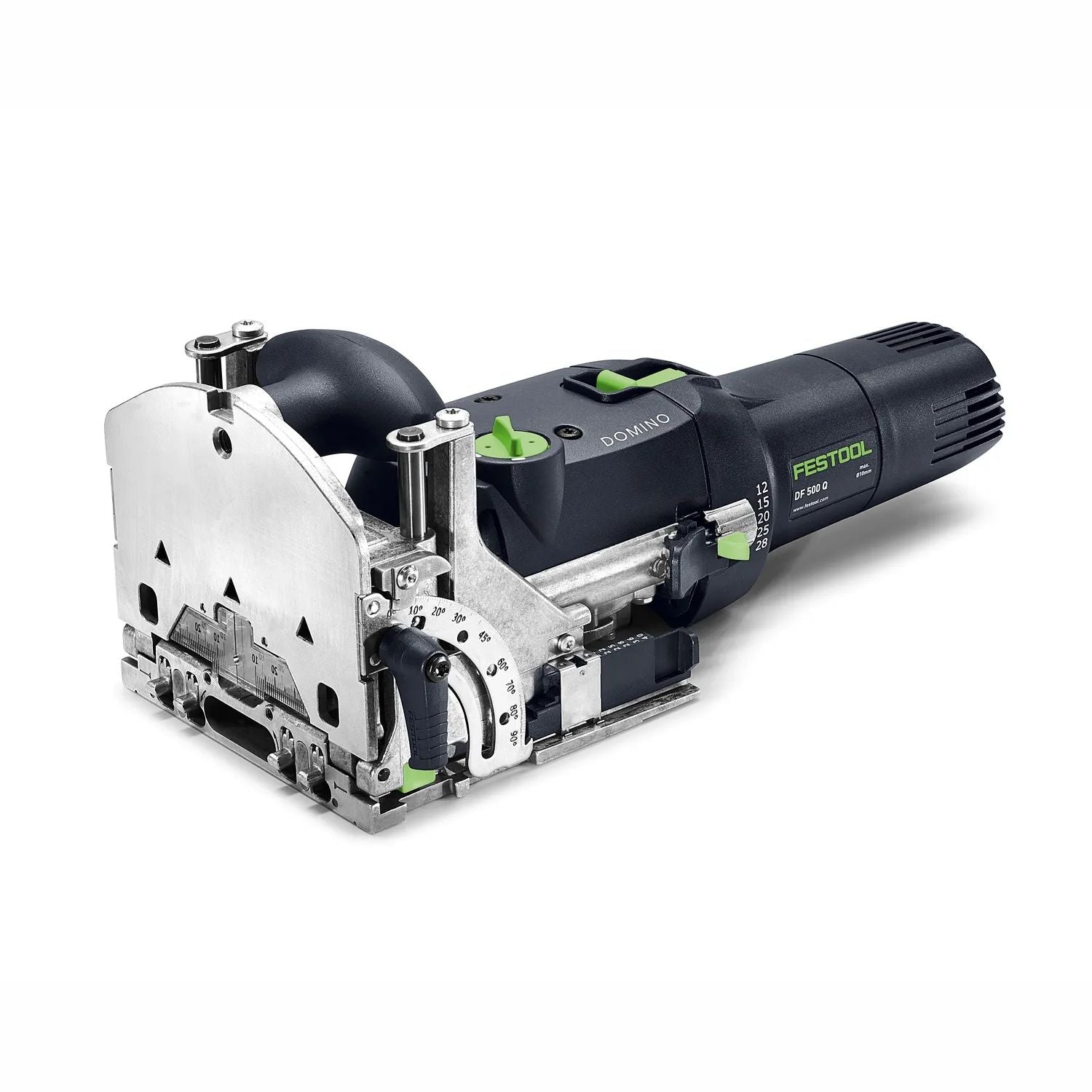

- 1x DF 500 RQ-Plus joining machine
- 1x DOMINO router (D 5-NL 20 HW-DF 500)
- 1x Additional stop (ZA-DF 500/700)
- 1x Open ended spanner, WAF 8
- 1x Plug it-cable (H05 RN-F-4)
- 1x Systainer³ (SYS3 M 187)
