Description

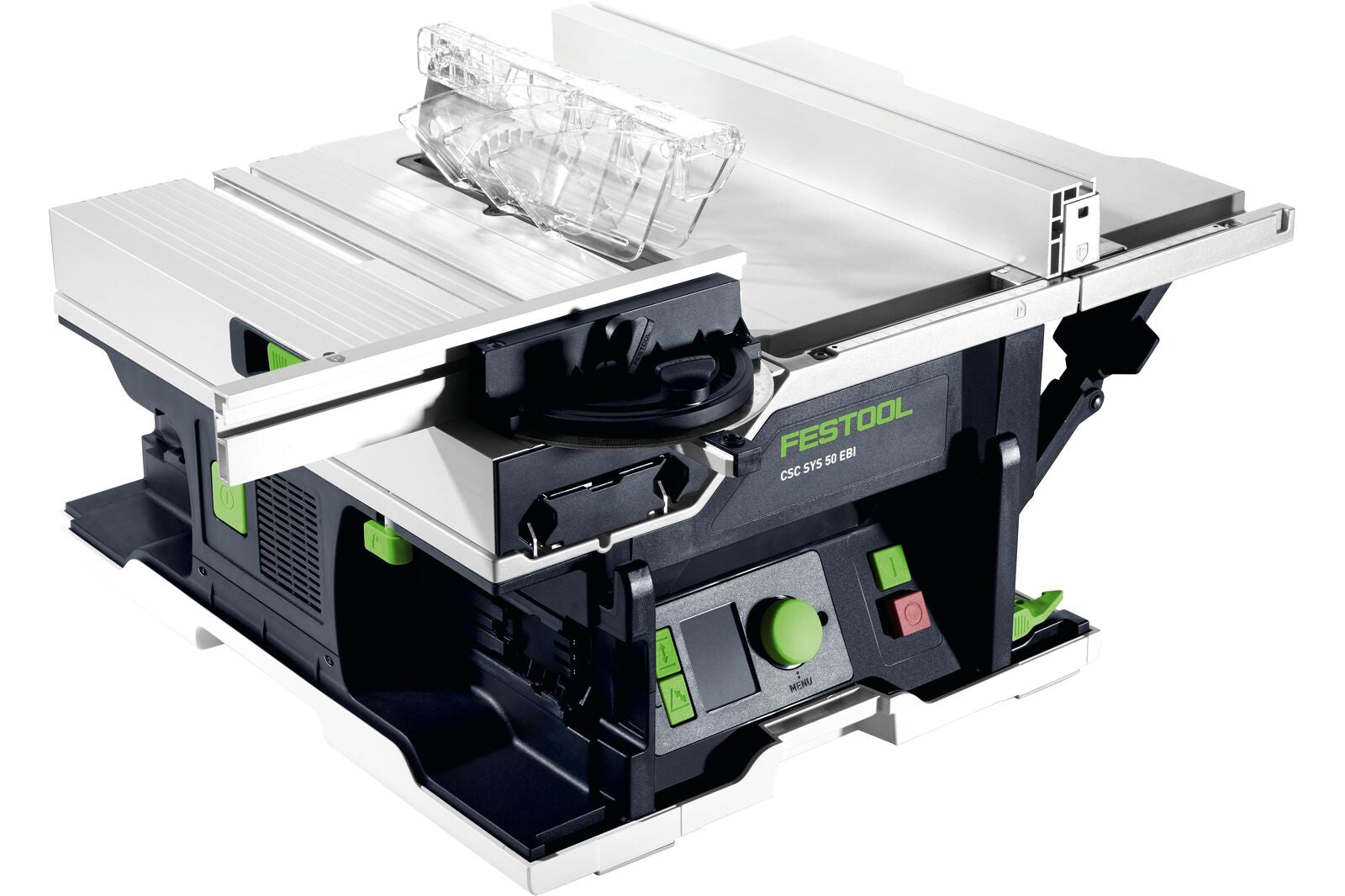

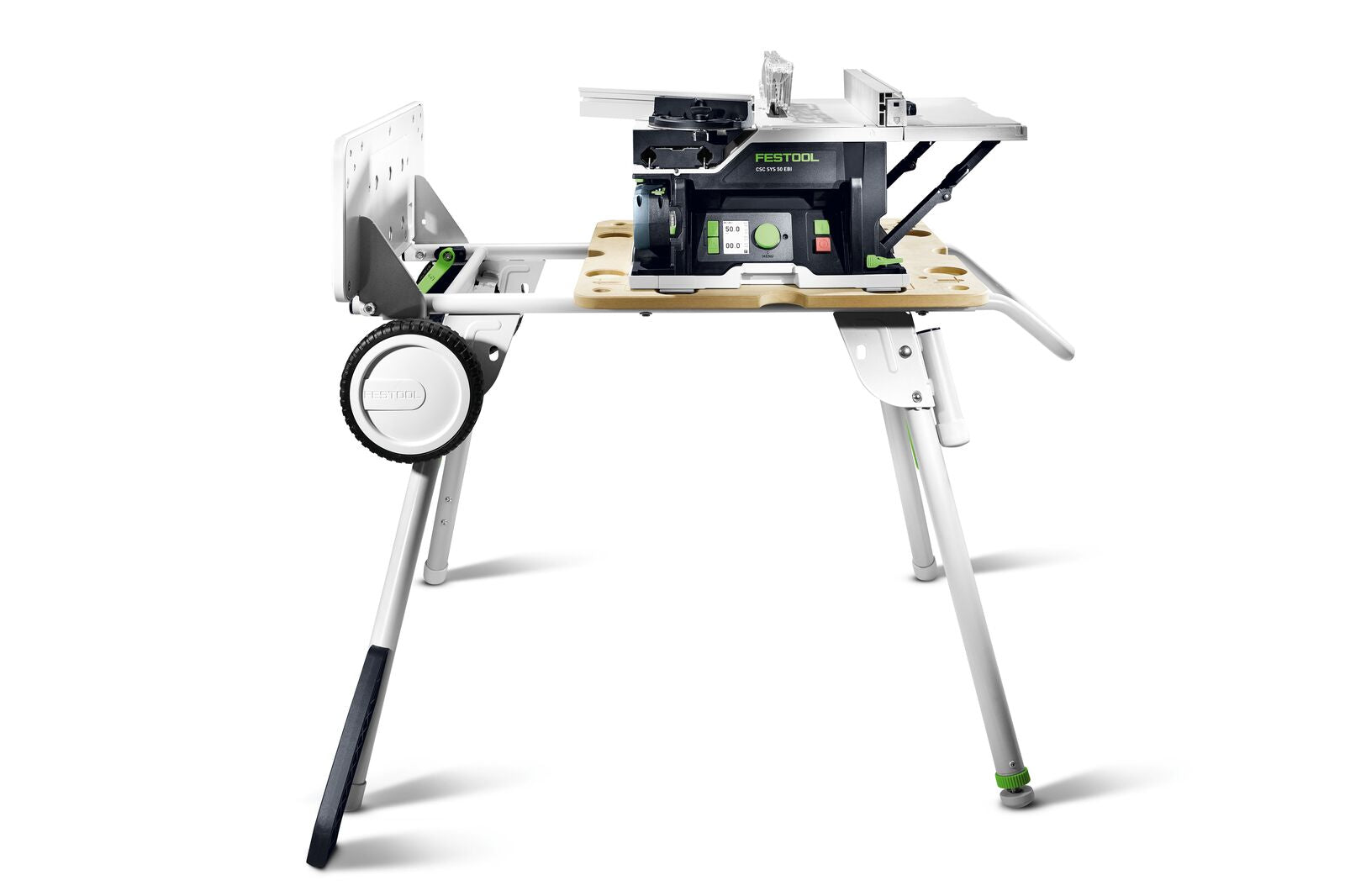

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre. The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with mains-powered machines. Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.
- Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
- Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
- Angled cuts from -2° to 47° (-10° possible in the event of a restricted cutting depth of 21–32 mm) thanks to tilting saw blade

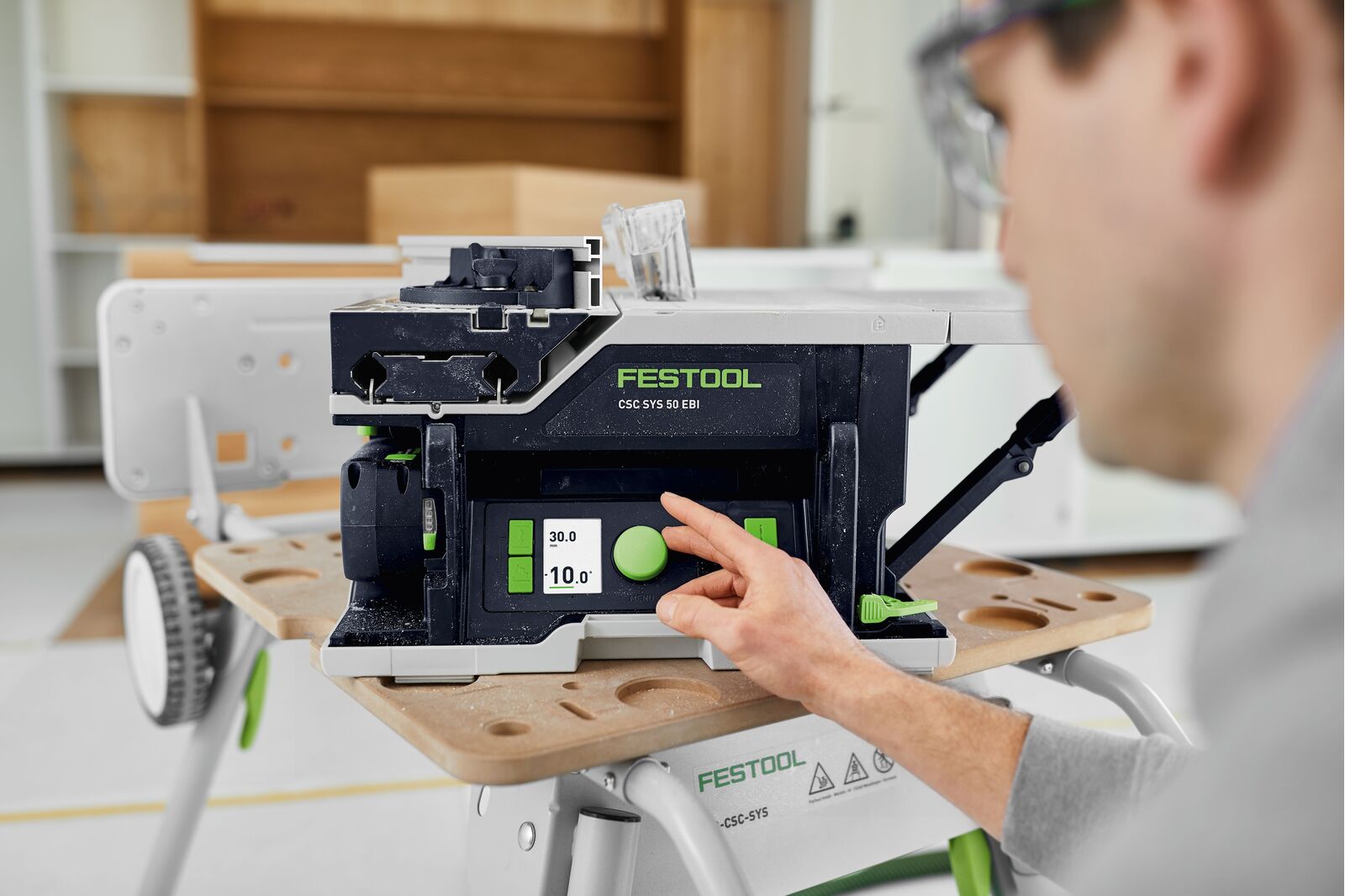

- Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
- Transport practically in the handy Systainer format
Technical Data
| Battery voltage (rated voltage) | 2 x 18 V |
| Idle engine speed |
4 500 – 6 800 min⁻¹
|
| Saw blade location hole | 20.00 mm |
| Inclination angle | -10 - +47 ° |
| Cutting height 0° | 0 - 48 mm |
| Cutting height 45° | 0 - 34 mm |
| Cutting height -10° | 21 - 32 mm |
| Mitre angle | 0 - 70 ° |
| Parallel cut width | 280.00 mm |
| Tabletop height | 228.00 mm |
| Dimensions (L x W x H) |
512 x 396 x 296 mm
|
| Dust extraction connection diameter | 27 mm |
| Drive type | Battery |
| Product weight without accessories | 15.00 kg |
| Transport weight incl. accessories | 23.50 kg |

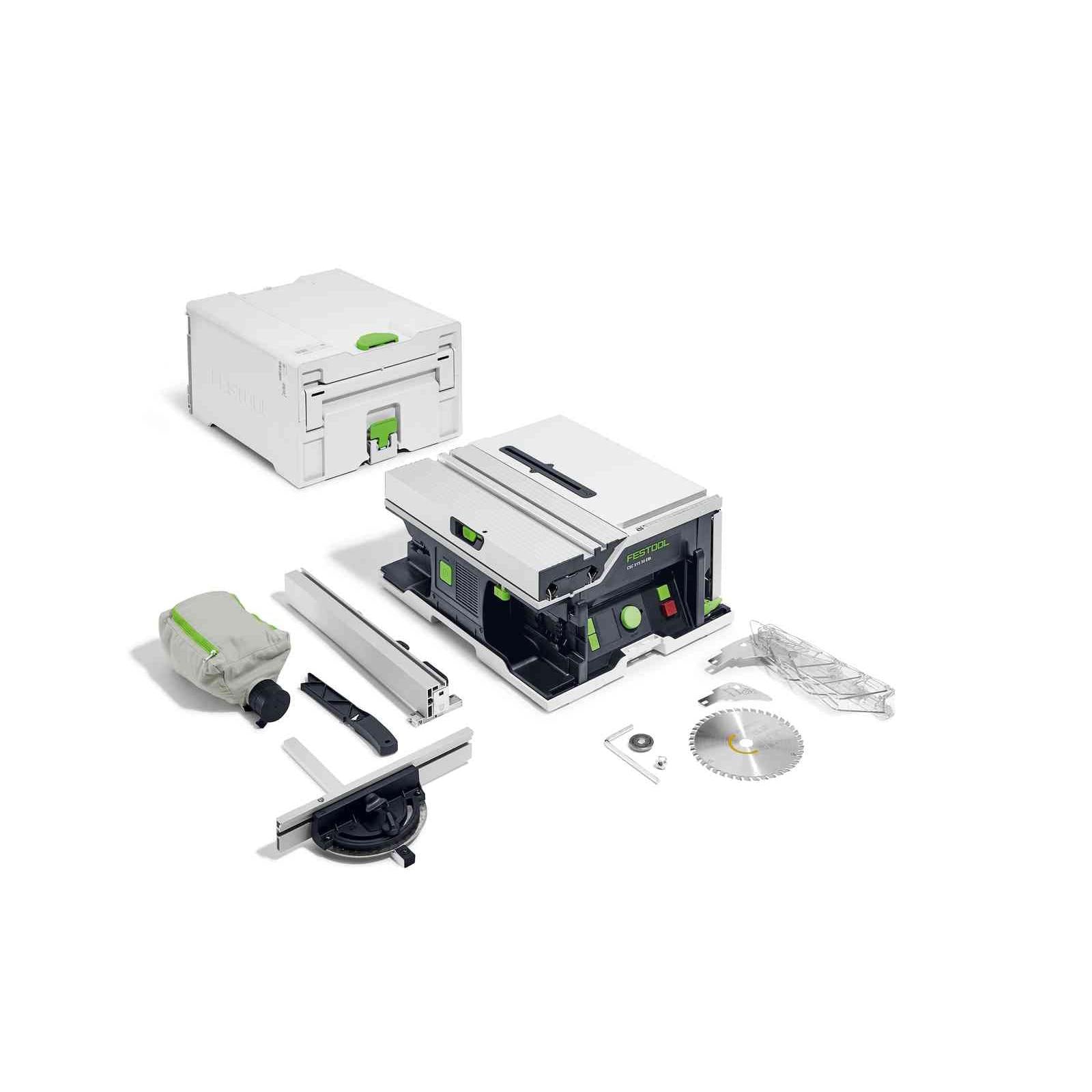

Includes
Saw blade HW 168x1,8x20 WD42
parallel side fence
workpiece holder
preset profile setting rail
Chip collection bag SB-CSC SYS
splitting wedge for concealed cuts
splitting wedge with protective hood hex key, WAF 6
