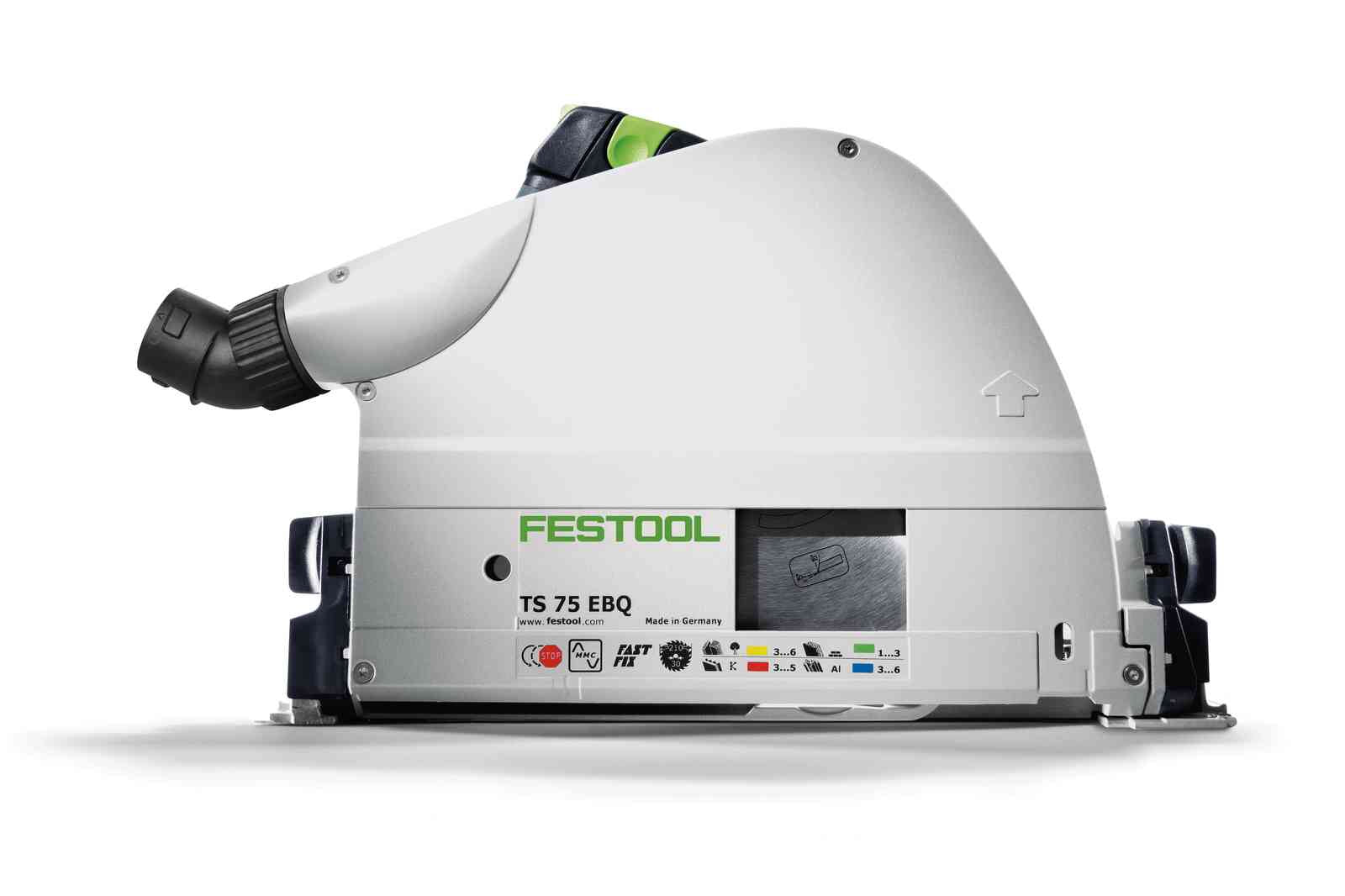

For a greater cutting depth up to 75 mm. Follows only one line. Accurate to the millimeter and without splinters. With the necessary force for each material – lightweight and easy to handle. And the motor with three bearings including MMC electronics for an exceptional service life. The TS 75 combines considerable power and a light weight in a compact device. Together with the guide rail, the TS 75 ensures flexible, fast and precise work.
- Spring-loaded spacer wedge for unhindered plunge cuts
- Tool-less play setting on the guide rail
- Quick-acting brake system for safe, convenient sawing
- FastFix: quick and easy saw blade changing and adapting to the working material
- Attachable splinter guard for high-quality working results

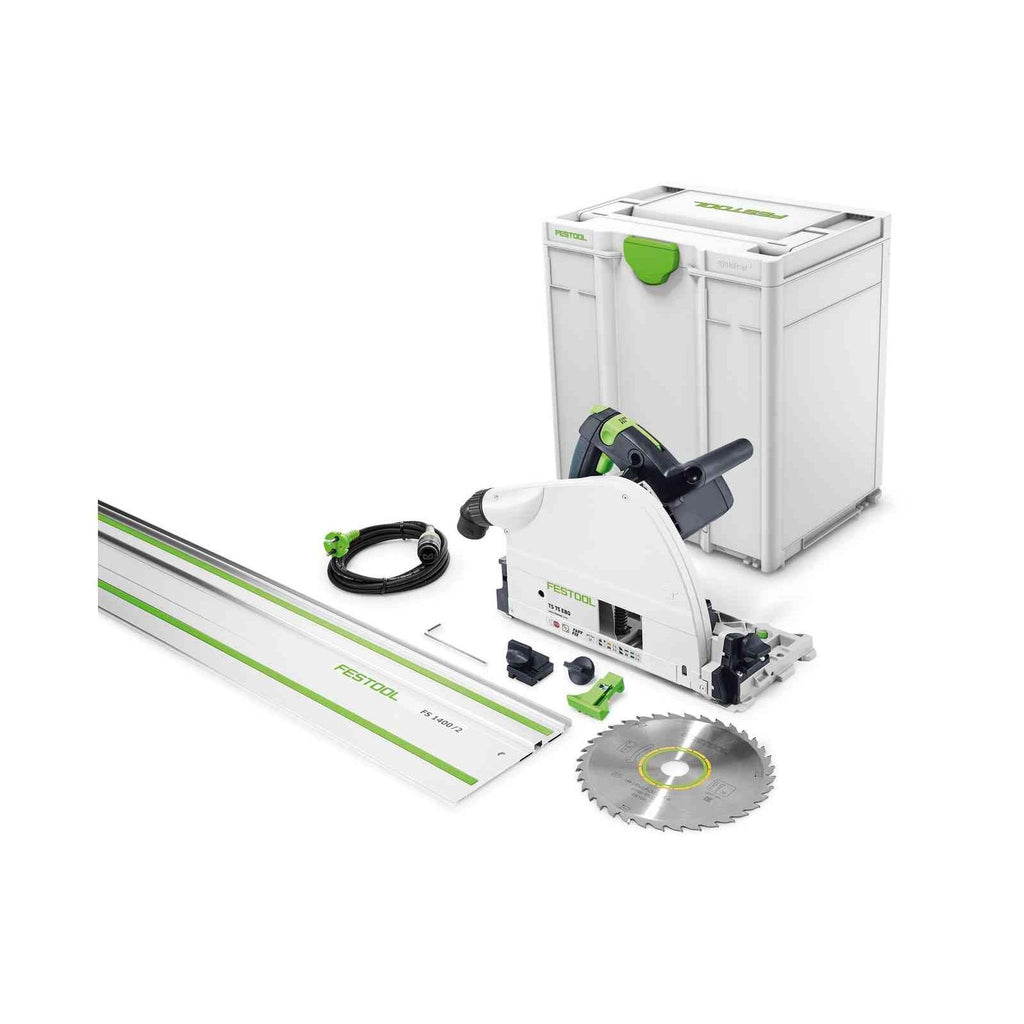

Saw Blade W36 HW 210 x 2.4 x 30, WAF 5 Hex Key, Set-Back Stop FS-RSPSplingerguard, SYS 5 TL Systainer
Saw Blade W36 HW 210 x 2.4 x 30, WAF 5 Hex Key, Set-Back Stop FS-RSP, Splingerguard, SYS 5 TL Systainer, Guide Rail FS 1400/2
Achieve ideal results more quickly:
With a 75 mm cutting depth and 1600 watts, even thick workpieces can be sawed with a single cut.
Convenient and safe:
Spring-mounted guide wedge prevents kickback, minimizing the risk of injury.
Systems get it done:
Optimizes work processes and saves time. With guide rails, individual saw blades and a mobile dust extractor for dust-free results.
Extended service life
The triple bearing of the motor improves the running smoothness and extends the service life.
Exact depth setting
You can set the cutting depth accurate to the millimeter using the latching depth stop.
Splinter-free sawing on both sides
With the clip-on splinter guard in combination with the guide rail it is even possible to saw on both sides without splinters. Advantage: No rework and considerably less workpiece waste.
Perfect adaptation to the working material, controlled speed and temperature monitoring. The quick-acting brake improves safety by stopping the saw blade in seconds.
The extractor connector, which can be rotated by 360°, makes it exceptionally easy to adjust the dust extractor to suit the working position.
Always work at the right angle
The TS 75 makes precise angle cuts extremely easy. The scribe line corresponds to the cutting edge at all times, even when the saw blade is pivoted. From 0° to 47°, set precisely to the clearly visible scale.
Idle engine speed 1 350 - 4 400 min⁻¹
Saw blade diameter 210,00 mm
Angular range 0 - 47 °
Cutting depth 0 - 75 mm
Cutting depth 45° 55 mm
Dust extraction connection dia. 27/36 mm
Weight 6,20 kg
Drive type Mains
