Description

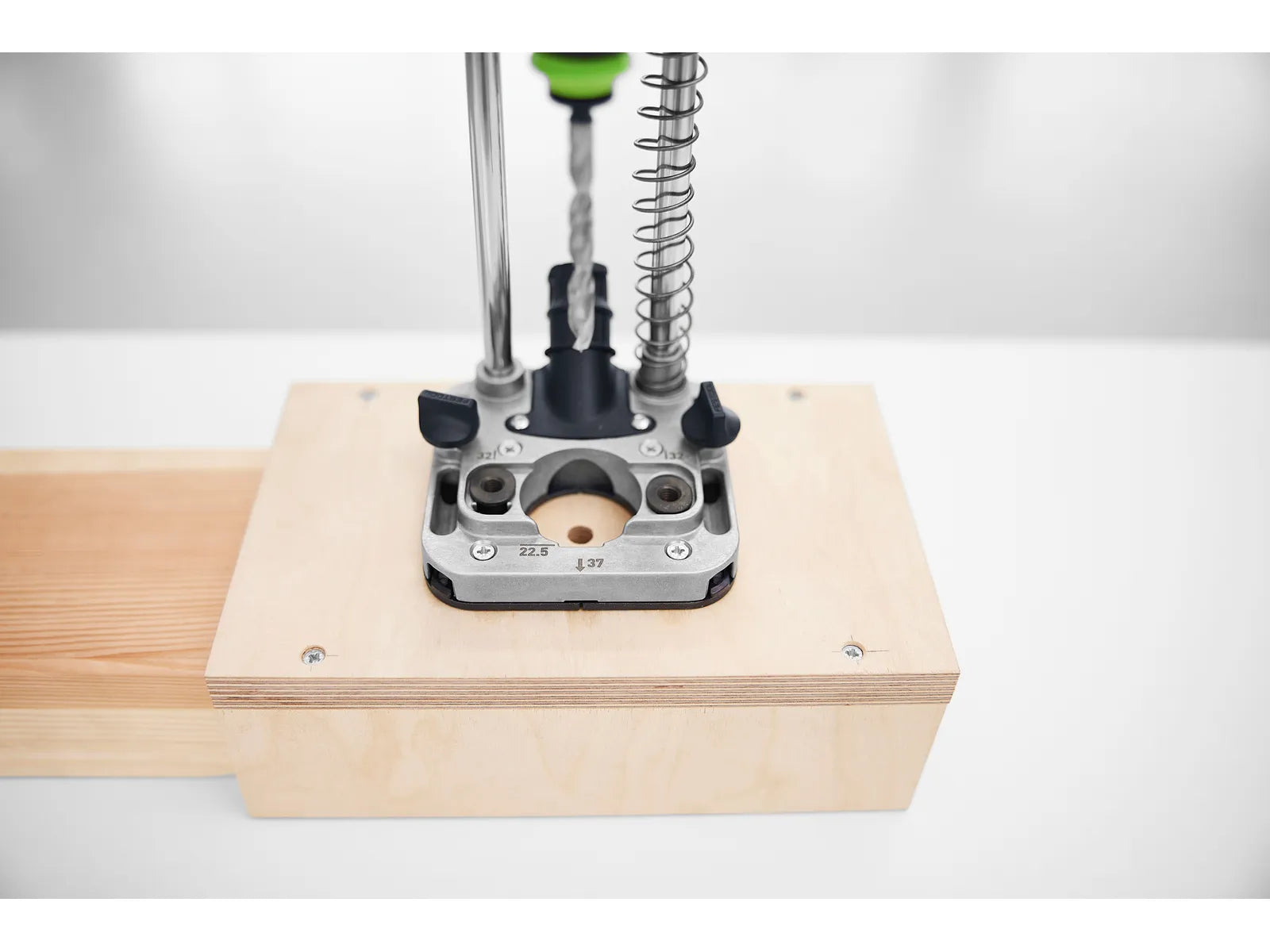

The Festool Mobile drilling attachment MB 40 577970 is your precision companion for any drilling task. Its compact design allows you to drill at right angles with exceptional accuracy, making it perfect for a variety of applications.
- Precise: Robust and stable for exact holes
- Exact depth adjustment: Up to 50 mm with zero position and readable drilling depth in both mm and inches
- Exceptional: Hole series function for holes in the 32-type system
- Compatible: Quick-fit tool chuck and CENTROTEC chuck for easy insertion and replacement of drilling tools
- Integrated: Chip extraction for dust class M and hose diameter D 27
- Easy positioning: Markings on the base plate simplify exact alignment on the workpiece
- Sturdy: Rubberized base for precise alignment without slipping
Technical Data
| Parameter | Value |
|---|---|
| Holder | FastFix |
| Max. drilling diameter for softwood (Forstner drill bit) | 40.00 mm |
| Max. drilling diameter for softwood (auger bit) | 16.00 mm |
| Base | 110 x 114 mm, Height: 312.00 mm |
| Setting range of depth stop | 0 - 50 mm |
| Max. screw diameter (templates/fixtures) | 4.00 mm |
| Stroke with depth stop, incl. spring | 187.00 mm |
| Stroke without depth stop, without spring | 203.00 mm |
| Dust extraction connection diameter | 27 mm |
| Product weight without accessories | 1.40 kg |
Includes
- 1x hole series pin 5 mm
- 1x hole series pin 3 mm
- 1x MB 40 mobile drilling attachment
