Description

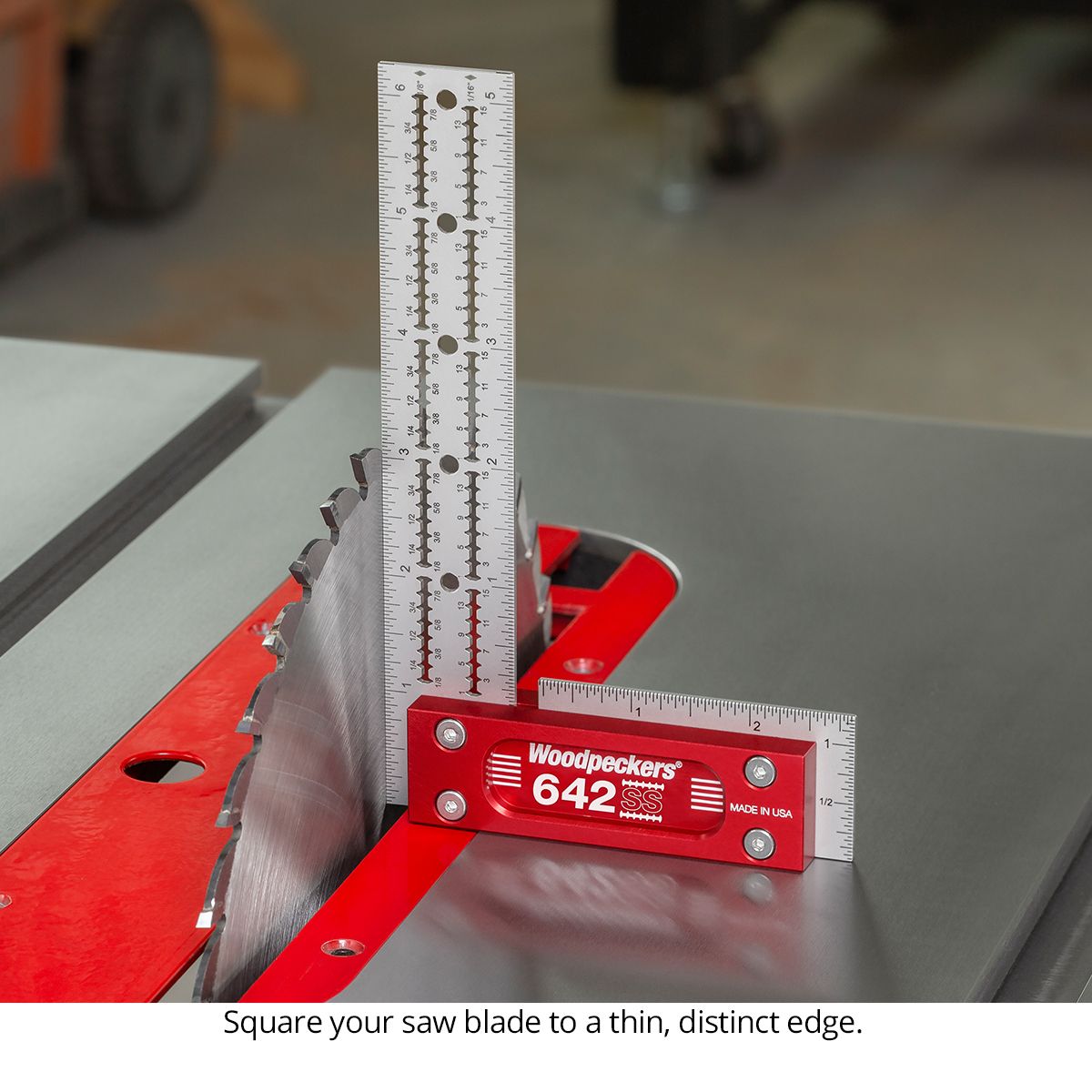

The Woodpeckers Stainless Steel Precision Woodworking Square offers unmatched accuracy, durability, and convenience for layout work, machine setup, and assembly checks. Its unique one-piece precision-machined central core, paired with narrow cheeks forming a registration shoulder, ensures consistent and precise measurements for the life of the tool.
- One-Piece Central Core: Machined from heat-treated stainless steel, ensuring lifetime accuracy to ±0.0085°.
- Laser-Engraved Scales: Crisp, easy-to-read scales with ±0.004" total stack-up error.

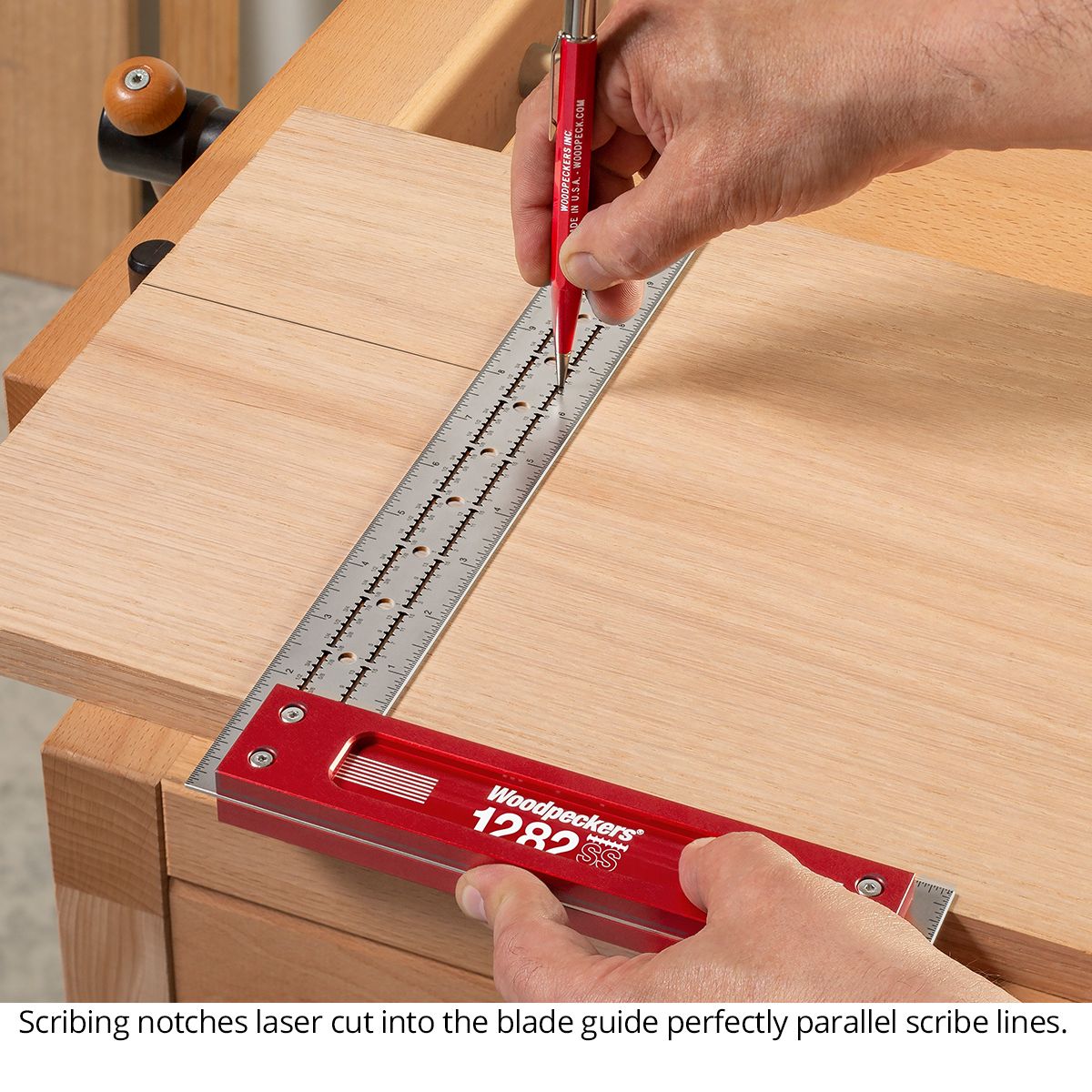

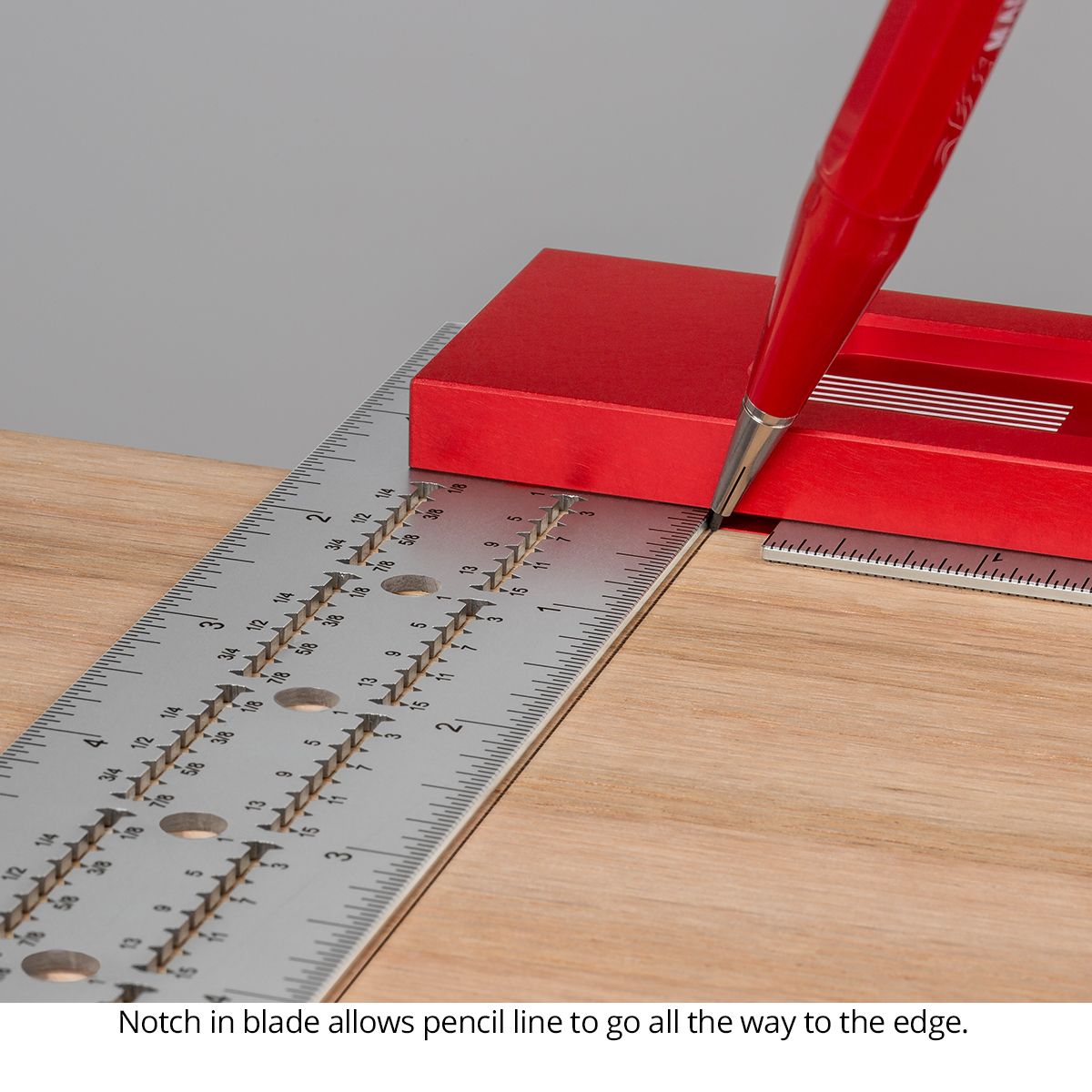

- Scribing Guides: Precision-cut guides on 1/16" centers accommodate a wide range of marking tools.

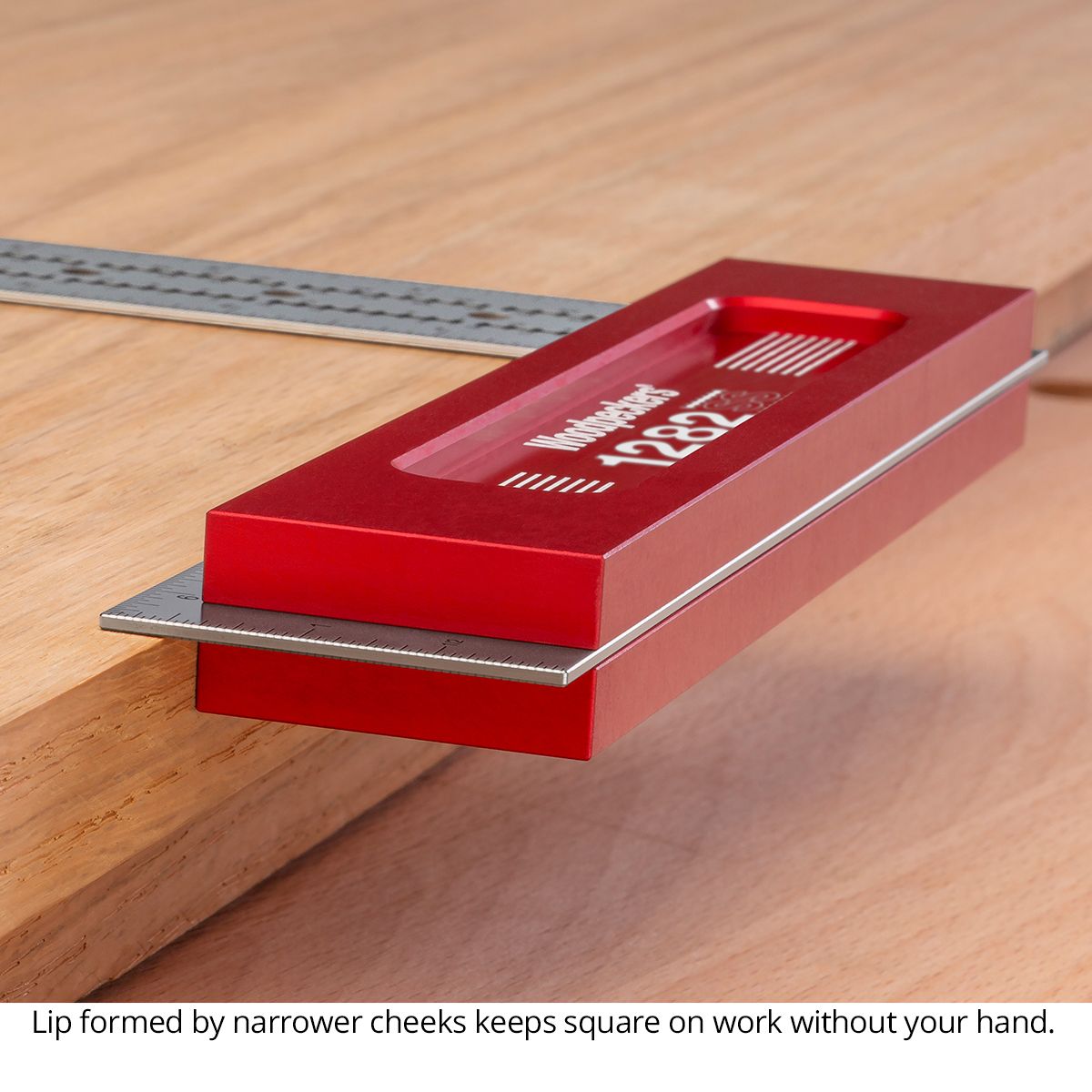

- Shouldered Design: Narrower cheeks form a shoulder, keeping the square registered to your stock for hands-free use.

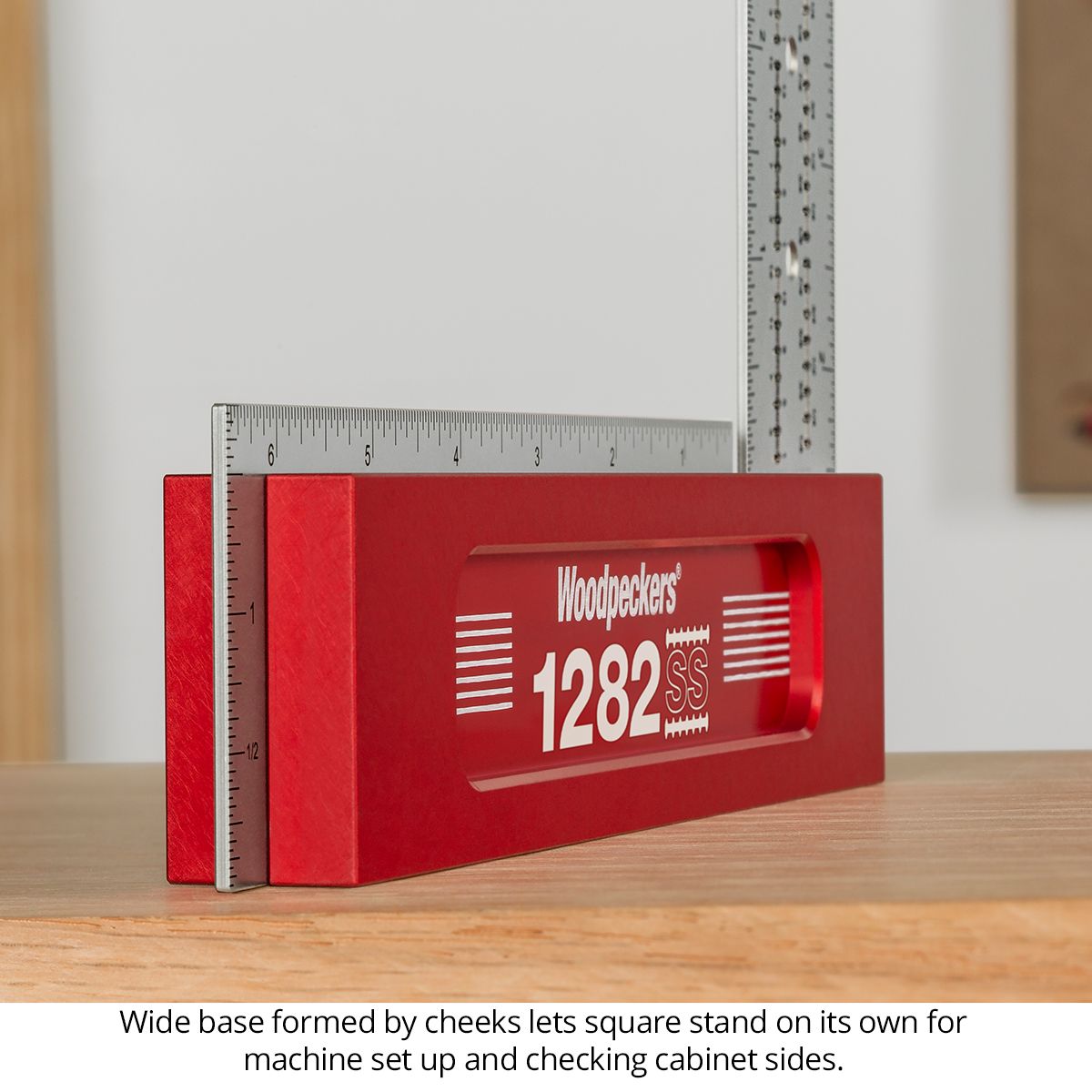

- Wide Base: Provides solid footing for checking squareness of cabinet components or other assemblies.
- Non-Glare Satin Finish: Reduces glare and enhances readability, even in challenging lighting conditions.
- Lifetime Guarantee: Guaranteed accuracy for life; if the square exceeds ±0.0085°, it will be repaired or replaced.
Technical Data
| Blade Length | 300mm |
| Material | Heat-Treated Stainless Steel |
| Blade Thickness | 1.6mm (1/16") |
| Accuracy | ±0.0085° |
| Scribing Guide Spacing | 1.6mm (1/16") |
| Finish | Non-Glare Satin |
Includes
- 1x Stainless Steel Square - 300mm
- 1x Wall-Mountable Rack-It
