Description

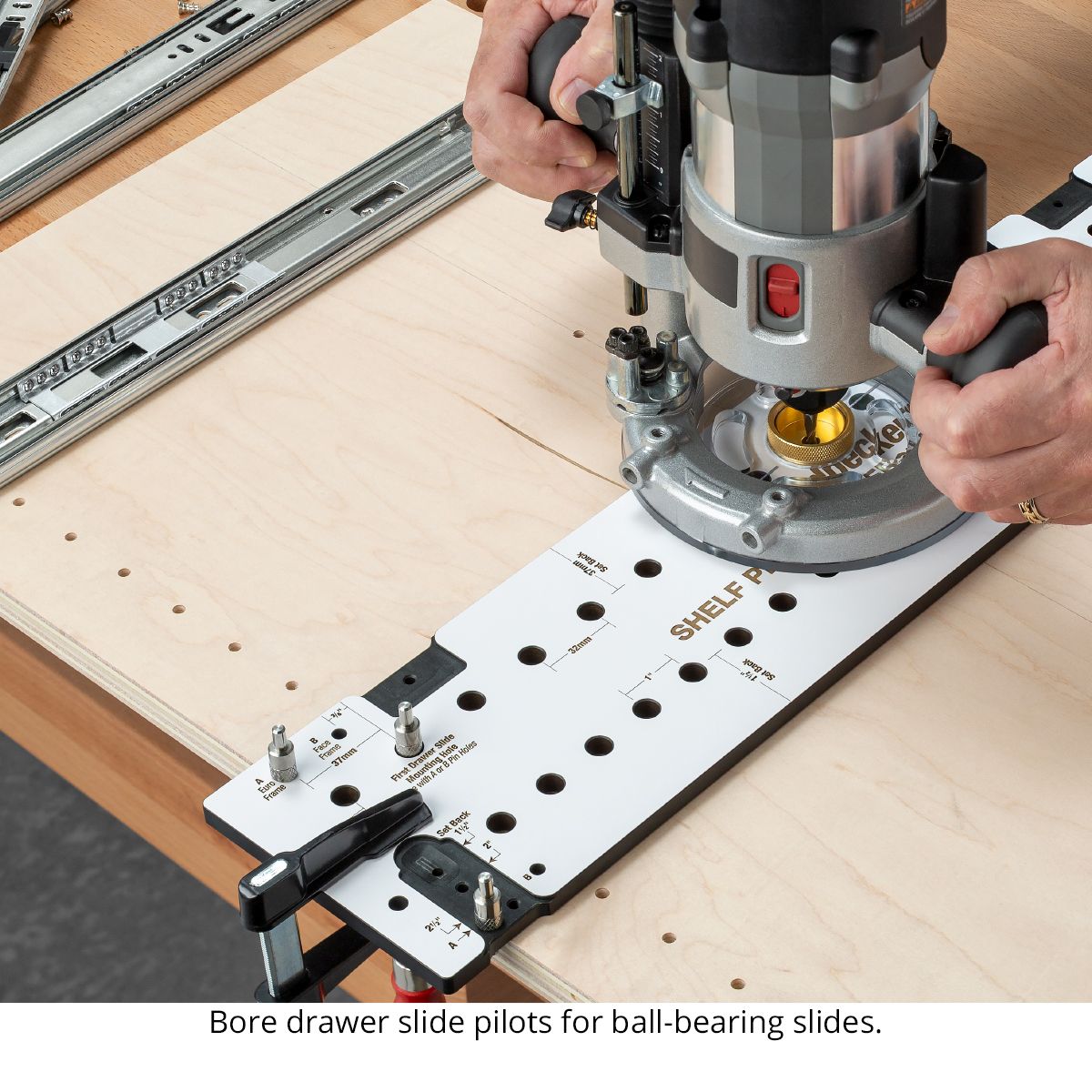

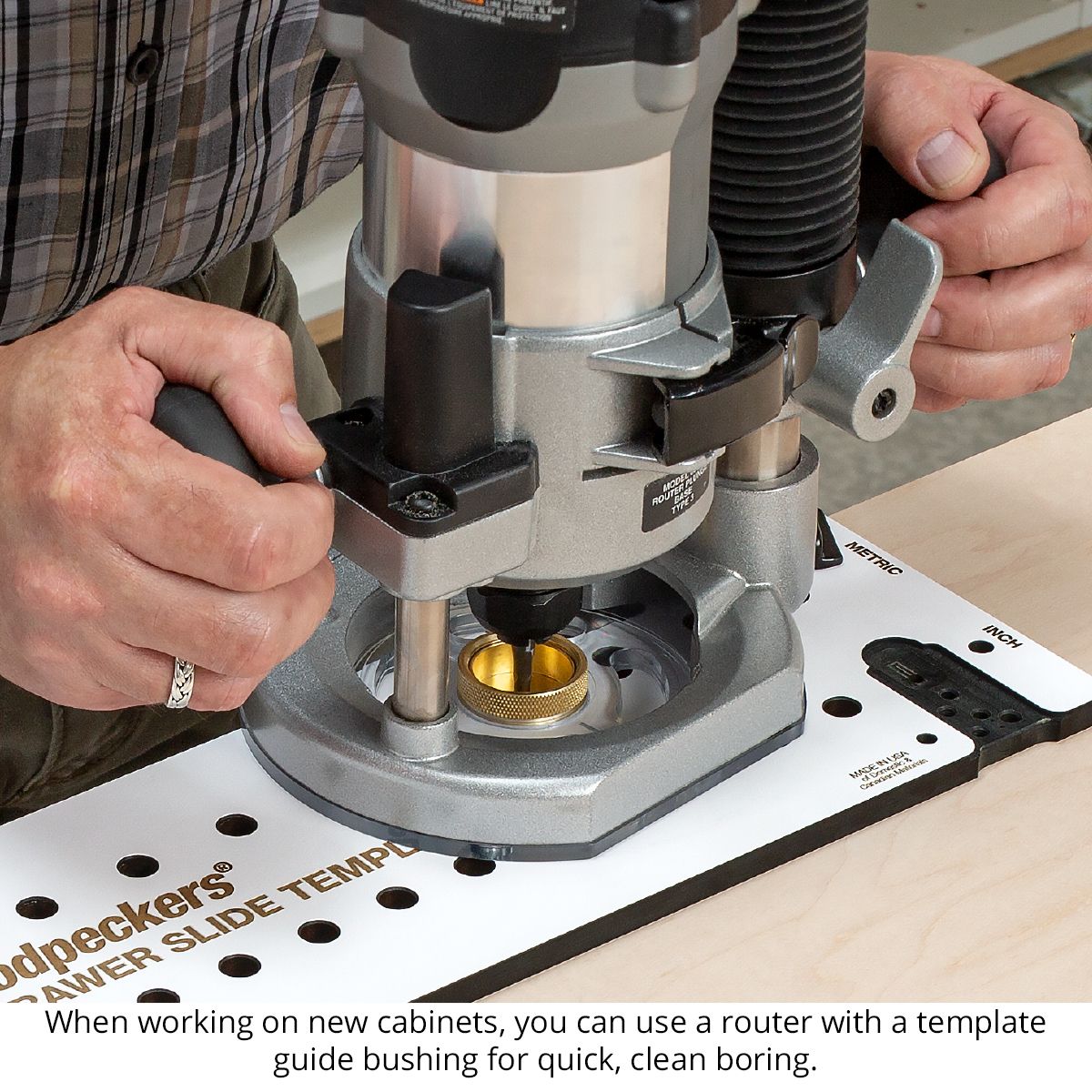

The Woodpeckers Shelf Pin and Drawer Slide Template makes adding adjustable shelf pins and drawer slides to cabinets effortless and precise. Whether you’re upgrading existing cabinets or creating new ones, this template delivers perfect spacing and alignment every time. Designed to work with both 32mm Euro-style cabinets and traditional face-frame styles, it offers the flexibility to meet your project needs. The template can be used with self-centering drill bits or a router with a 3/8" (9.5mm) template guide bushing for added convenience.
- Works with both traditional face-frame and Euro-style cabinets.
- Delivers precise alignment with clearly marked settings.

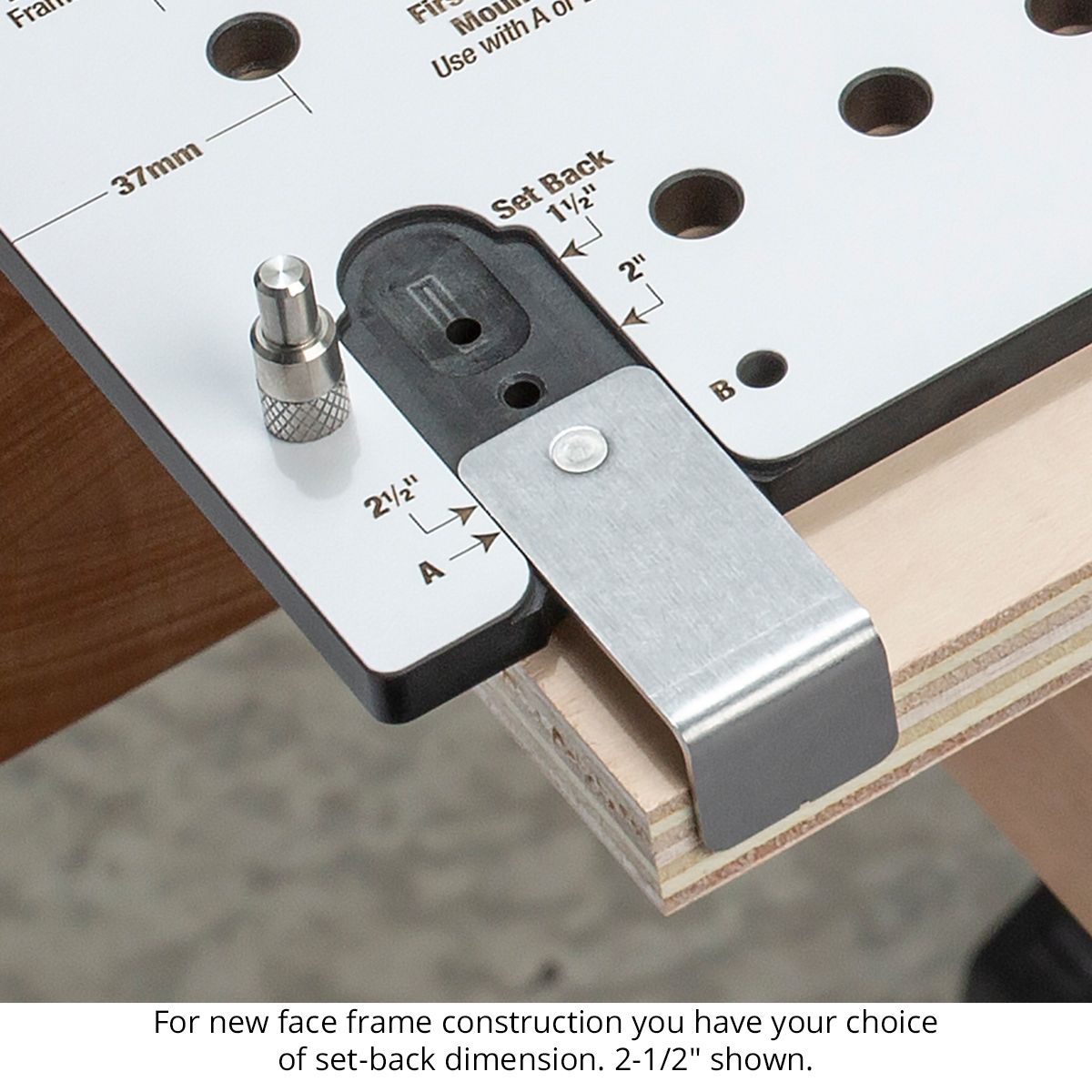

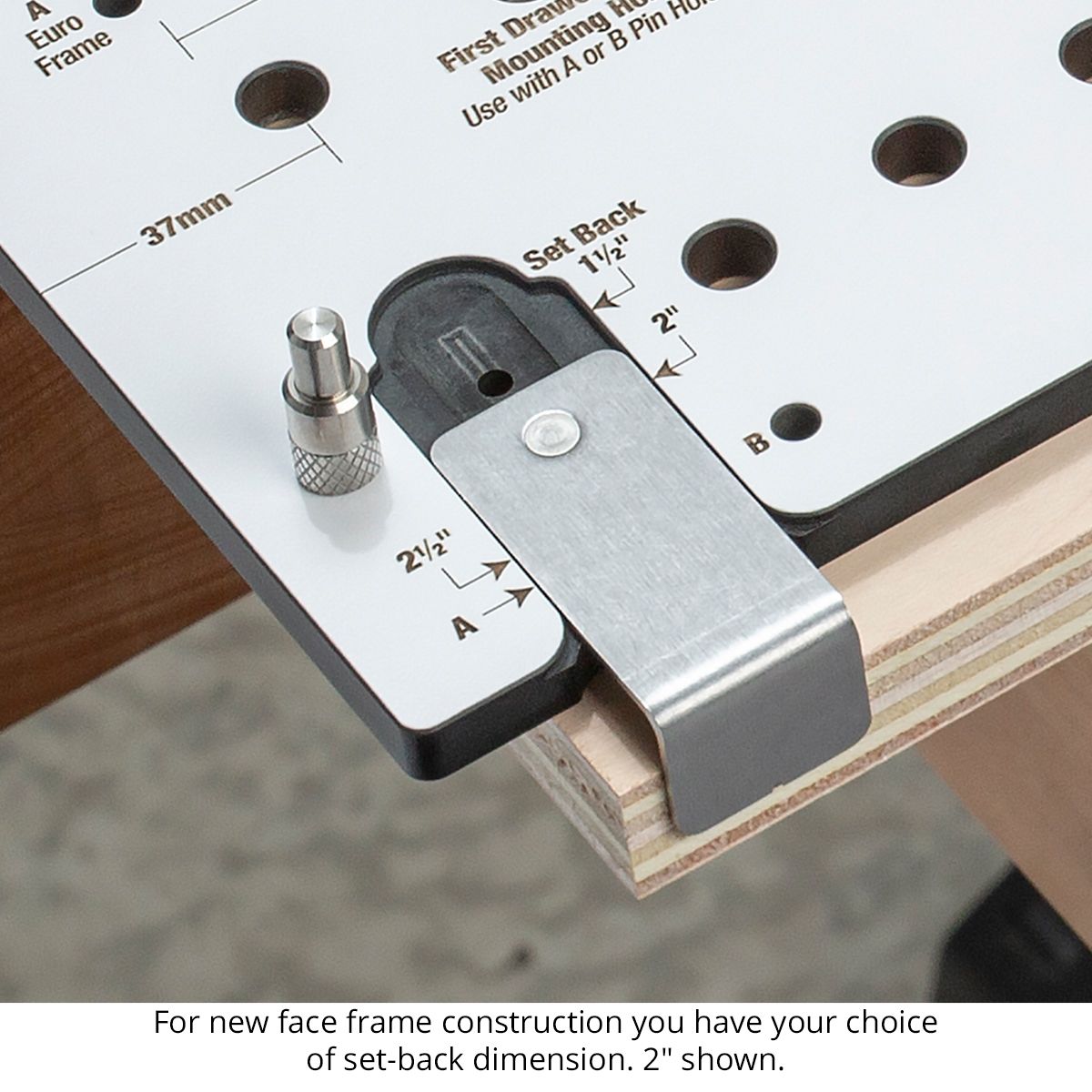

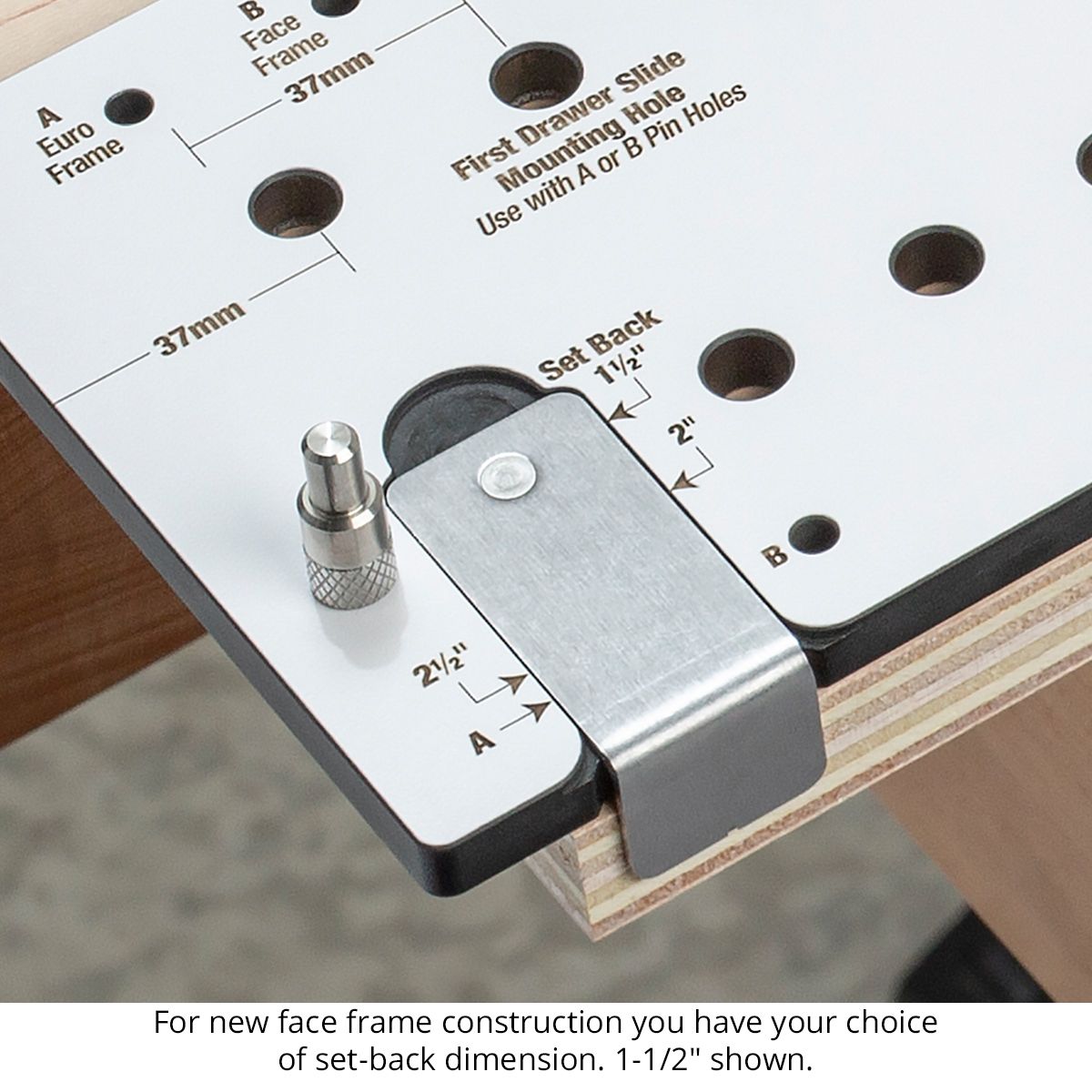

- Allows for offsets of 1-1/2" (38.1mm), 2" (50.8mm), or 2-1/2" (63.5mm).

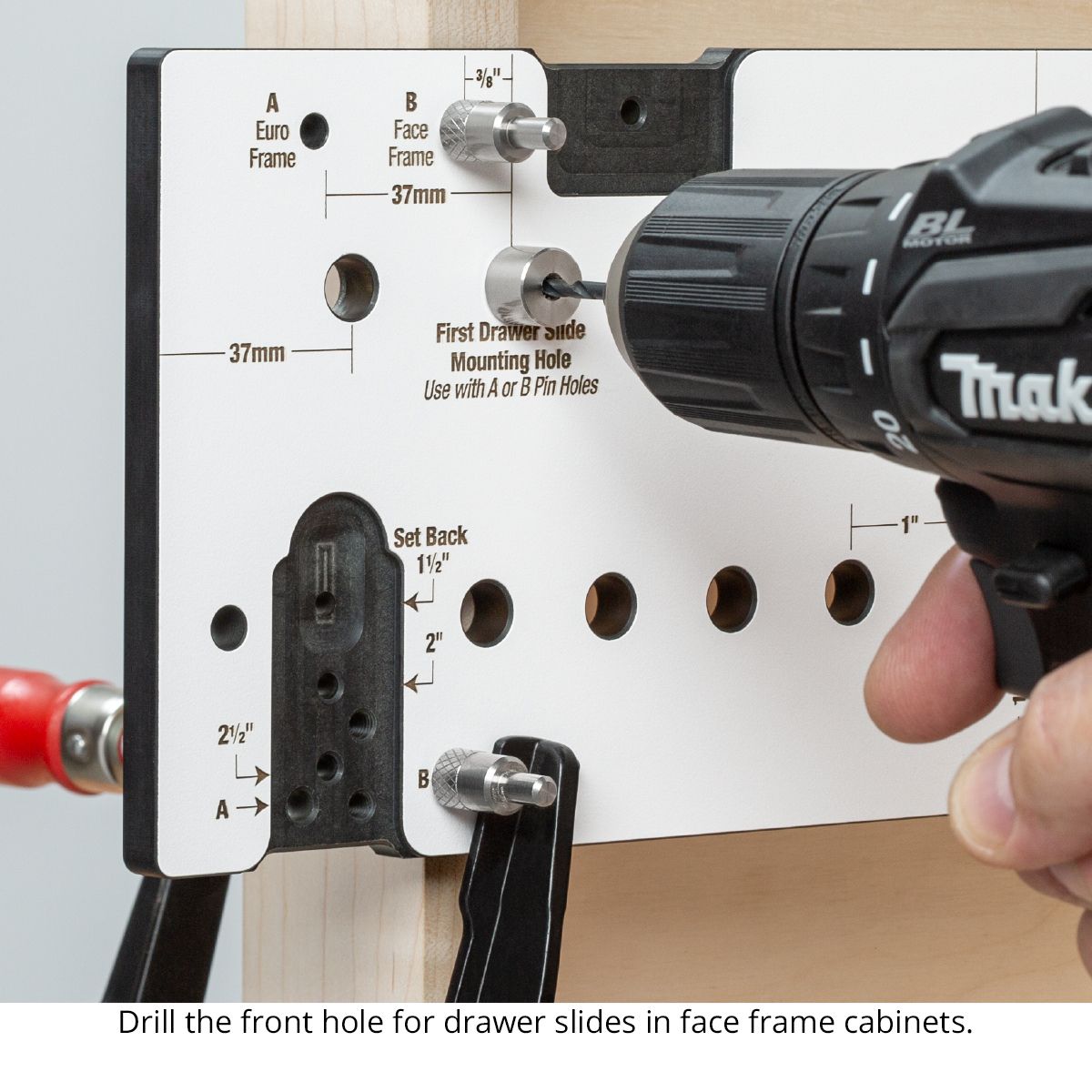

- Compatible with self-centering drill bits or routers.
- Durable phenolic construction ensures long-lasting performance.
- Accommodates hundreds of shelf pin and drawer slide styles.
Technical Data
| Feature | Imperial | Metric |
|---|---|---|
| Overall Dimensions | 23" x 5" x 3/8" | 584mm x 127mm x 9.5mm |
| Material | Phenolic with bonded white surface | Same |
| Hole Sizes | 1/4", 5mm | Same |
| Hole Spacing | 32mm centers | Same |
| Offsets | 1-1/2", 2", 2-1/2" | 38.1mm, 50.8mm, 63.5mm |
Includes
- Phenolic Template
- Inside Offset Spacers (2)
- Outside Offset Spacers (2)
- Frameless Spacers (2)
- Nylon Spacer Locking Screws (2)
- 1/4" (6.35mm) Indexing Pins (3)
- 5mm (0.2") Indexing Pins (3)
- 7/64" (2.78mm) Drill Guide Bushing
