Description

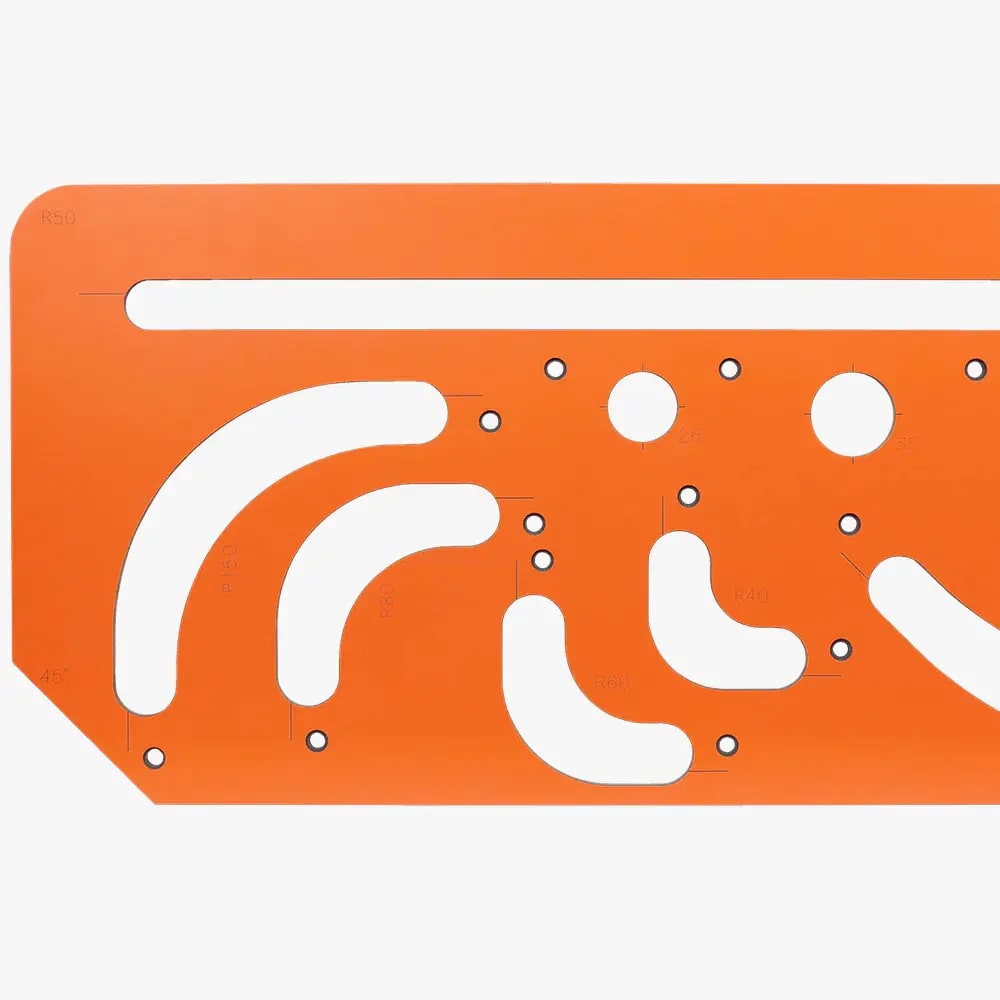

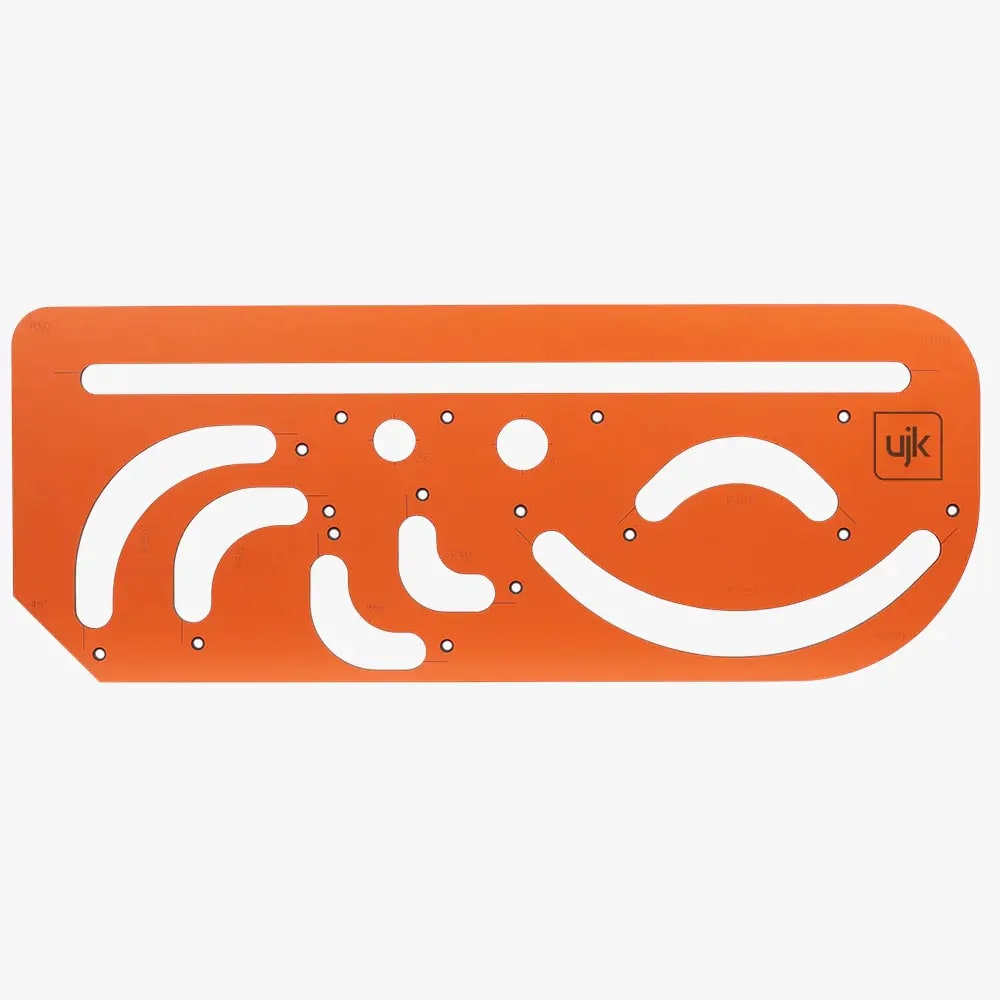

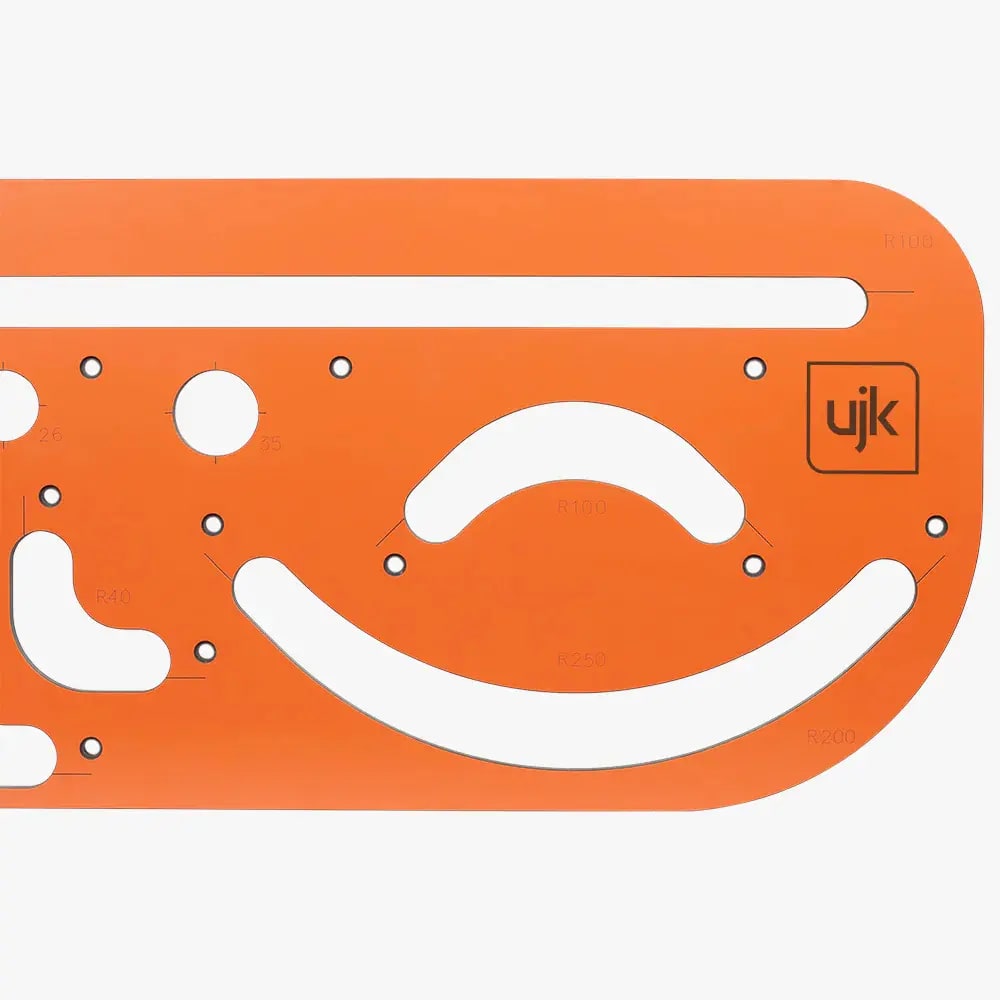

The UJK Worktop Radius Jig from Jigs and Guides is a versatile tool for routing various radii, both internal and external, in worktops. This professional-grade jig is made from CNC machined 12mm thick solid compact phenolic resin, ensuring accuracy, durability, and stability.
- Six radii options: 40mm, 60mm, 80mm, 100mm, 150mm, and 250mm
- Slot for straight cuts up to 820mm
- 26mm and 35mm cabinet hinge recess cutouts
- Options for 45° cuts
- Equally useful in a cabinet or furniture workshop
Technical Data
| Dimensions: | 260mm x 245mm x 78mm (10.24" x 9.65" x 3.07") |
| Weight: | 2.7kg (5.95 lbs) |
| Material: | CNC machined 12mm thick solid compact phenolic resin |
Includes
- UJK Worktop Radius Jig

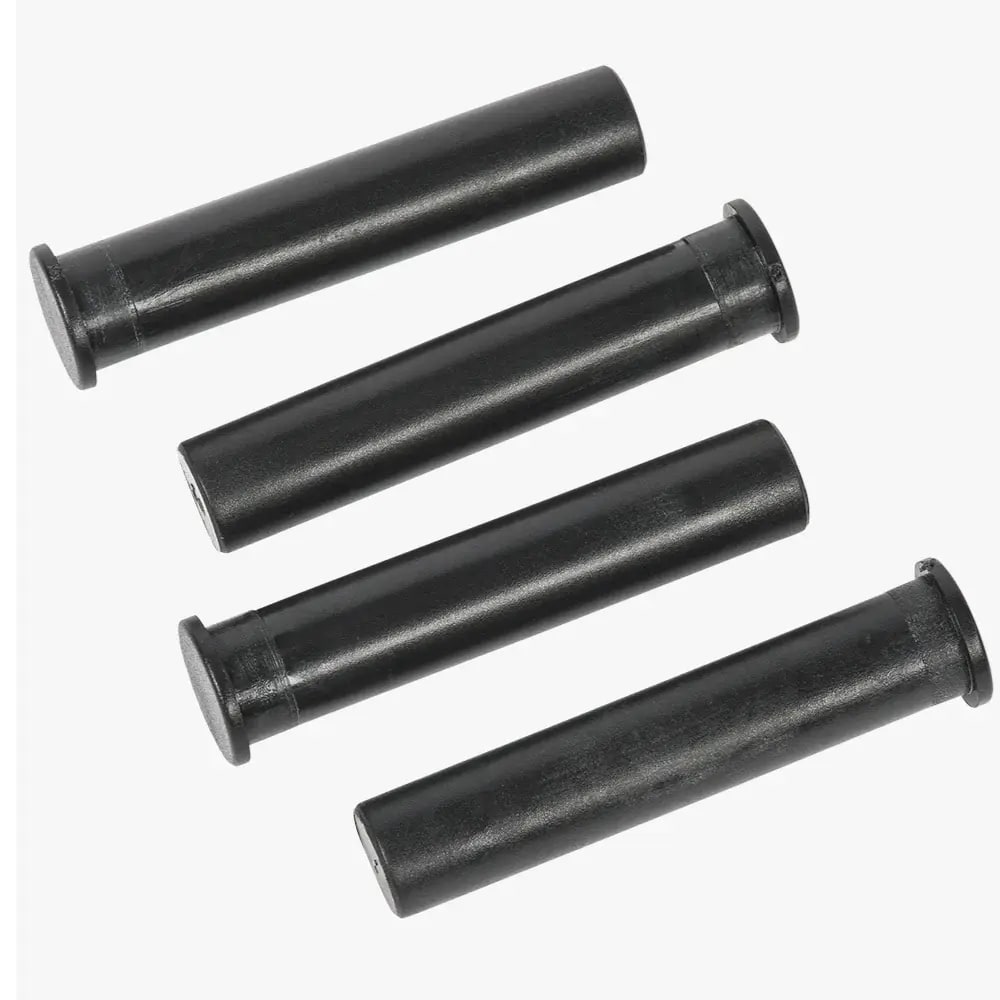

- 4 aligning pins
- Note: You will also need a 1/2" router, 12.7mm(1/2") x 50mm router cutter, 30mm guide bush and 2 clamps.
