Description
The Variable Angle Kitchen Worktop Jig is a versatile tool that offers a wide range of applications in kitchen worktops. It allows for 45° and 90° left or right hand joints in worktops with widths ranging from 250mm to 700mm. The jig enables you to make peninsular joints, corner radii of 40mm, 100mm, 90° square end cuts plus 45° and 22.5° angle cuts. Additionally, it features facilities for cutting 35mm cabinet door hinge recesses (18mm carcass), a hole for tap fixings 35mm (3/4" BSP) and three slots for 65mm and 150mm joining bolts.
- Phenolic resin jig covers all common cuts in kitchen worktop preparation
- Enables 45° and 90° male and female cuts

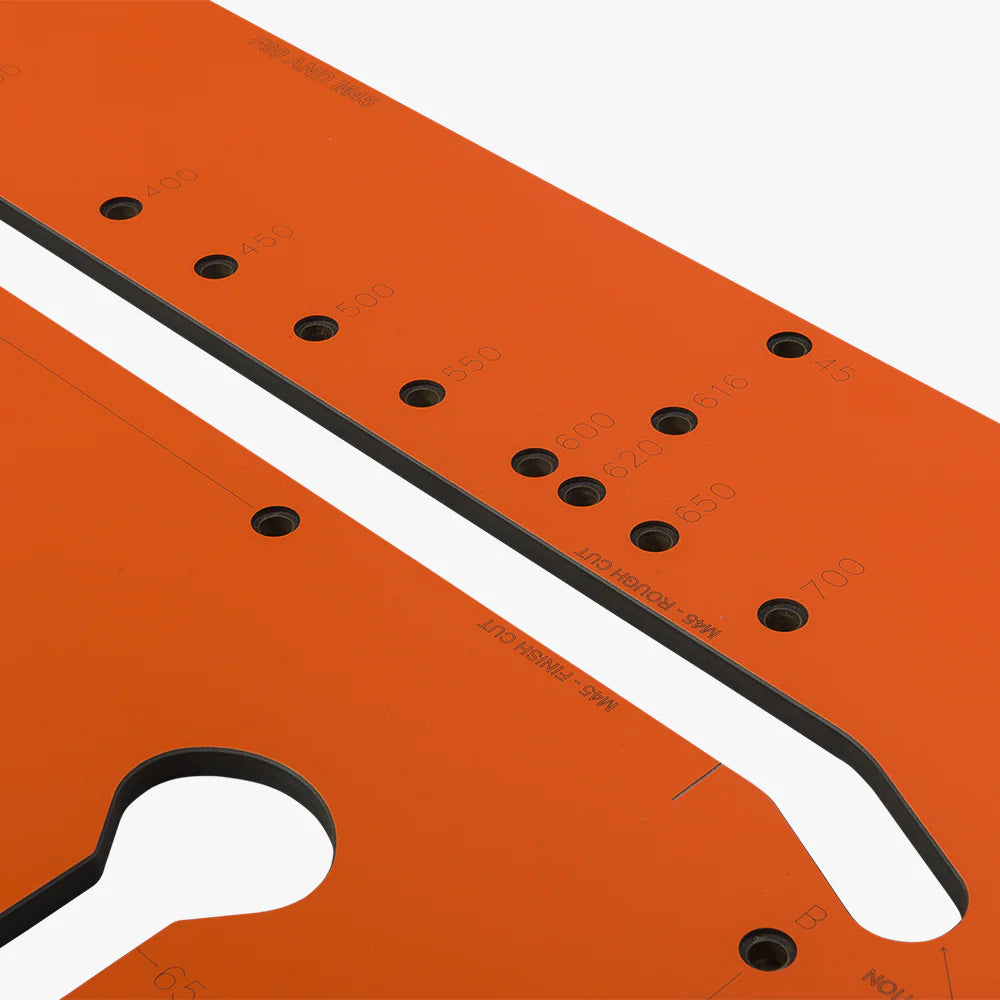

- Apertures for 65-150mm worktop connectors
- Peninsular joints, square and 45° and 22.5° angle cuts
- Hinge recesses and tap holes

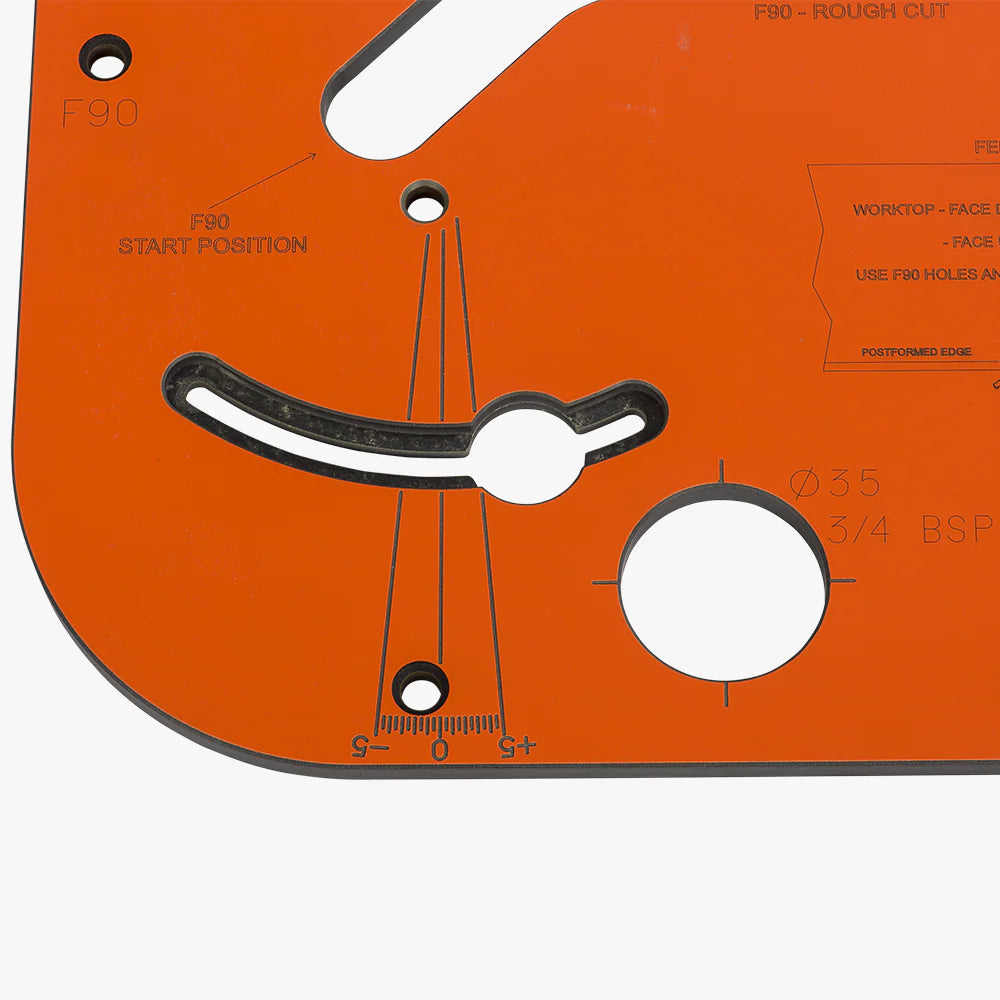

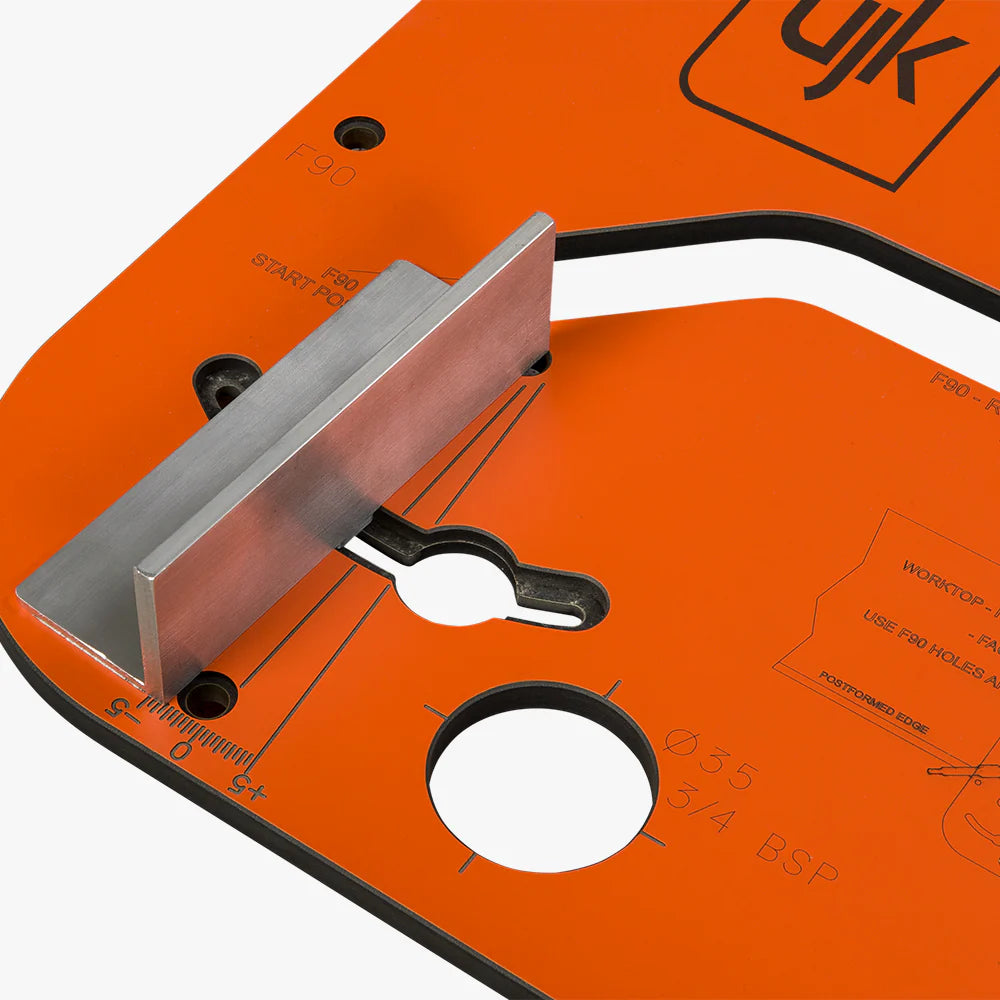

- Optional Angle Adjustment Plate allows perfect out of square joints 85° to 95° (sold separately)
- Supplied with full and comprehensive instructions and a pack of 4 aligning pins.
Technical Data
| Item: | Variable Angle Kitchen Worktop Jig |
| Order code: | 508615 |
| Material: | 12mm thick solid compact phenolic resin |
| Includes: | 4 aligning pins, comprehensive instructions |
| Additional Accessory: | Angle Adjustment Plate (sold separately) |

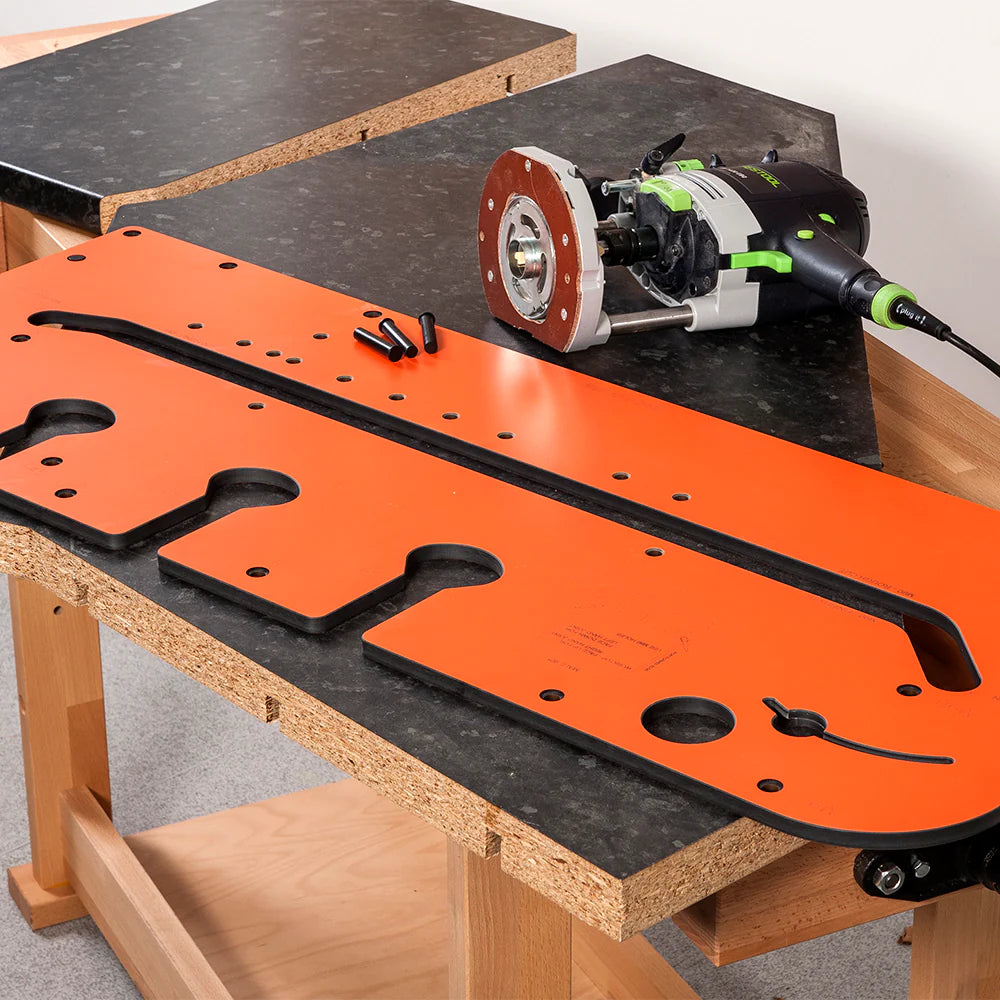

| Required Tools: | 1/2" router, 12.7mm(1/2") x 50mm router cutter, 30mm guide bush and 2 clamps. |
Includes

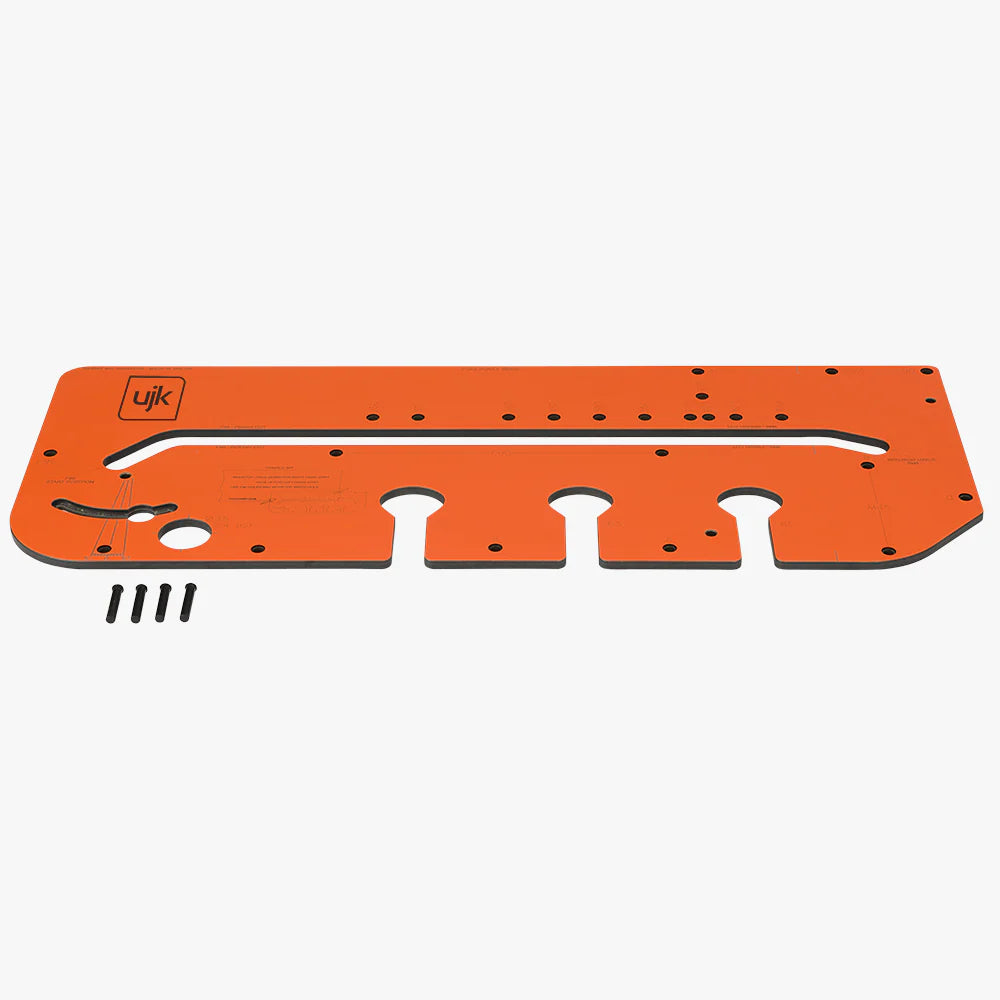

- 1x Variable Angle Kitchen Worktop Jig
- 4 aligning pins
- Comprehensive instructions
