Description

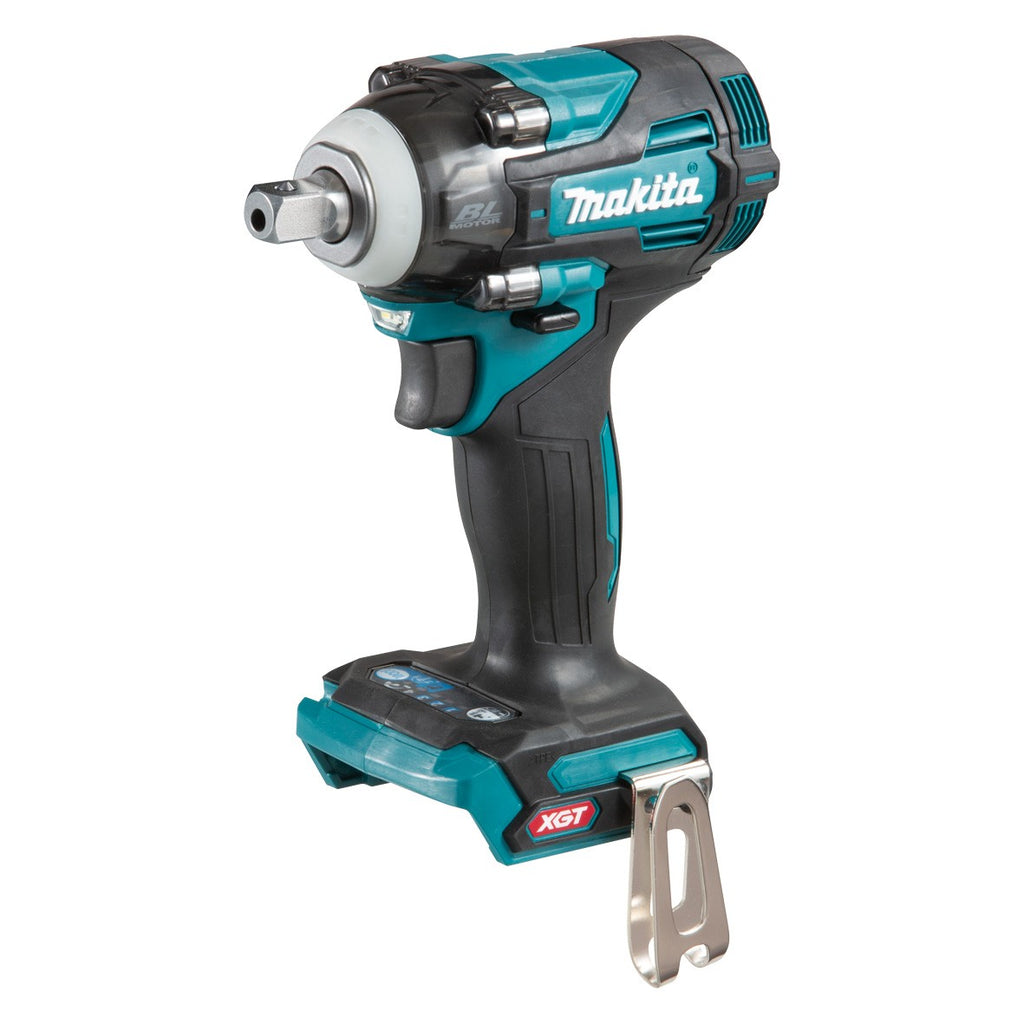

The TW005G is a versatile 1/2″ drive impact wrench providing 350 Nm of fastening torque and 630 Nm nut-busting torque. Its compact design and high-power brushless motor make it ideal for automotive repairs and structural assembly.
- Powerful 630 Nm nut-busting torque
- Compact and lightweight for easy handling in tight spaces
- 4-stage impact power selection for versatile use
- Auto-stop system for precise fastener control
- Full-speed mode reduces trigger pull effort
Technical Data
| Capacities | |
| - Standard bolt | M10 - M20 |
| - High tensile bolt | M10 - M16 |
| Max fastening torque | 350Nm |
| Nut-busting torque | 630Nm |
| Impacts per minute | |
| - Max | 0-4,000ipm |
| - Hi | 0-3,400ipm |
| - Med | 0-2,600ipm |
| - Lo | 0-1,800ipm |
| No Load Speed | |
| - Max | 0-3,200rpm |
| - Hi | 0-2,600rpm |
| - Med | 0-1,800rpm |
| - Lo | 0-1,000rpm |
| Anvil | 12.7mm - 1/2" Square drive |
| Overall dimensions | 144mm |
| Net weight (skin) | 1.2kg |
| Sound Level | 110dB(A) |
| Continuous rating input | 520W |
| Voltage | 40V |
| XGT battery compatibility | 2Ah 4Ah |
Includes
- 1x TW005GZ 40V XGT Brushless 1/2″ Impact Wrench (bare unit, no battery or charger)
- Belt hook (346317-0),
- Screw M4X12 (266622-8)
