Description

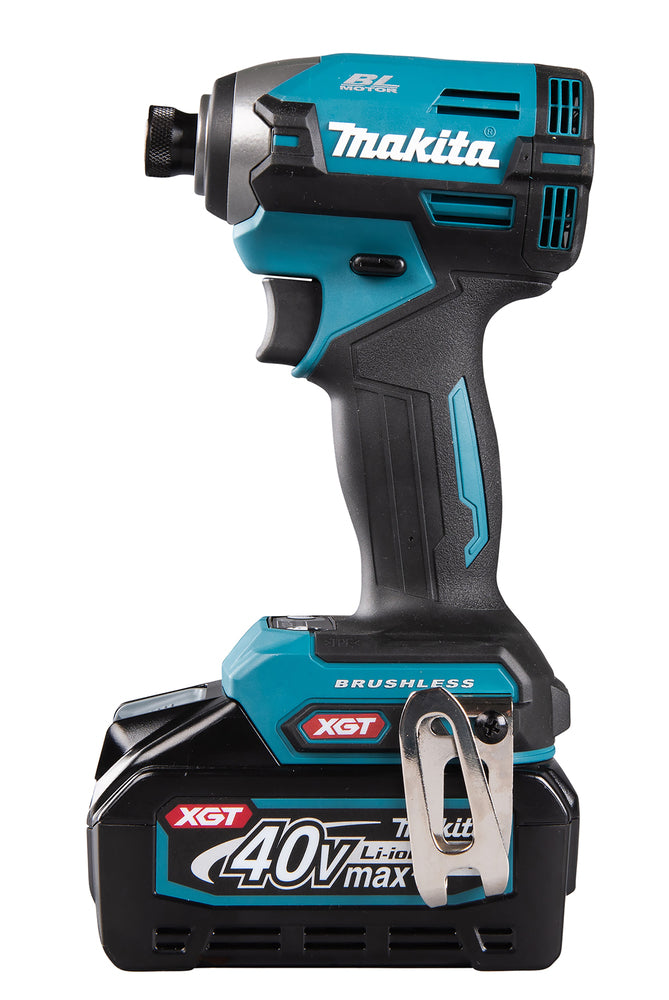

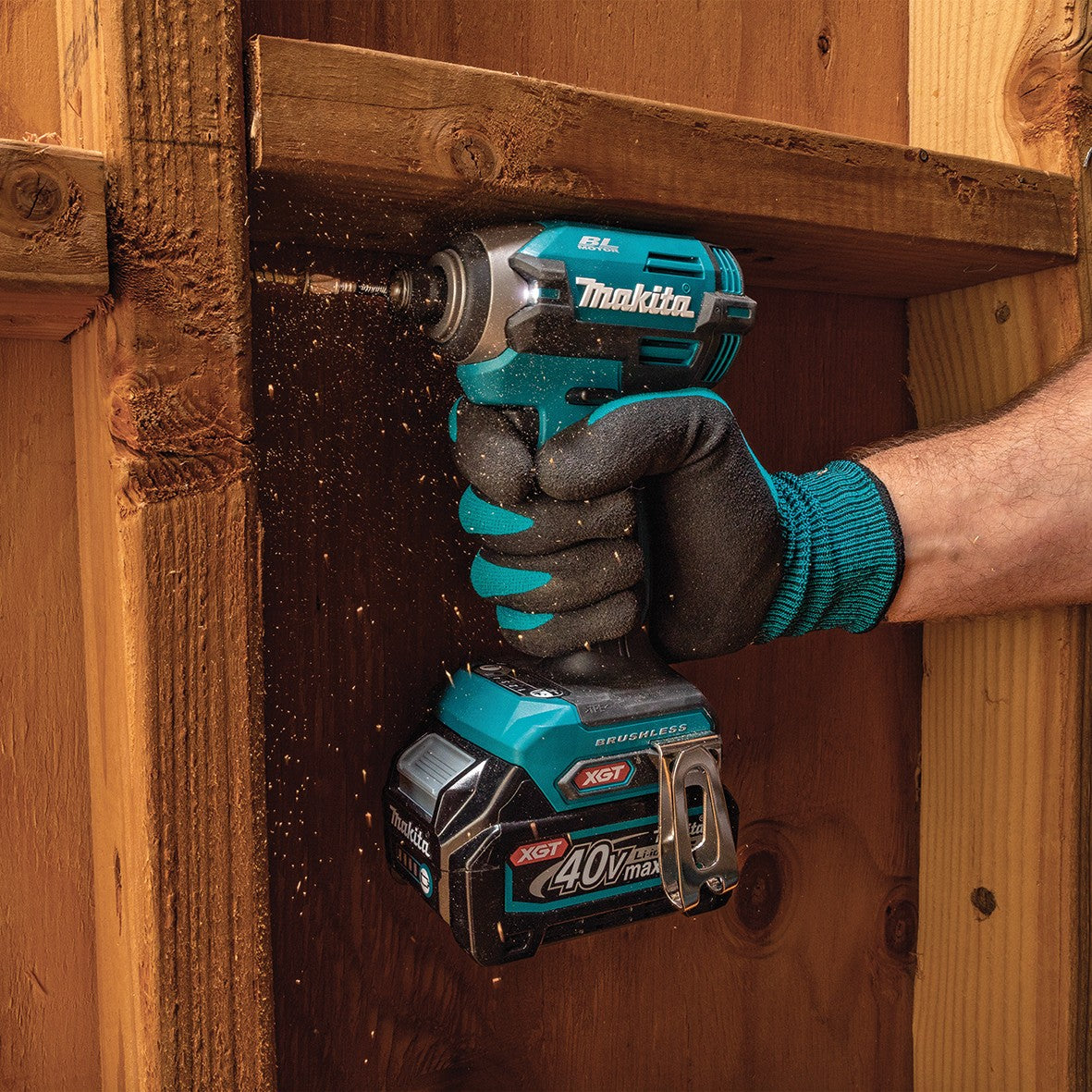

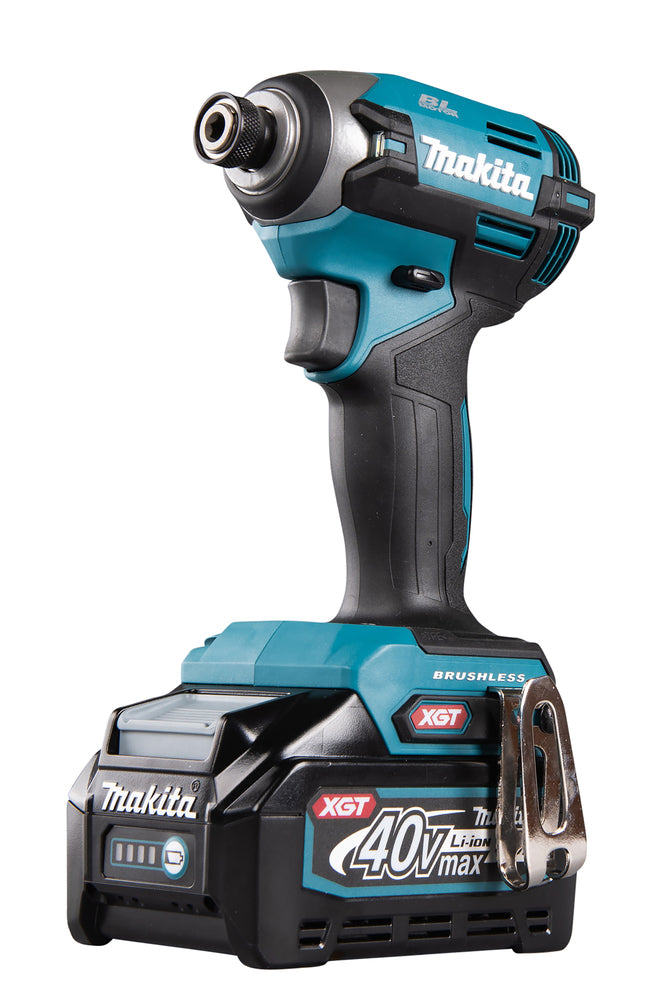

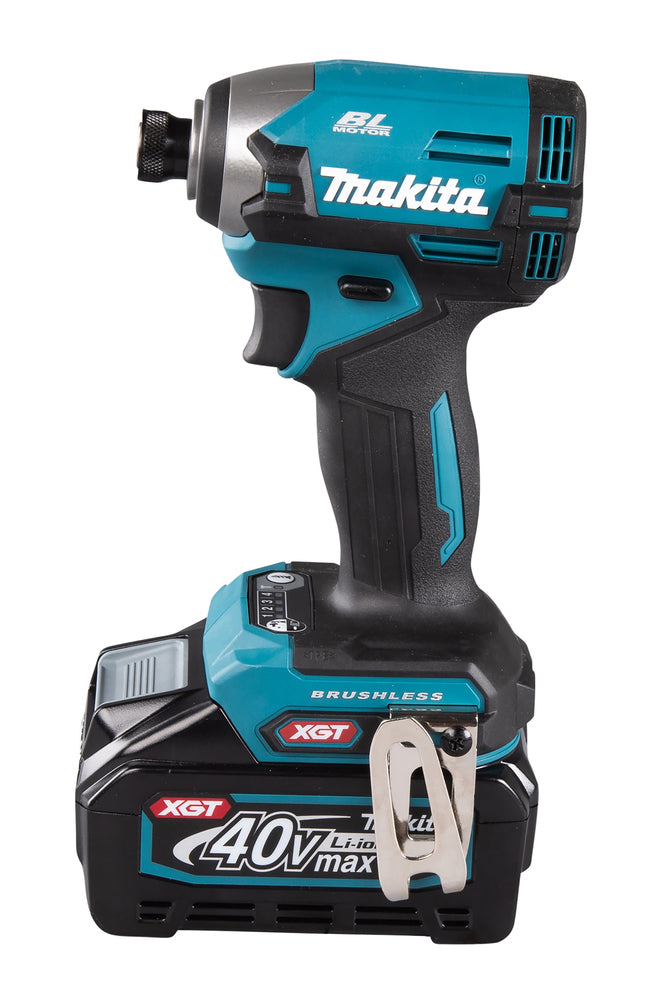

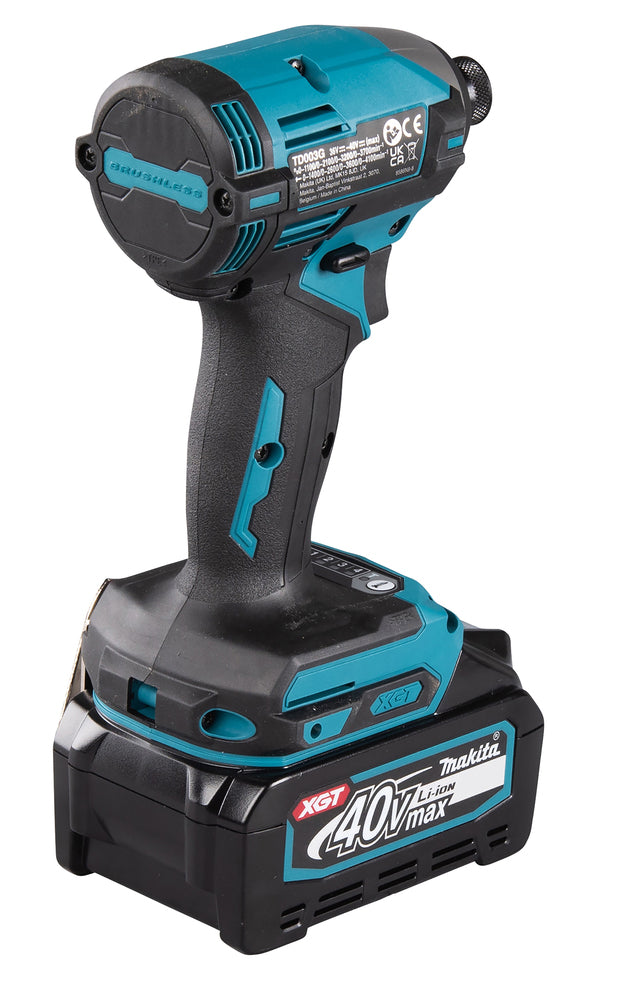

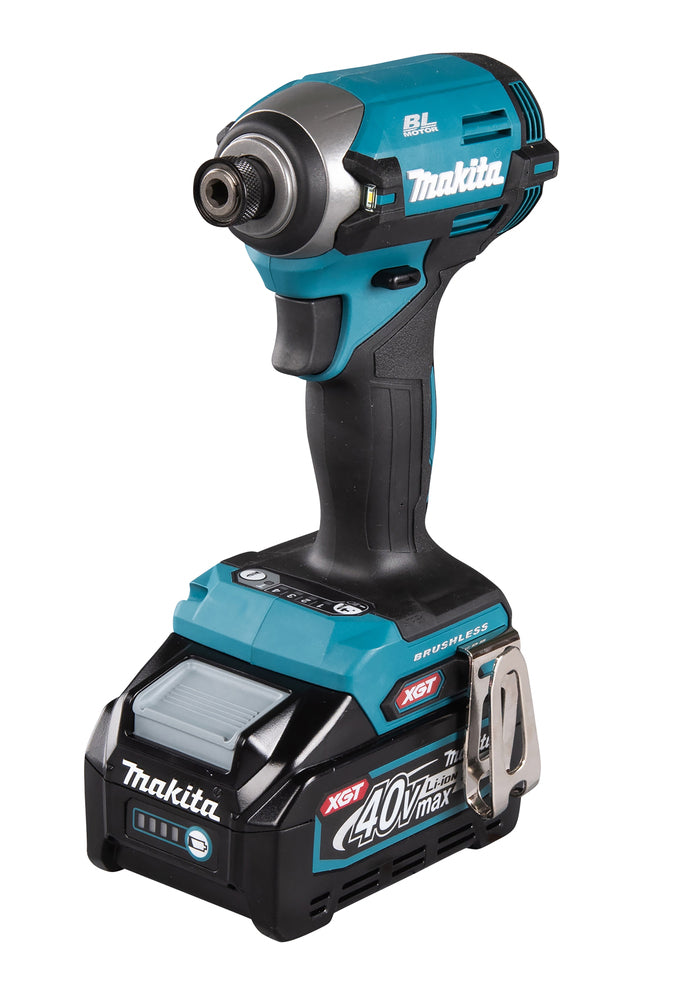

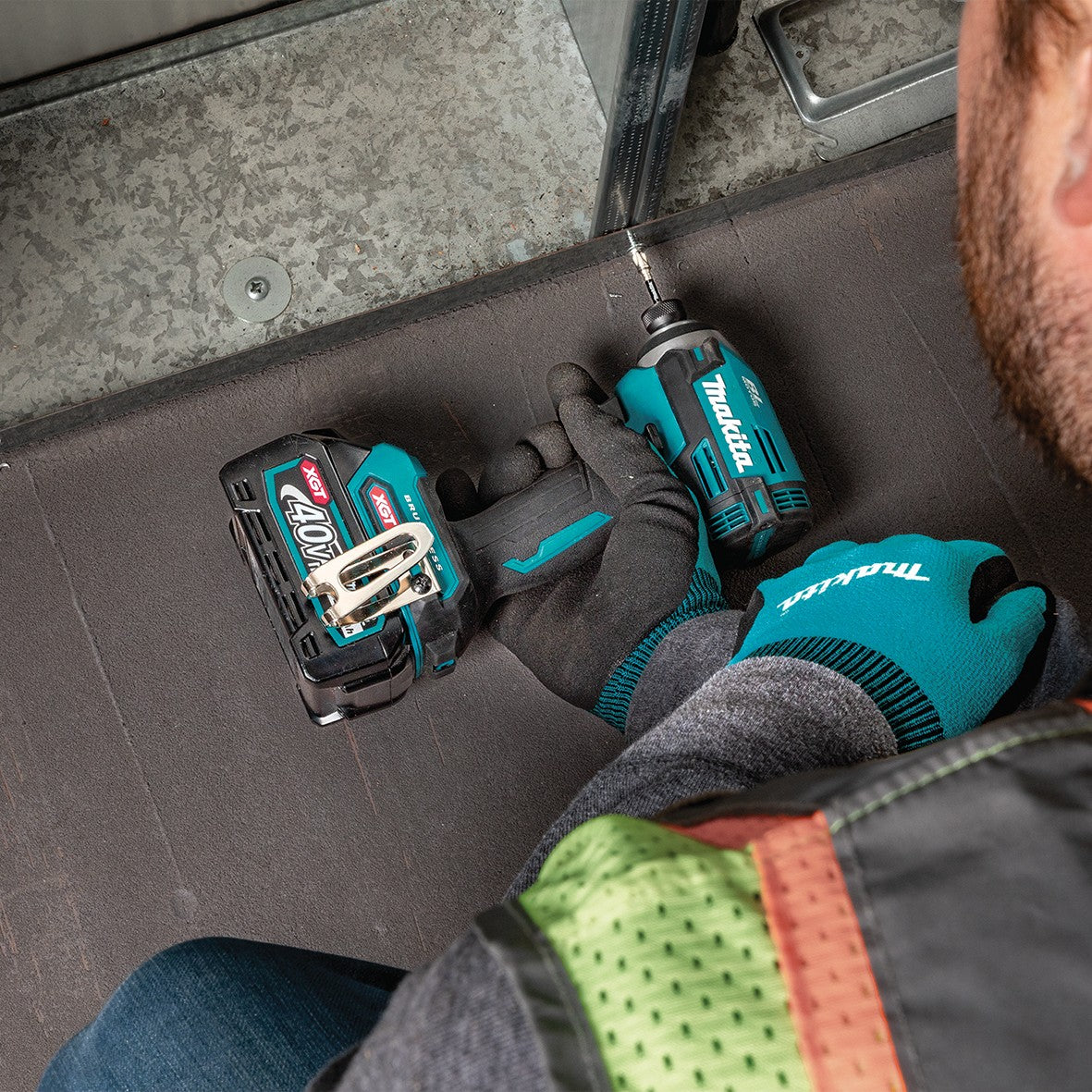

The TD003G is a high-performance, well-balanced impact driver designed for efficiency in diverse fastening tasks. Built on the 40V Max XGT platform, it provides professional torque and features 4-stage impact selection along with specialized assist modes for wood and metal. This ensures fast driving without damaging materials.
- High-performance brushless motor for efficient fastening

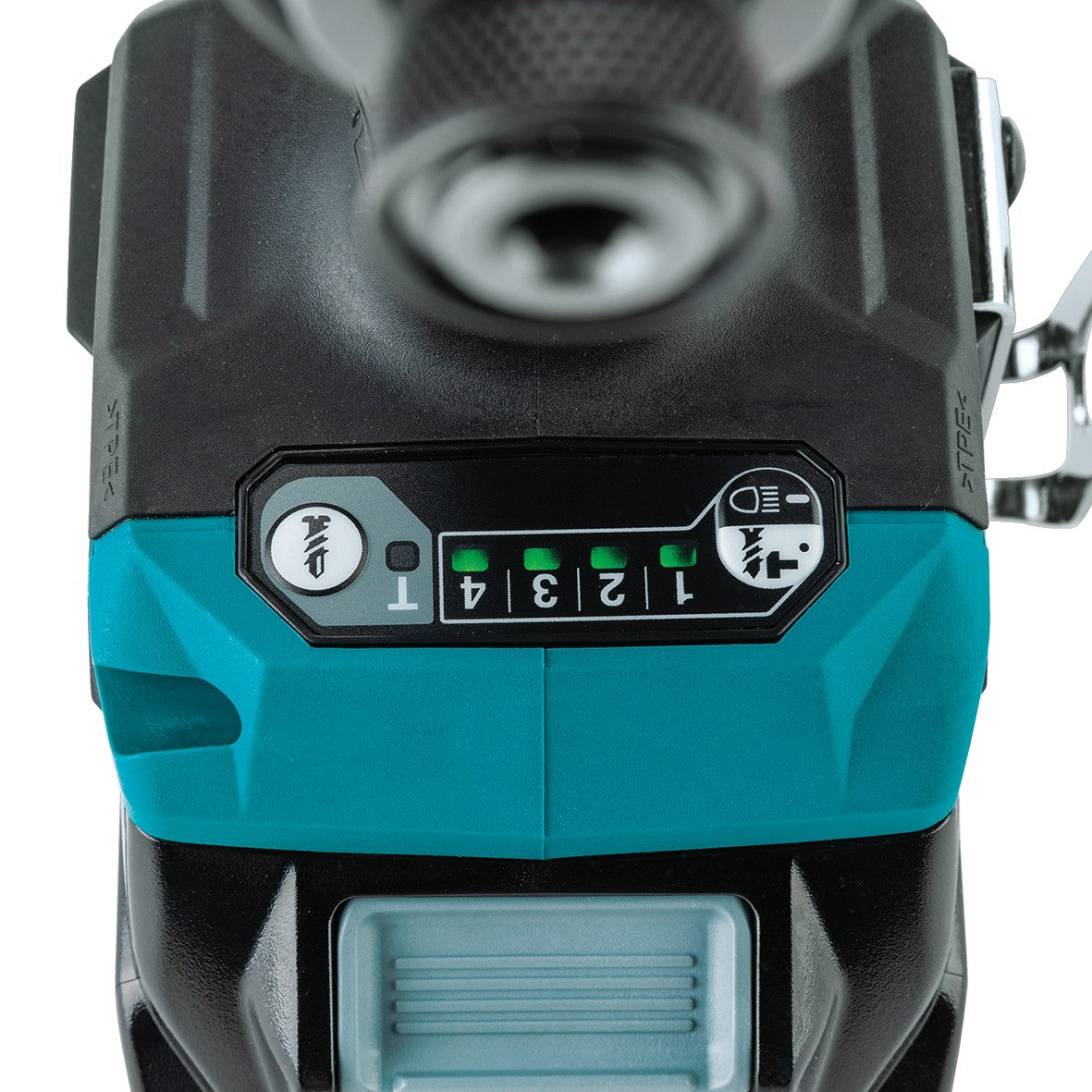

- 4-stage impact power selection for application control
- Assist modes for controlled driving in wood and metal
- Compact and ergonomic design for reduced operator fatigue

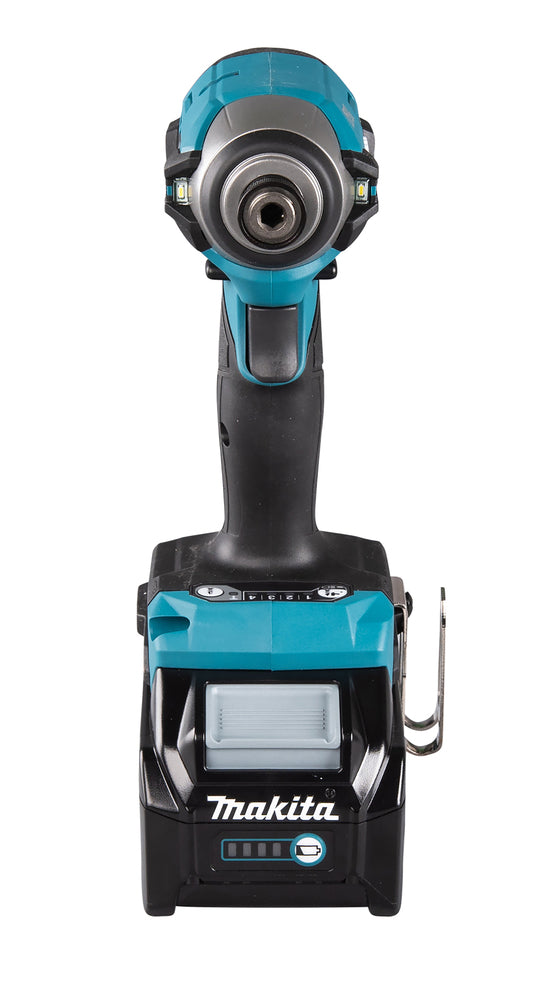

- LED job light with afterglow function
Technical Data
|
Max. capacities standard bolt
|
M5 - M16
|
|
Max. capacities high tensile bolt
|
M5 - M14
|
|
No load speed
|
Max.: 0 - 3,700rpm
Hard: 0 - 3,200rpm Med: 0 - 2,100rpm Soft: 0 - 1,100rpm |
|
Impact rate
|
Max.: 0 - 4,600ipm
Hard: 0 - 3,600ipm Med: 0 - 2,600ipm Soft: 0 - 1,400ipm |
|
Max. tightening torque
|
Max.: 220Nm
Hard: 170Nm Med: 50Nm Soft: 20Nm |
|
Drive shank
|
6.35mm (1/4") Hex
|
|
Overall length
|
119mm
|
|
Skin weight
|
1.0kg
|
|
Weight (with battery)
|
2.0kg (BL4040)
|
|
Voltage
|
40V Max
|
Includes

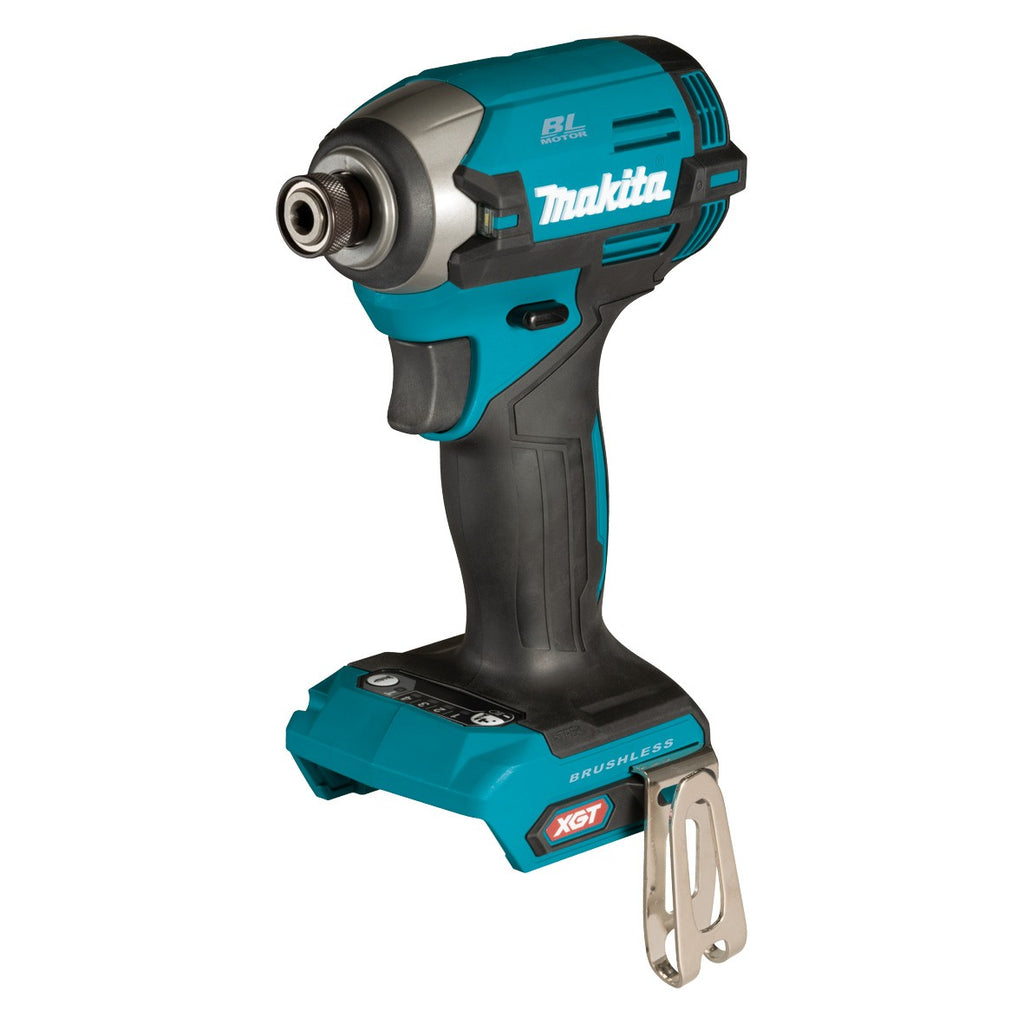

- 1x TD003GZ 40V XGT Brushless Impact Driver (bare unit, no battery or charger)
- Belt hook assembly (346317-0 & 266622-8)
