Description
The TD001G is an extreme-performance impact driver delivering up to 220 Nm of maximum fastening torque. Engineered for high-demand professional use, it features 10 operation modes, including 6 assist modes and 4-stage impact selection.
- Exceptional power with 220 Nm of maximum torque

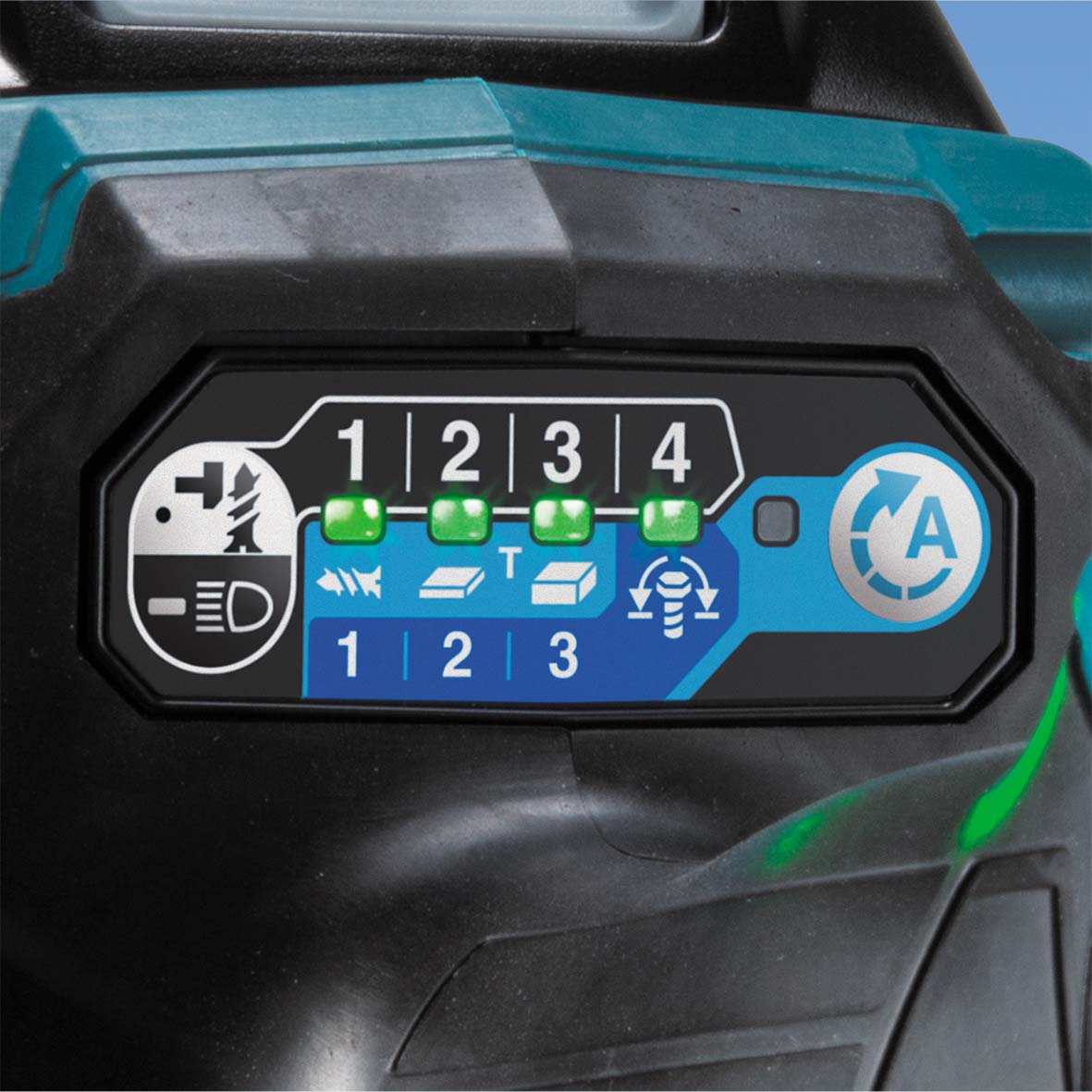

- 10 operation modes including 6 assist modes for controlled driving
- 4-stage impact power selection (Max/Hard/Med/Soft)

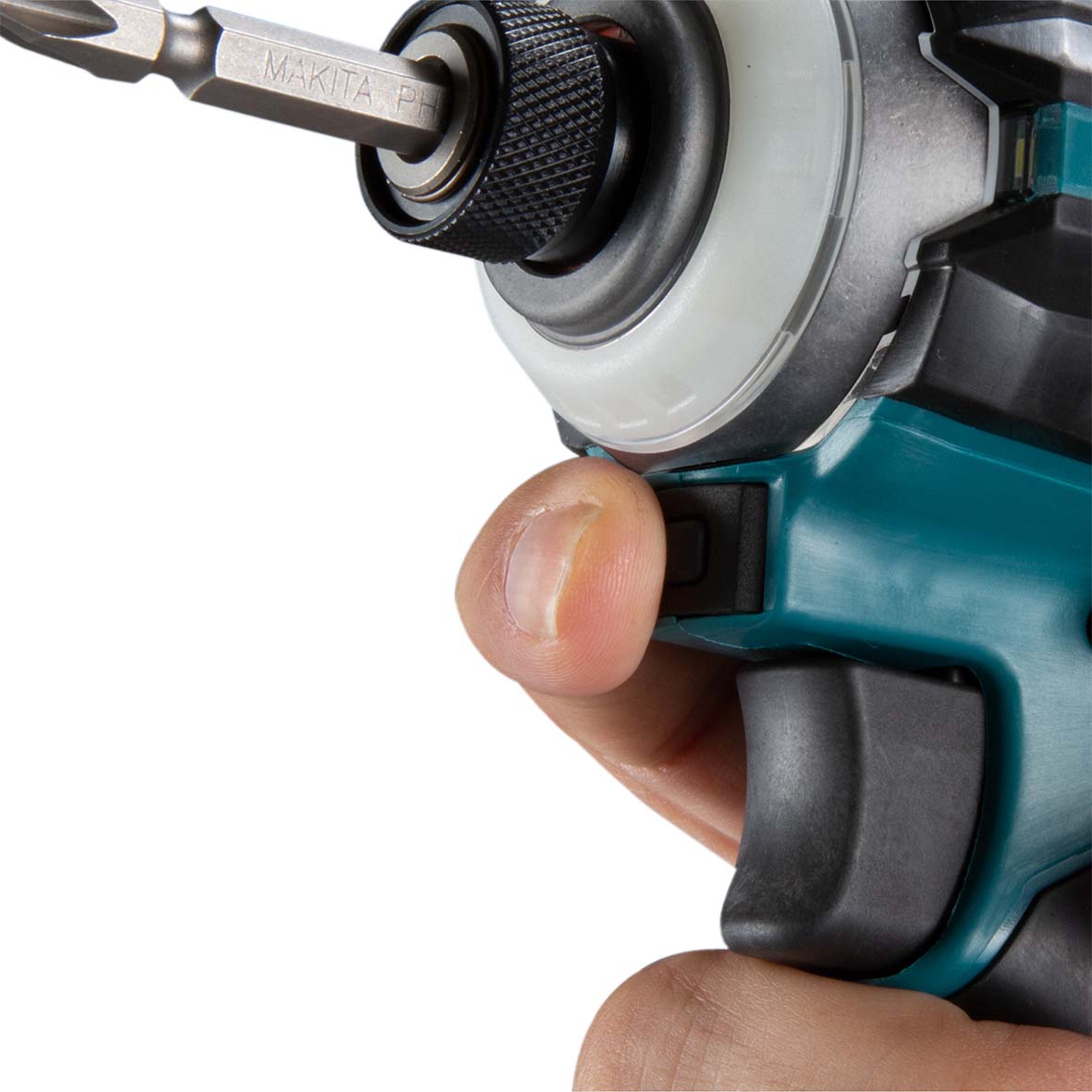

- One-touch bit installation for fast changes
- XPT (Extreme Protection Technology) for dust and water resistance
Technical Data
|
Max. capacities standard bolt
|
M5 - M16
|
|
Max. capacities high tensile bolt
|
M5 - M14
|
|
No load speed
|
Max.: 0 - 3,700rpm
Hard: 0 - 3,200rpm Med: 0 - 2,100rpm Soft: 0 - 1,100rpm |
|
Impact rate
|
Max.: 0 - 4,400ipm
Hard: 0 - 3,600ipm Med: 0 - 2,600ipm Soft: 0 - 1,100ipm |
|
Max. tightening torque
|
Max.: 220Nm
Hard: 170Nm Med: 50Nm Soft: 20Nm |
|
Drive shank
|
6.35mm (1/4") Hex
|
|
Overall length
|
120mm
|
|
Skin weight
|
1.0kg
|
|
Weight (with battery)
|
2.0kg (BL4040)
|
|
Voltage
|
40V Max
|
Includes

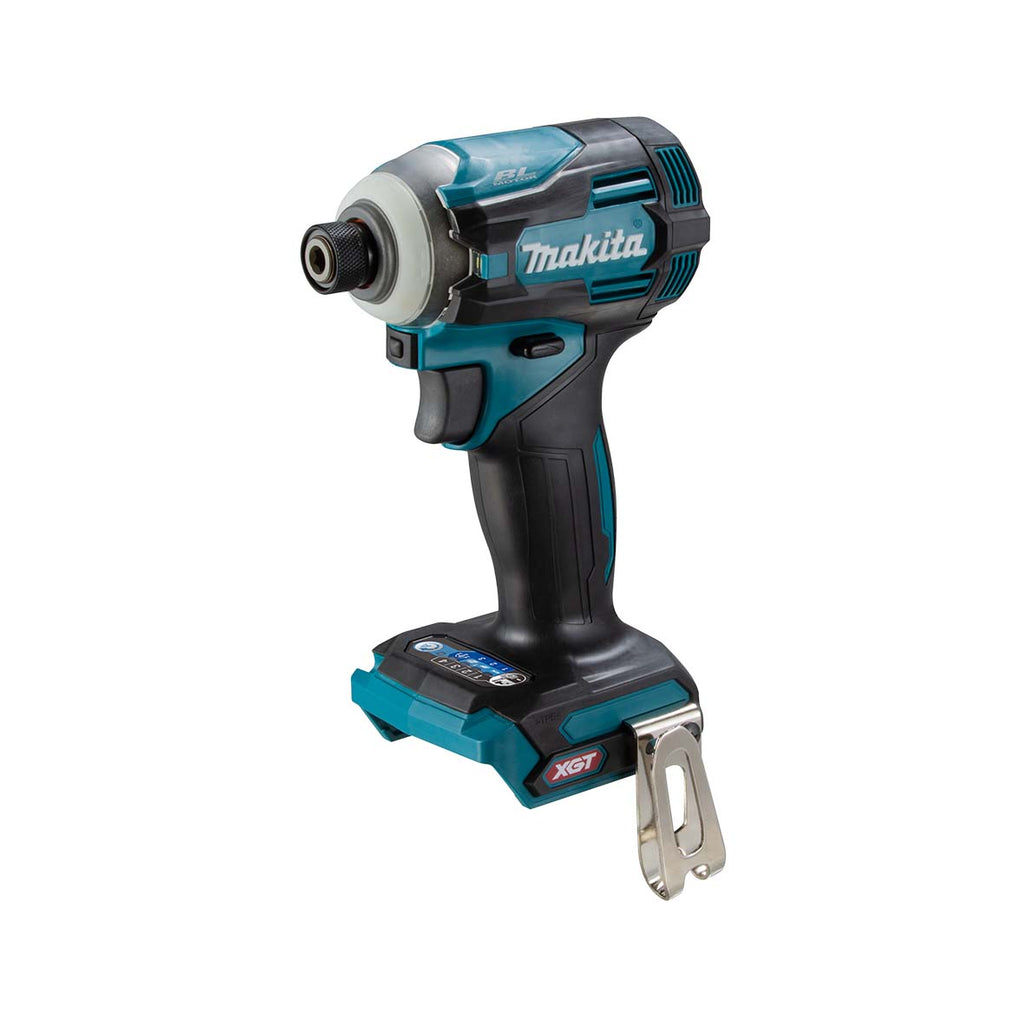

- 1x TD001GZ02 40V XGT Brushless Impact Driver (bare unit, no battery or charger)

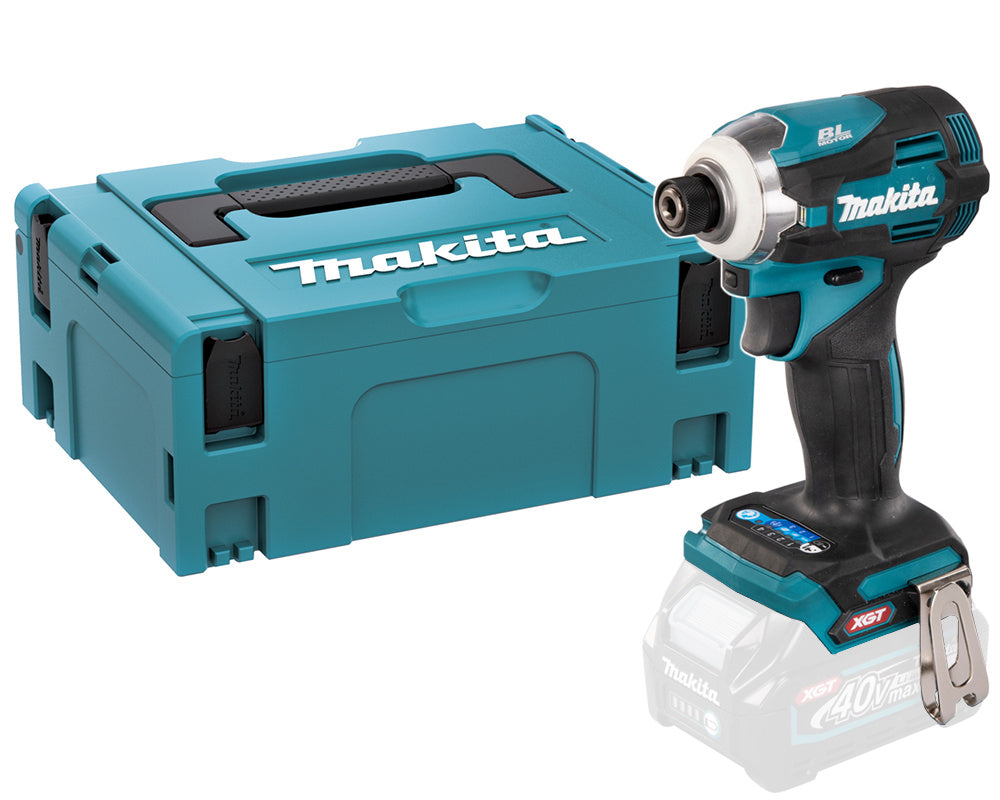

- 1x Makita Carry Case
- Belt hook assembly (346317-0 & 251314-2)
