Description
The DBB Morticer, manufactured by Souber Tools, produces a perfect lock recess every time. It is a genuine 5 minute morticer which is acclaimed by locksmiths and builders alike. For anyone who regularly fits mortice locks it will prove invaluable - an accurate, speedy and professional tool that will save time and money.
- Cuts a mortice for the body and for the face plate.
- Fast and accurate on doors from 30mm - 85mm thick
- Can cut door hinges and also some strike plates and electric releases.
- includes faster carbide cutters for wood morticing.
- Uses vertical guides, height and depth stops to ensure you do not overrun the cut area.
- Wide range of accessories and special attachments.
- All parts are replaceable.
- Robust construction and precision manufacture.
- Supplied complete with operating manual and plastic carry case.
- Plunging cutters now available.
Technical Data
| Drill requirements |
13mm (1/2') Chuck, recommended speed 2,000 - 3,000rpm
|
| Standard shaft depth |
90mm (100mm without stop)
|
| Long shaft depth |
170mm (180mm without stop)
|
| Door thickness Standard Morticer |
max opening 55mm
|
| Door thickness Standard Morticer with DBB/HK/S Special Housing |
max opening 80mm
|
| Door and Frame Width Offset Morticer |
max opening 95mm
|

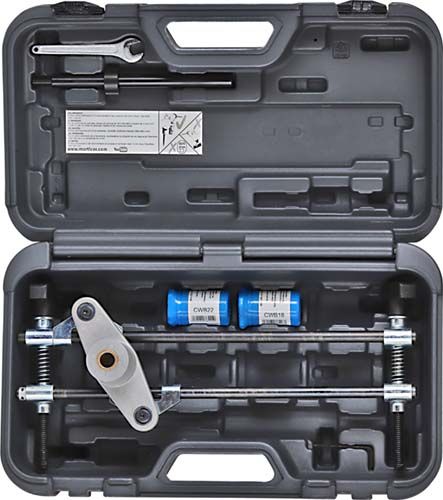

Includes
18mm wood cutter
22mm wood cutter
plastic carrying case
Instruction Manual
Standard shaft (for locks up to 100mm)
