Description
Sawstop Large Sliding Table TSA-SA70
- Table Dimensions 30” x 30 1/2”
- Maximum Travel 71 1/2” "
- Maximum Crosscut Capacity 118” (On PCS w/out Extension Wing)
- Maximum Rip Capacity (Front Mounting) 49” Maximum Rip Capacity (rear mounting) 70”
- Weight Capacity Fully Extended 350 lbs

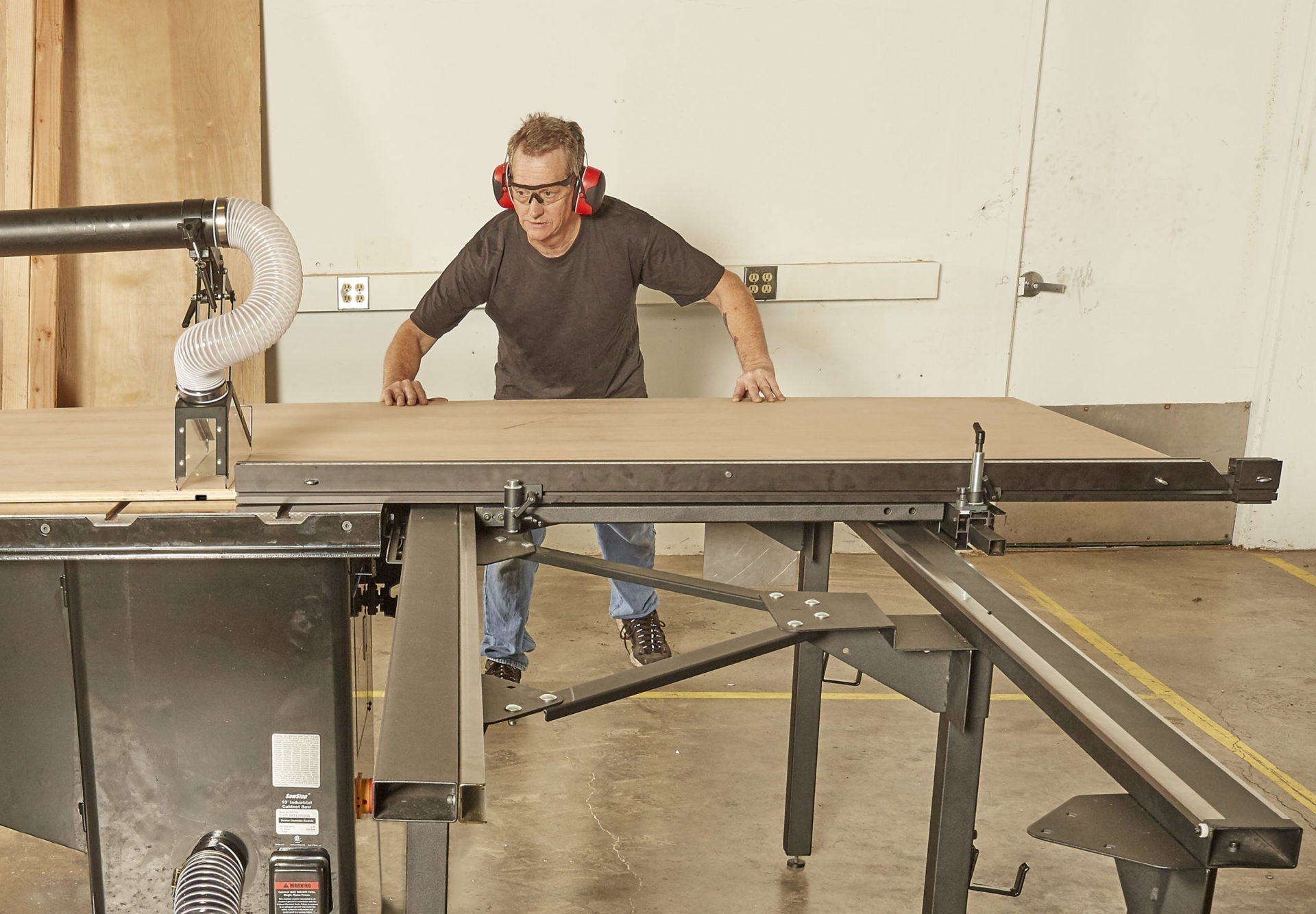

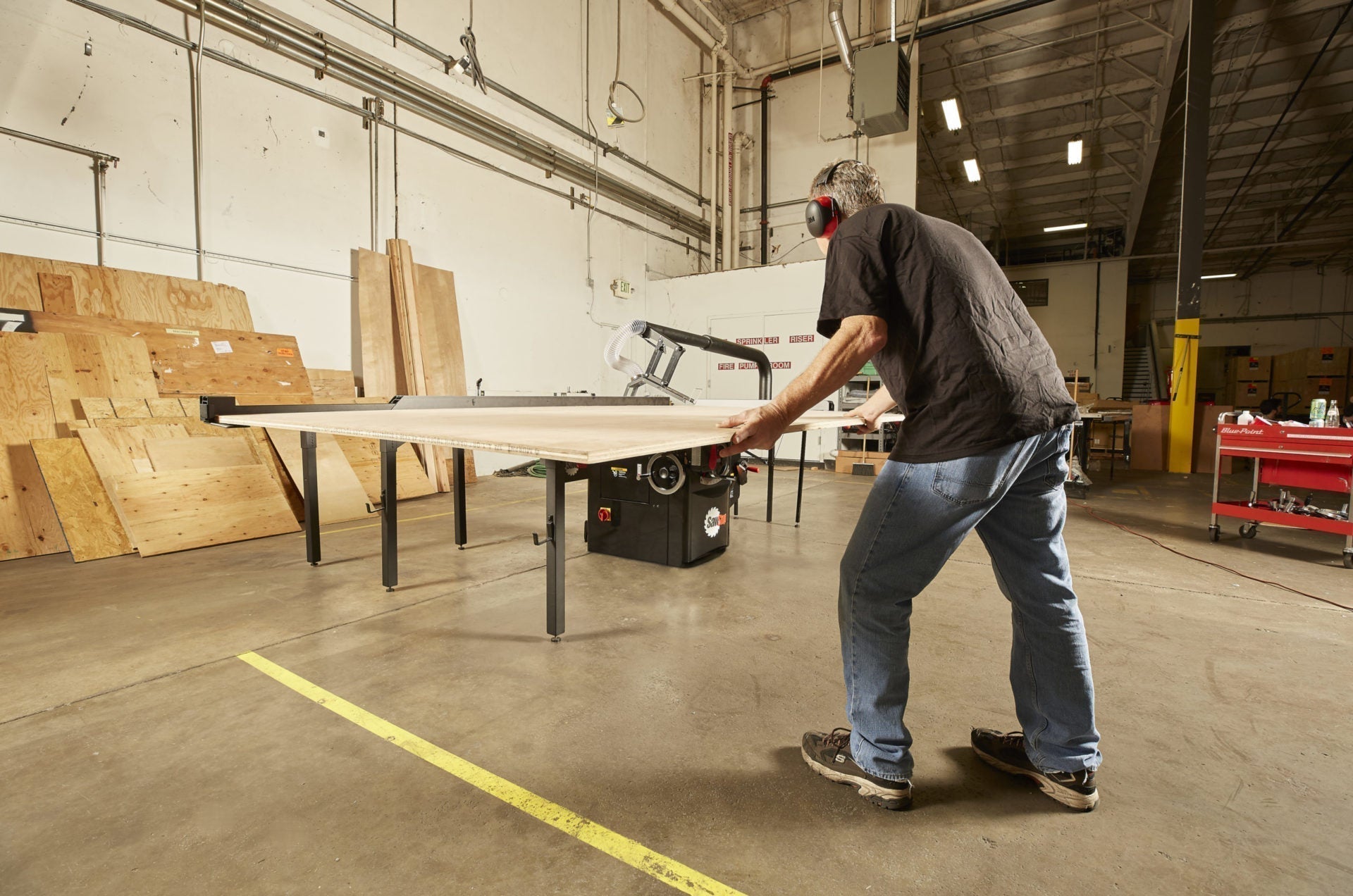

- Maximum Quality-This high-quality, rugged sliding table is constructed of durable steel and can accommodate sheet goods up to 350 lbs. Easily cut down sheet goods with the over-sized sled. The maximum rip capacity is 70" and maximum crosscut capacity is 118". The 14 sealed, steel bearings and aluminum fence ensure smooth, reliable and repeatable cuts every time.

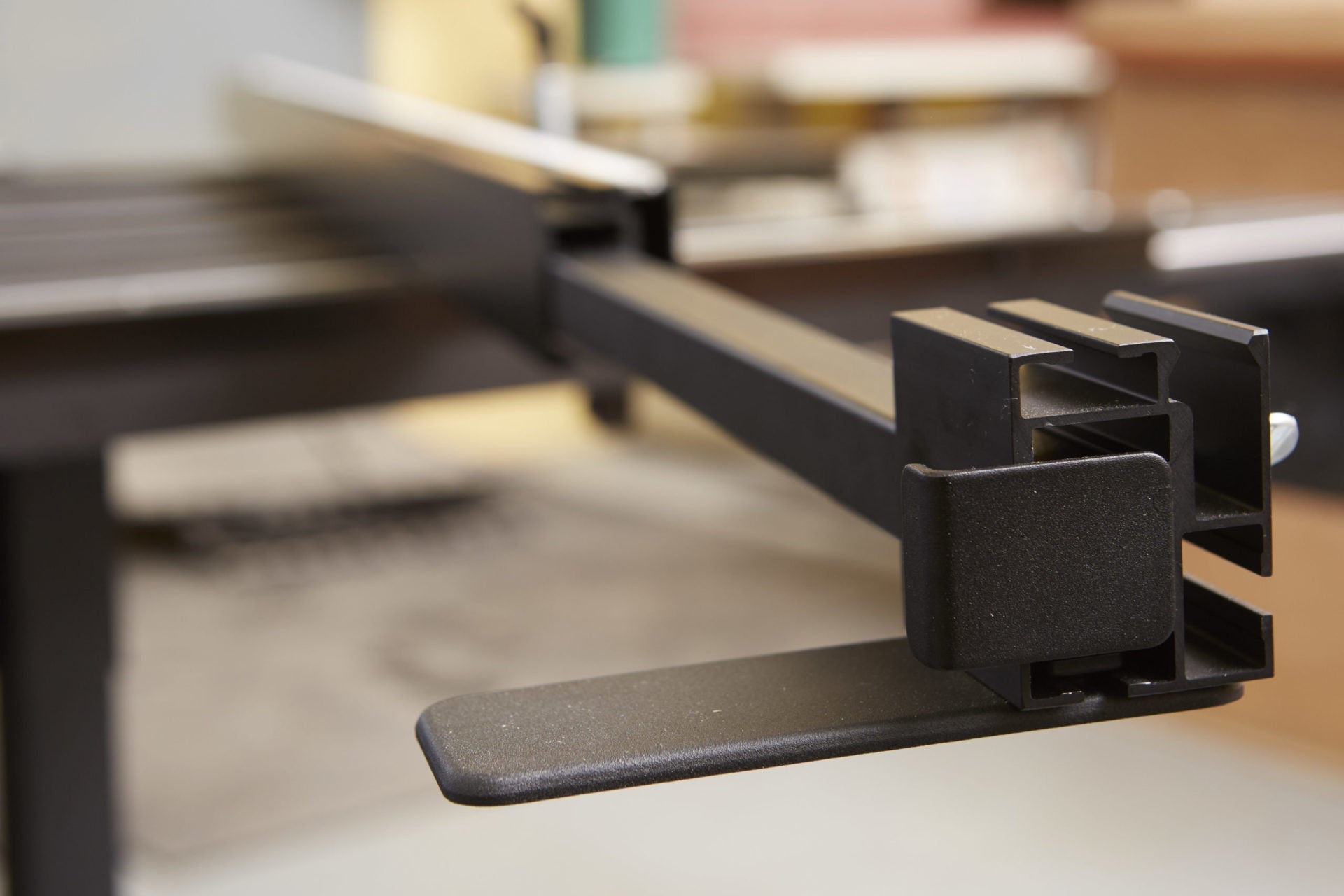

- Versatility-There are six different mounting options that allow for maximum adjustability in both traditional and European configurations. The aluminum fence can be easily removed and stored on the side of the sliding table with the included fence storage brackets.

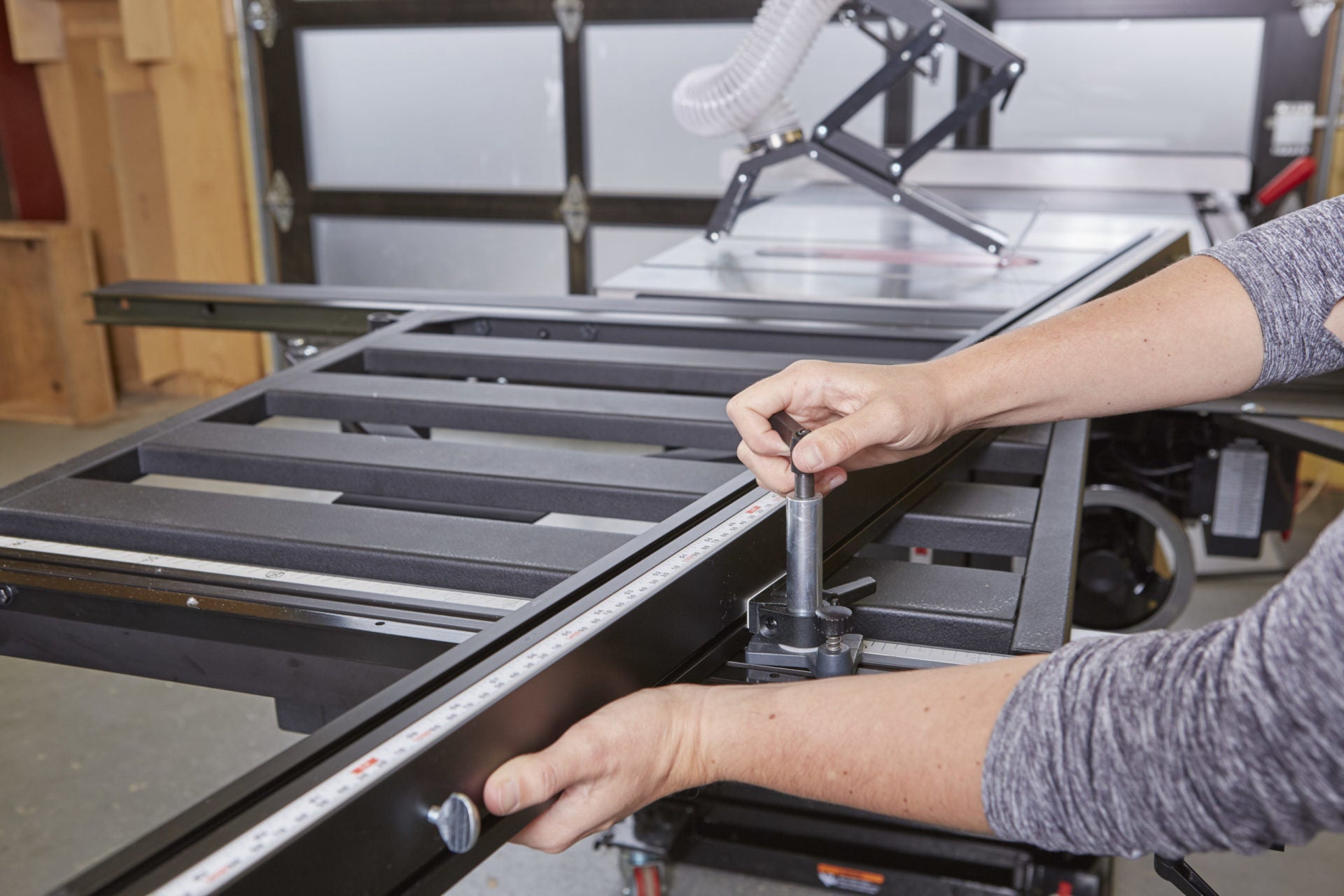

- Efficiency-Detents set at 0, 15, 22.5, 30 and 45 degrees ensures quick and reliable cuts. The included flip stop allows the operator to set measurements for repeatable cuts.
Technical Data
| Net weight | 173 lbs |
| Sliding Table Dimensions | 30” x 30 1/2” |
| Maximum Table Travel | 71 1/2” |
| Maximum Crosscutting Length |
118” (On PCS w/out Extension Wing)
|
| Maximum Rip Capacity (Front Mounting) | 49” |
| Maximum Rip Capacity (Rear Mounting) | 70” |
| Weight Capacity Fully Extended | 350 lbs |
| Assembly Time | One Day |
| Aluminum Fence | Included |
| Flip Stop | Included |
Includes
Sliding Table
Inner Guide Tube
Outer Guide Tube
Crosscut Fence
Angle Guide Rail
Mounting Bracket
(4) Support Legs
(2) Leg Brackets
(2) Stepped Leg Bracket
Positioning Plate
Front Bracket
Support Tube
(3) Lateral Brackets
(2) Guide Bearing Assemblies
Fence Pivot Assembly
Flip Stop
Fence Lock Assembly
Fence Extension
Logo Plate
Owner's Manual
