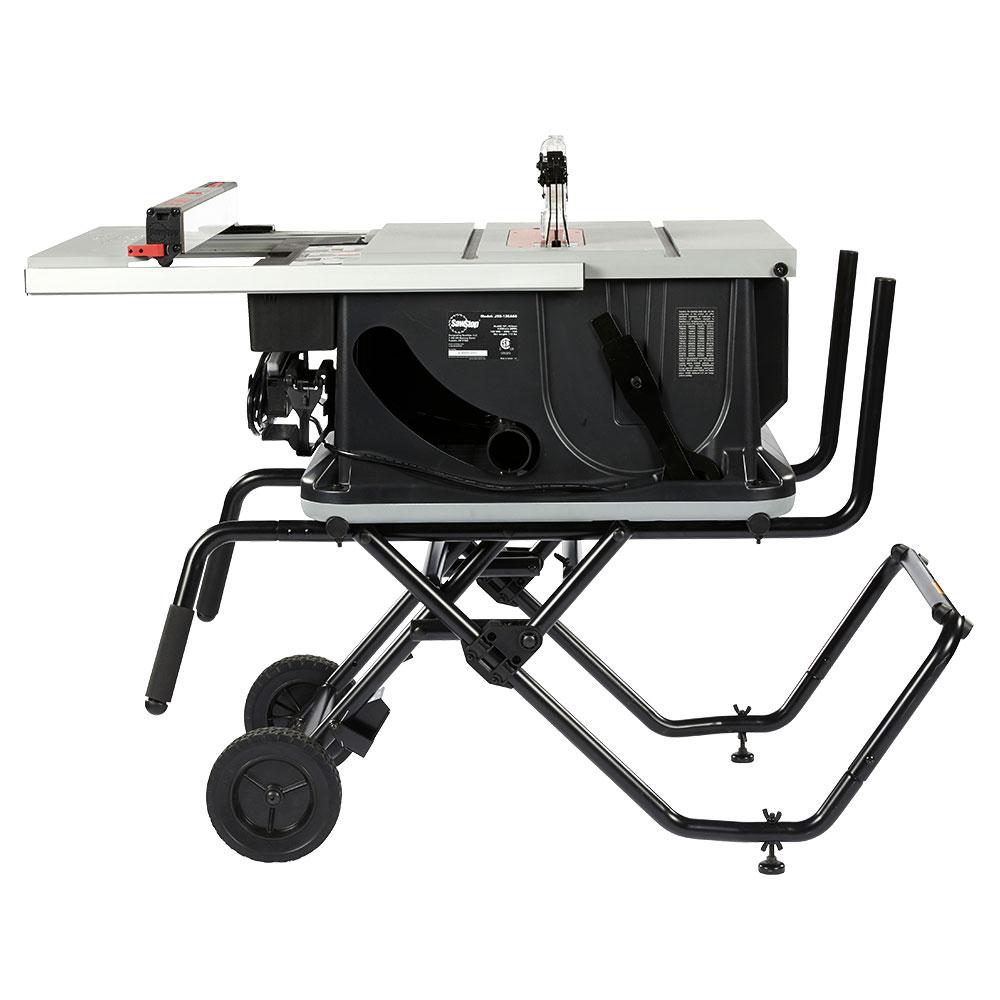

SawStop Jobsite Saw Pro w/ Mobile Cart 250mm (JSS230A50I)
The New & improved SawStop Jobsite Saw Pro unites SawStop Safety and pioneering innovation with compact portability. For the first time, the promise of SawStop safety, quality and peace of mind can travel with you wherever you go.
- One Turn Elevation
- QuickTilt
- Micro Adjust
- T-Style Fence with ErgoLock
- Fence Holster
- Low Profile Blade Guard
- Pedal Release

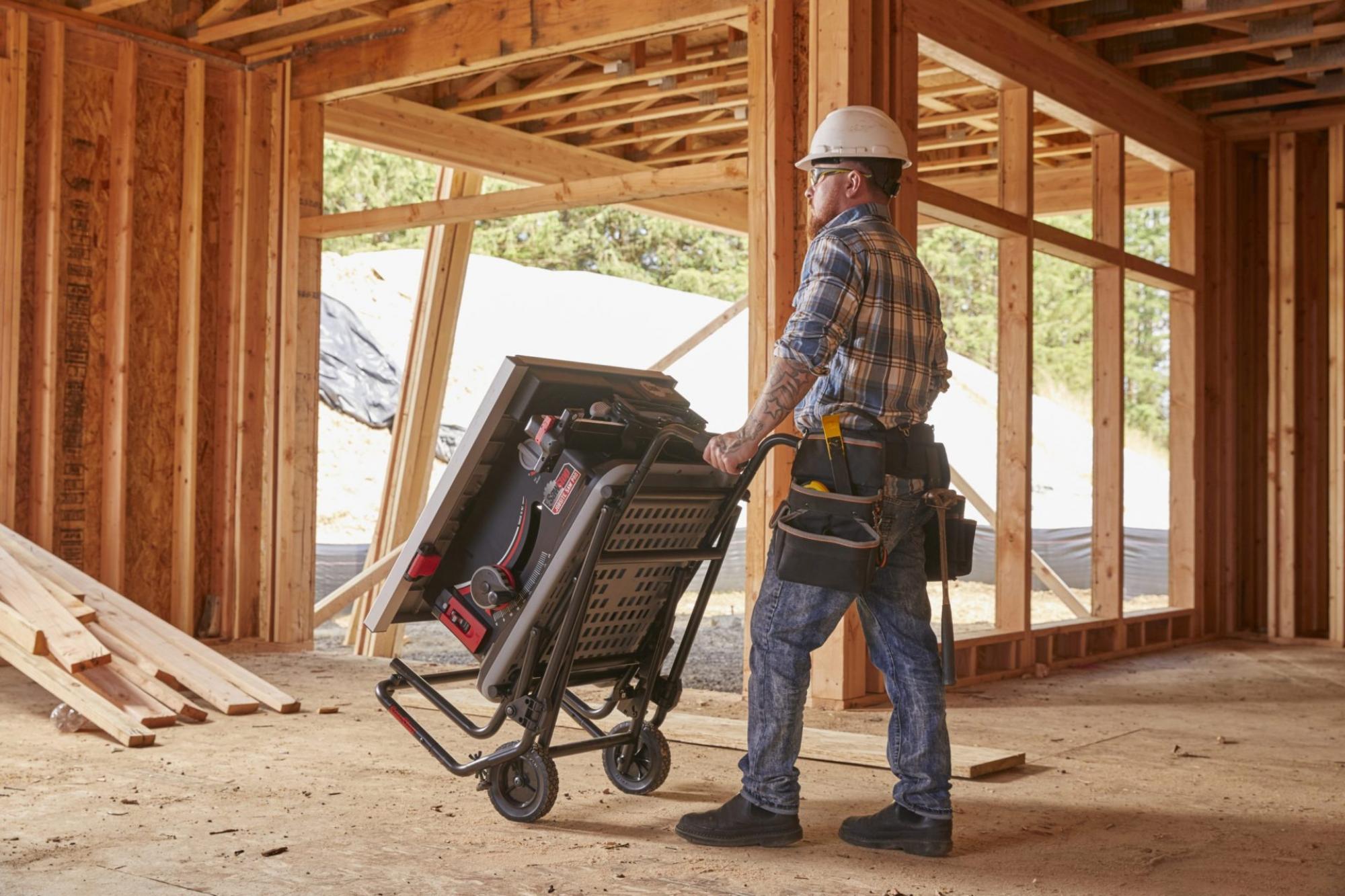

- Large Wheels
- Control Box
- Tool-Free Zero-Clearance Insert

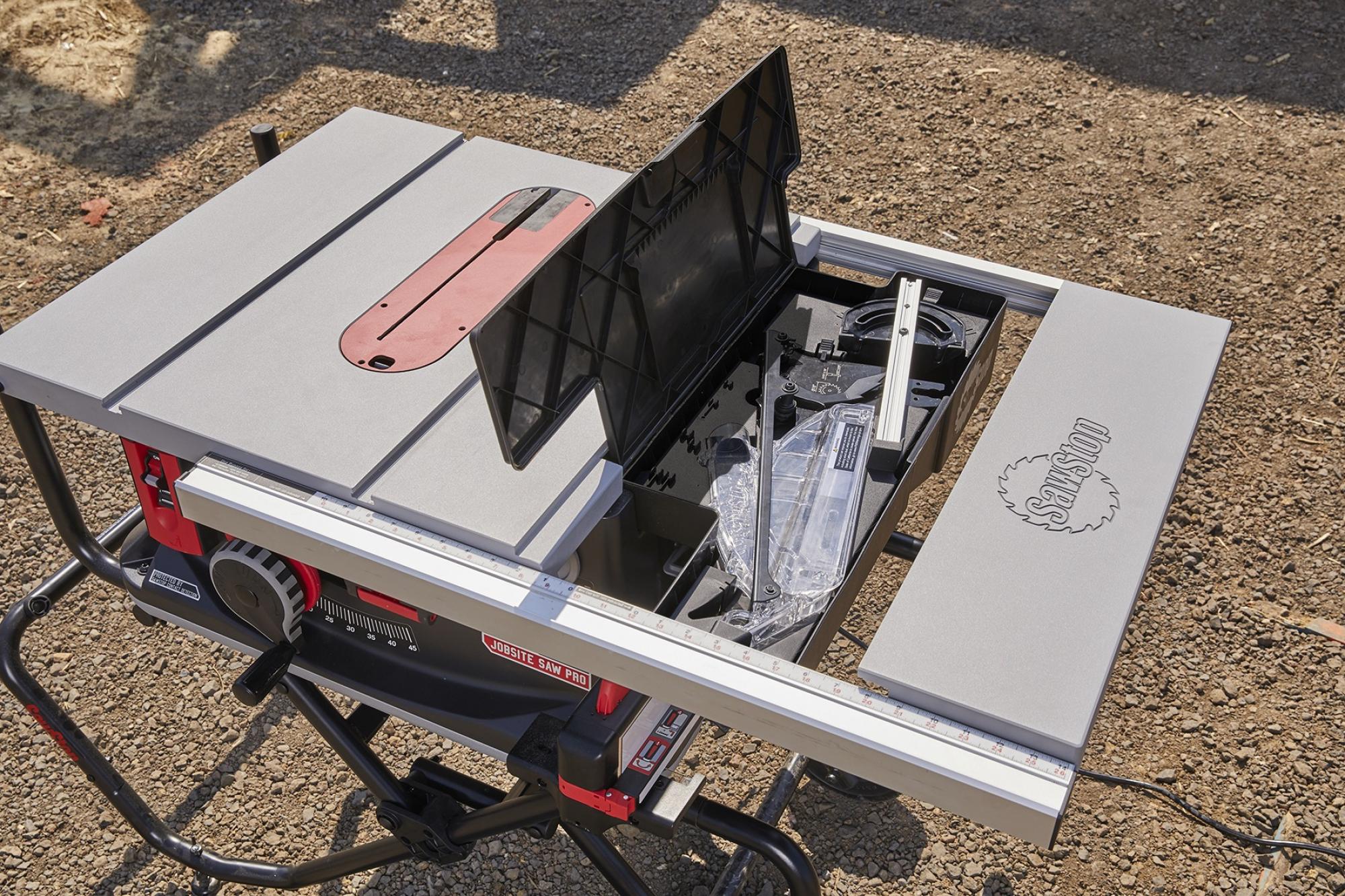

- Accessory Storage Drawer
- Extension Clamp
Technical Data
| Motor Configuration |
230 VAC, 50 Hz, Universal
|
| Cord Length: | 3m |
| Sold and Shipped as Full Set Only with Cart : |
(no Cartless Option Available)
|
| Motor Continuous HP: | 1.5 HP |
| Motor Peak HP: | 4 HP |
| Saw Dimensions without Cart (Body only): |
806.5mm W x 730mm D x 394mm H
|
| Saw Dimensions with Open Cart(ready to use): |
1219mm W x 736.5mm D x 914.5mm H
|
| Saw Dimensions with Closed Cart (on End/stored position): |
673mm W x 736mm D x 1143mm H
|
| Table Dimensions (Extended): |
1101mm x 625mm
|
| Shipping Dimensions: |
813mm W x 1092mm D x 660.5mm H
|
| Shipping Weight (with Cart): | 62kg |
| Weight (Saw Only): | 38 kg |
| Weight (with Cart): | 51 kg |
| Blade Diameter | 10" / 254mm |
| Dado Diameter: | 8" / 203mm |
| Dado Max. Width: | 20mm |
| Bevel Angle Range: | -1 to 46 |
| Max. Depth of Cut, Blade at 0º: | 79mm |
| Max. Depth of Cut, Blade at 45º: | 54mm |
| Max. Rip Right of Blade (Extended): | 647mm |
| Max. Rip Left of Blade: | 247mm |
| Blade Tilt: | Left |
| Table in Front of Blade (Max Elev): | 200mm |
| Table Behind Blade (Max Elev): | 187.5mm |
| Miter Slots T-shaped Dimensions: |
19.15mm W x 10.5mm D; "T" 24.25mm W x 4mm THK
|
| Table Flatness Measured Diagonally | 0.84mm |
| Dust Collection Port Diameter: | 63.5mm |
| Active Dust Collection Blade Guard: |
polycarbonate, extends 25.4mm right of blade
|
| Restart Protection: | Yes |
| No Load RPM: | 4200 |
Includes
Collapsible Rolling Cart x1
Miter Gauge x1
JSS Micro Blade Guard x1
Riving Knife x1
Blade Wrenches x2
Push Stick x1
10” Blade x1
Standard Brake Cartridge x1
User’s Guide x1
Assembly Instructions Poster x1
Hardware Pack x1
3mm Hex Key x1
4mm Hex Key x1
5mm Hex Key x1
