Description

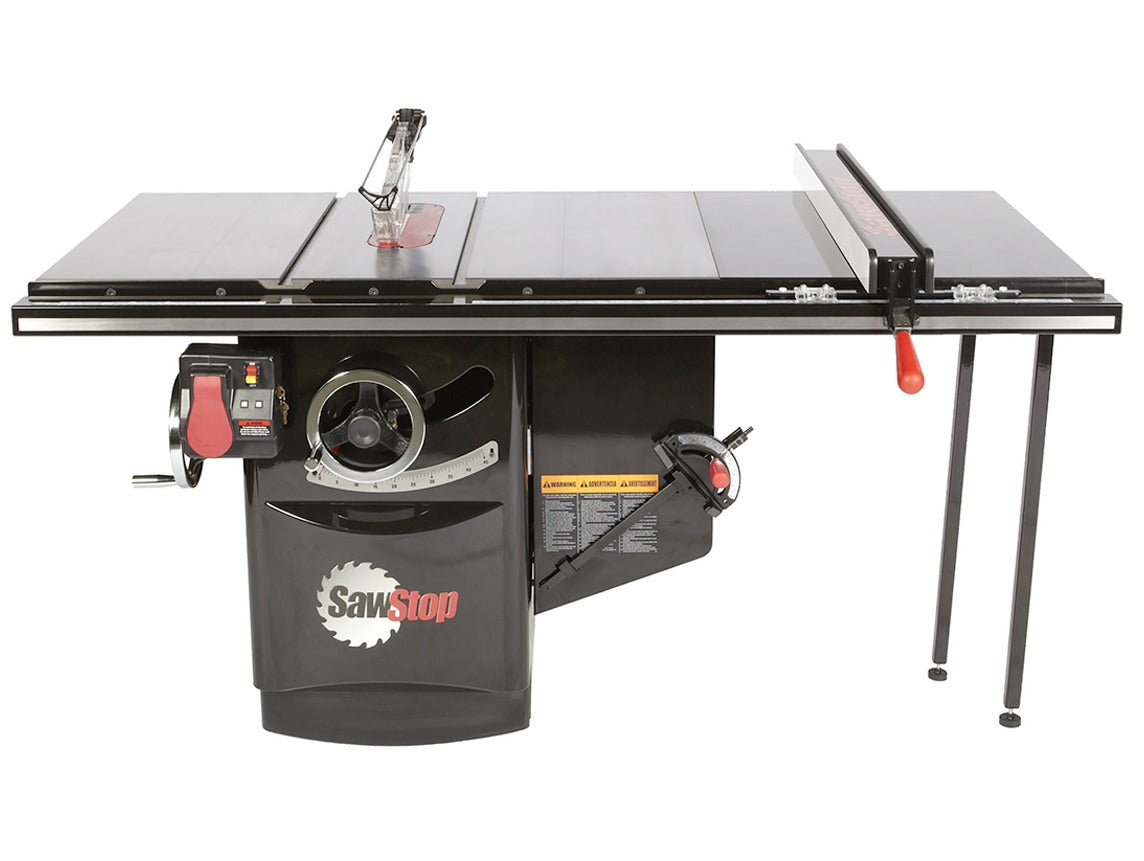

The SawStop 10” Industrial Cabinet Saw is the reference by which all other saws are measured: Precision and heavy-duty construction, the revolutionary safety feature that’s made SawStop famous, and 99% dust collection system that’s second-to-none. It is, simply put, the finest SawStop saw ever made.
- Durable craftsmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments
- SawStop Safety System stops on contact with skin

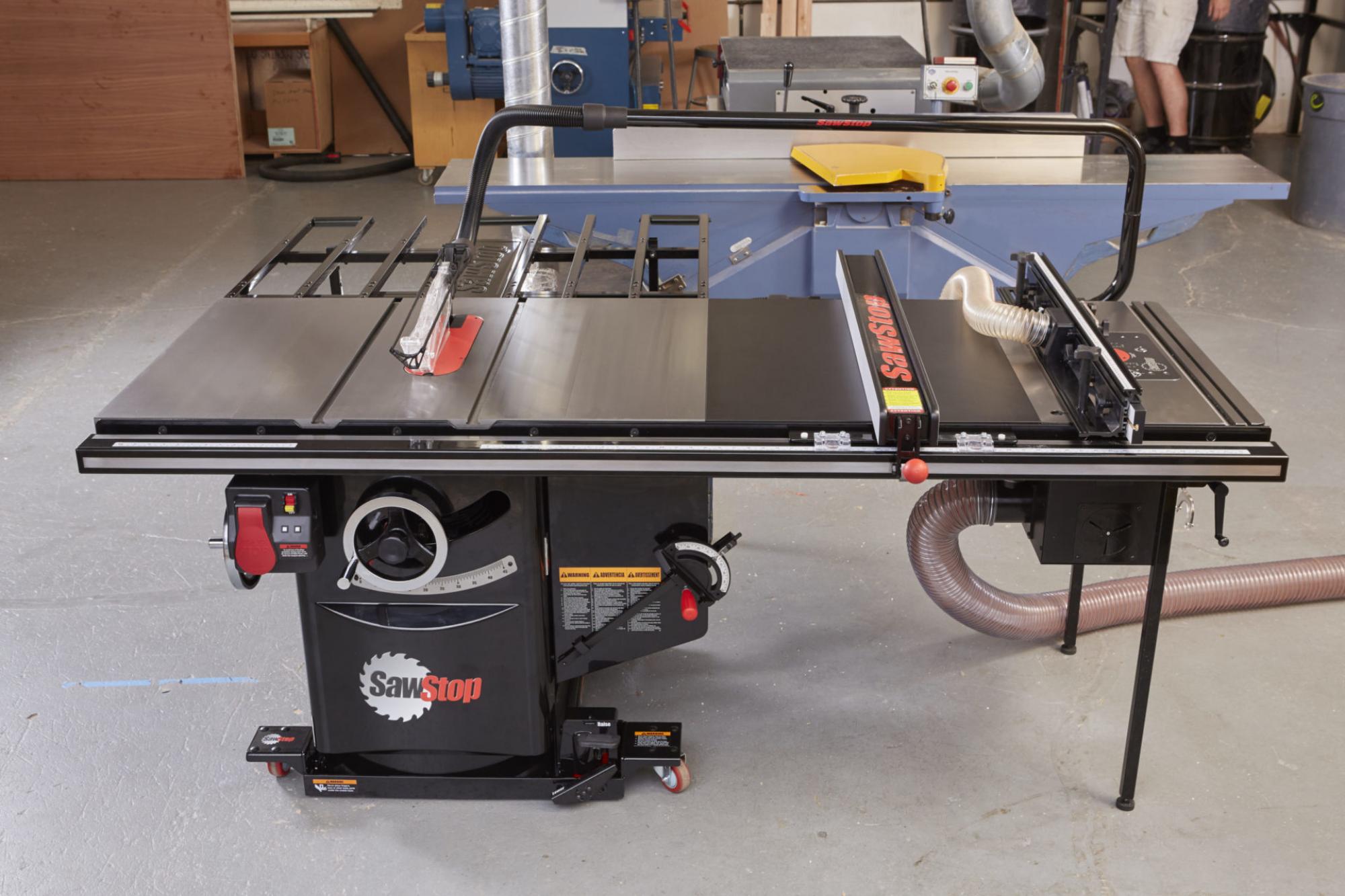

- 36" Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lock-down without deflection
- 1760 mm wide X 927 mm deep X 864 mm high
Technical Data
| Motor configuration |
2.2 kW [3 hp],
1 phase, 230V, 13 A |
| Overall saw dimensions 36 in | |
| Width: |
1759 mm [69 1/4″]
|
| Depth: |
927 mm [36 1/2″]
|
| Height: | 864 mm [34″] |
| Cast iron table: |
24″ w x 30″ d
610 mm wide x 762 mm diameter |
| table saw only: |
240 kg [530 lbs]
|
| 36 in fence systems: |
288 kg [635 lbs]
|

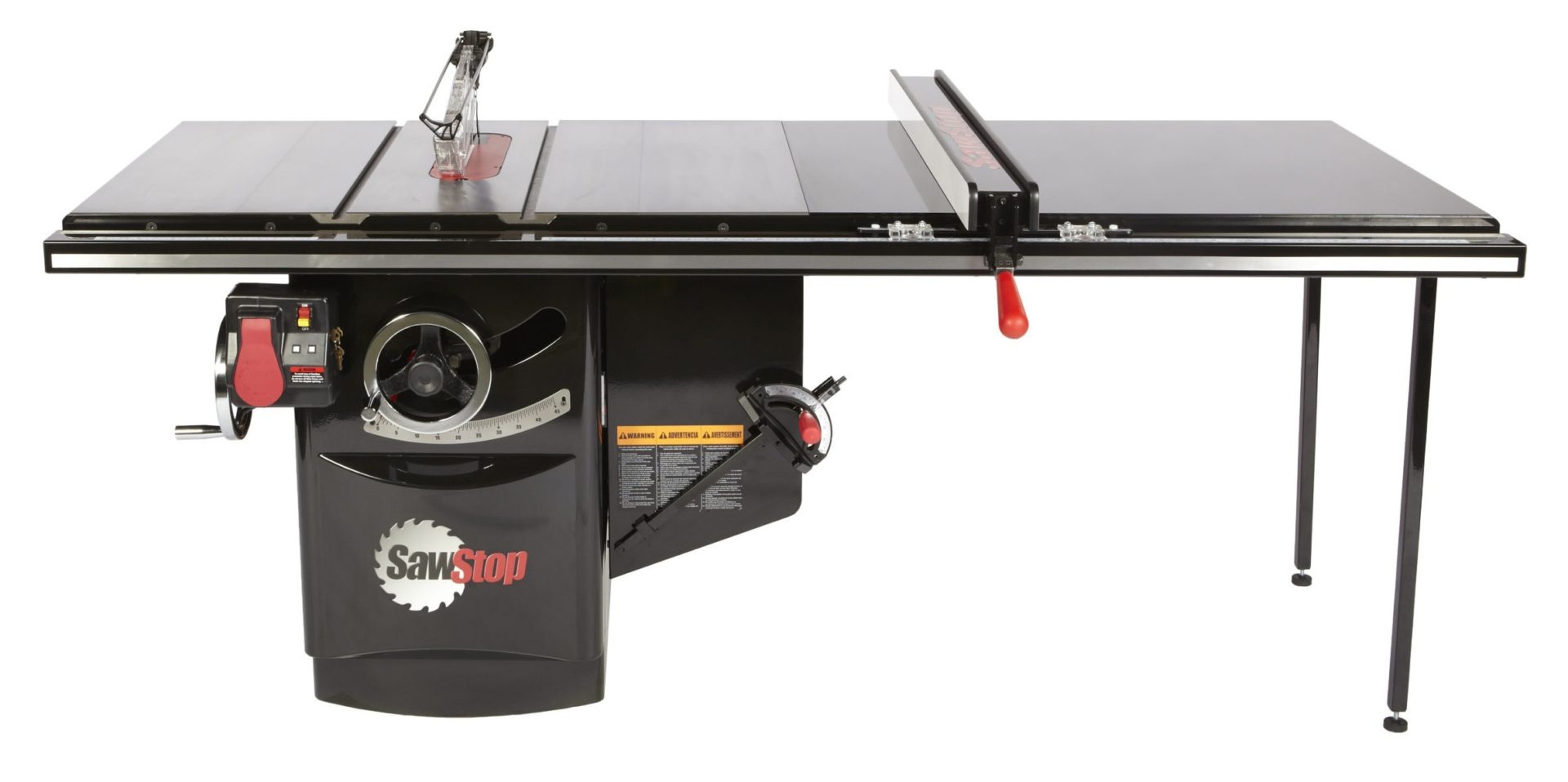

| 52 in fence systems: |
310 kg [685 lbs]
|
| Shipping weight (approx.): |
290 kg [640 lb] (table saw only)
|
| Arbor Ø: | 5/8" |
| Diameter | 254 mm [10"] |
| Blade tilt: | Left |
| Blade kerf: | 3 mm |
| Blade plate thickness: | 2 mm |
| Max. depth of cut, blade at 0°: |
79,4 mm [3 1/8″]
|
| Max. depth of cut, blade at 45°: |
57.15 mm [2 1/4"]
|
| Max. rip, right of blade - 36 in: |
927 mm [36 1/2″] (w/ optional 36″ rails)
|
| Max. rip, right of blade - 52 in: |
1330 mm [52 1/2″] (w/ optional 52″ rails)
|
| Max. rip, left of blade: |
318 mm [12 1/2″]
|
| Dado diameter: |
200 mm [8″]
(requires a separate brake cartridge and insert) |
| Dado max. width: |
20 mm [13/16″]
|
| Table in front of blade (max. elevation): | 279 mm [11"] |
| Table behind blade (max. elevation): |
248 mm [9 3/4″]
|
| Arbor Runout: |
0.0254 mm [0.001″]
Maximum allowable runout |
| Table flatness measured diagonally: |
0.254 mm [0.010″]
Maximum gap |
| Blade alignment with miter slot: |
0.254 mm [0.010″ ]
Maximum displacement |
| Deviation of miter gauge indexing stops from actual: | ±0.25° |
| Alignment between splitter and blade: |
0.254 mm [0.010″]
Maximum difference |
| Miter slots T-shaped: |
19.05 mm [3/4″] at top,
25.4 mm [1″] at bottom, 9.525 mm [3/8″] deep |
| Miter slots center: |
282.58 mm [11 1/8″]
center-to-center |
| Miter slots info: |
139.7 mm [5 1/2″ ]
(arbor flange to center of right slot) |
| Dust collection port diameter: | 100 mm [4"] |
| Riving knife / splitter thickness: |
0.090" (2.3 mm)
|
| Blade guard (dust collection): |
polycarbonate,
extends only 1 3/16" to right of blade |
| Hand wheels: |
200 mm [8″] diameter,
cast iron w/ chrome handle |
| Belts: |
2 V-ribbed belts
|
Includes
Fence NOT Included - Select Fence
(2) Cast Iron Extension Wings
(1) Miter Gauge
(1) Dust Collection Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Table Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm Hex Key
(1) Blade Spacing Adjustment Gauge
