Description

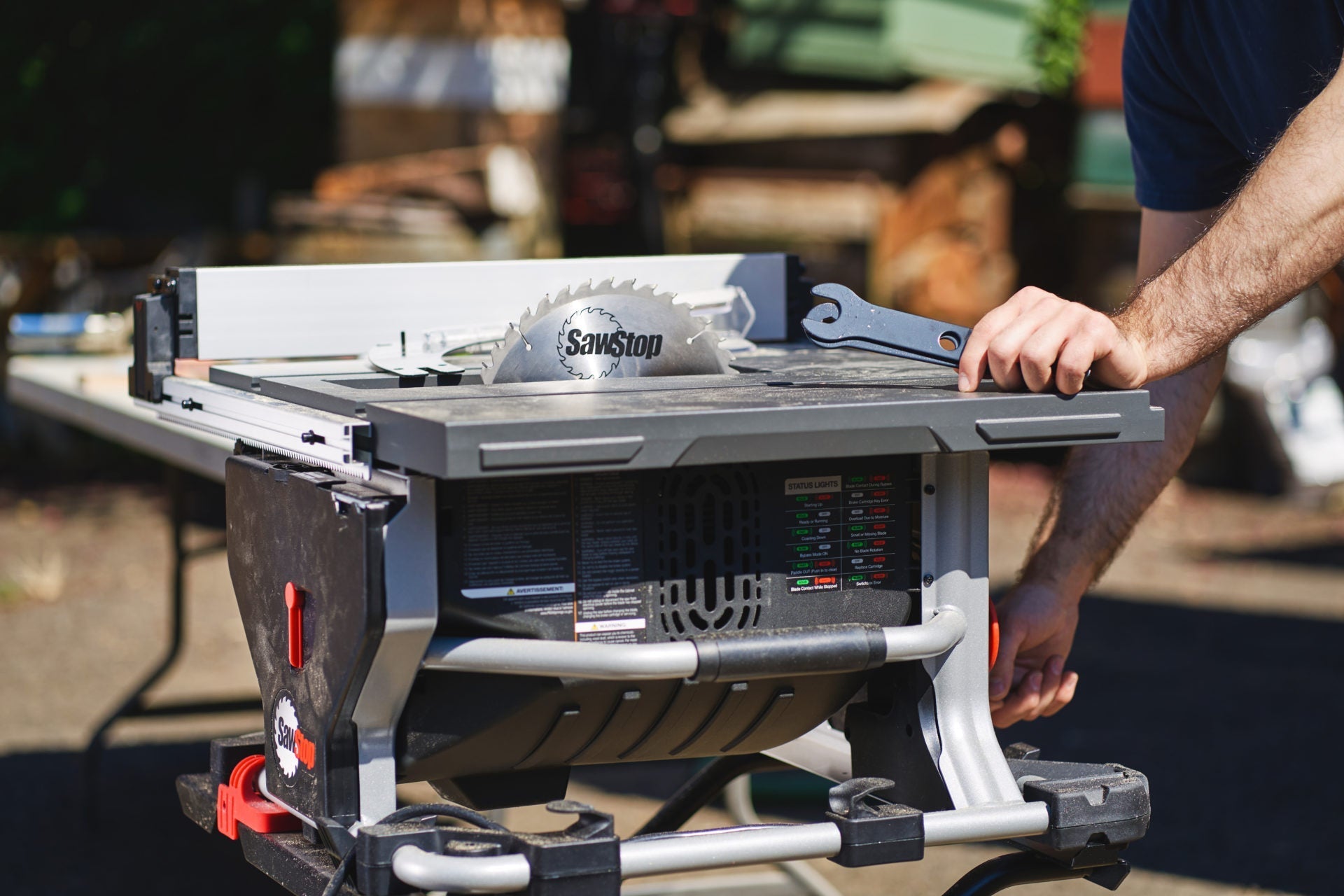

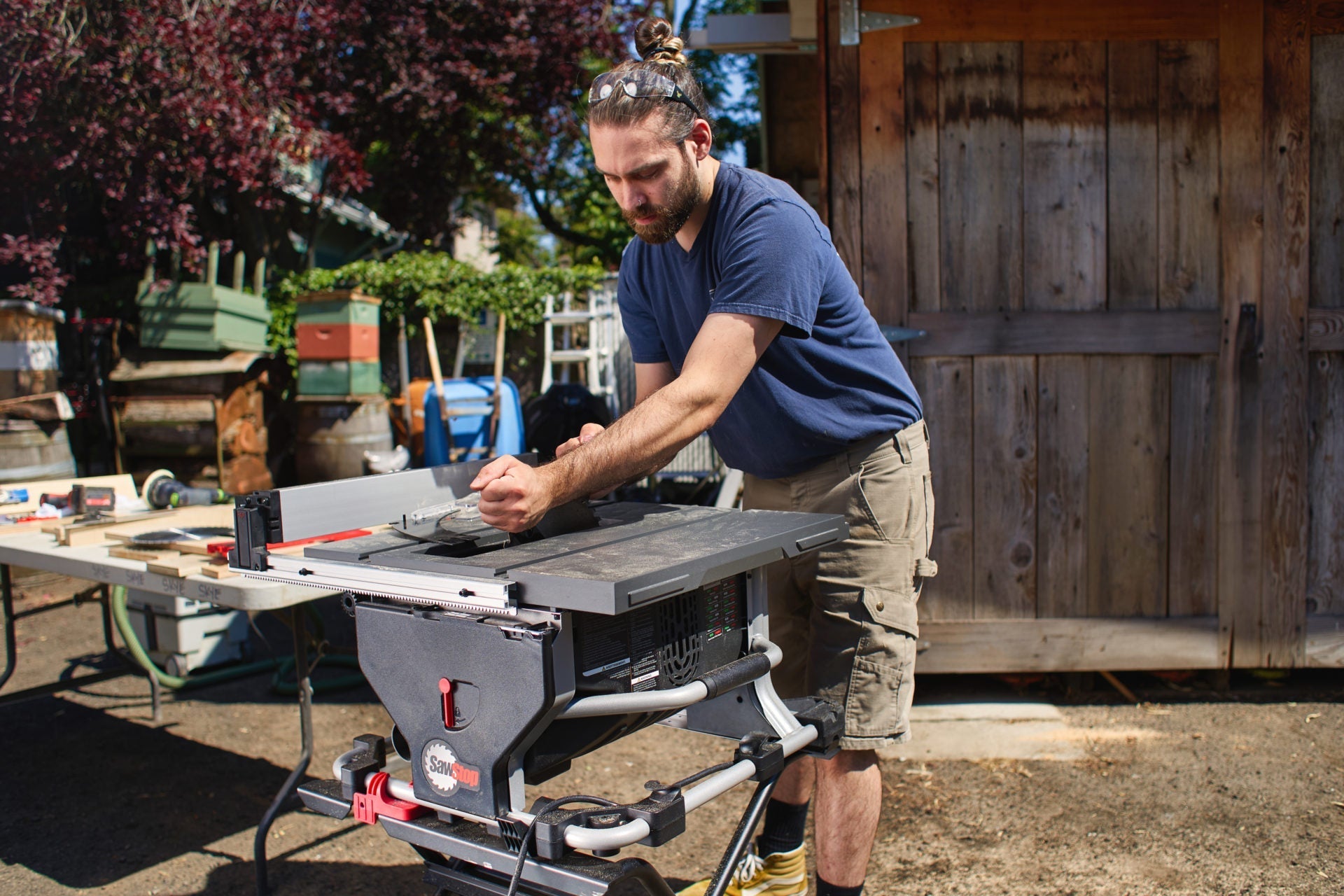

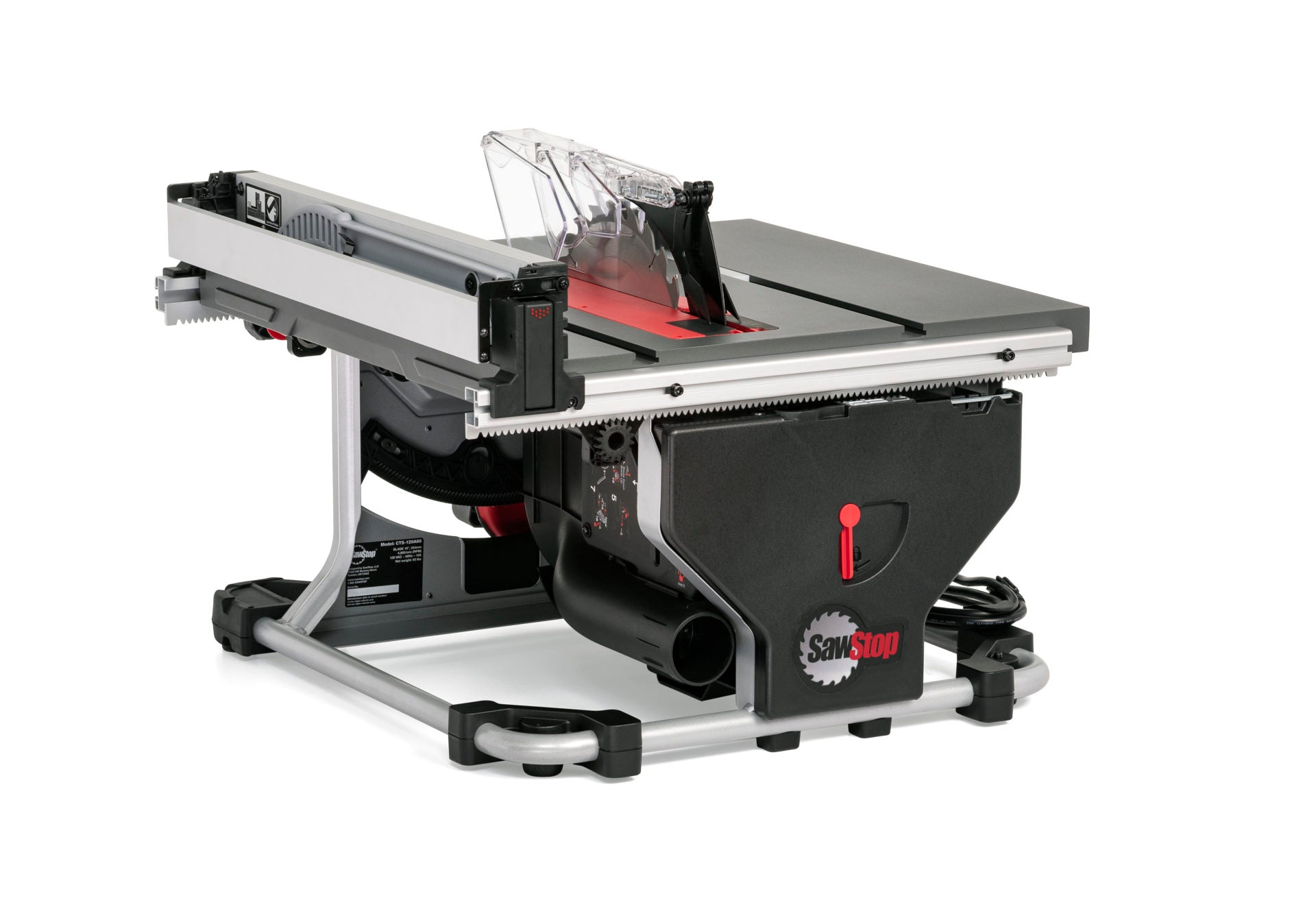

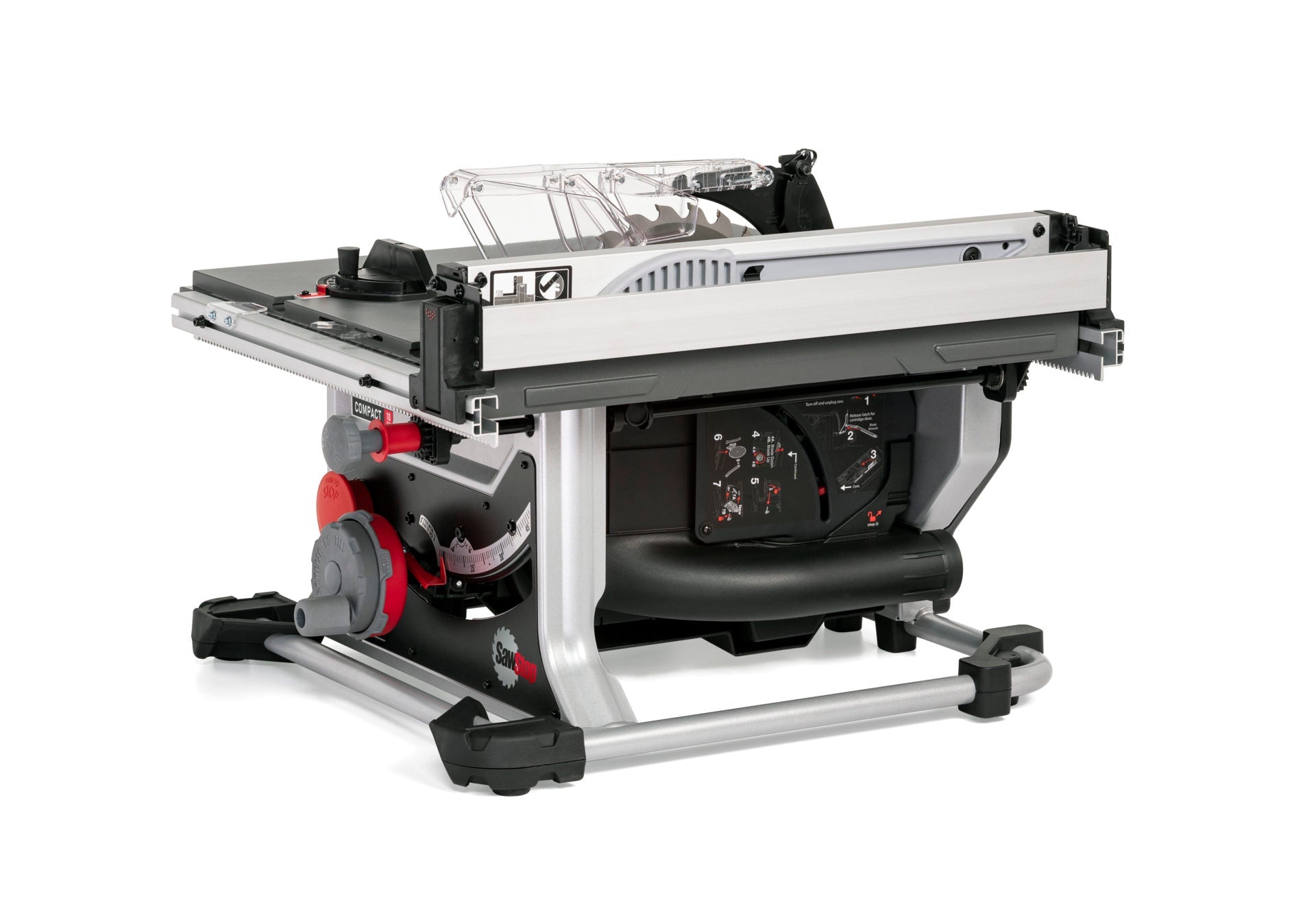

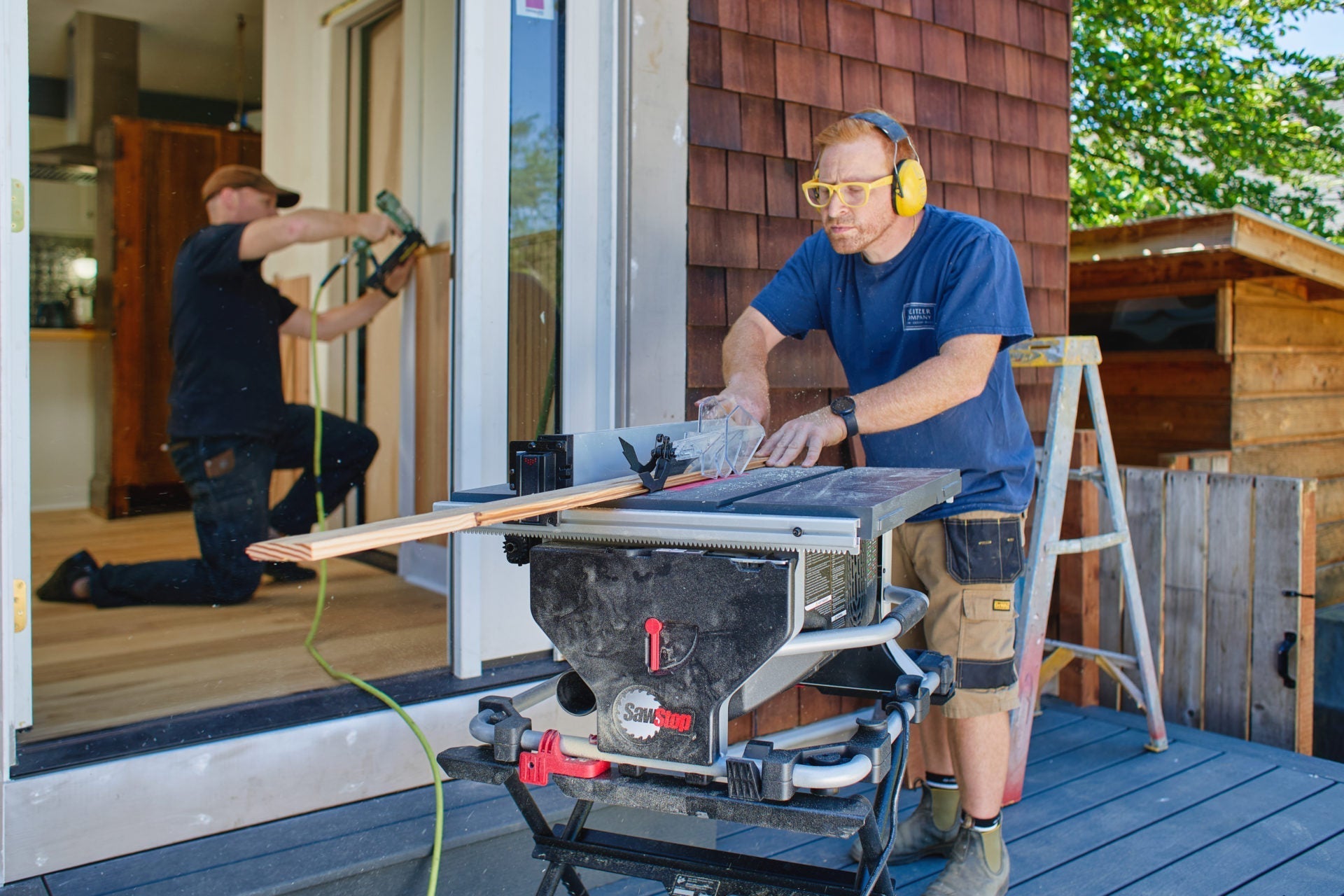

The SawStop Compact Table Saw is the smallest, most portable saw in the SawStop lineup. It provides durability, precision, and power that can be taken to any job site.
- Exclusive-to-SawStop micro-adjust feature allows you to get the most precise cutting angles possible on a job site

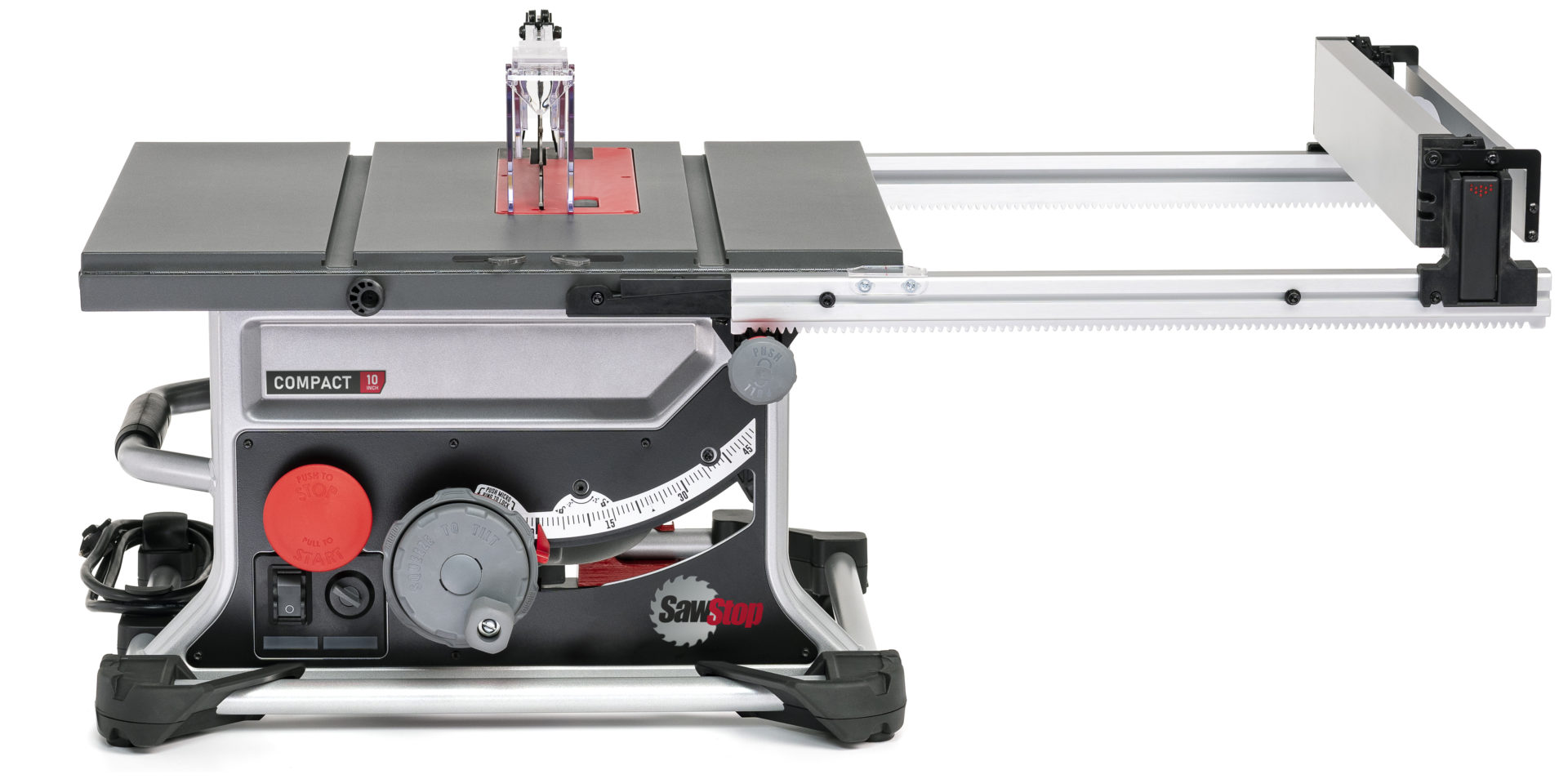

- Solid Hi-Low Rack & Pinion Fence: Ensures reliably accurate cuts while supporting wide rips up to 24 1/2”.
- Rigid tube structure and rubber feet provide a durable, stable cutting experience
- 10" blade for greater depth of cut

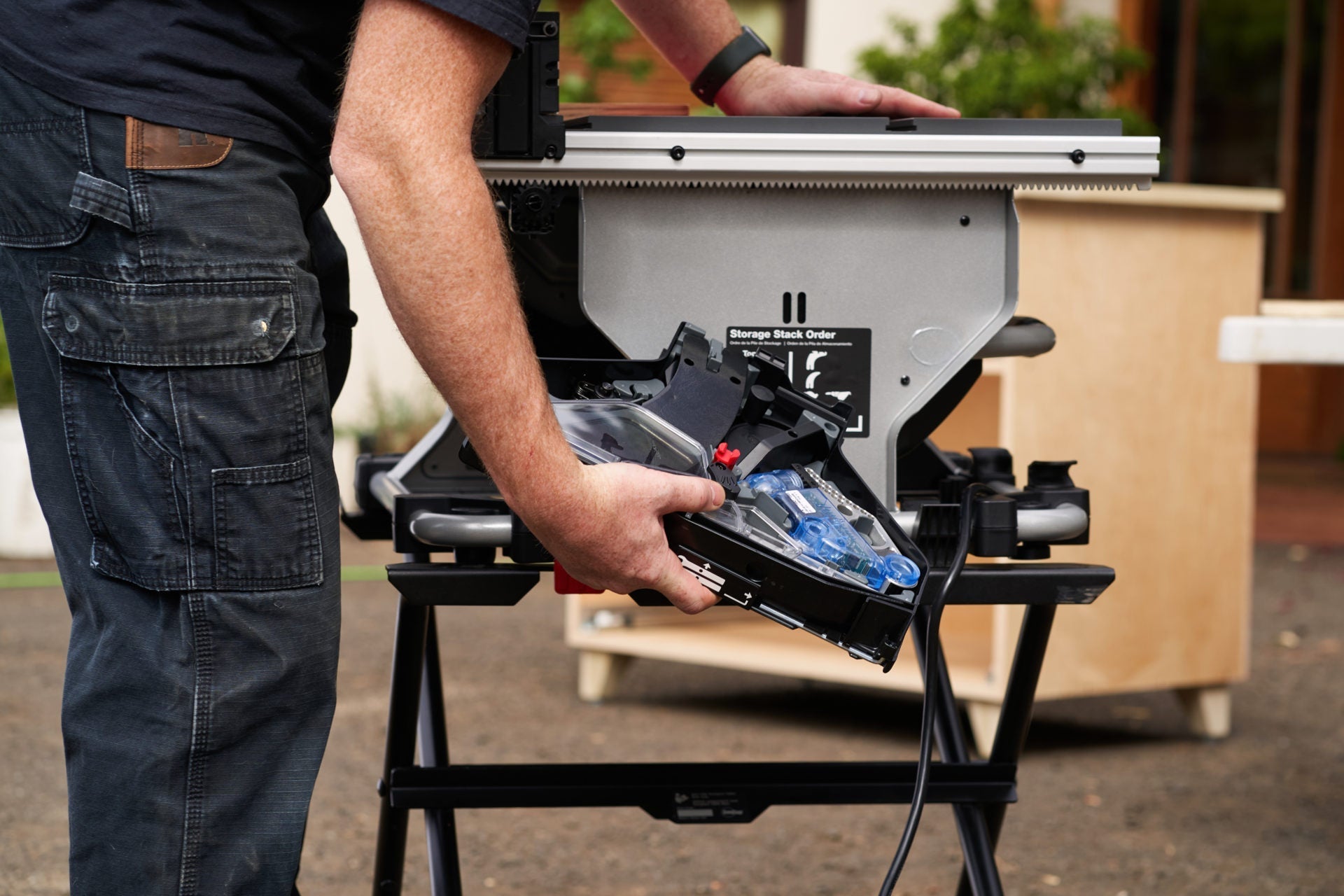

- On-saw storage compartment so you have all the tools you need close at hand
- Compact and portable for easy travel to any job site
- SawStop Safety System stops on contact with skin
- Standard-width miter slot

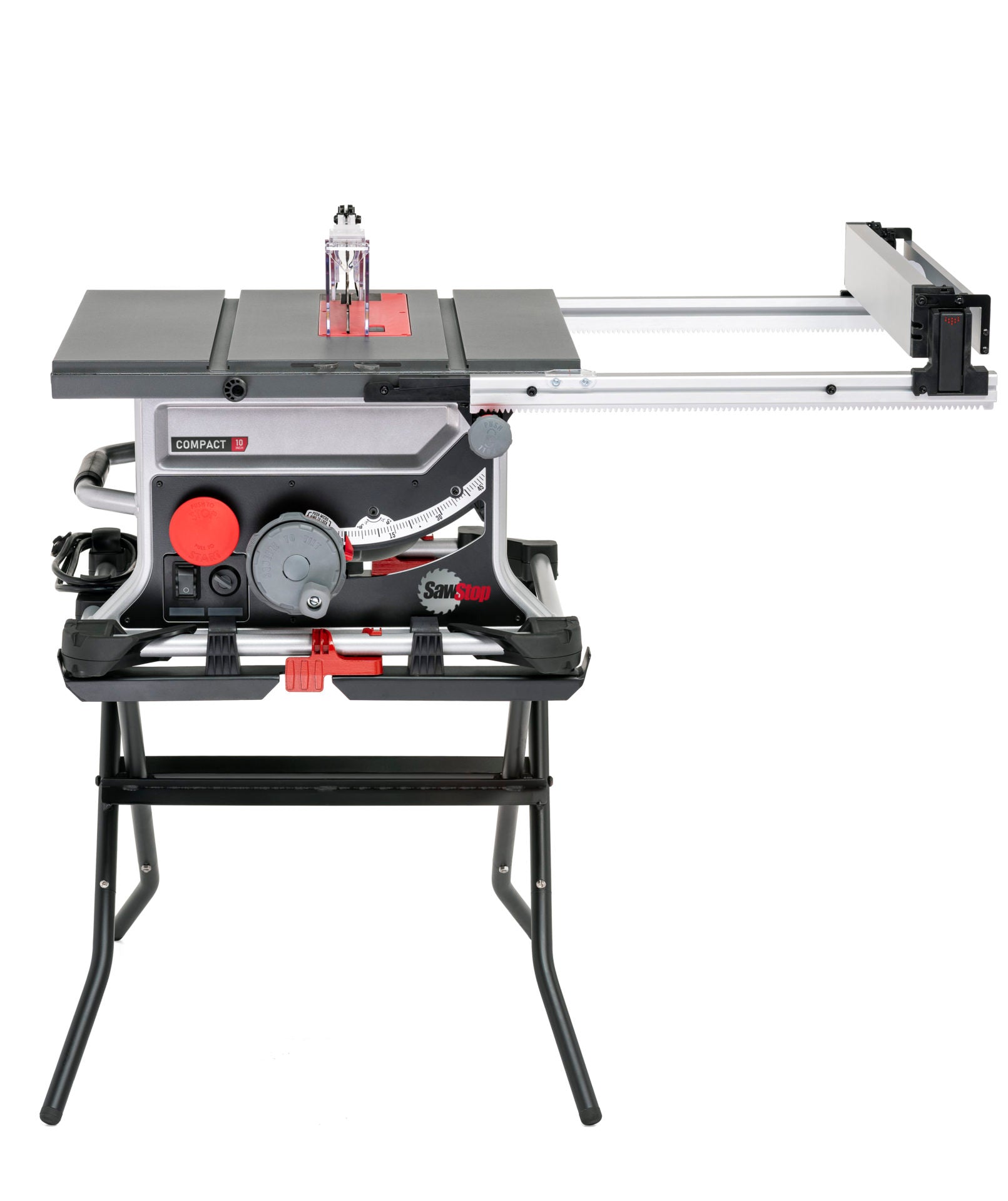

- Optional folding stand available
Technical Data
| No-Load RPM | 4,000 |
| Blade |
10" (not compatible with Dado blades)
|
| Max. Depth of Cut at 0° |
3 1/8" (79.5 mm)
|
| Max. Depth of Cut at 45° | 2 1/8" (54 mm) |
| Max. Rip, Right of Blade |
24 1/2" (648 mm)
|
| Max. Rip, Left of Blade | 9 1/2" (241 mm) |
| Weight | 68 lbs |
| Overall Footprint |
14 ¼” H x 23 ½” W x 27” D
|
| Table Surface |
23” W X 22 5/8” D
|
| Shipping Dimensions |
27 W x 31 D x 18 H
|
| Shipping Weight | 79 lbs |
Includes
(1) Miter Gauge
(1) Brake Cartridge (installed)
(1) 4 mm Hex Key
(2) Blade Wrenches
(1) Riving Knife (installed)
(1) Blade Guard with Spreader and Anti-Kickback Pawls
(1) 24-Tooth Ripping Blade (installed)
(1) Push Stick
(1) Standard Lockdown Insert (installed)
