Description

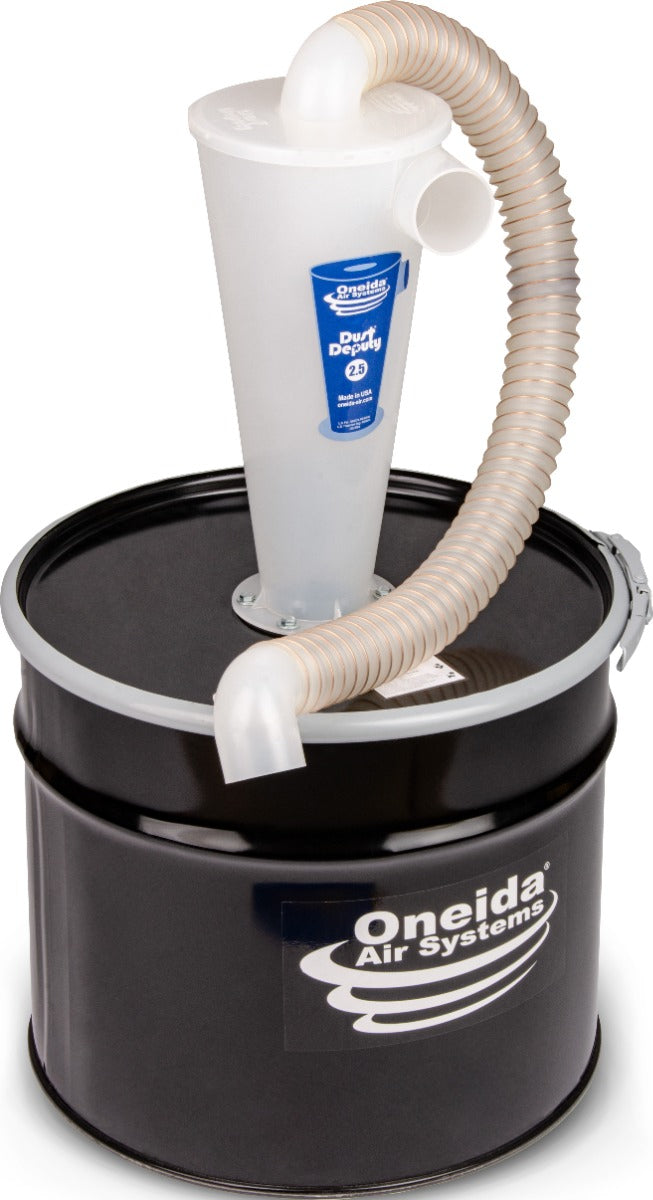

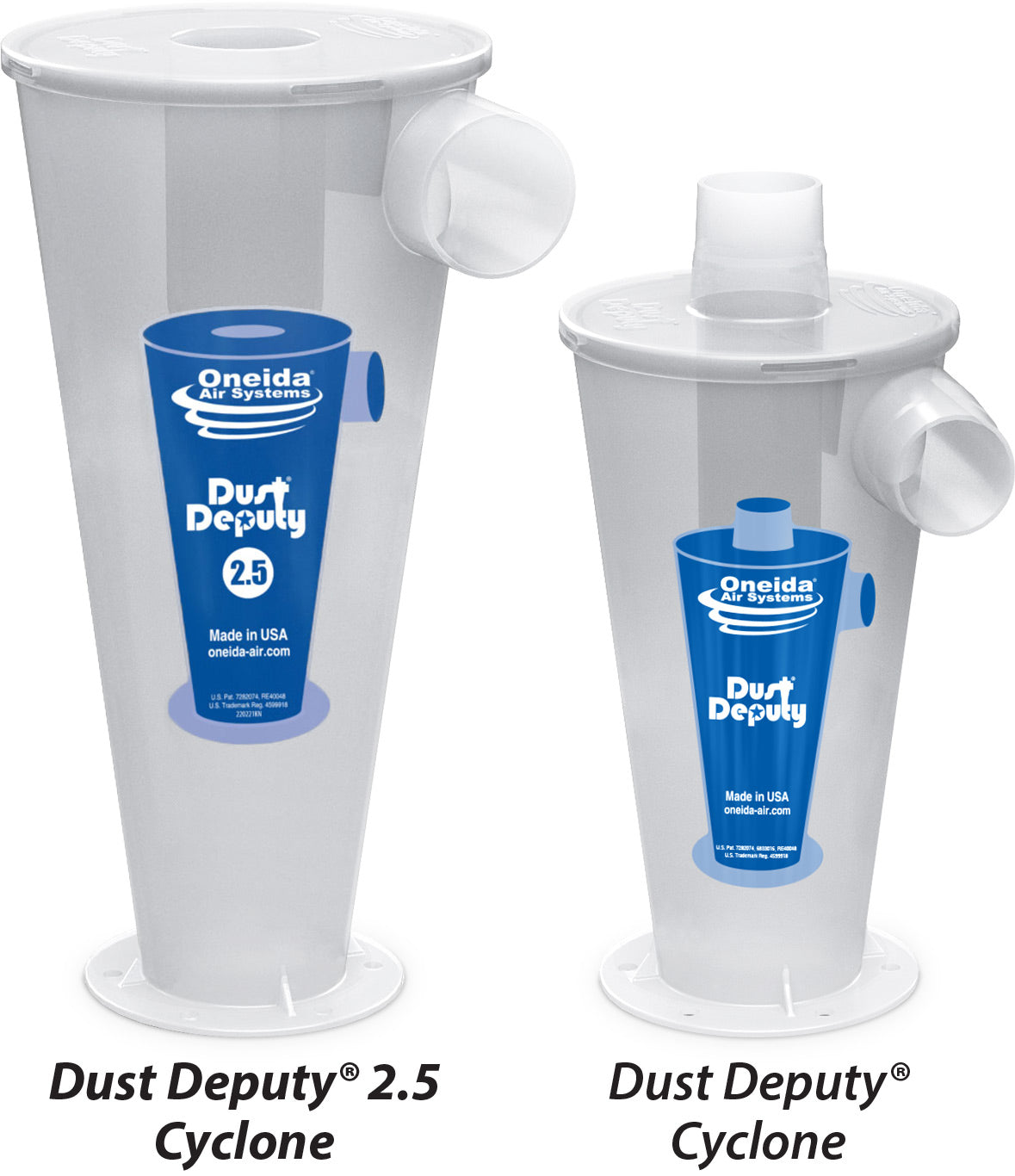

The Dust Deputy 2.5 Deluxe 17 Gal. Cyclone Separator Kit is an efficient and affordable dust control solution for woodworkers and other makers. With up to 2x the airflow of smaller cyclones, it stops up to 99.9% of fine dusts and bulk debris from clogging your vacuum's filter.
- Improved, high airflow, cyclone design
- Upgrades any make/model shop vacuum with 2.5" hose fittings
- Neutral-vane technology improves separation efficiency by 20%
- Large capacity 17-gallon steel drum contains heavy dust loads

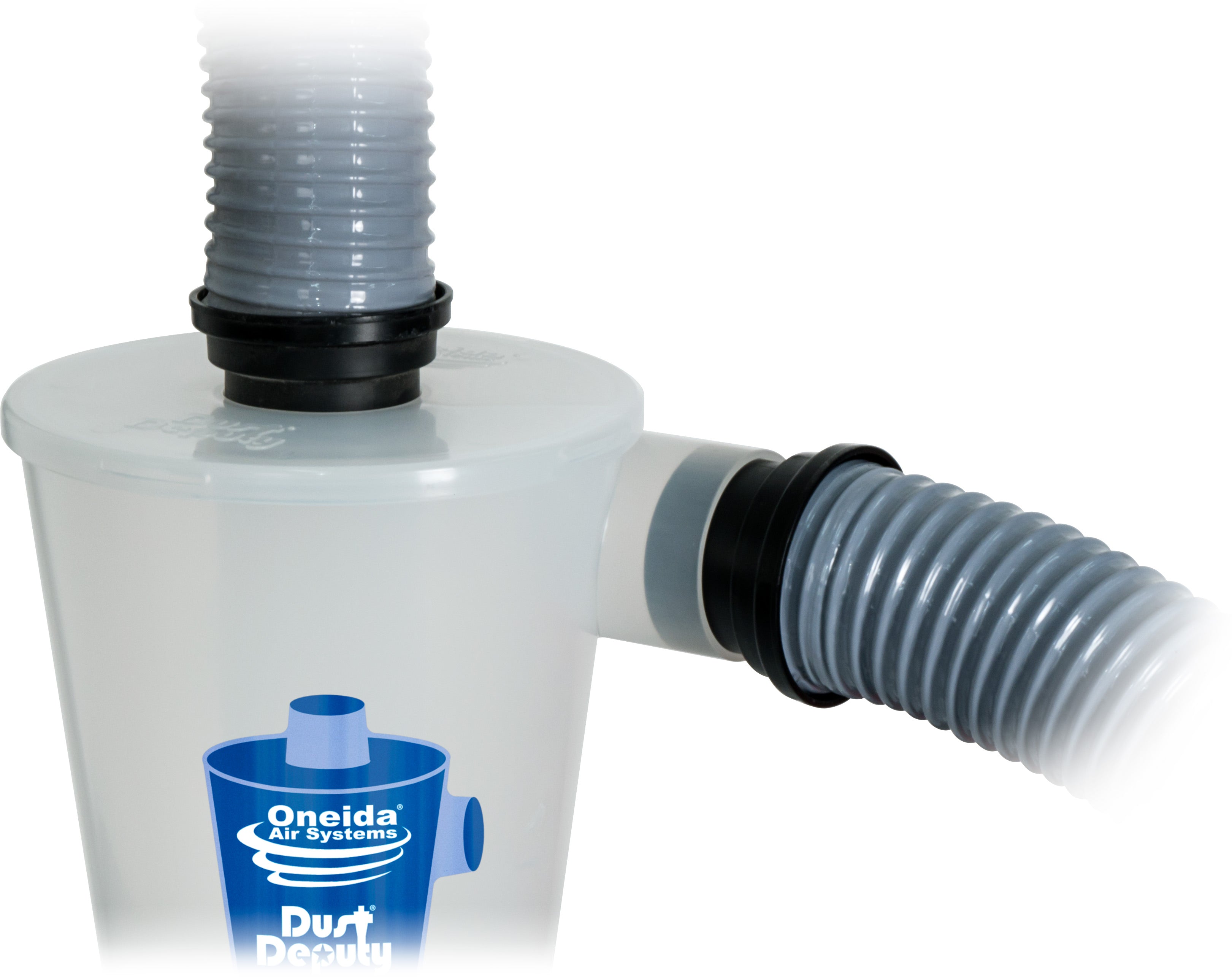

- Highly flexible, wire-reinforced, polyurethane vacuum hose with elbows
- Anti-static components significantly reduce the likelihood of static shocks
Technical Data
| Width: | 20-1/2" |
| Depth: | 20-1/2" |
| Height: | 31-1/8" |
| Height to Center of Inlet: | 29-3/8" |
| Actual Weight (lbs): | 24 |
| Primary Build Materials: | Steel, Polypropylene |
| Static Resistance Rating: | Anti-Static |
| Color: | Translucent |
| Inlet Size: | Tapered 2.31" to 2.29" I.D. |
| Outlet Size: | Tapered 2.31" to 2.29" I.D. |
| Discharge Size: | 3" I.D. |
| Product Compatibility: | Wet/Dry Vacuums with 2.5" hoses and inlets |
Includes
- 1x Anti-Static Dust Deputy 2.5 Cyclone Pre-Separator
- 1x Steel 17-gallon Dust Bin w/ Locking Lever Clamp
- 1x 2" × 3' Wire-Reinforced Vacuum Connection Hose
- 2x Tapered Hose Elbow Adapters
- 1x Pre-cut Neoprene Foam Gasket and Hardware
