Description

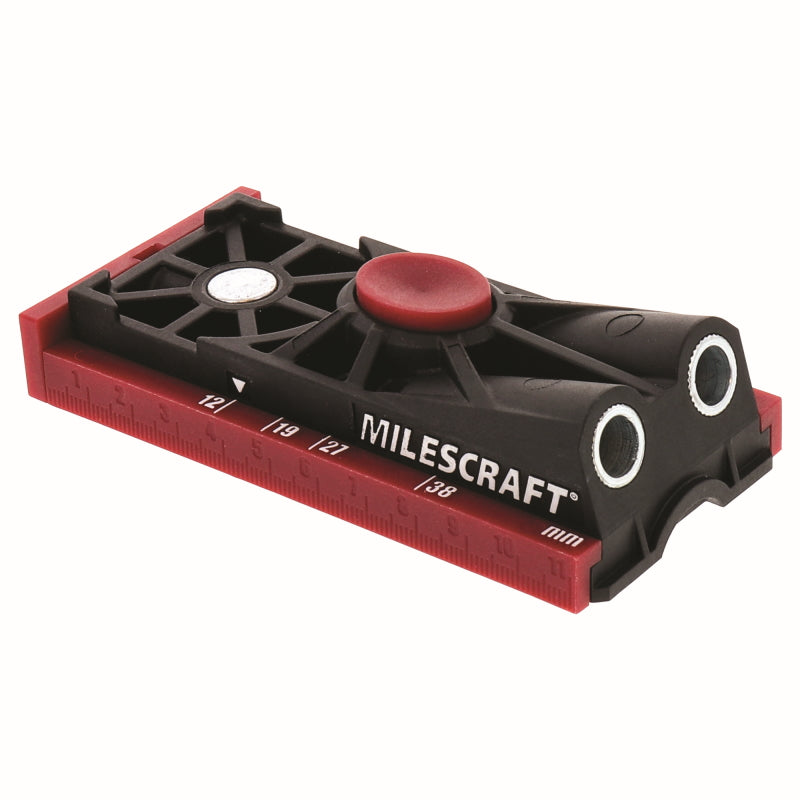

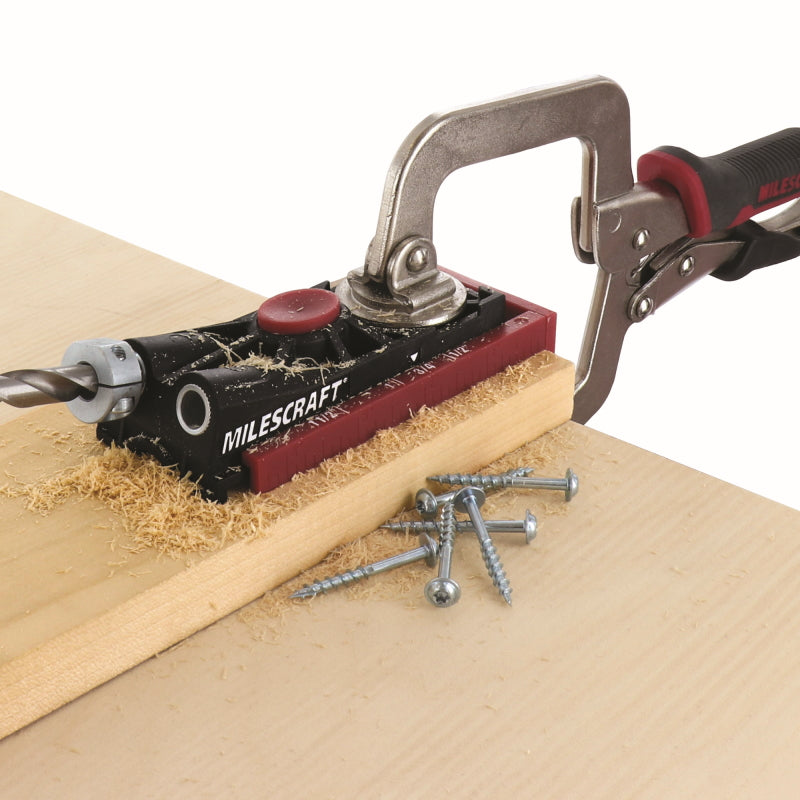

The Milescraft PocketJig200 pocket hole jig allows you to connect your workpieces in a quick and timely manner. Whether you want to build storage projects, cabinets, shelves, or bookcases, this kit does it all. Allowing you to create corner joints, T-Joints, Framing Joints, Miter Joints, and do repairs. With built-in settings for board thicknesses, there is no need to manually measure. Just set this pocket jig to your desired setting, set the depth of your bit, and start drilling.

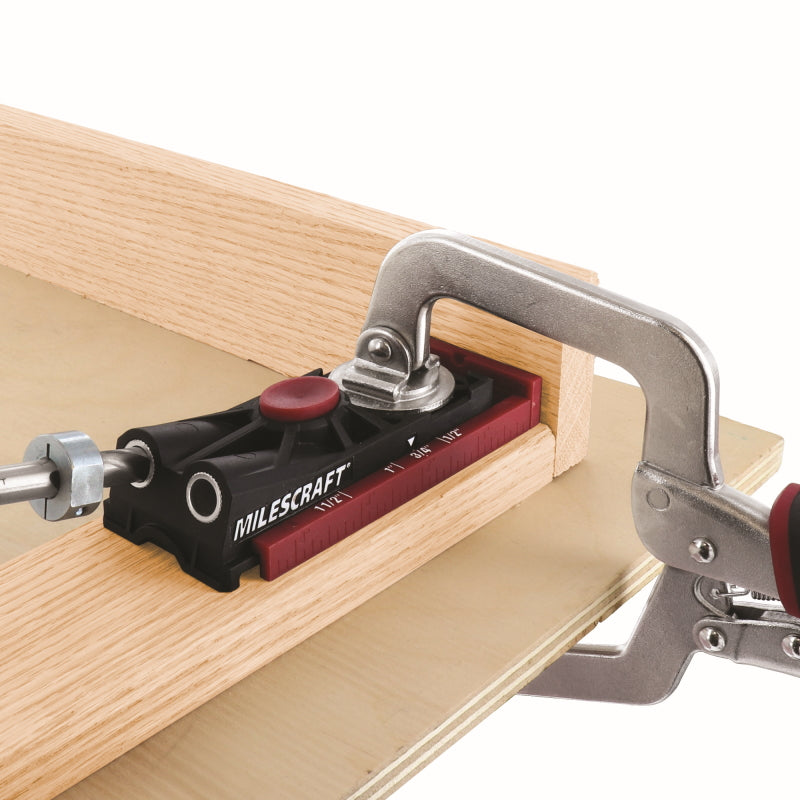

- Helps to keep the clamp in the same position as you move to different locations
- With the stronger rare earth magnet, you can easily clamp the jig from one location to another
- For speed and accuracy, use the Milescraft Face Clamps
- Easily set your bit for the correct drilling depth
- Made from high-speed steel the PocketBit with a 1/4″ hex shaft is designed to reduce clogging and provide smooth and precise holes
- The split design prevents slipping of the set screw when tightened and the flat prevents the bit from rolling
- With the Milescraft Connector, you can quickly change from drilling to driving
- Accepts all 1/4″ hex bits
- Quickly and easily change from drilling to driving
- For maximum torque settings without stripping
- To allow pocket screws to align with maximum precision

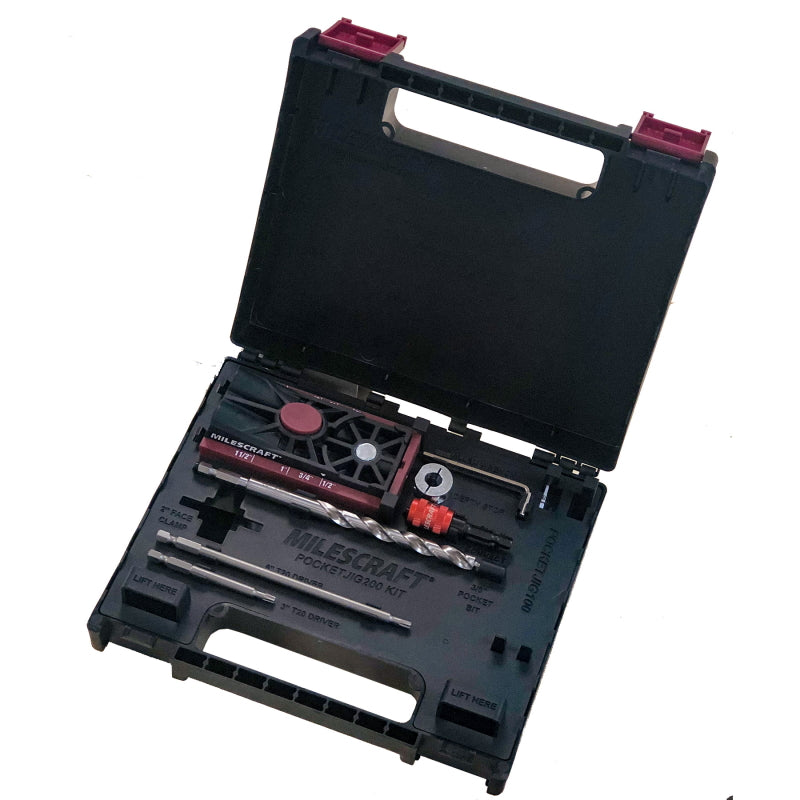

- With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
- Storage compartment for 2″ FaceClamp
- Storage slot for PocketJig100
Technical Data
| Material | Reinforced Nylon |
| Drill Guide Bushing Spacing | 1" |
| Clamping Method | Works with any clamp |
| For use with | Wood Materials for 1/2" to 1.5 thick (12-38mm) |
| Drilling Angle | 15° |
| Screw and Driver Style | T20 Torx |
| Screws | 10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm) |
| Drivers | 3" T20 Magnetic Head Driver and 6" T20 Magnetic Head Driver |
| Pocket Plugs | 10 plugs |
| Connector | Accepts all 1/4" hex bits |
| Drill Bit | 3/8" (9.5mm) HSS Pocket Bit with 1/4" shank |

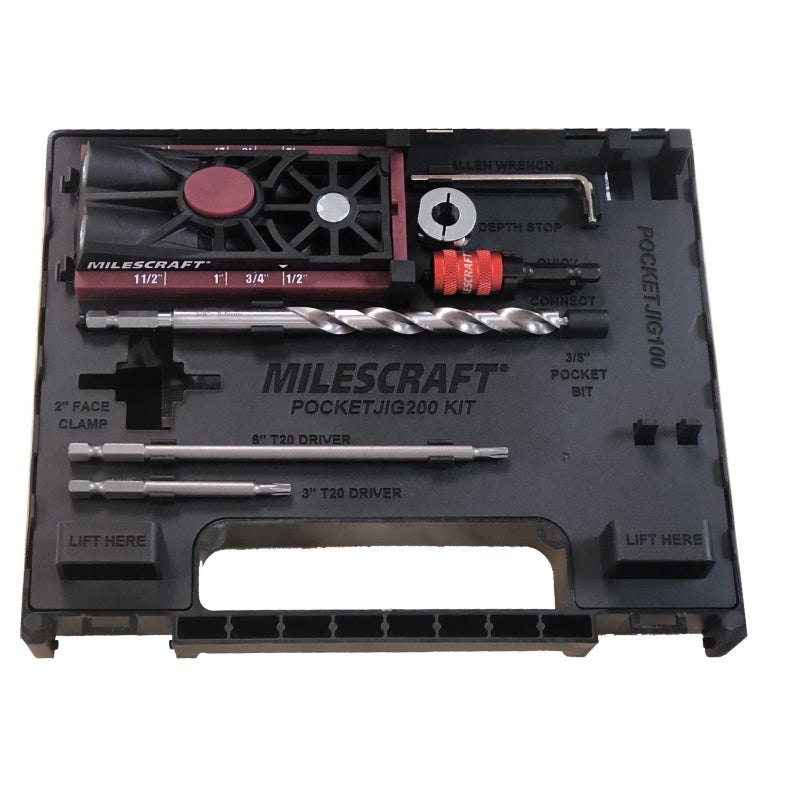

Includes
Double Barrel Pocket Hole Jig
Quick Connect
3" & 6" T-Star Driver Bits
3/8" PocketBit
60 Piece T20 Pocket Hole Screws
Pocket Plugs
3/8" Split Design Stop Collar
Hex Key
10 of each Screws : 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)
Instruction Manual
