Description

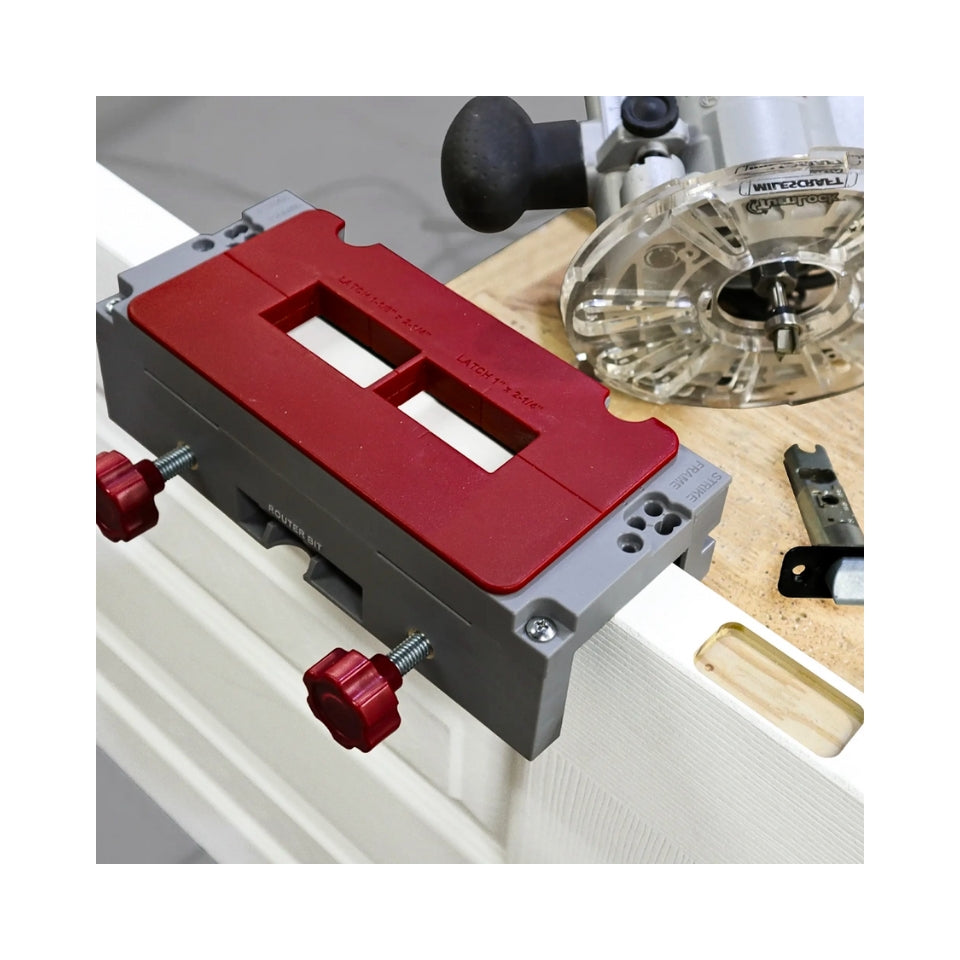

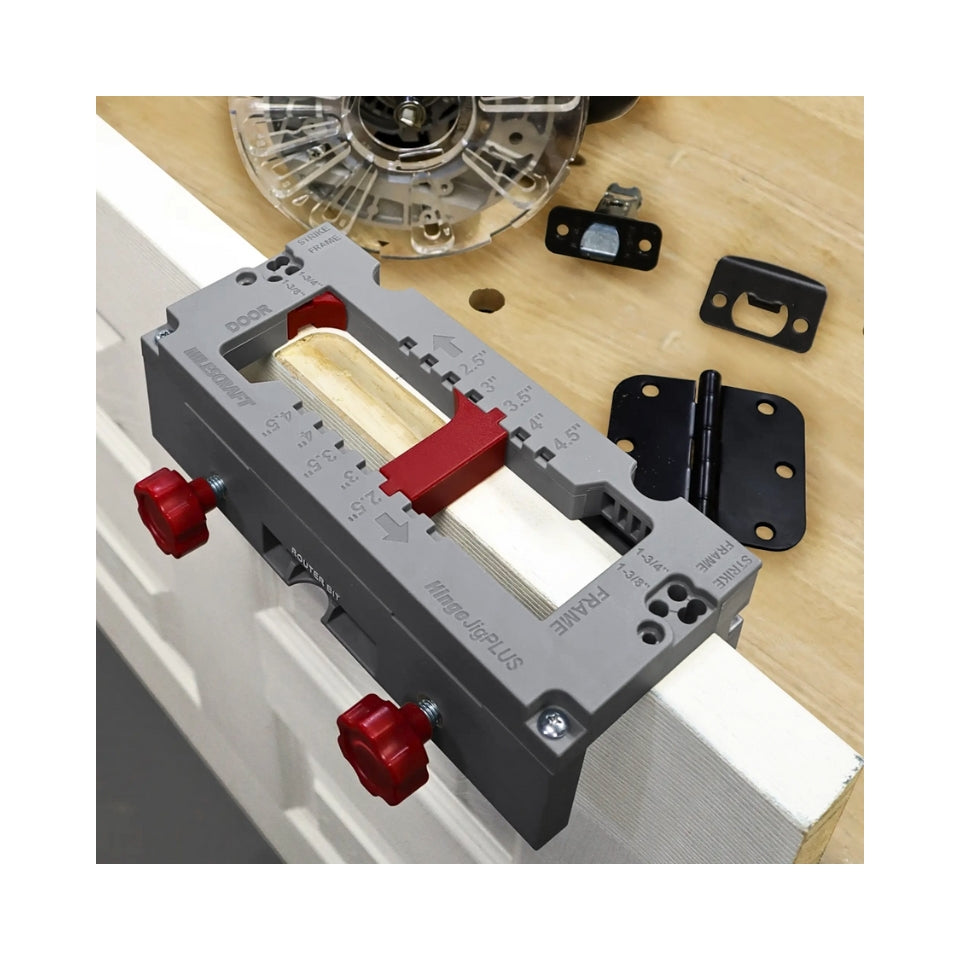

The HingeJigPLUS™ from Milescraft is the ultimate jig for routing both door and frame hinge, latch, and strike plate mortises. With its self-clamping design and built-in depth settings, it ensures fast, accurate installation without damaging finished doors. Built for North American standard hardware, it even includes the PinDoctor™ tool to remove old hinge pins with ease.
- Self-clamping padded design avoids screw or nail damage to doors
- Adjusts to fit standard 1-3/8″ and 1-3/4″ thick doors
- Routs mortises for hinges from 2-1/2″ to 4-1/2″
- Compatible with jambs and frames for full installation flexibility
- Supports ¼″, 5/8″, and square hinge corners (chisel required)
- Latch templates support 1” x 2-1/4”, 1-1/8” x 2-1/4”, and 1-1/8” x 2-3/4” mortises
- Strike plate templates support 1-1/2” x 2-1/4” and 1-1/8” x 2-3/4” mortises

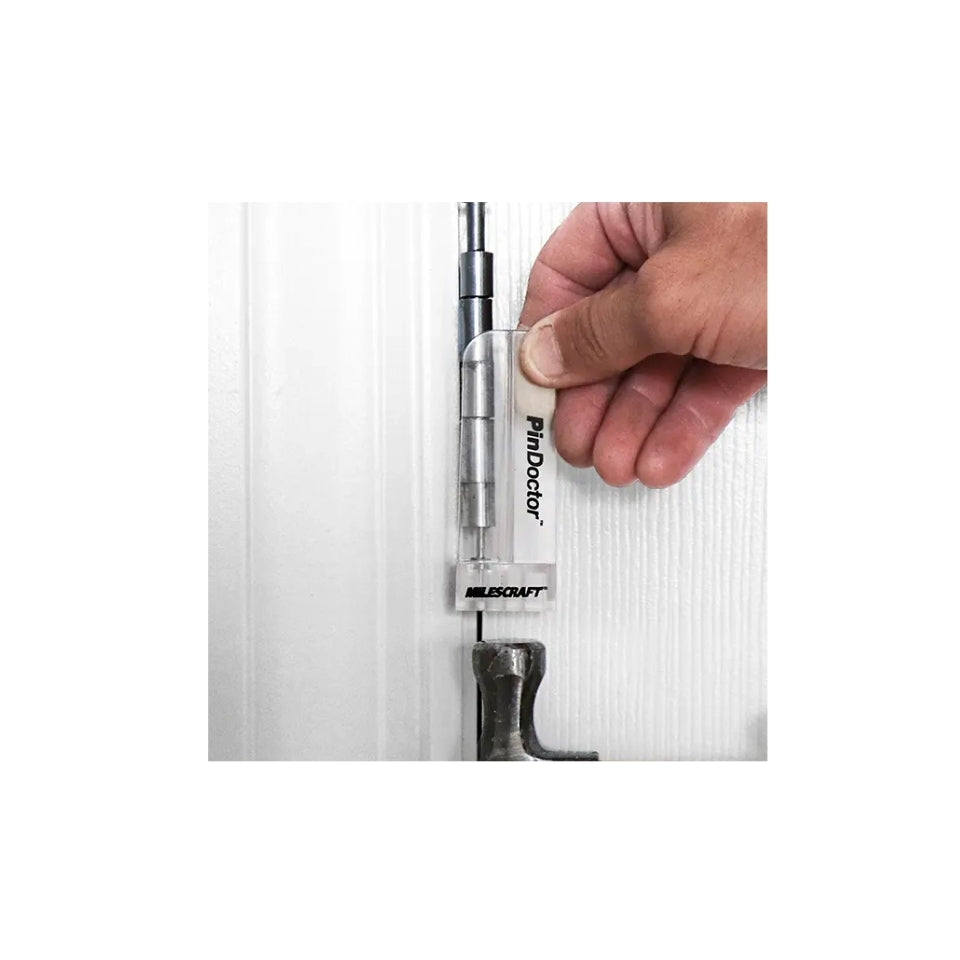

- Includes bonus PinDoctor™ hinge pin removal tool
- Built-in depth setting gauge for quick setup
- Custom ball-bearing guided router bit included
Technical Data
| Compatible Door Thickness | 1-3/8″ and 1-3/4″ |
| Supported Hinge Sizes | 2-1/2″ to 4-1/2″ |
| Corner Radii | 1/4″, 5/8″, Square (chisel required) |
| Router Bit Type | 12mm Straight Bit with 1/2″ Bearing |
| Latch Plate Sizes | 1” x 2-1/4”, 1-1/8” x 2-1/4”, 1-1/8” x 2-3/4” |
| Strike Plate Sizes | 1-1/2” x 2-1/4”, 1-1/8” x 2-3/4” |

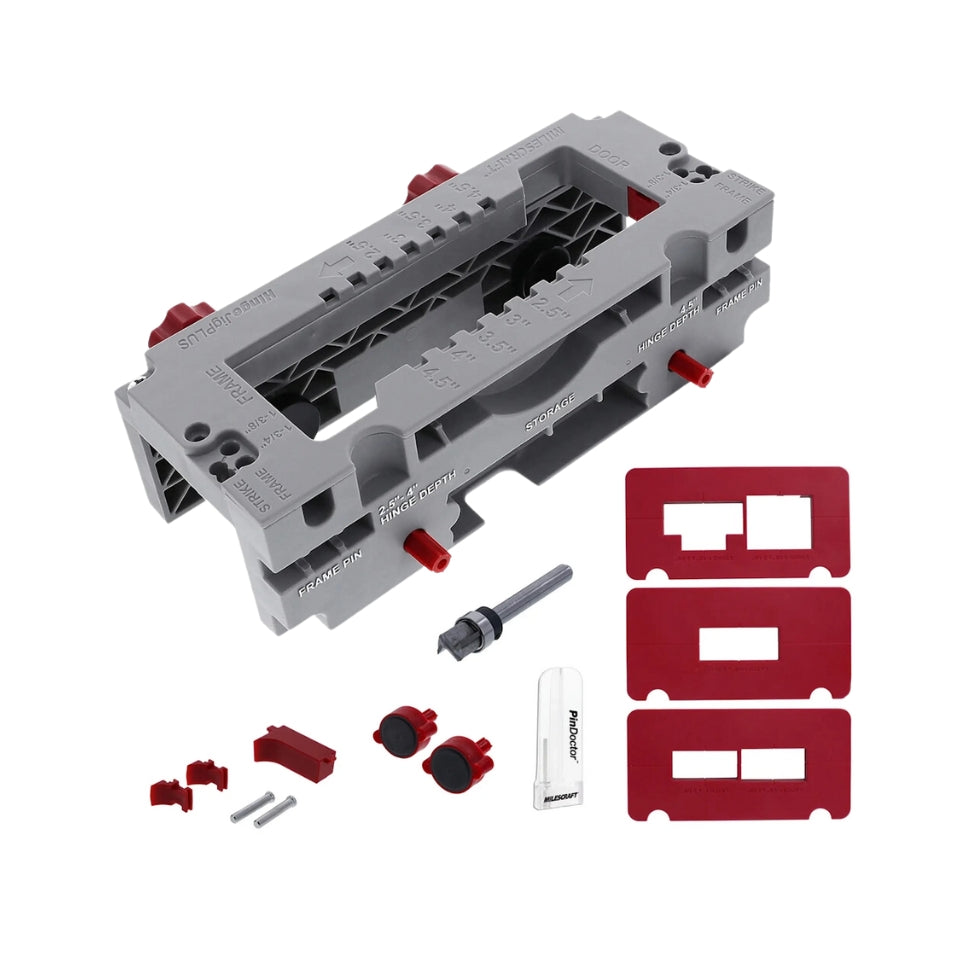

Includes

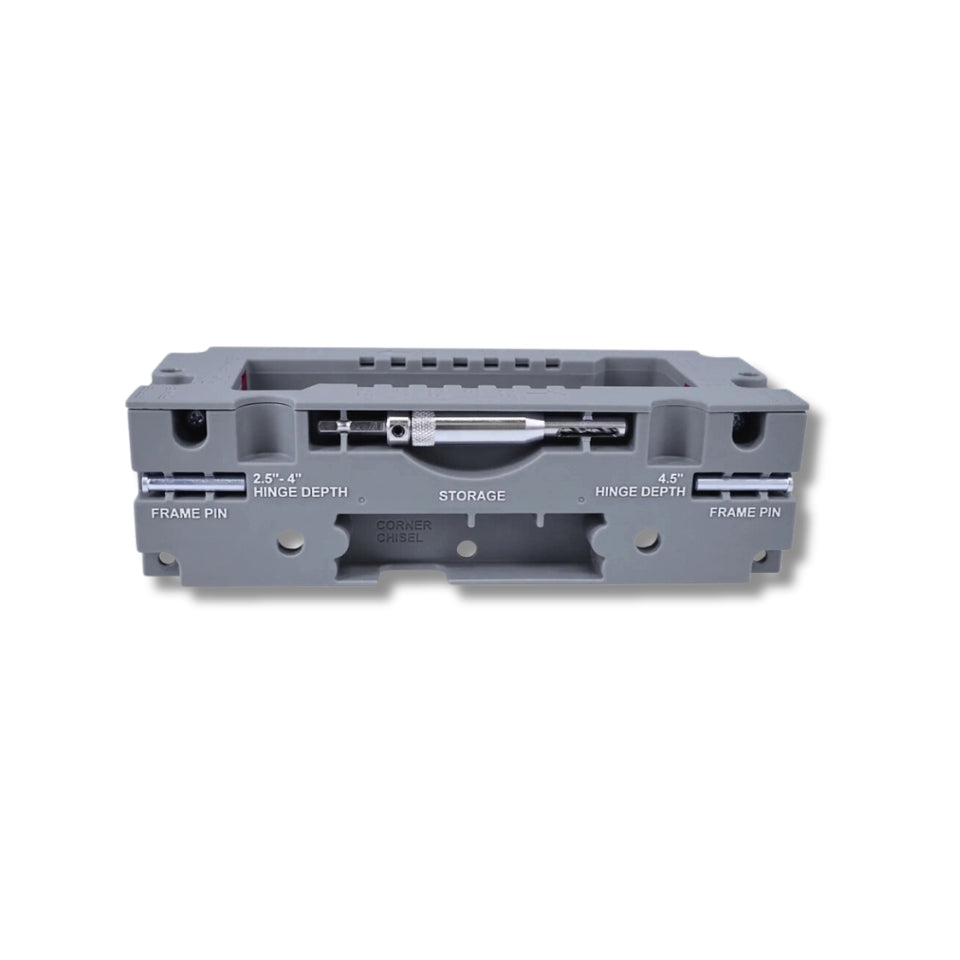

- HingeJigPLUS™ Main Body
- Routing Body

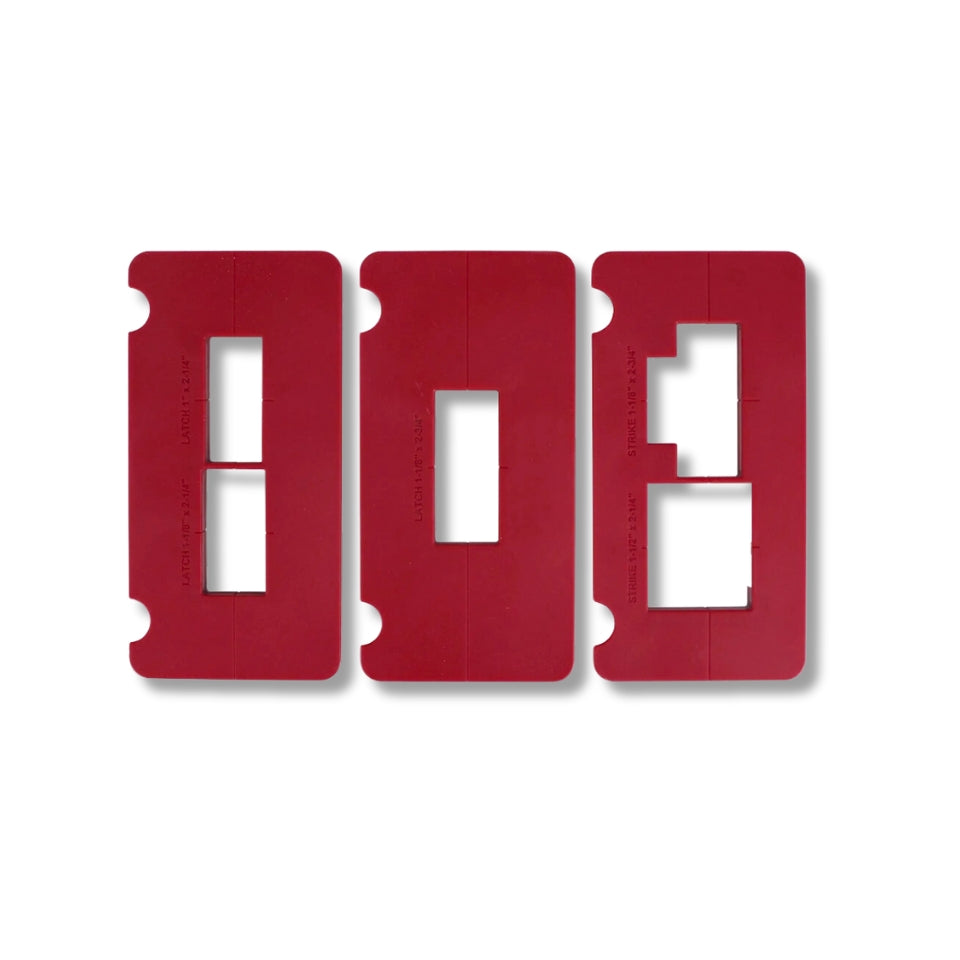

- Strike Plate Templates (Double)
- Latch Templates (Single and Double)
- Adjustable Spacer
- Backset Plugs

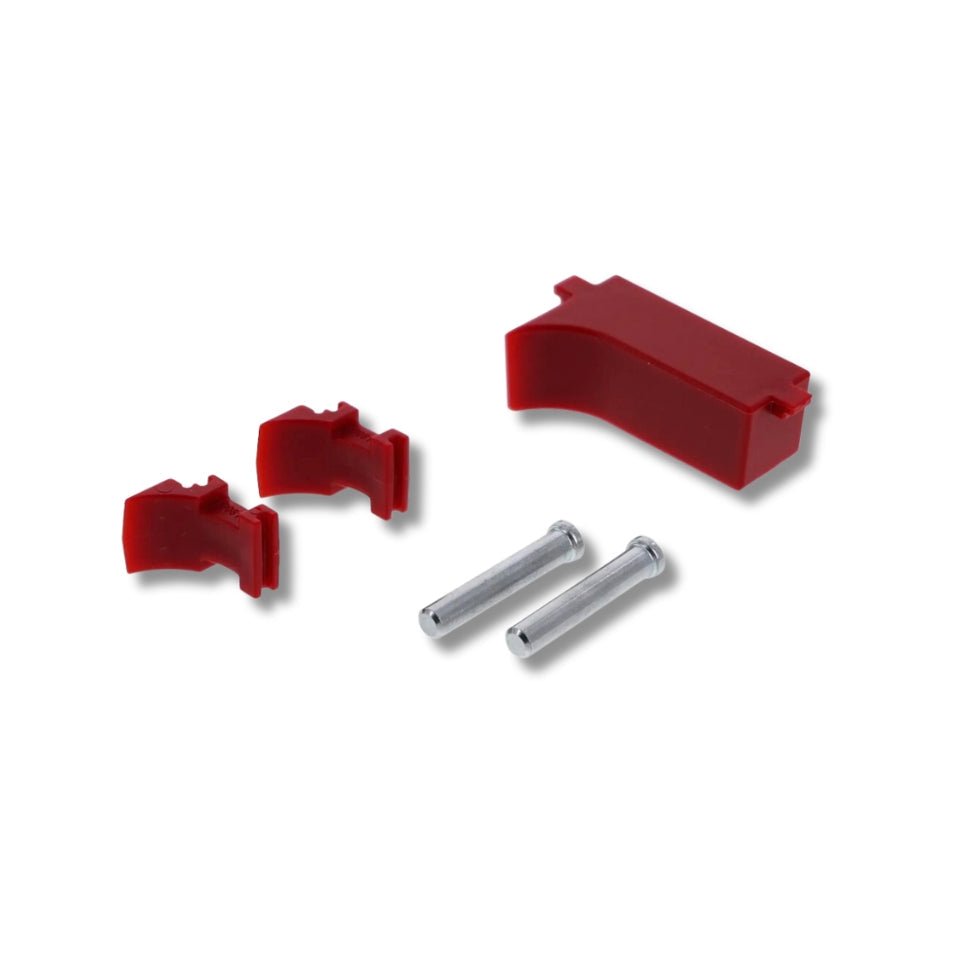

- Frame and Strike Index Pins

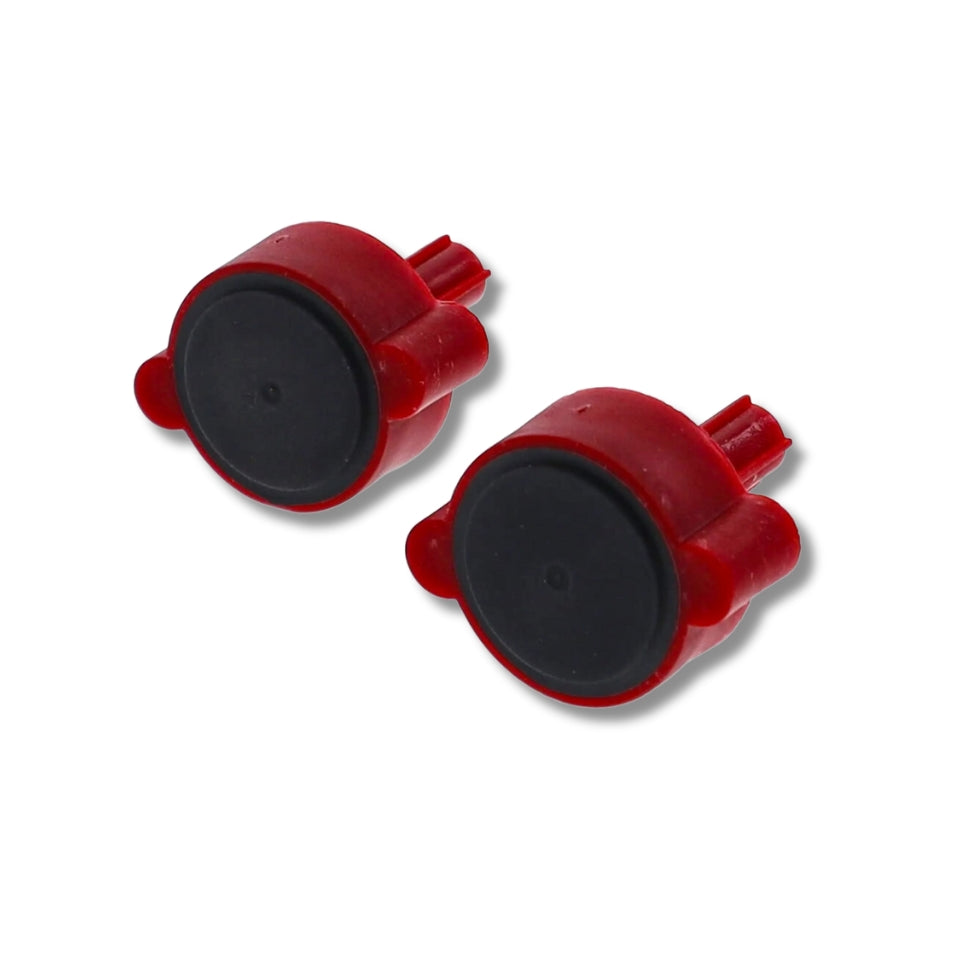

- Clamp Pads
- Mounting and Assembly Screws

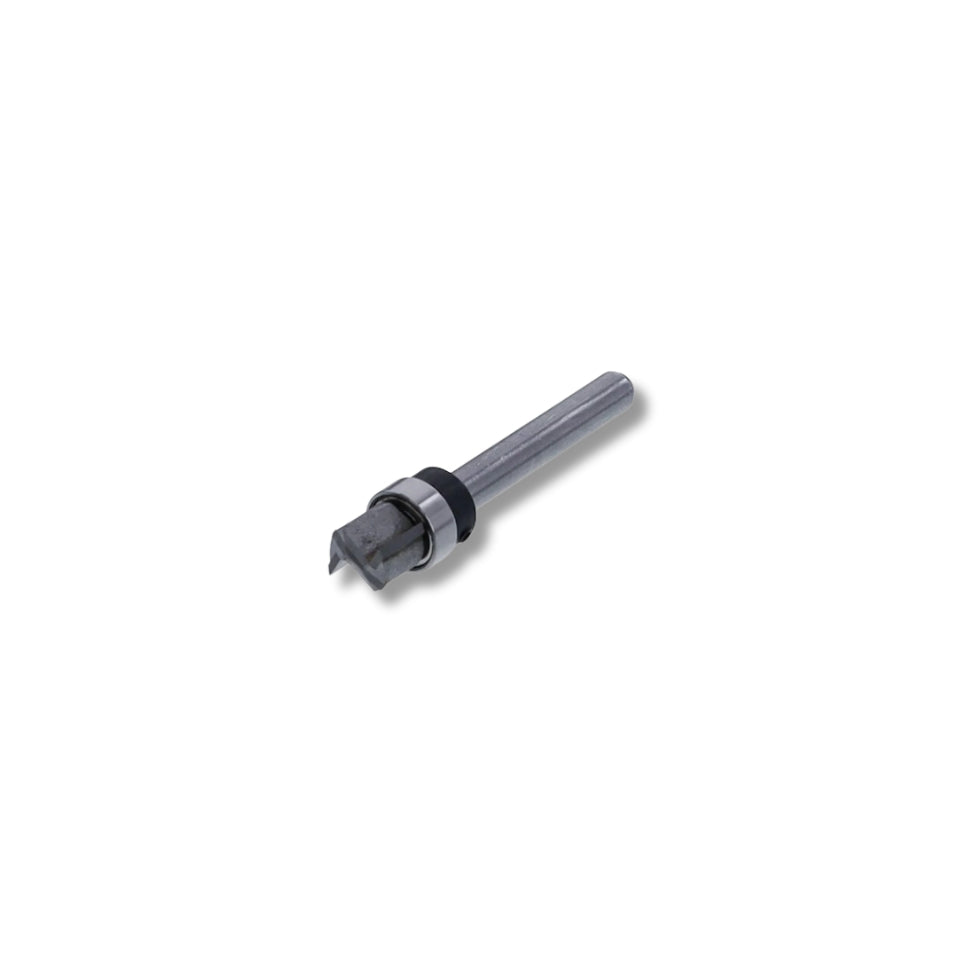

- 12mm Straight Router Bit with 1/2″ Bearing

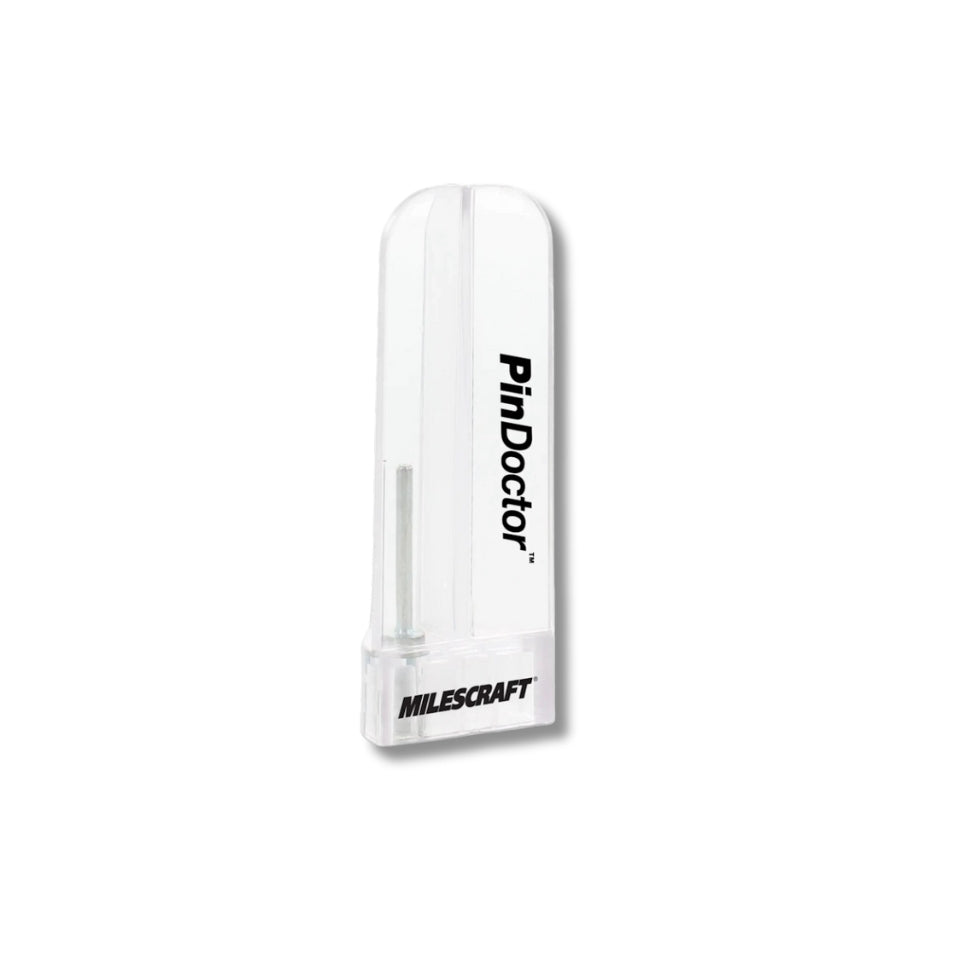

- Bonus: PinDoctor™ Hinge Pin Removal Tool
