Description

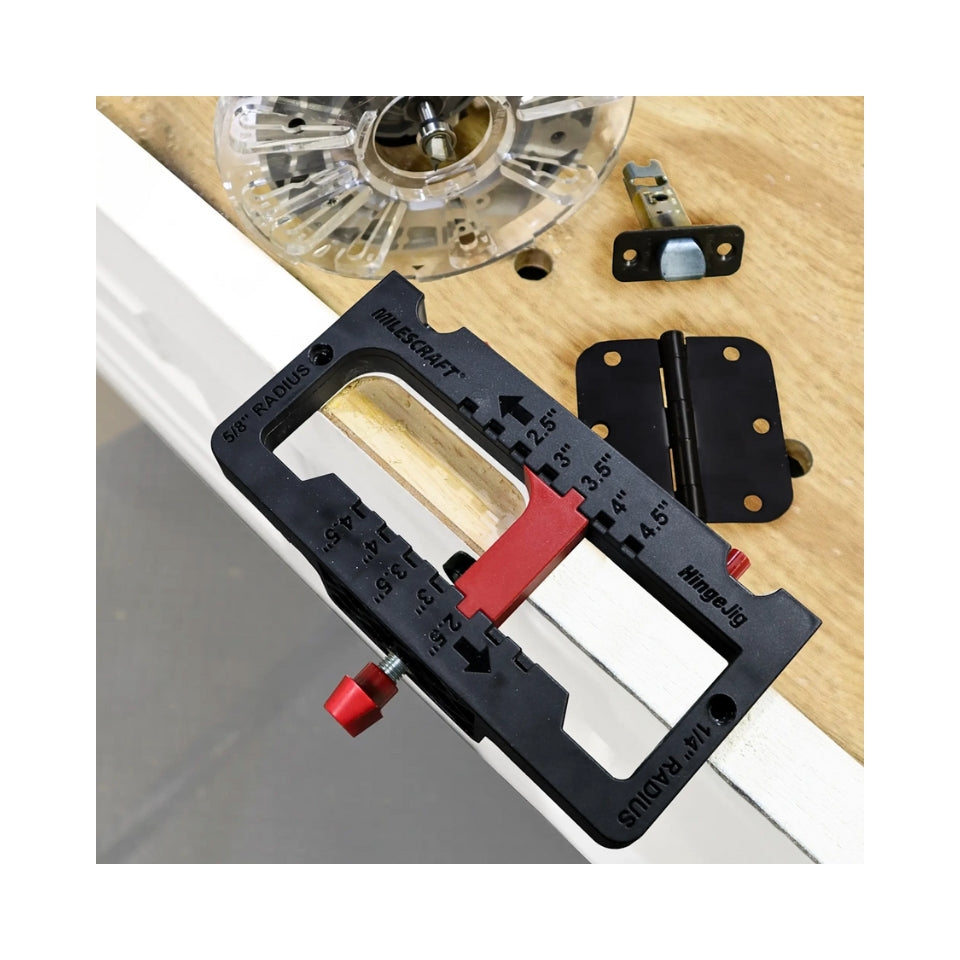

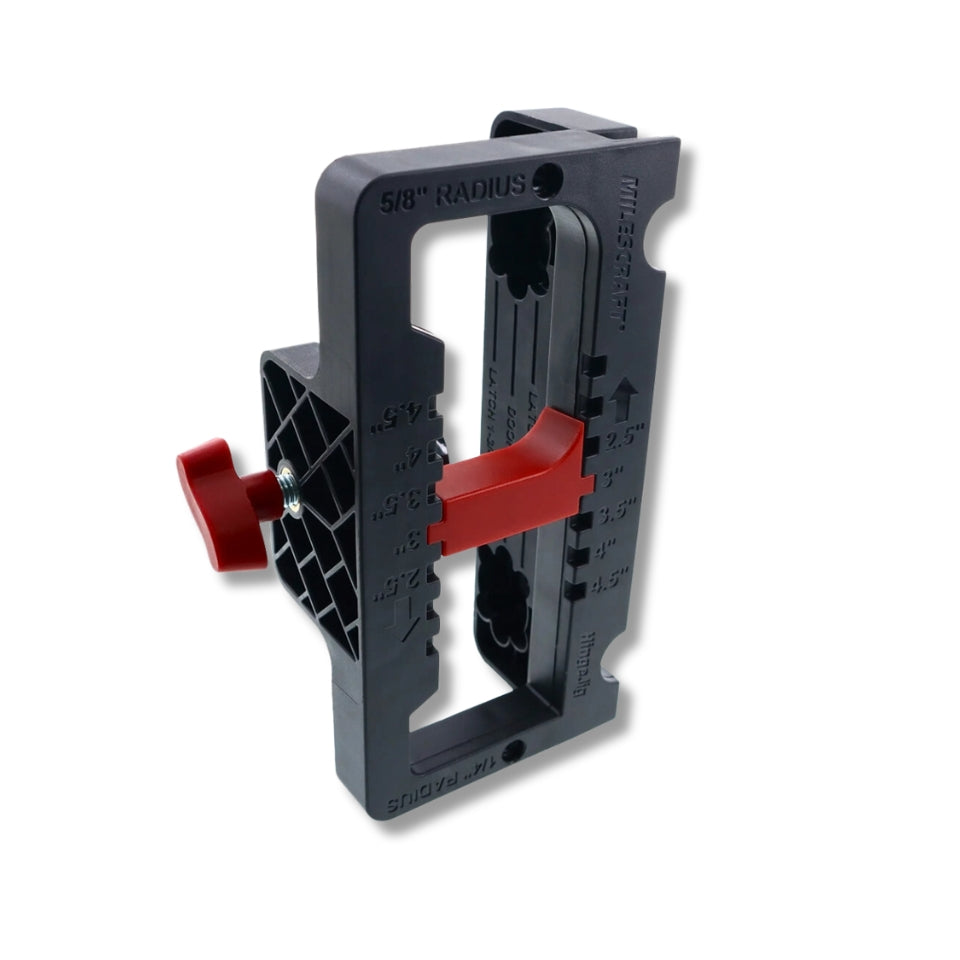

Save time and eliminate guesswork when installing new doors into existing frames with the Milescraft HingeJig™. This self-clamping jig is designed to rout hinge and latch mortises accurately and quickly without damaging finished doors. It’s the perfect solution for both professionals and DIYers aiming for a clean, precise fit every time.
- Self-clamping design holds the jig securely without screws or nails
- Fits all standard door thicknesses: 1-3/8” and 1-3/4”
- Routs hinge mortises for sizes ranging from 2-1/2” to 4-1/2”
- Cut 1/4", 5/8", or square hinge corners – chisel required for square
- Templates included for common door latch mortises
Technical Data
| Door Thickness Compatibility | 1-3/8” and 1-3/4” |
| Supported Hinge Sizes | 2-1/2” to 4-1/2” |
| Corner Radius Options | 1/4", 5/8", or square (chisel required) |
| Latch Plate Sizes | 1”×2-1/4”, 1-1/8”×2-1/4”, 1-1/8”×2-3/4” |
| Depth Gauge | Built-in for easy router bit setup |

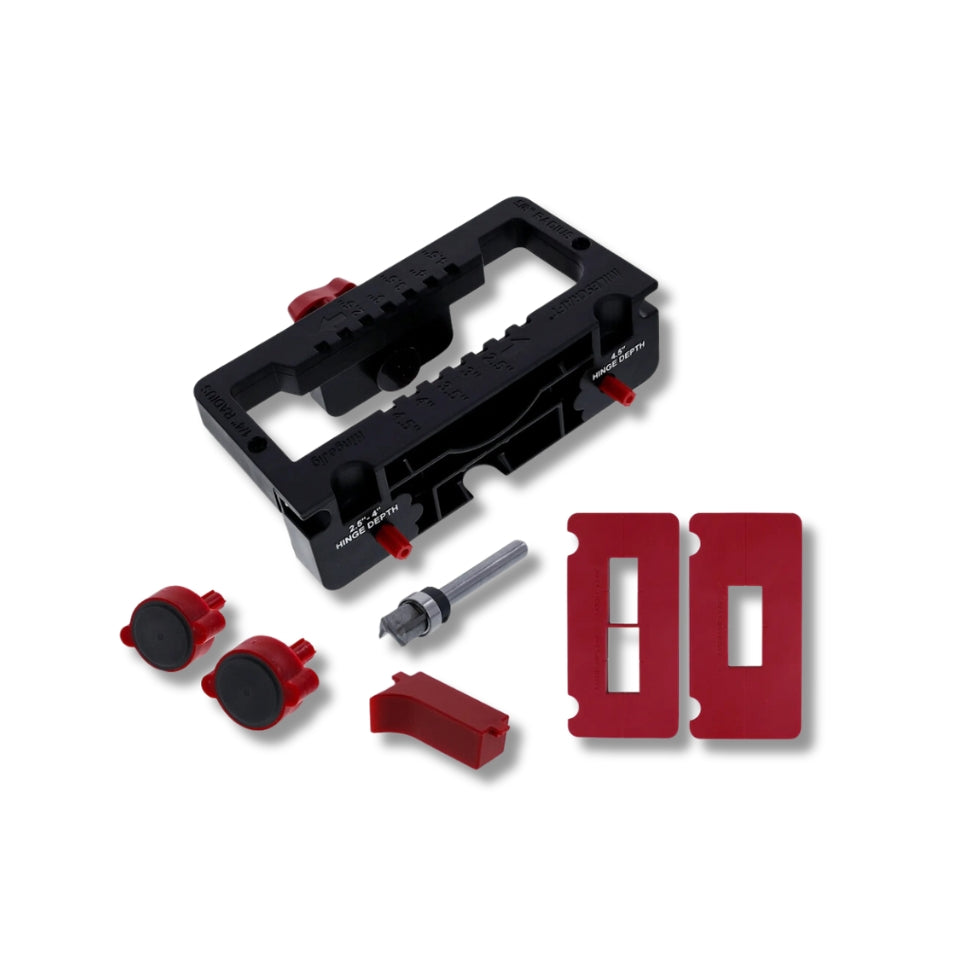

Includes

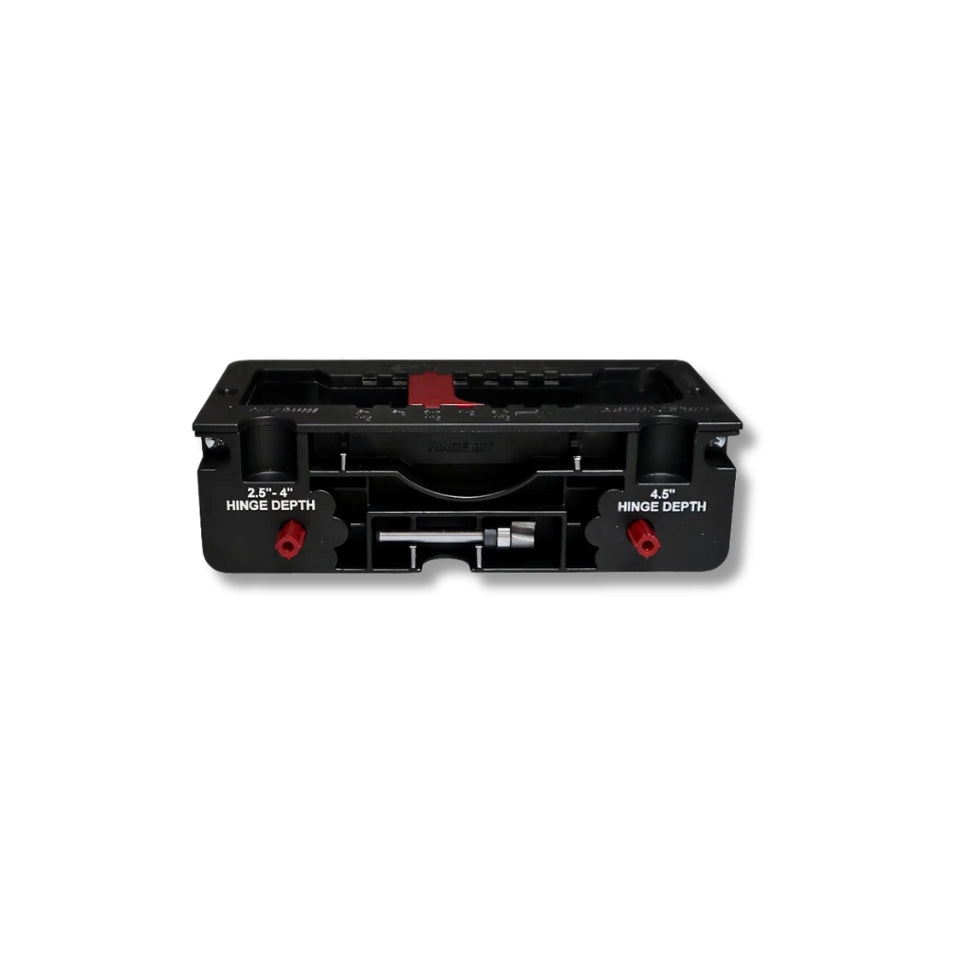

- HingeJig™ Main Body
- Custom Router Bit with Ball Bearing Guide

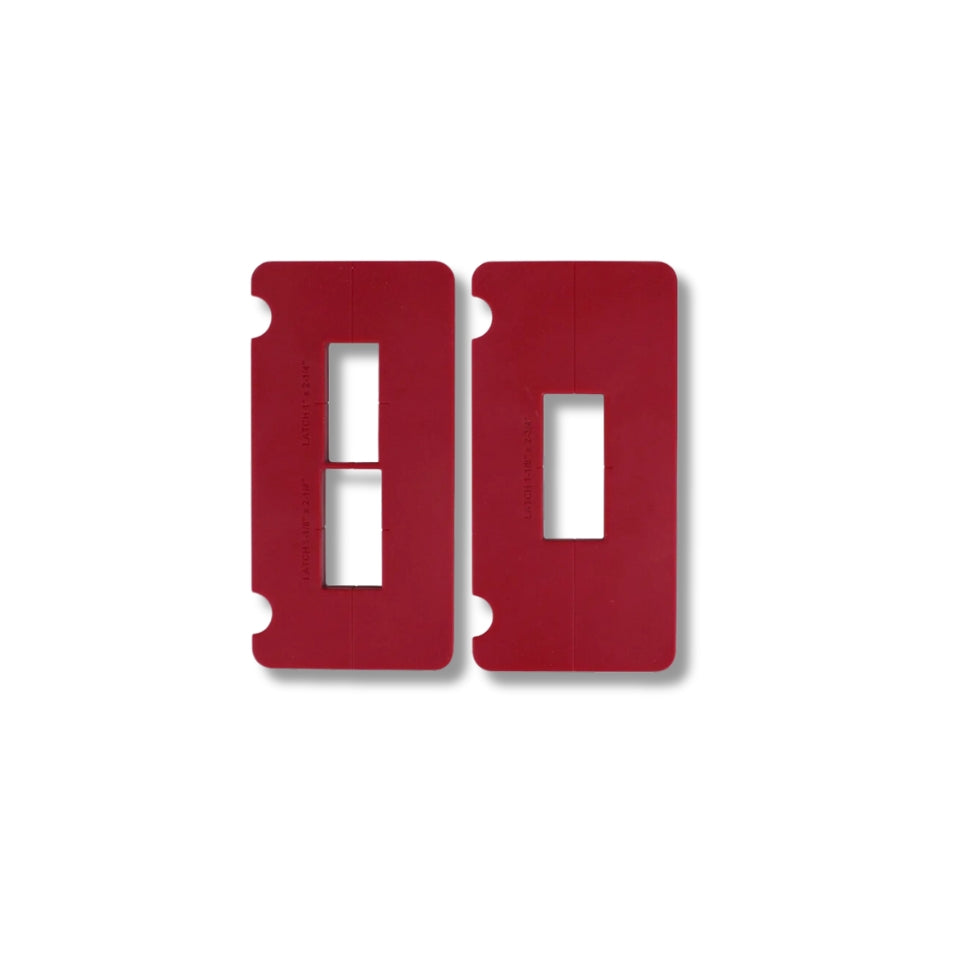

- Latch Mortise Templates
- Built-in Storage for Router Bit
