Description

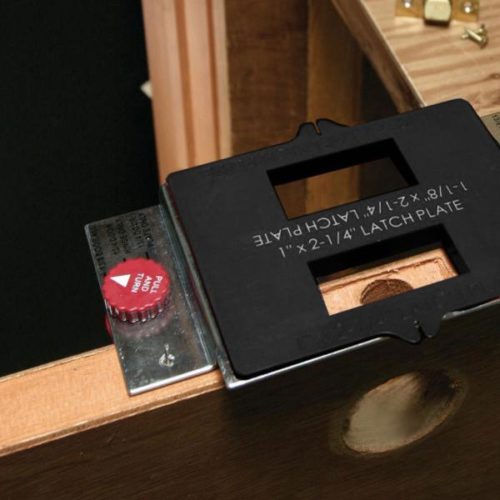

Increase security and privacy in your home by replacing doors without damaging the door or jamb with the HingeMate300. By routing matching mortises for hinges, strike plates, and latch plates into the door and jamb, you won’t have to tear a hole in the wall just to hang a better wooden door.
- Durable steel frame with adjustable cams allow for 1-3/4” and 1-3/8” door settings
- Can be mounted to both door and jamb
- Tip made of durable tungsten carbide
- Router bit with ball bearing eliminates the need for a bushing
- Contains templates needed to rout hinge, strike plate, and latch plate mortises
- Rotate template to achieve 5/8” radius or 1/4″ radius
Technical Data
| Template Frame Material | Steel |
| Template Material | ABS Plastic |
| Includes | 1/2" router bit |
| Router Bit Set Screw, Hex Size | 1.5mm |
| Hinge Template Sizes | 2-1/2", 3", 3-1/2", 4", and 4-1/2" |
| Strike Plate Template Sizes | 1-1/8" x 2-3/4" and 1-1/2" x 2-1/4" |
| Latch Plate Template Sizes | 1" x 2-1/4", 1-1/8" x 2 1/4", and 1-1/8" x 2-3/4" |
| Screw Size | #6 Phillip Pan Head Screw |

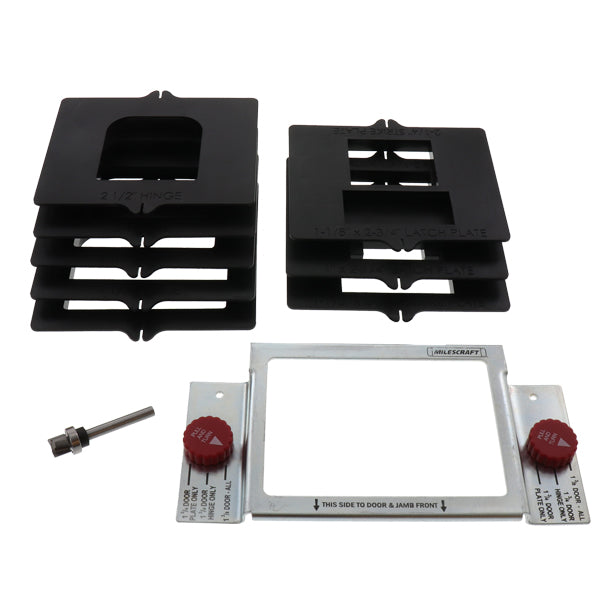

Includes
1/2" router bit
Strike Plate Template Sizes: 1-1/8" x 2-3/4" and 1-1/2" x 2-1/4"
Latch Plate Template Sizes: 1" x 2-1/4", 1-1/8" x 2 1/4", and 1-1/8" x 2-3/4"
