Description

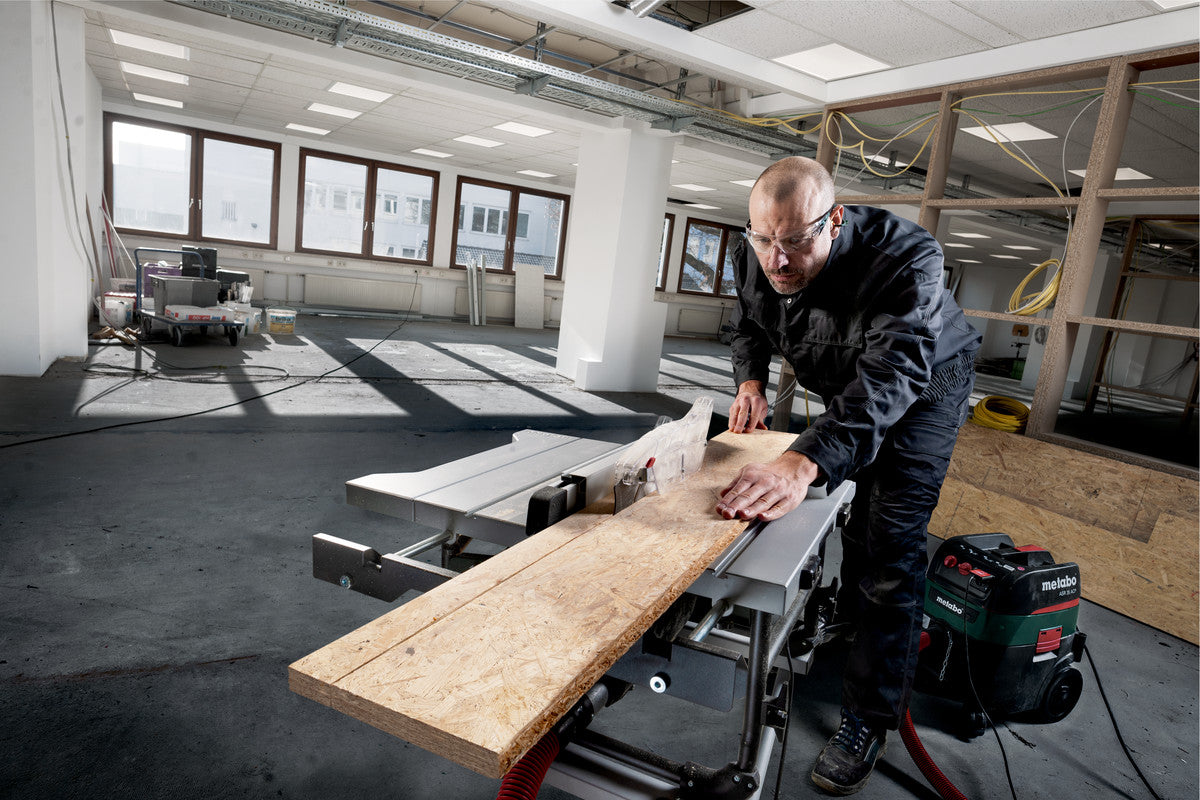

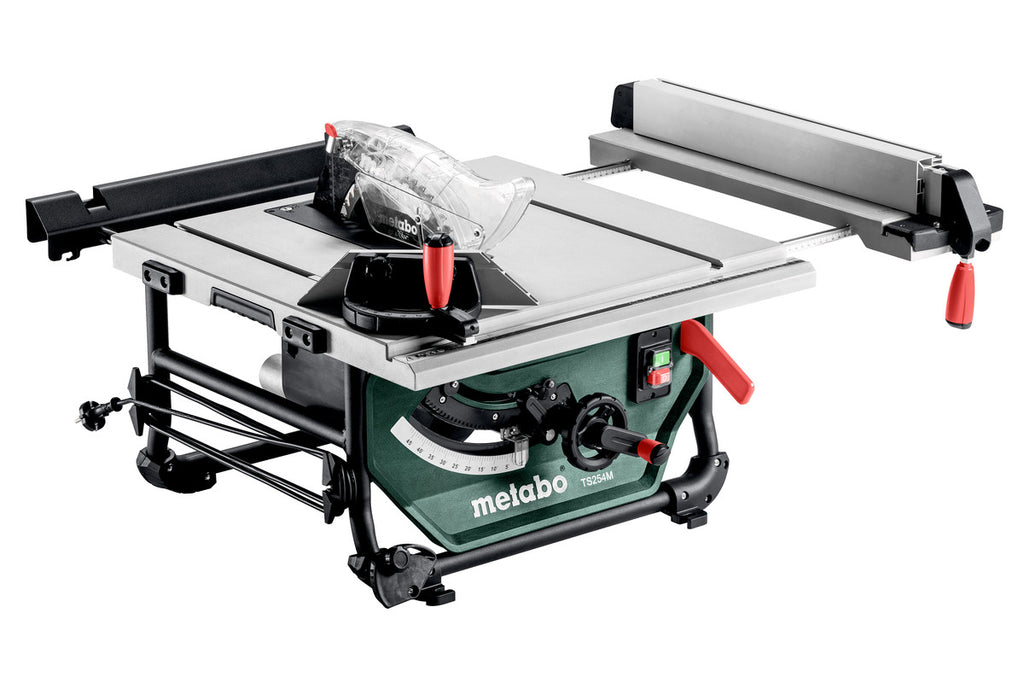

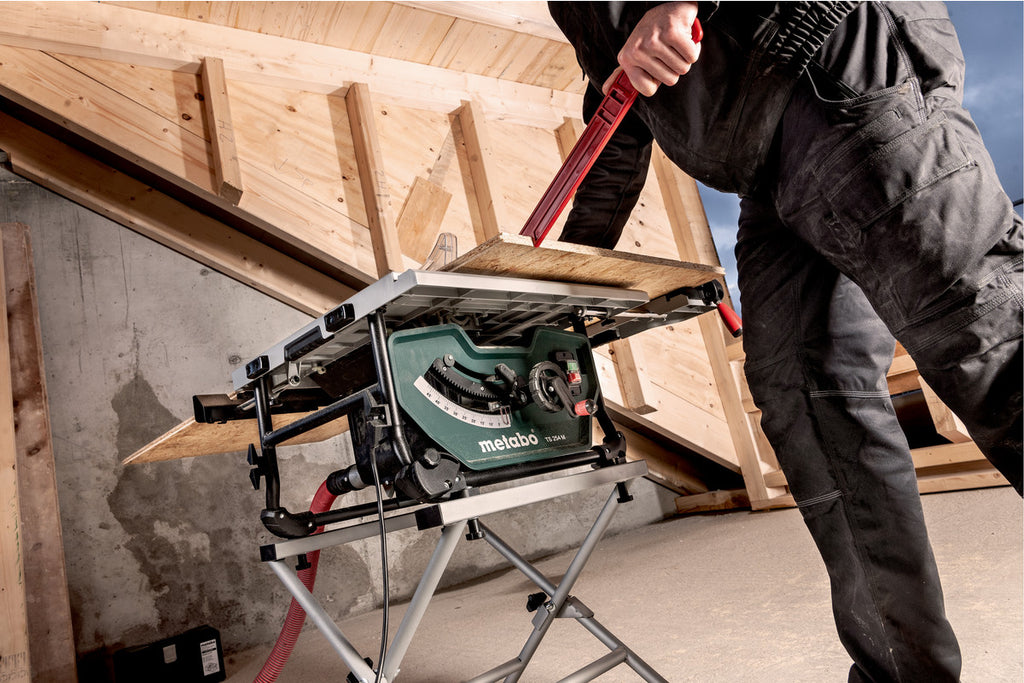

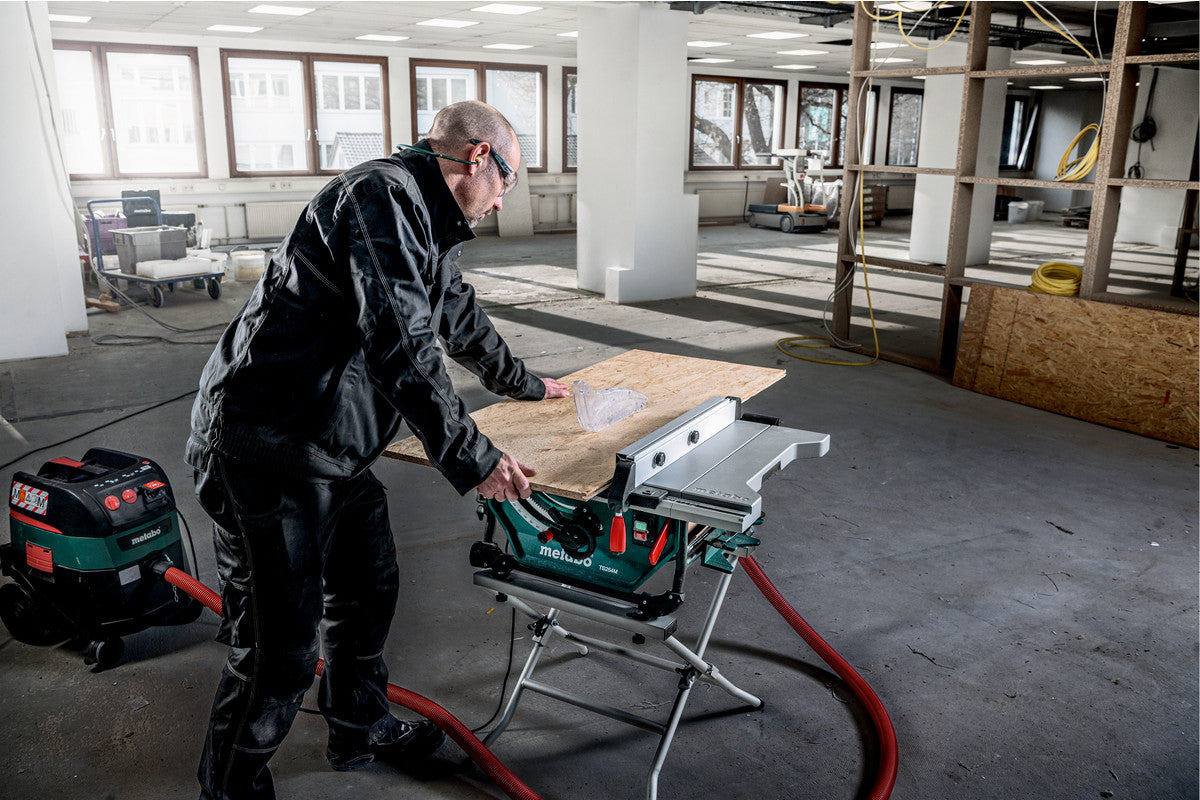

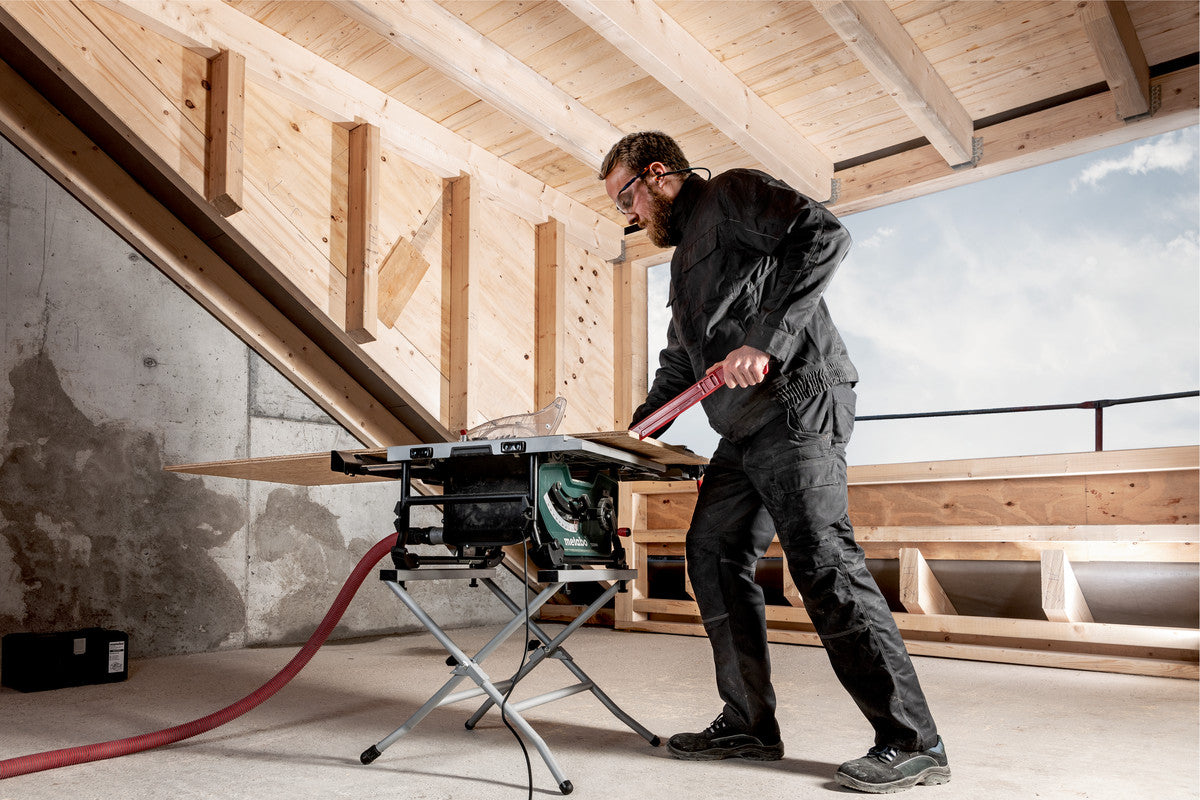

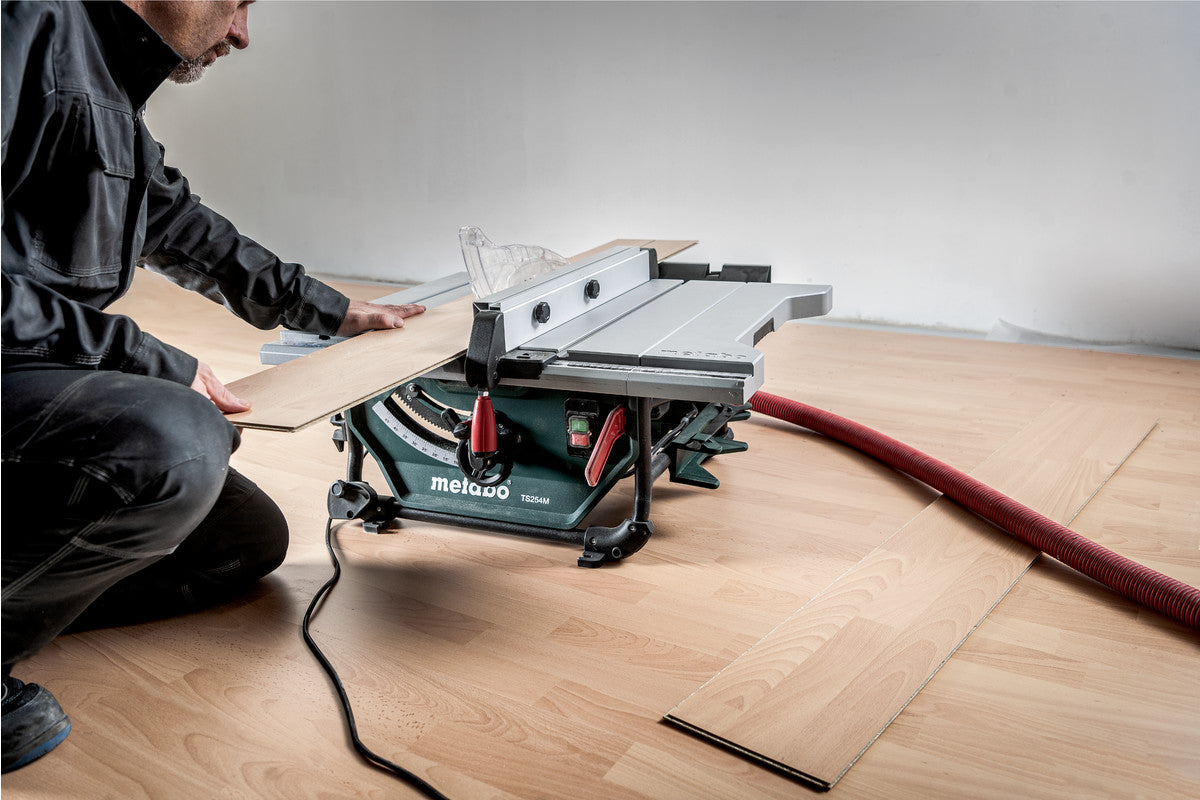

Experience exceptional cutting performance and comfort with our Compact mobile table saw (TS 254 M, 610254000). Designed for versatile applications on the job site or during installations.
- Anti-twist tubular frame construction
- Powerful motor with electronic overload protection and soft start
- Precisely adjustable parallel guide / rip fence
- Easy saw blade change with spindle lock
- Automatic resetting to 0 – 45 ° after undercuts
Technical Data
| Dimensions: | 669 x 748 x 334 mm // 26.343 x 29.437 x 13.156 " |
| Working height: | 334 mm // 13.15" |
| Cutting height: | 0 - 80 mm // 0 - 3.15 " |
| Maximum cutting height 90/45°: | 80 / 48 mm // 3.15 / 1.87 " |
| Maximum cutting width at rip fence: | 520 mm / 20.46 " |
| Maximum material width at mitre fence: | 195 mm / 7.68 " |
| No-load speed: | 4200 rpm |
| Cutting speed: | 56 m/s / 184 ft/s |
| Saw blade: | 254 x 30 mm // 10 x 1.181 " Carbide saw blade with alternately bevel-ground tips (40 teeth) |
| Saw blade swivel range: | -1.5 - 46.5 ° |
| Rated input power: | S1 100%1500 W |
| Weight: | 24.4 kg / 54 lbs |
| Cable length: | 2.3 m / 90.565 " |
Includes
- Carbide saw blade with alternately bevel-ground tips (40 teeth)
- Table Length Extension
- Table width extension (right)
- Push stick
- Rip Fence
- Mitre Fence
