Description

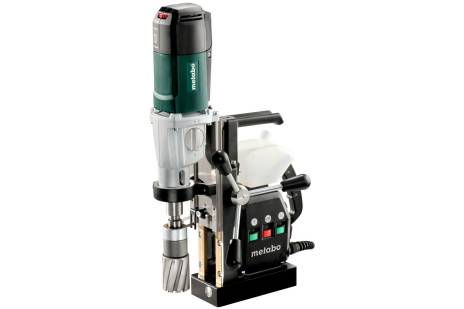

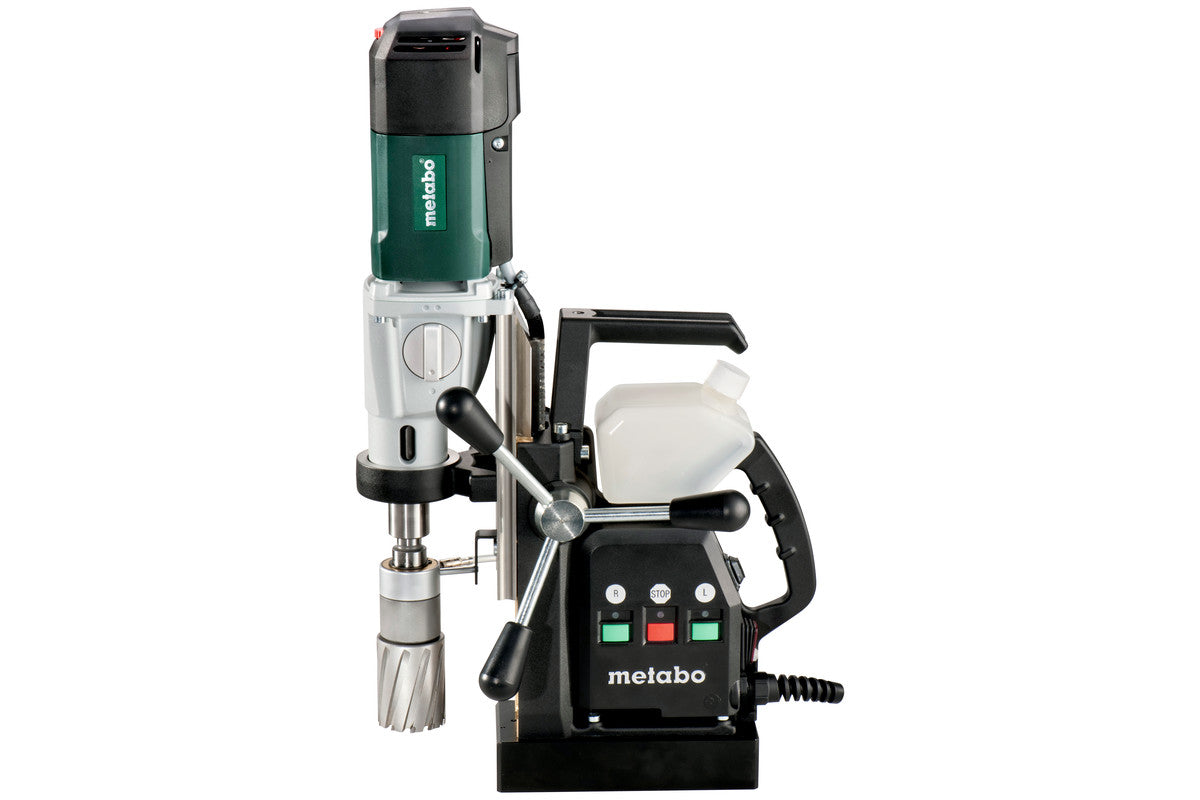

The Metabo Magnetic Core Drill MAG 50, SKU 600636500, is a powerful tool designed for precision drilling even in challenging environments. Featuring a high holding power magnetic base, robust motor, and versatile speed settings, it is perfect for both professional and industrial applications.
- Large feed depth for core, spiral, and countersink drills

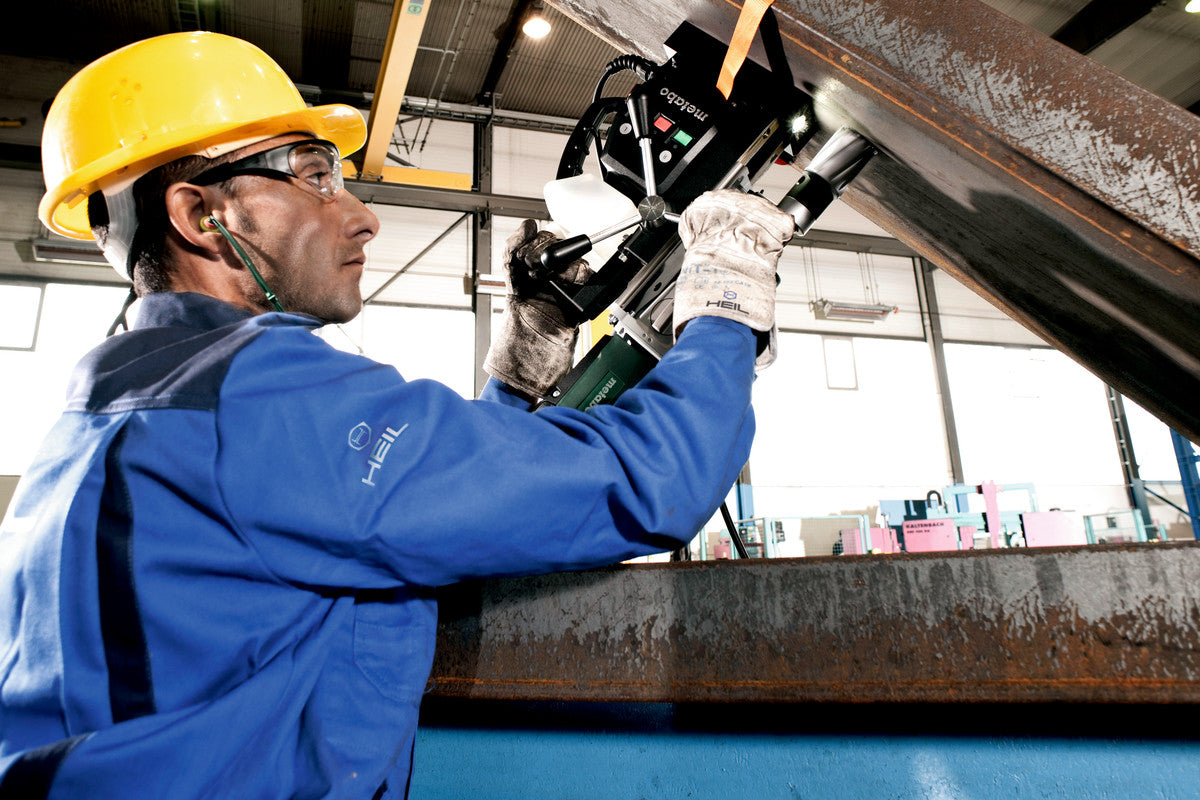

- High holding power for vertical and overhead use
- Durable motor with VTC electronics for consistent speed
- Overload and restart protection for added safety
- Integrated coolant container for efficient cooling
Technical Data
| Rated input power | 1200 W |
| Output power | 620 W |
| Max drill Ø with core drill | 50 mm |
| Max drill Ø with spiral drill | 20 mm |
| Maximum drilling depth | 50 mm |
| Thread cutting | M 16 |
| No-load speeds | 100 - 250 / 200 - 450 rpm |
| Speeds at rated load | 250 / 450 rpm |
| Bit retainer | Morse taper MK 2 / Weldon shaft 19 mm (3/4") |
| Weight | 12.7 kg |
| Cable length | 5 m |
| Torque | 90 / 50 Nm |
| Max depth of feed | 160 mm |
| Max magnetic holding force | 12250 N |

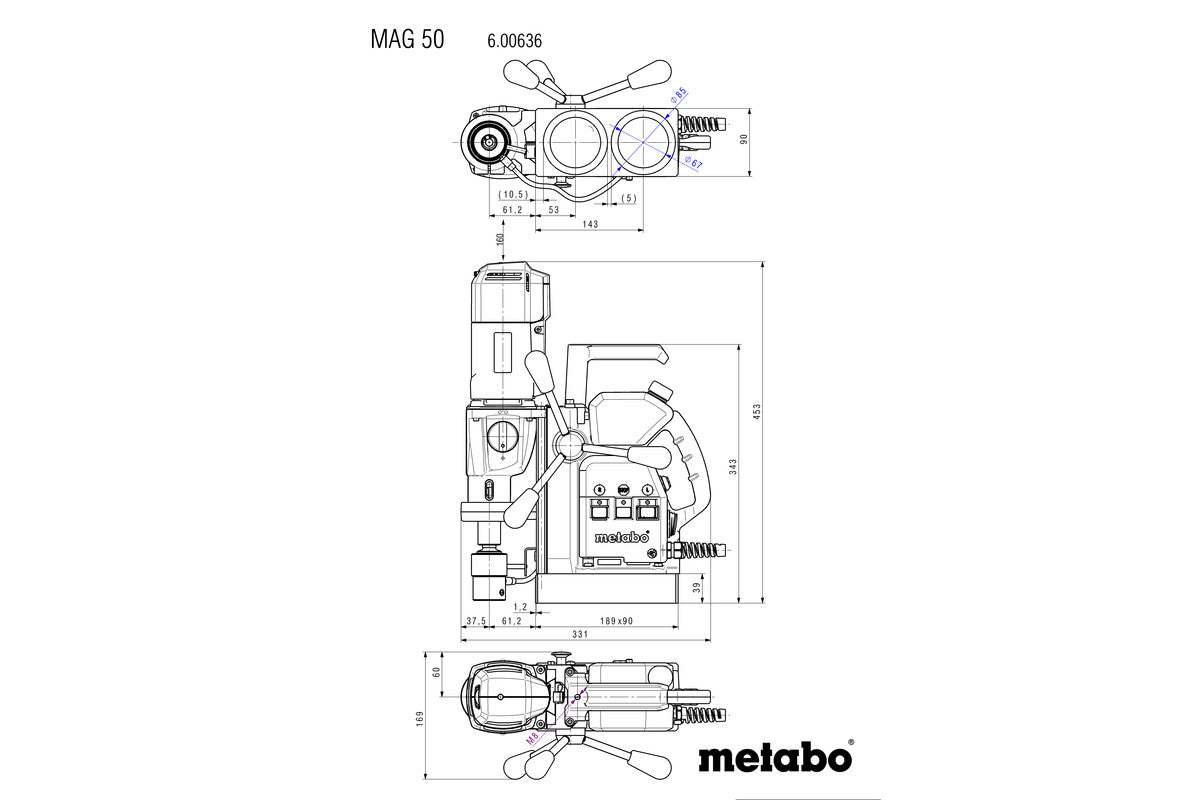

| Dimensions of the magnet base | 90 x 190 mm |
| Height carriage lowest position | 457 mm |
| Height carriage topmost position | 610 mm |
| Drilling in metal vibration | 2.5 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
| Sound pressure level | 79 dB(A) |
| Sound power level (LwA) | 92 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
Includes
- 1x Industrial holder for Weldon shank 19 mm
- 1x Ejector pin 75 mm
- 1x Ejector pin 100 mm
- 1x MK 2 drift key
- 1x Safety strap
- 1x Hexagon socket wrench SW 5
- 1x Swarf protection guard
- 1x Transport case
