Description

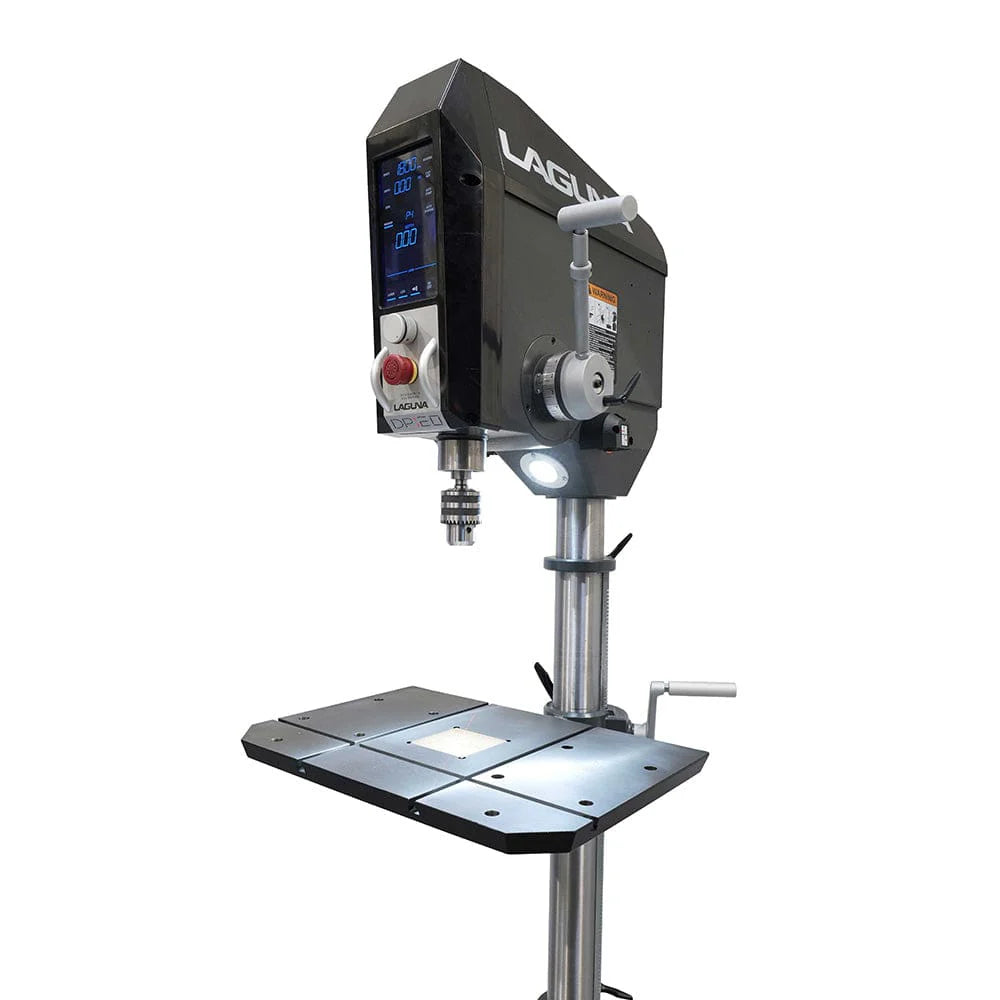

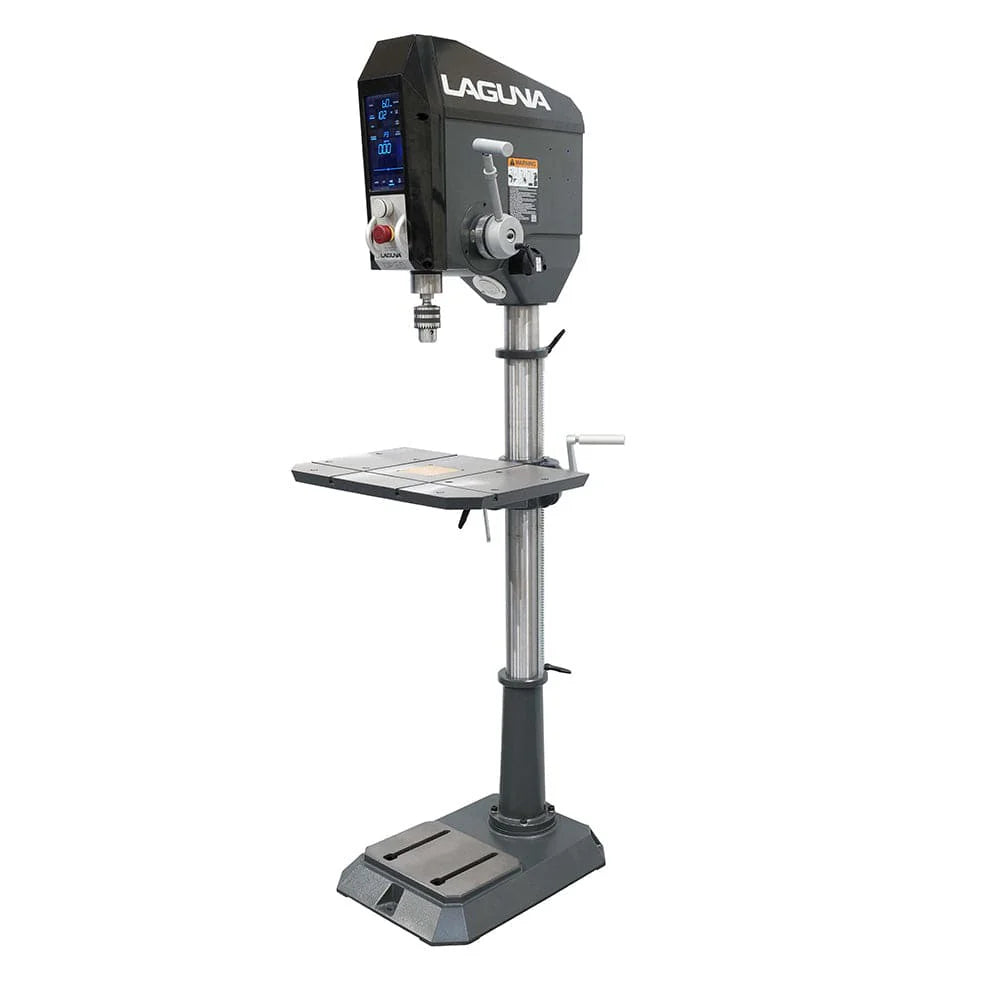

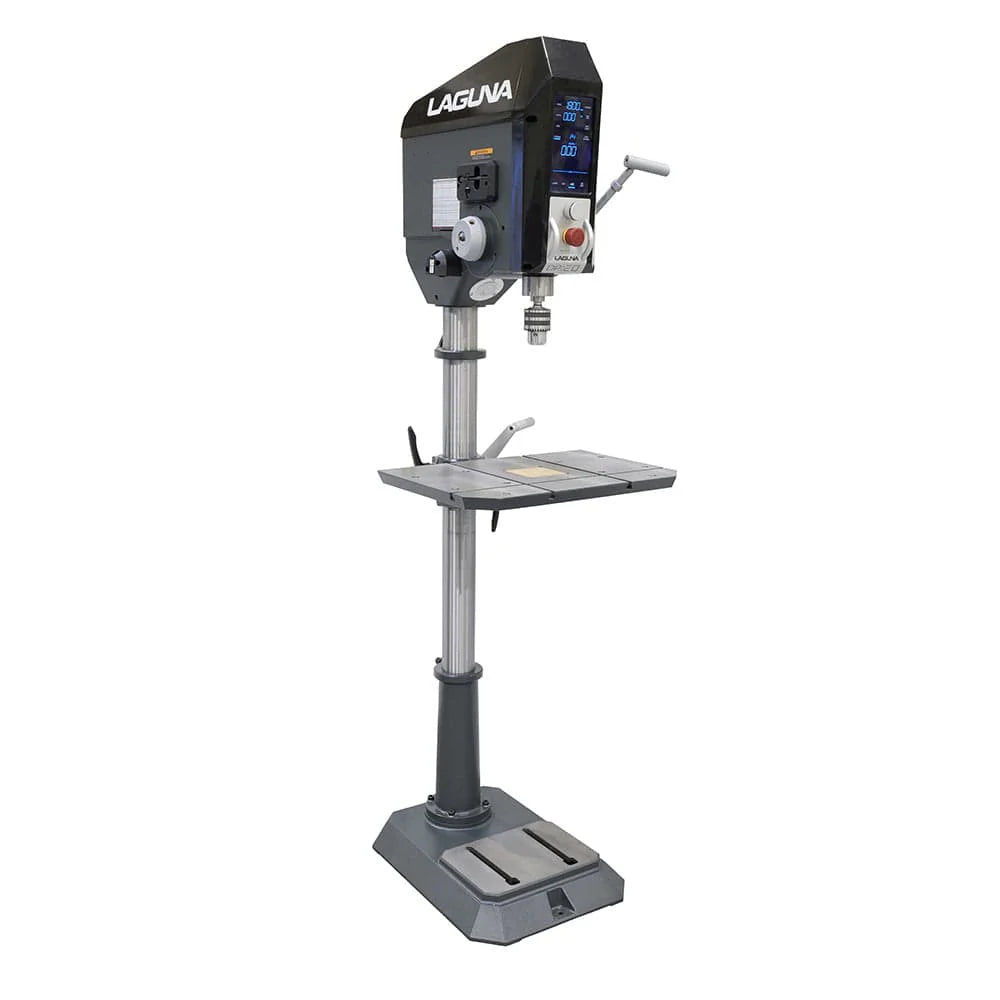

Experience the latest innovation in industrial power and modern design with the DP20 Drill Press. This drill press is engineered for high-performance applications, featuring a robust 1.5 hp PWM motor that delivers constant torque across a full speed range of 60 to 3600 RPM.

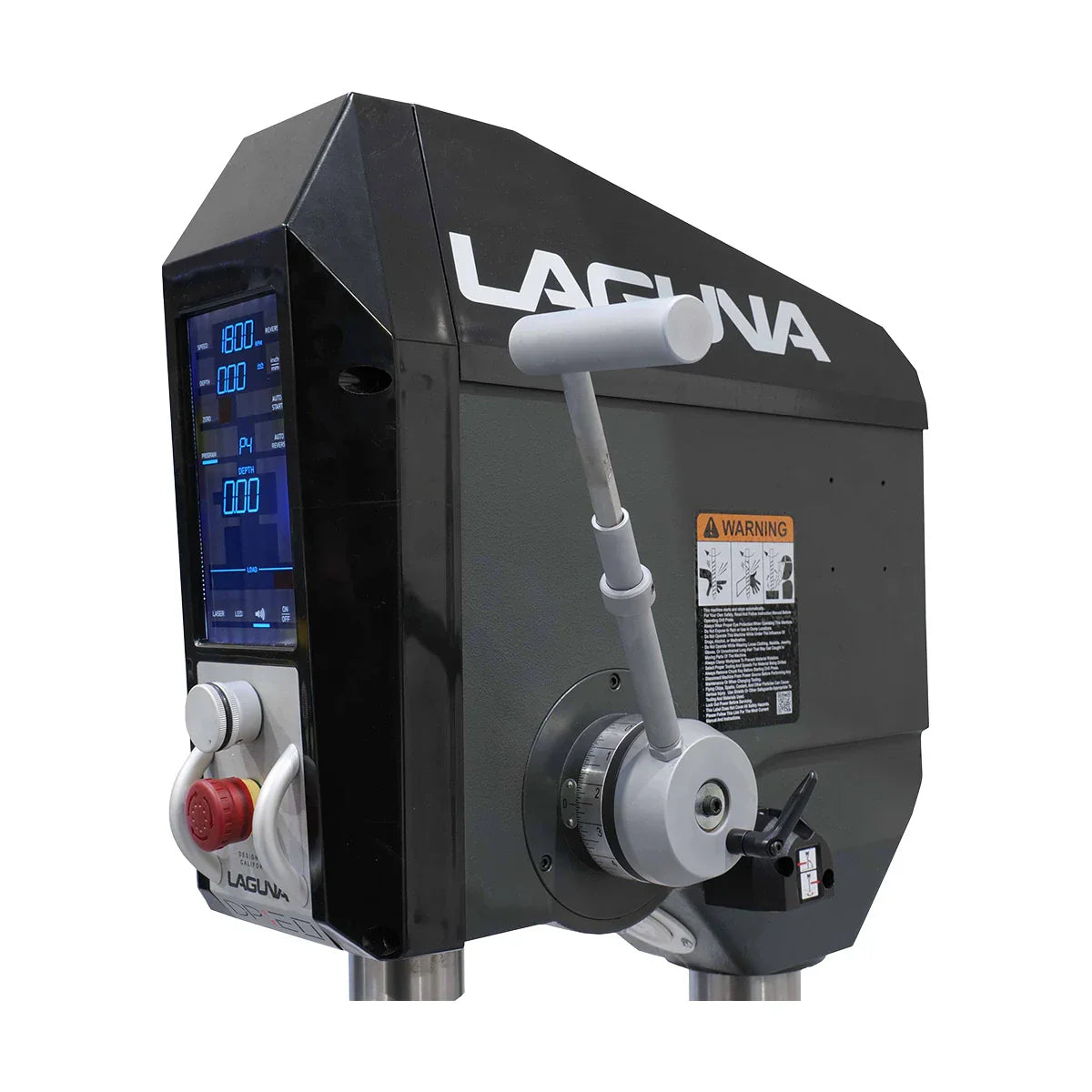

- Touch Screen Smart Panel with blue LCD digital readout
- 1.5 hp PWM Motor with forward and reverse functions

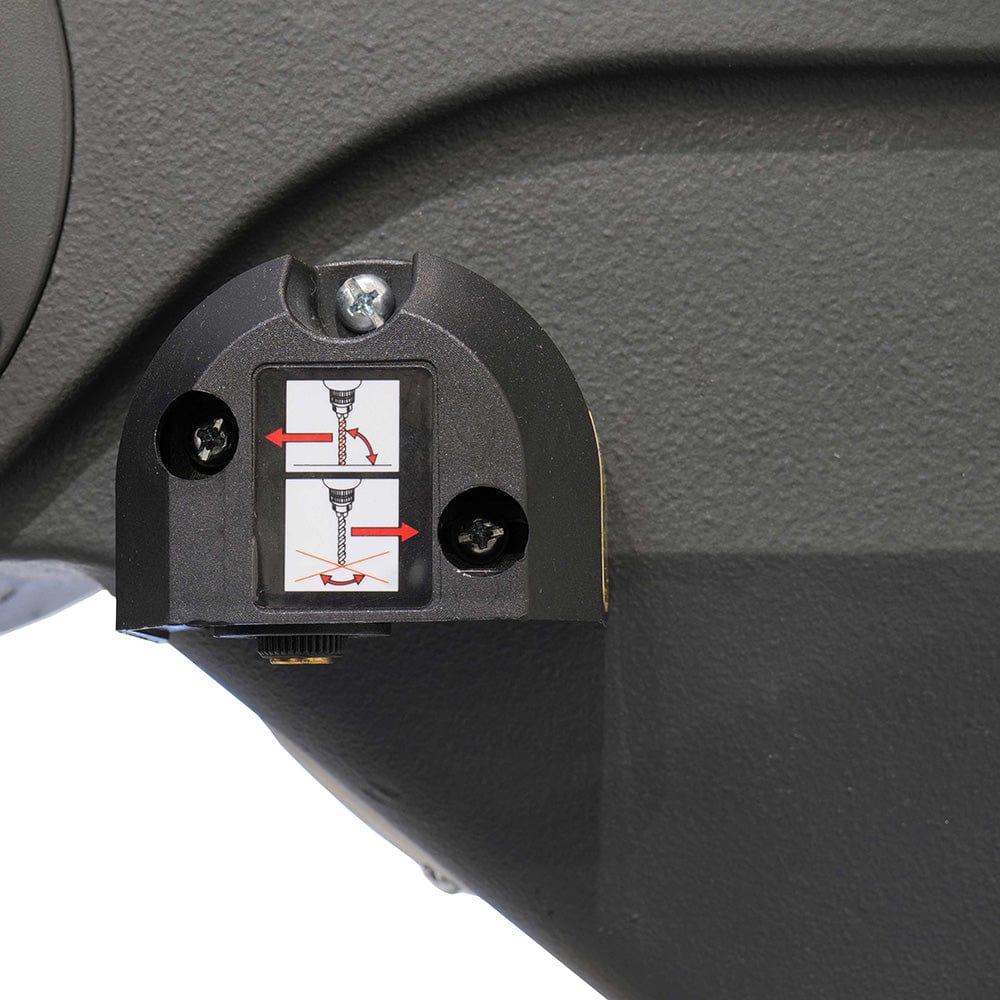

- Auto-Start Function

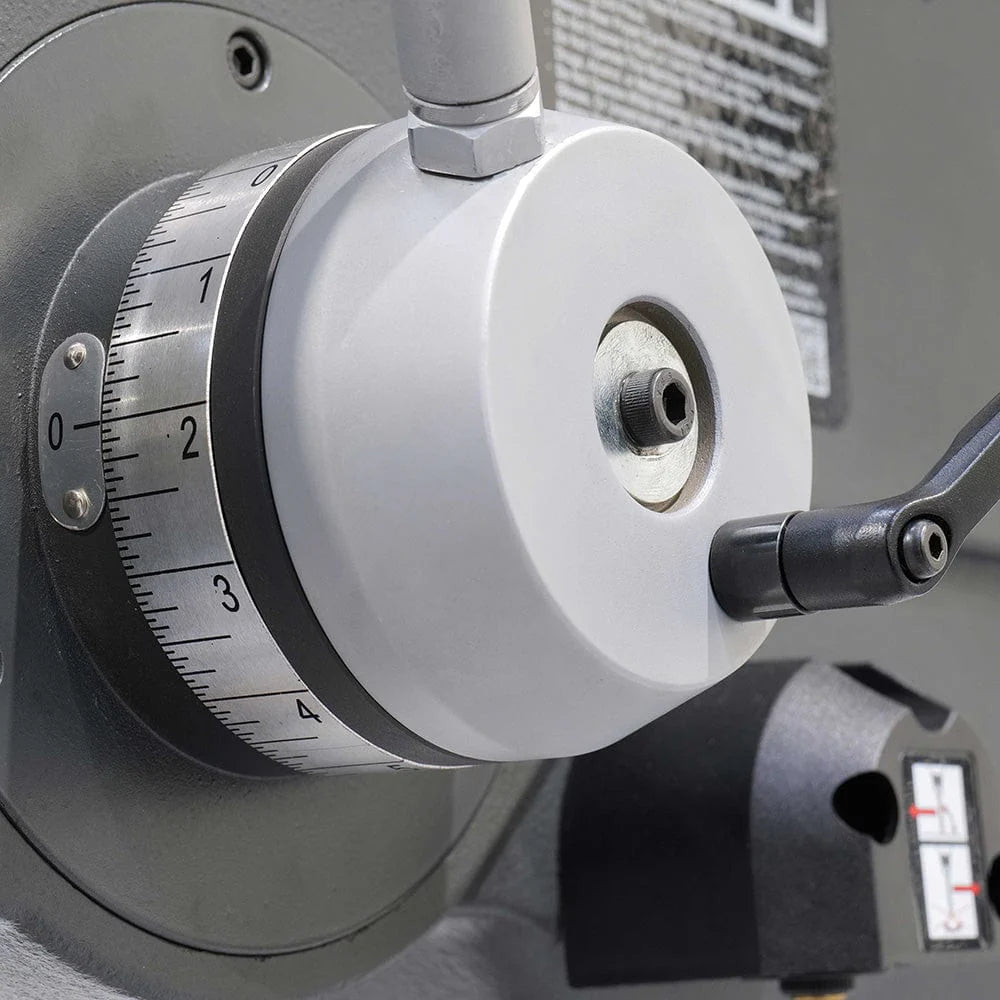

- Precision Depth Control
- Advanced Safety Features
Technical Data
| Parameter: | Specification: |
| Motor | 1.5 HP DC Brushed PWM |
| Power | 110-120 volt, 15 AMP |
| Frequency | 60 Hz |
| Wheel Speed | Electronic Variable 60 – 3600 RPM Forward / Reverse |
| Machine Control | LCD Touch Screen Smart Panel |
| Base Size | 22.83″ x 16.92″ |
| Column Diameter | 3.15″ (80 mm) |
| Weight | Net wt 304 lbs. (138 kg), Gross wt 326 lbs. (148 kg) |
| Packing Dimensions | 72.5″ x 28.5″ x 20″ (1840 x 725 x 406mm) |
| Memory Settings | 5 Memory Settings |
| Swing | 20″ (1830 mm) |
| Spindle Taper | MT2 |
| Quill | 6″ Travel – 2.6″ Diameter |

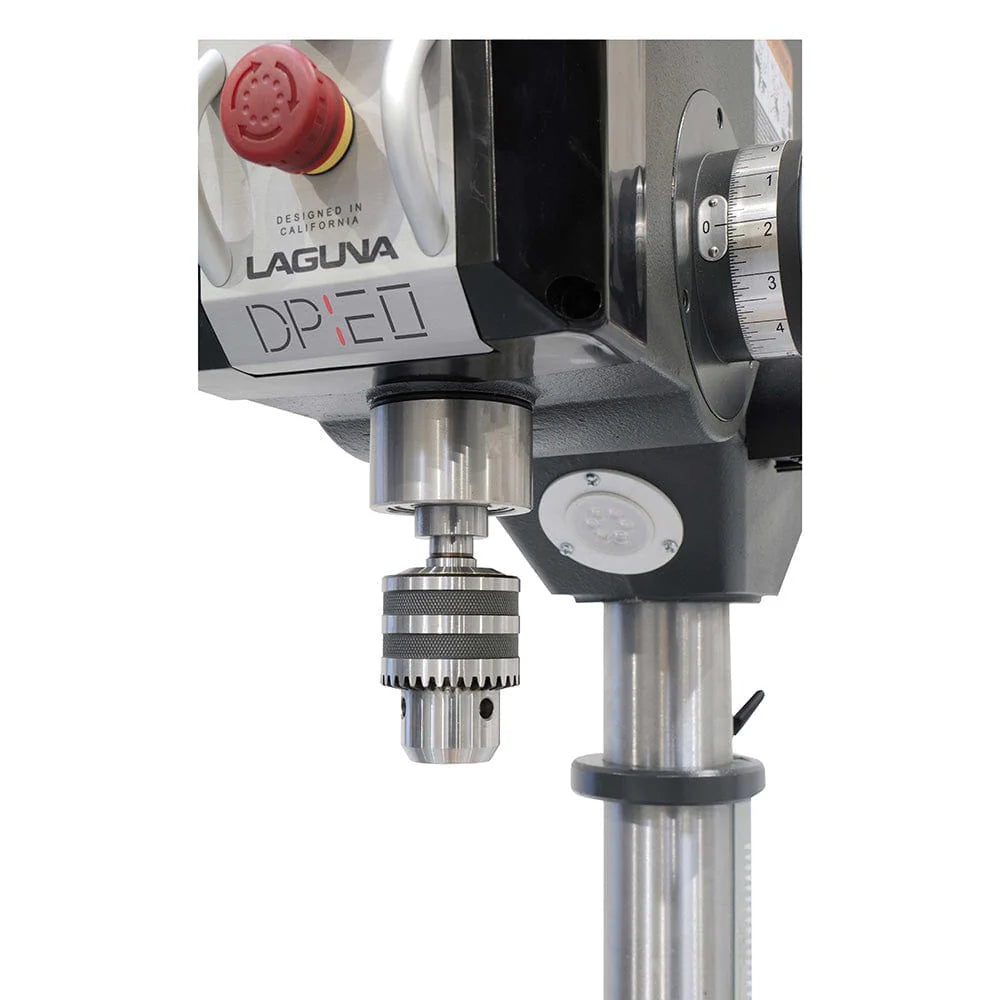

| Chuck Capacity | 5/64 – 5/8″ (2 – 16 mm) |
| Table | 15″ x 22″ with 3 T-slots and 10 clamp holes |
| Table Movement | +/- 90 Degree Tilt, 360 Degree Swivel around column |
| Spindle to Table | 30″ Max |
| Spindle to Base | 49.5″ Max |
| Optional Accessories | Work clamps for T-slot, Quick clamps for Clamp Holes, Bolt-on Work Lamps, Digital Screen Controls |
Includes
- 1x DP20 Drill Press

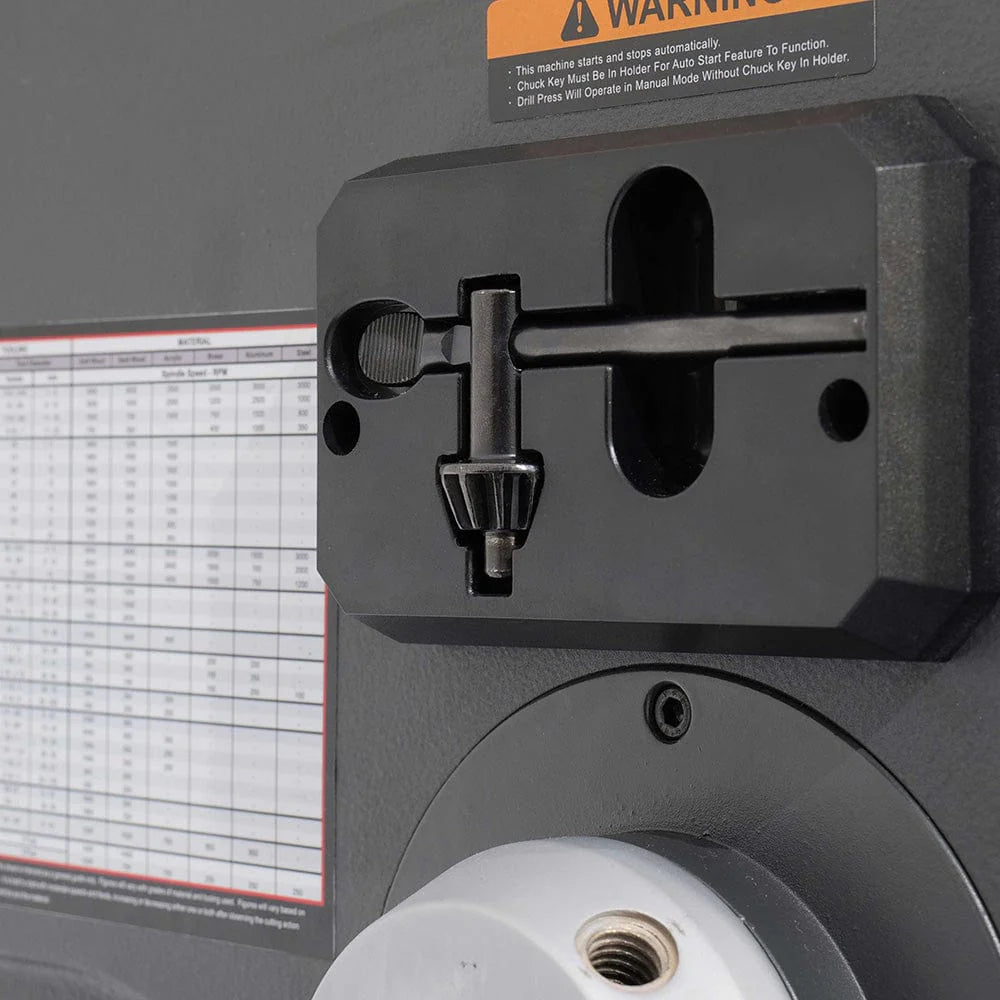

- 1x Chuck Key
- 1x Allen Wrench Set
- 6′ Power Cord
