Description

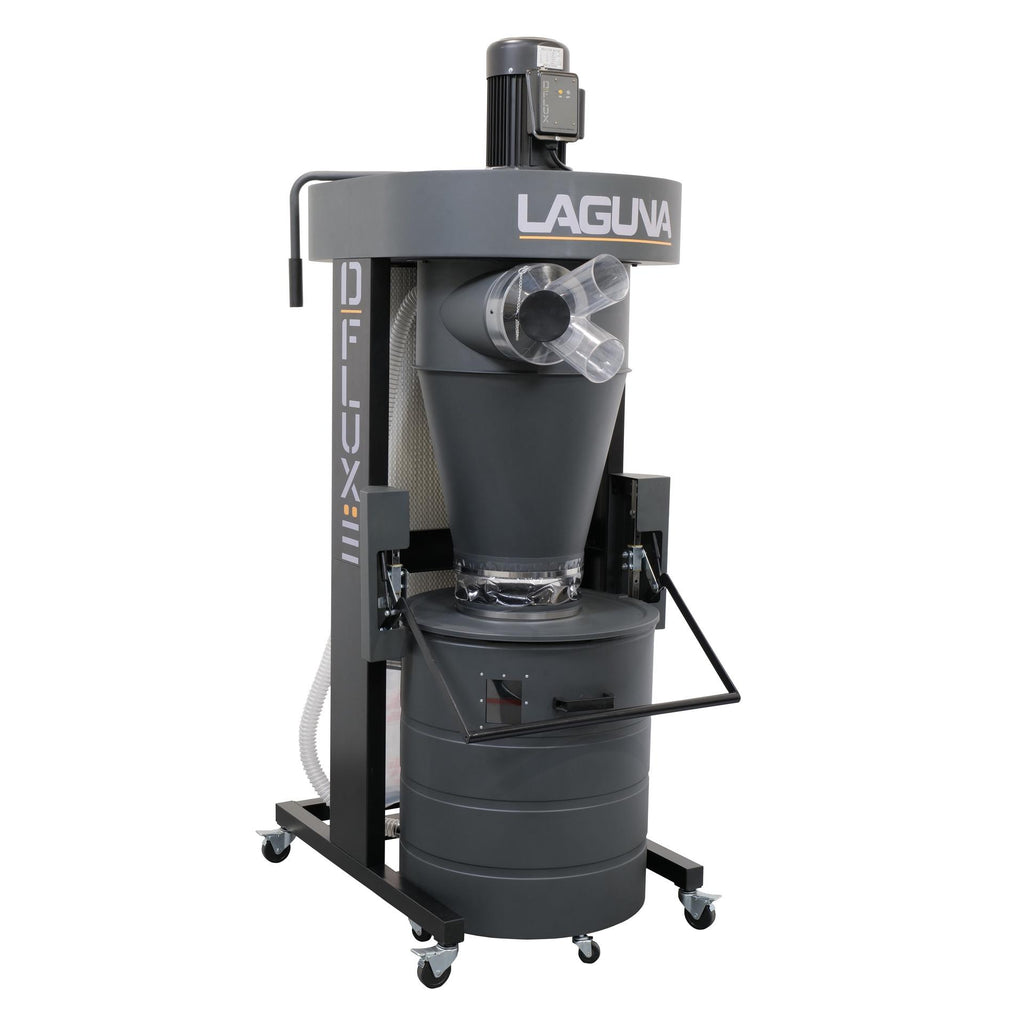

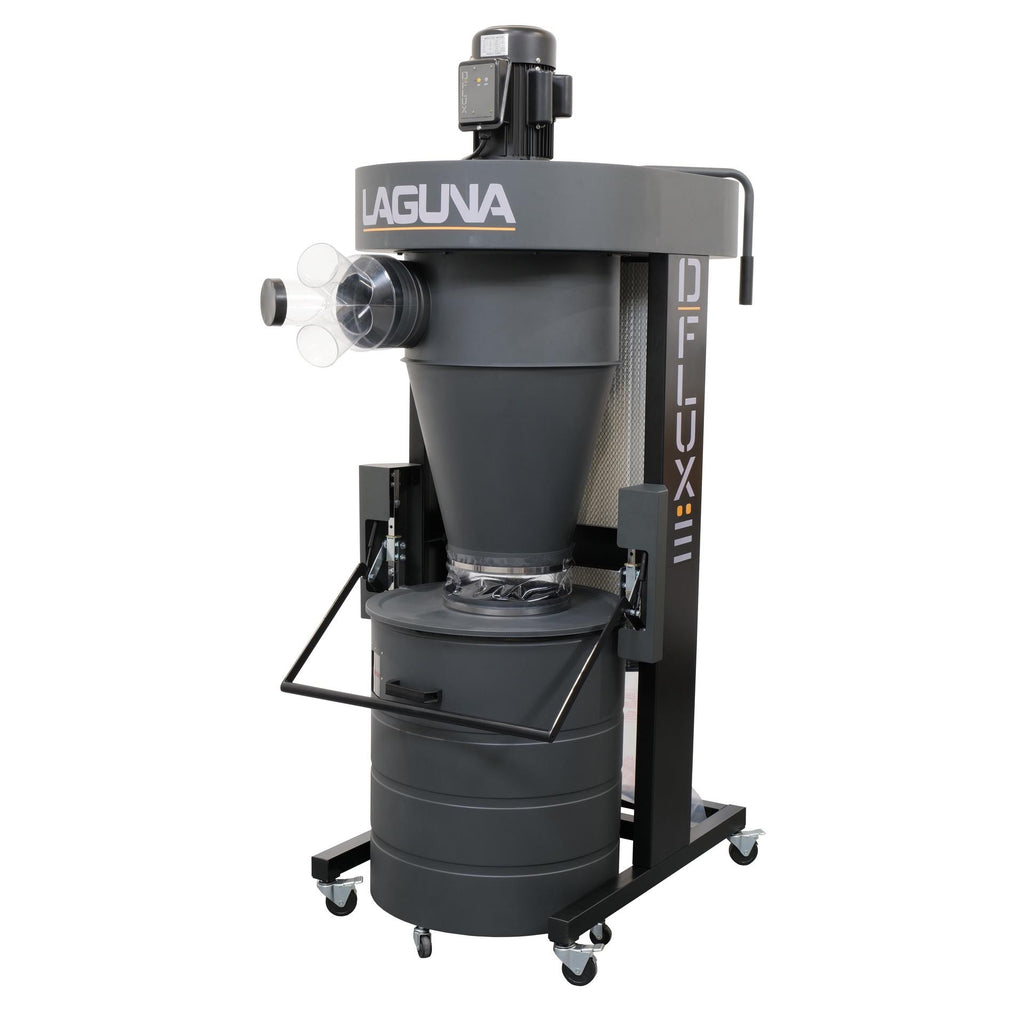

Introducing the D|Flux Dust Collectors, the latest addition to the Laguna Dust Collection line-up, designed to meet and exceed essential dust collection performance, all while keeping your workspace clean. This powerful dust collector is equipped with a TEFC motor tailored to your power needs, an efficient cyclone separator for heavy particles, and fine dust collection in a clear plastic bag. The innovative 1 Micron canister filter ensures superior air filtration and easy maintenance. The user-friendly design includes a wireless remote for convenient operation, magnetic hose connections, and air-strut-assisted drum lids for effortless handling.

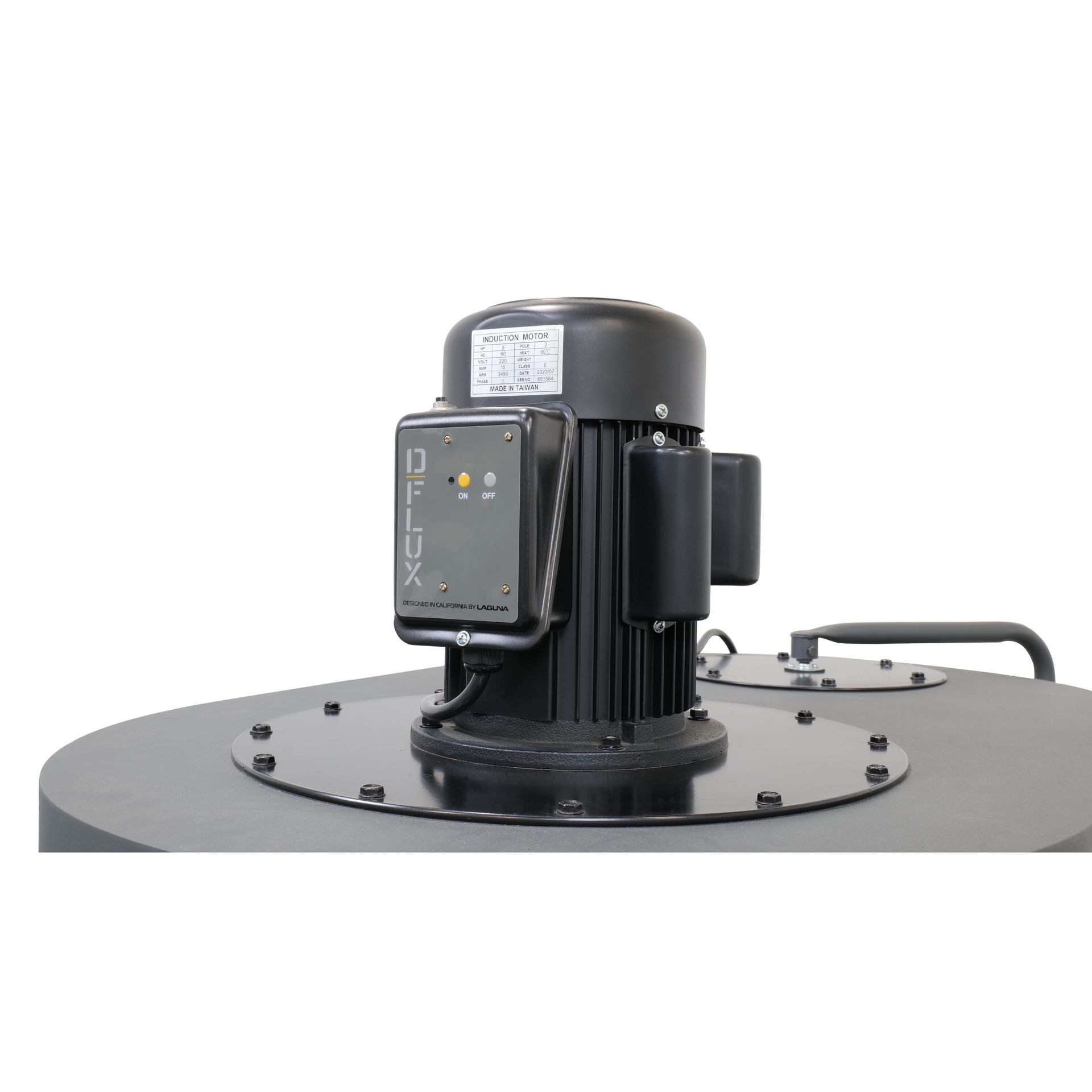

- 3HP, 220V Motor
- High-Efficiency 2-Stage Cyclone Separator
- 45-Gallon Steel Drum Capacity

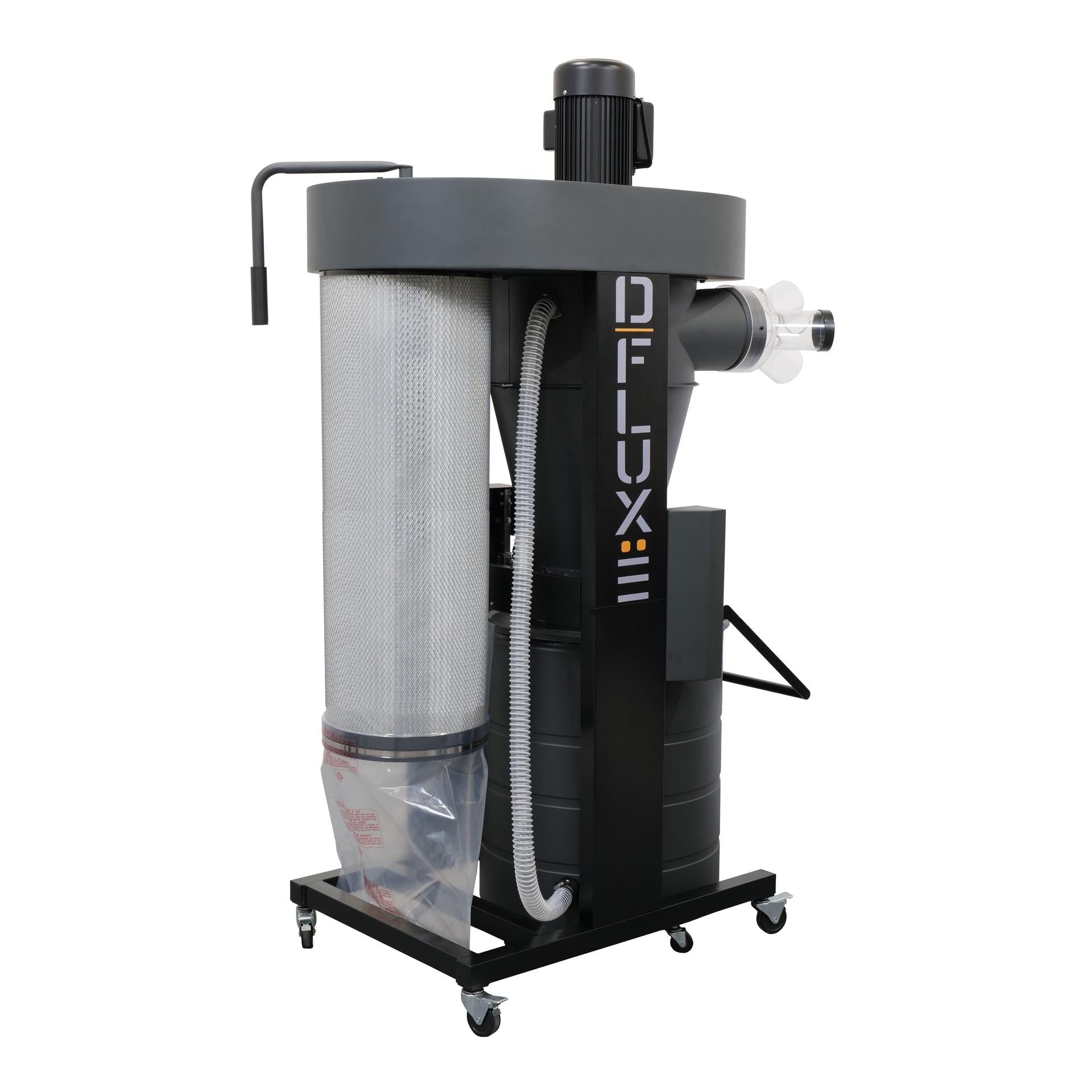

- 1 Micron Filter Canister With Paddle Cleaning System
- Caster Wheel
- Locking Casters
- See Through Dust Sleeve (2x)

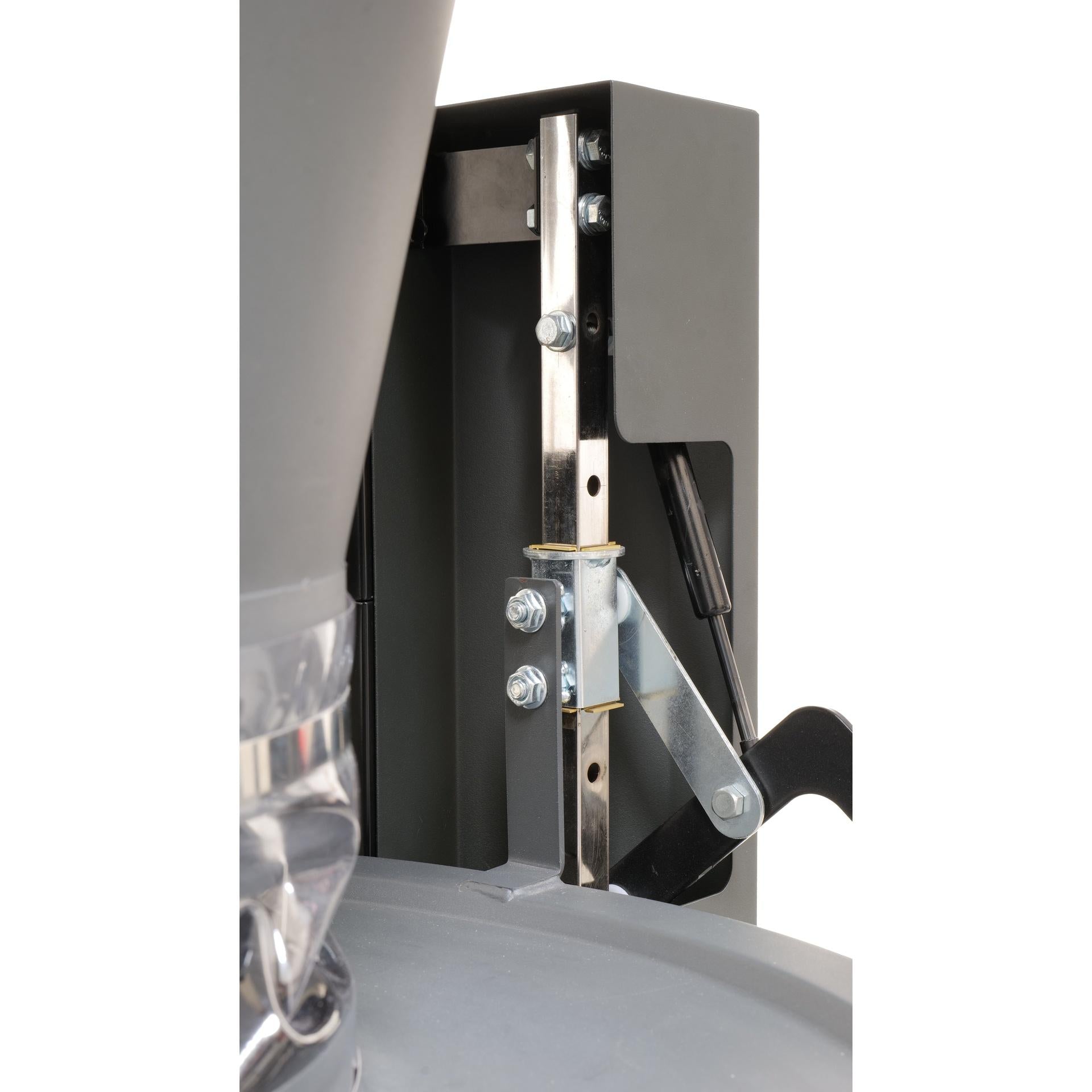

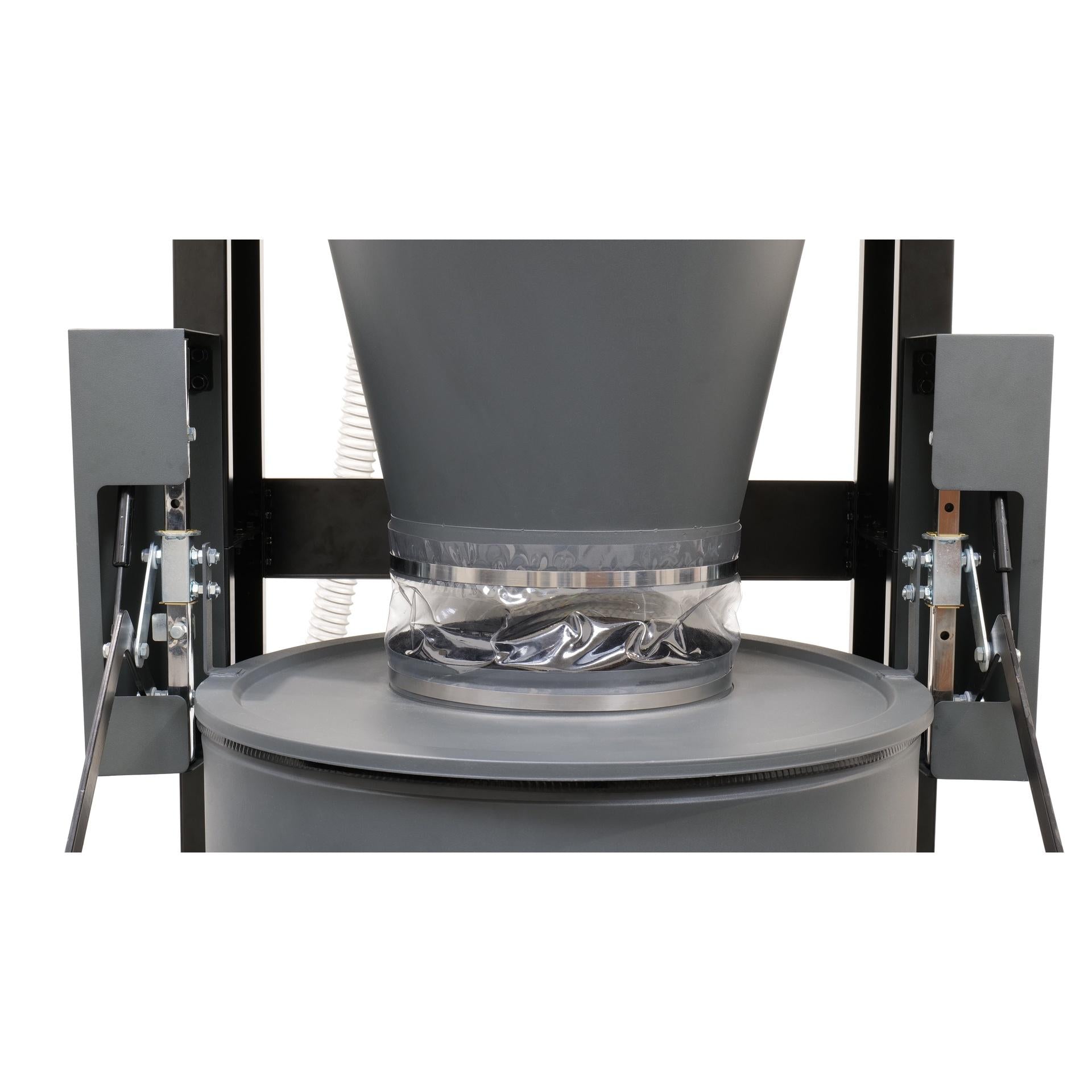

- NGX Strut Assembly (2x)

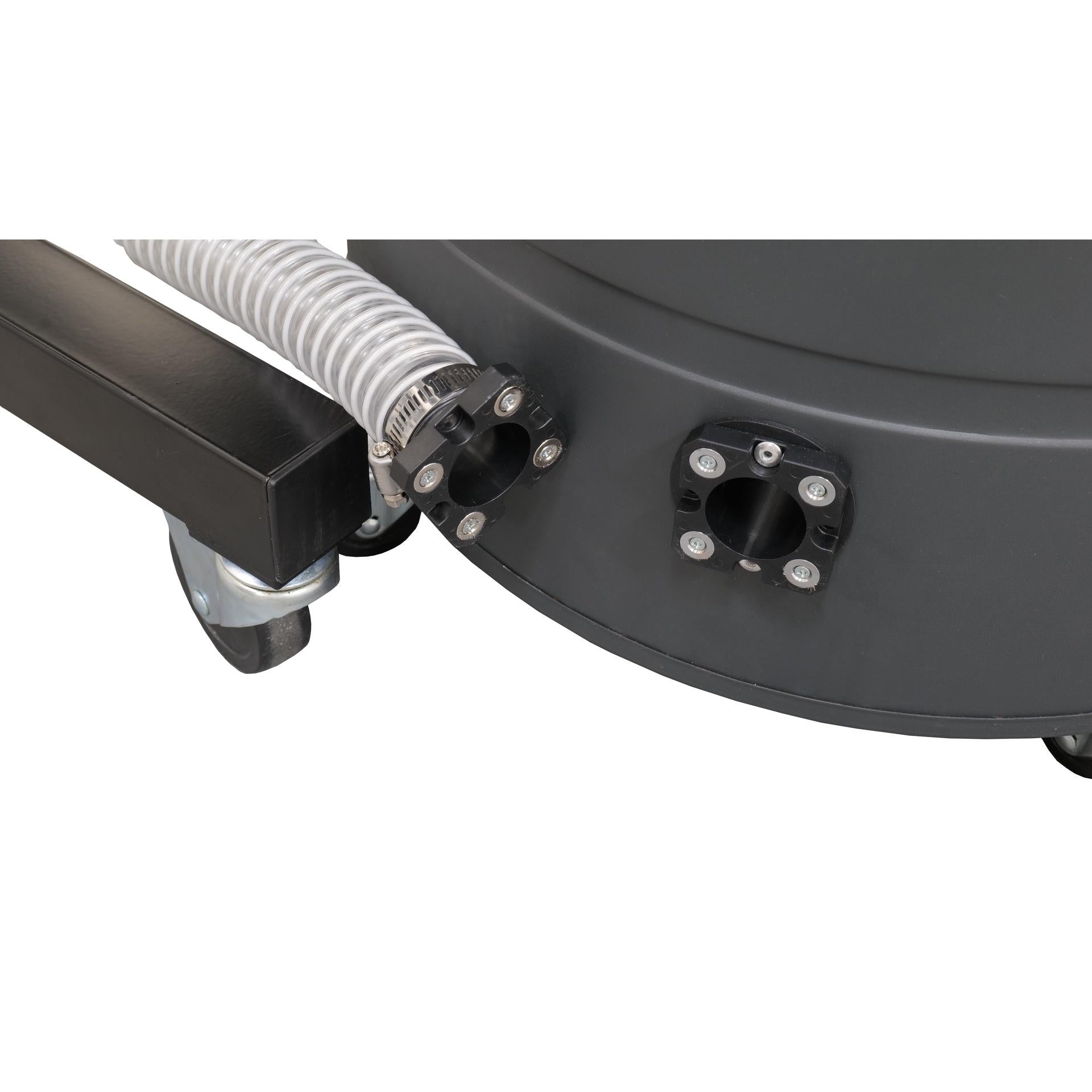

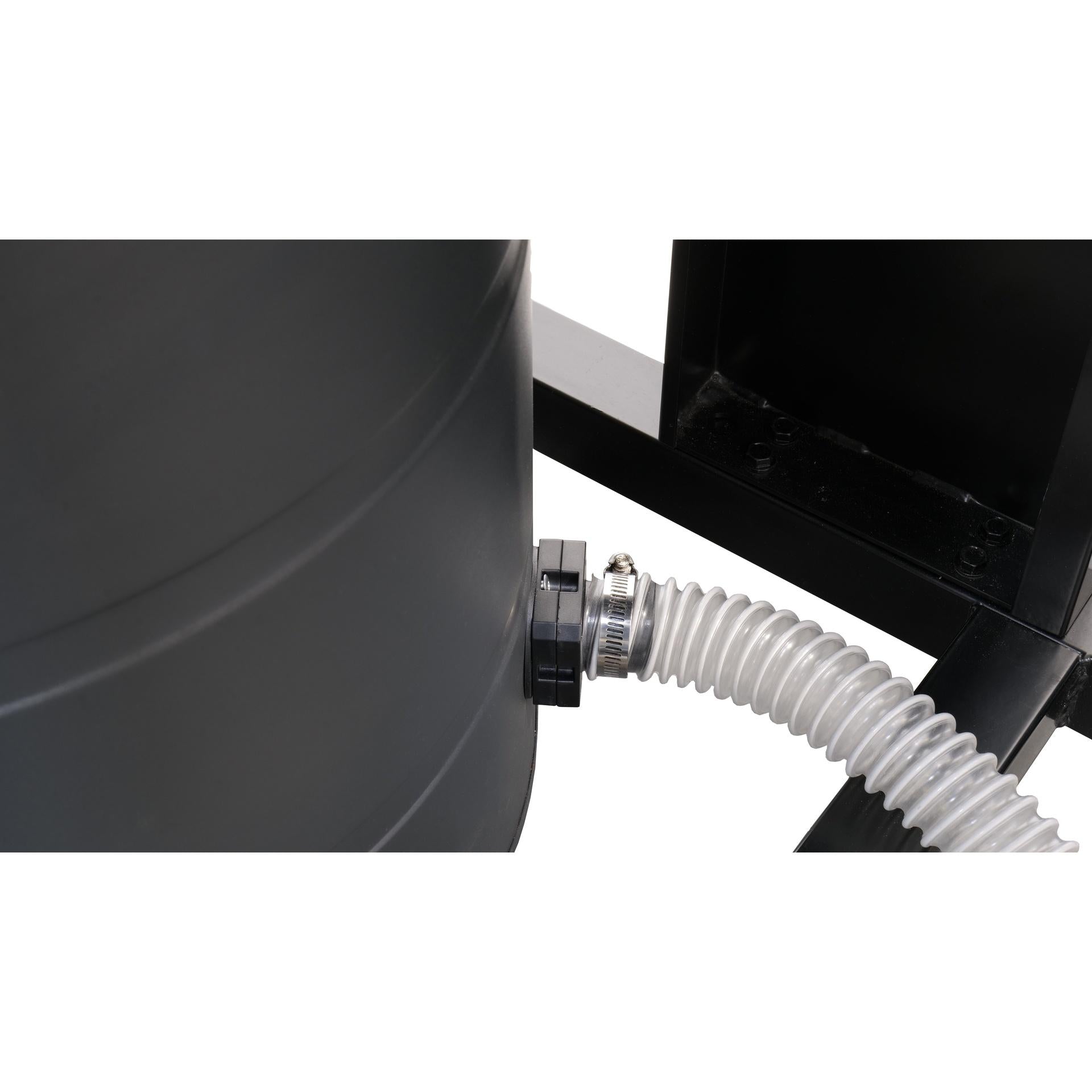

- Negative Pressure Connection (2x)
- Improved Design
Technical Data
| Motor: | 3 HP |
| Voltage: | 220 volt |
| Inlet: | 8” |
| Splitter: | 3 x 4″ |
| Collection Volume: | 45 Gallon Drum |
| Filter: | 1 Micron |
| Filter Size: | 14.5″ x 39.38″ |
| Max Air Flow: | 1941 CFM |
| Max Static Pressure: | 11″ |
| Collection Type: | 2 Stage Cyclone |
| Impeller: | Cast Aluminum 16″ |
| Drum Bag Retention: | Negative Pressure |
| Drum Bag Hose: | Magnetic Connector |
| Drum Lid Hose: | Clear Hose |
| Drum Handle Lift: | Air Strut Assistance |
| Mobility: | Machine and Drum Wheels |
| Certification: | ETL |

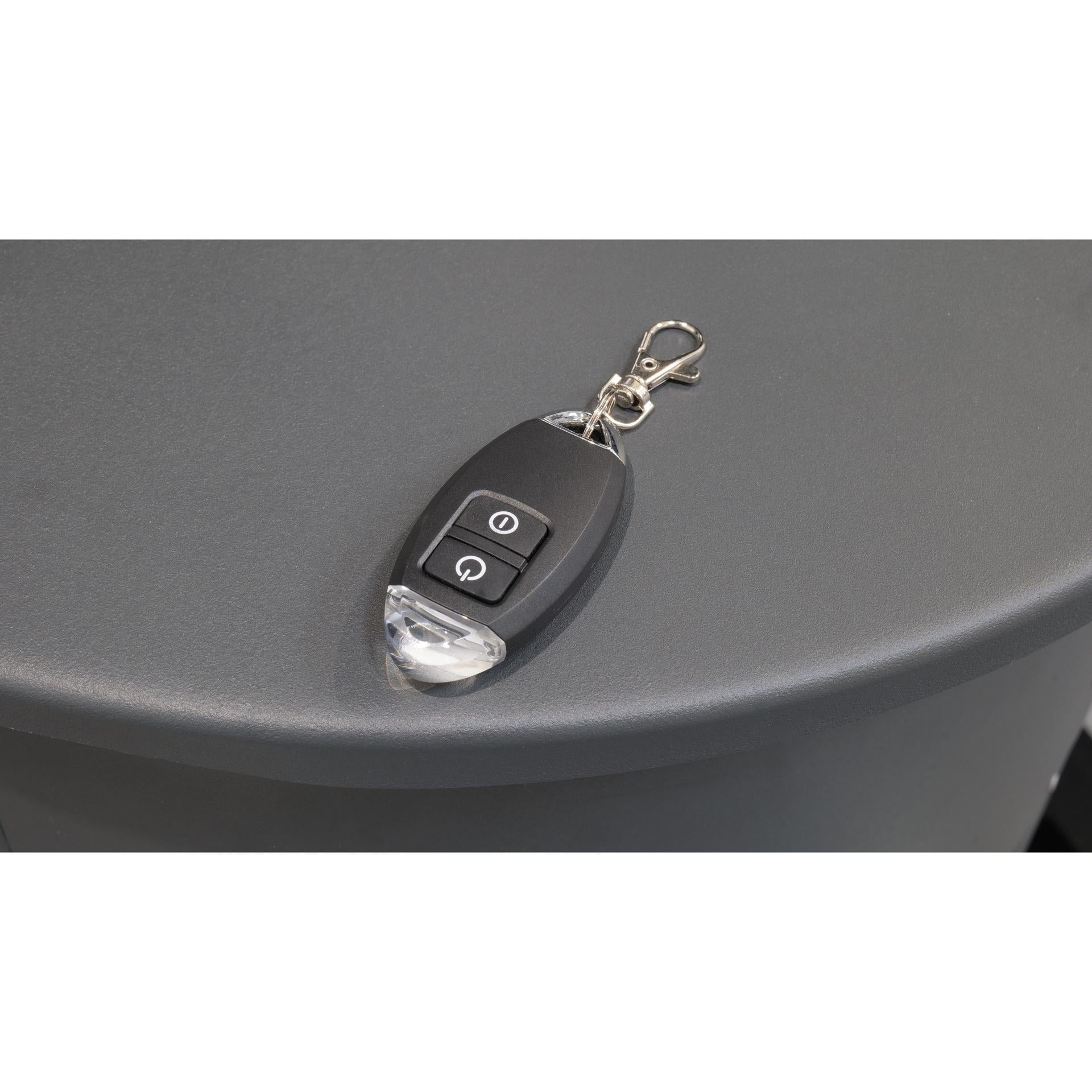

| Remote Control: | RF Remote |
| Sound Rating: | 79 dB |
| Dimensions: | 31″ x 54″ x 82″ |
| Weight (shipping): | 346 Lbs. |
| Filter Cleaning: | Manual Filter Cleaning |
| Packaging: | 1 Box |
Includes
- 1x D|Flux Dust Collector
- 1x RF Remote
