Description

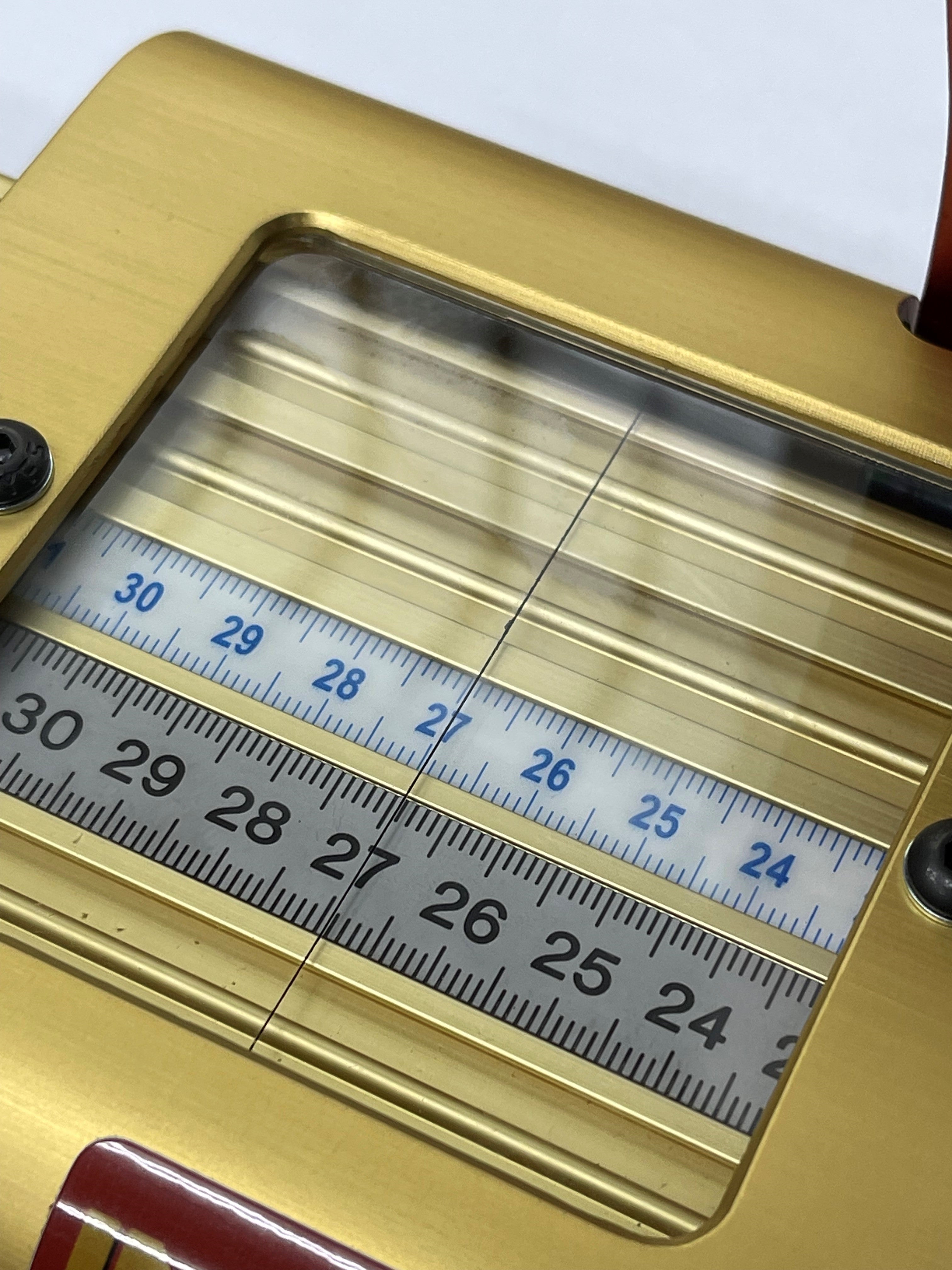

Spend more time cutting, less time tapping and measuring! Now available in metric, the LS positioner's patented lead screw positioning mechanics allow fence positioning accuracy of +/-0.05mm on 1mm increments across its entire range.

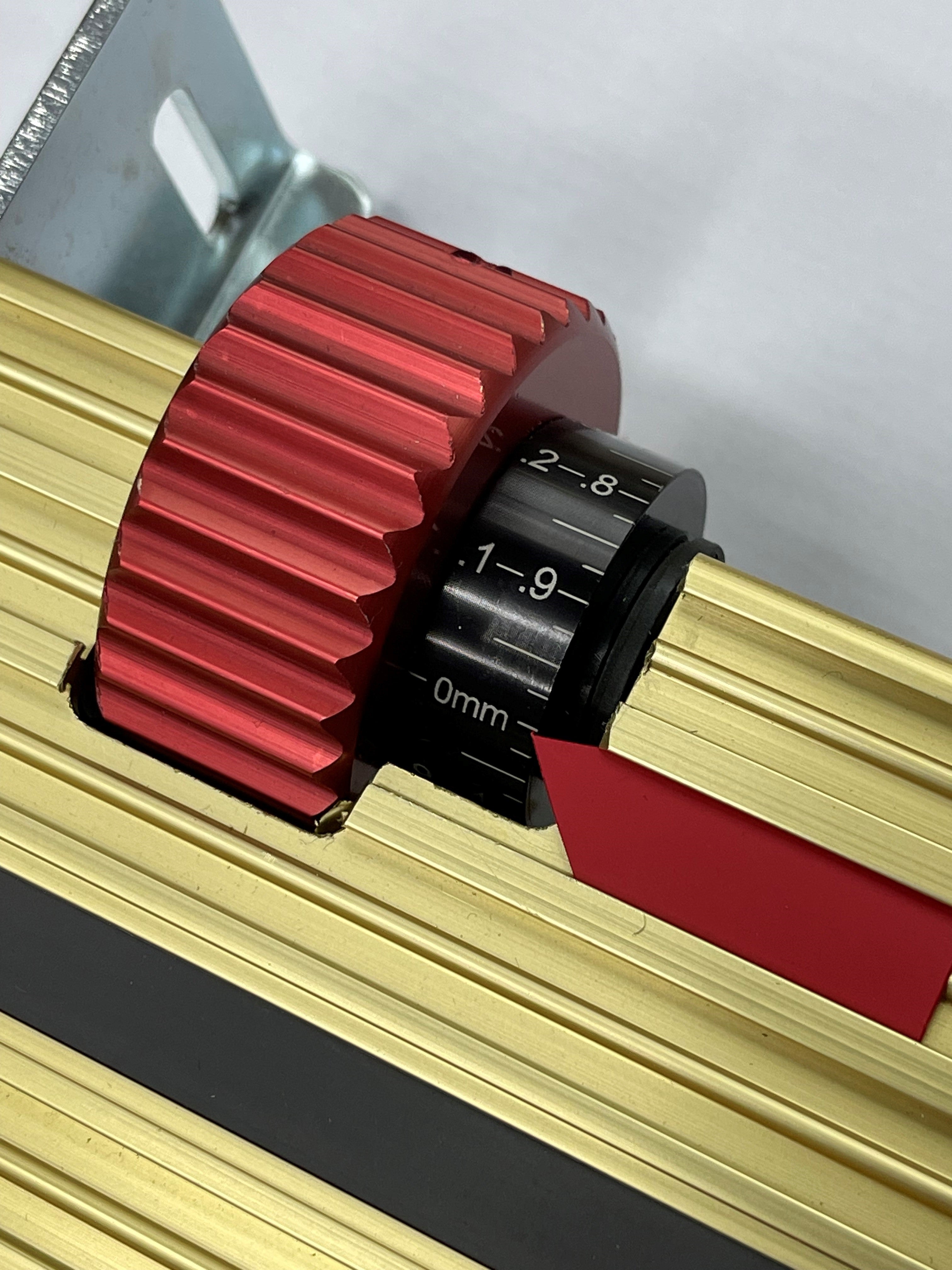

It's essentially perfect even without the built-in micro adjust, but the large micro-adjust knob turns the lead screw against the mating threads, allowing the fence to be shifted between incremental steps with 0.025mm resolution.
The incredible control available completely eliminates the "Tap, tap, tapping" involved in making small adjustments to a conventional rip fence. And since the mike is lead screw-based and reads directly in thousandths of an inch, it's repeatable as well. This micro adjust is entirely different from the random, slow-motion knobs used on rip fences in the past.
INCRA's TS-LS System was one of only two fence systems to earn top scores for alignment against the blade and lack of deflection in Wood Magazine's May 2004 Rip Fence Test.
Perfect alignment relative to the blade is guaranteed by the system's low friction and by the carriage lock's tremendous pressure across the sliding carriage, not unlike a traditional T-square style rip fences.
The fence can be initially aligned parallel to the miter slot, slightly "relieved" on the outfeed end, or anywhere in between.
- Patented lead screw positioning mechanics
- Fence positioning accuracy of +/-0.05mm
- Micro-adjust knob with 0.025mm resolution
- Low friction and tremendous pressure carriage lock
- Perfect alignment relative to the blade
Technical Data
| Positioner Range | 812mm |
| Micro-adjust Resolution | 0.025mm |
| Fence Length | 812mm |
| Adjustment Increments | 1mm |
Includes
- 1 x M-LS32 Positioner
- 1 x INCRA Wonder Fence
- 1 x INCRA Shop Stop
- 1 x Right Angle Fixture
- 1 x METRIC Master Reference Guide
- 1 x 26-piece Joinery Template Library
- 1 x 82-Minute Instructional DVD
- Instruction Manuals
Manual
