Description
INCRA Router Fence Systems can be installed on any router table, but there's no question that using a top-quality table will improve your results. The extreme positioning accuracy of the LS Router Systems can often spotlight issues that go unnoticed with conventional router table fences - a router plate that can move in the table's opening, insert rings that aren't perfectly flush with the router plate, etc. These INCRA router tables are designed and engineered to perform under the most demanding, high-accuracy routing operations.
There is much discussion in the market place about what router tables should be made from (MDF, phenolic, aluminum, cast iron, etc.). Ultimately, though, the table's router mounting plate and HOW a router table is made will be much more important for performance than the material the table itself is made from.

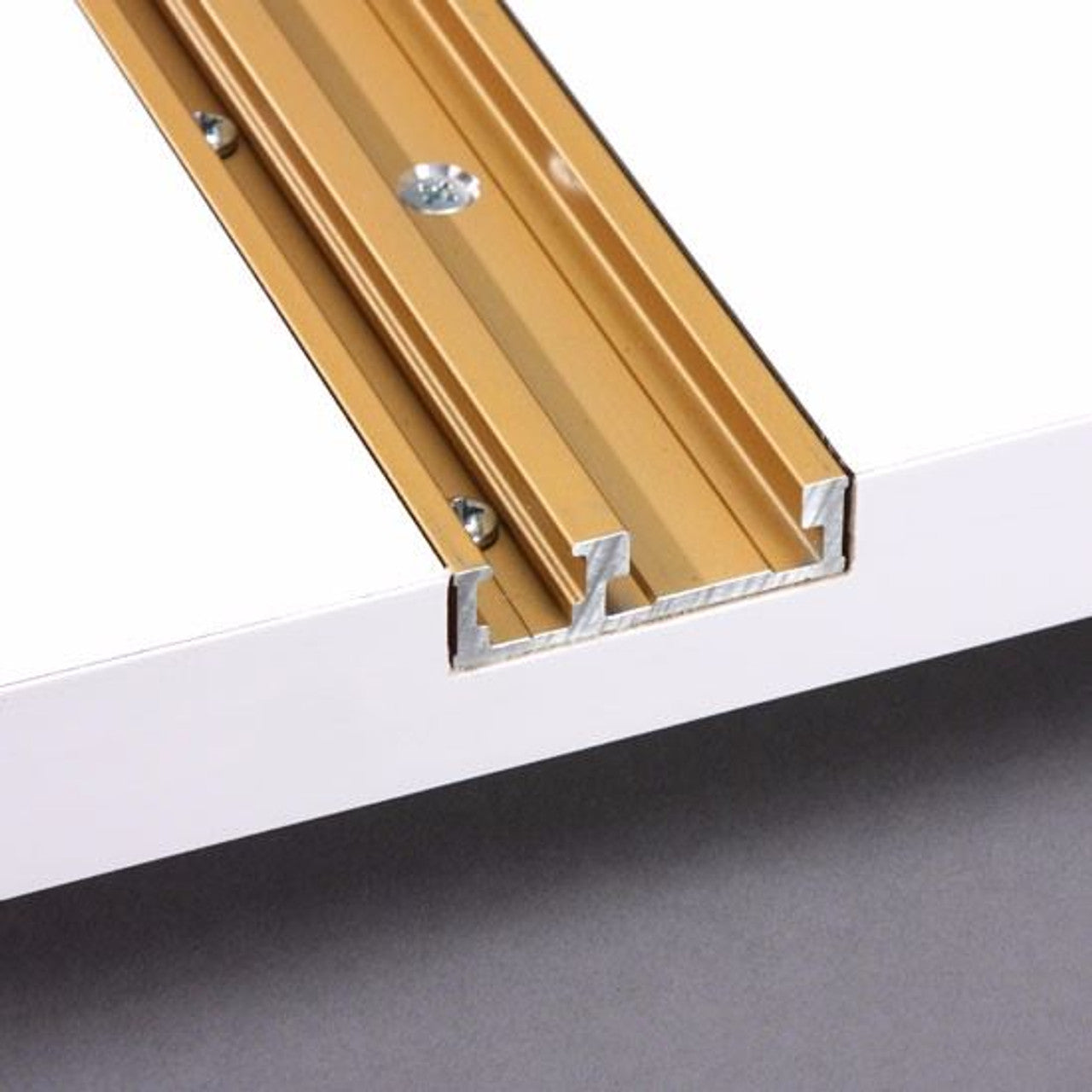

Our router tables feature horizontal-grade, high-pressure laminate applied to the top and bottom of the super-flat MDF core using heat and 100,000 pounds of pressure for a balanced, stable construction. Each computer-machined plate opening also has ten large, flat head leveling screws that form a solid steel base to support the plate, and the plates are conveniently leveled from above the table through access holes in the router plates to eliminate the need to sit on the floor with an Allen wrench. An aluminum miter channel is preinstalled to accept any miter gauge with a 19mm x 9.5mm (3/4" x 3/8") miter bar.
The Router Mounting plate is the single most important part of any high-accuracy router table. All INCRA Router Tables come standard with super-rigid, 9.5mm (3/8")-thick aluminum MagnaLock router mounting plates that are pre-drilled for the most popular routers. The high-energy, rare-earth magnets of the MagnaLock System allow you to instantly remove or install the included steel reducing rings, and the magnets hold the ring secure and perfectly flush with the plate every time. It's simply the most convenient and best-performing ring system available. All of our mounting plates include three laser-cut steel rings with 25.4mm (1"), 54mm (2-1/8") and 92mm (3-5/8") openings. A simple quarter turn of the corner-mounted Cam-Lock securely holds the plate snugly in the router table's recess.
Technical Data
| Router Plate Size | 235mm x 298mm x 9.5mm (9-1/4" x 11-3/4" x 3/8") |
| Actual Table Size | 598.9mm x 904.2mm (23.580" x 35.580") +/-0.020" |
| Table Thickness | 34.3mm (1.350") +/-0.030" |
Includes
- 1x INCRA 24" x 36" Offset Router Table Top
- MagnaLOCK Aluminum Router Mounting Plate
Manual
