Description

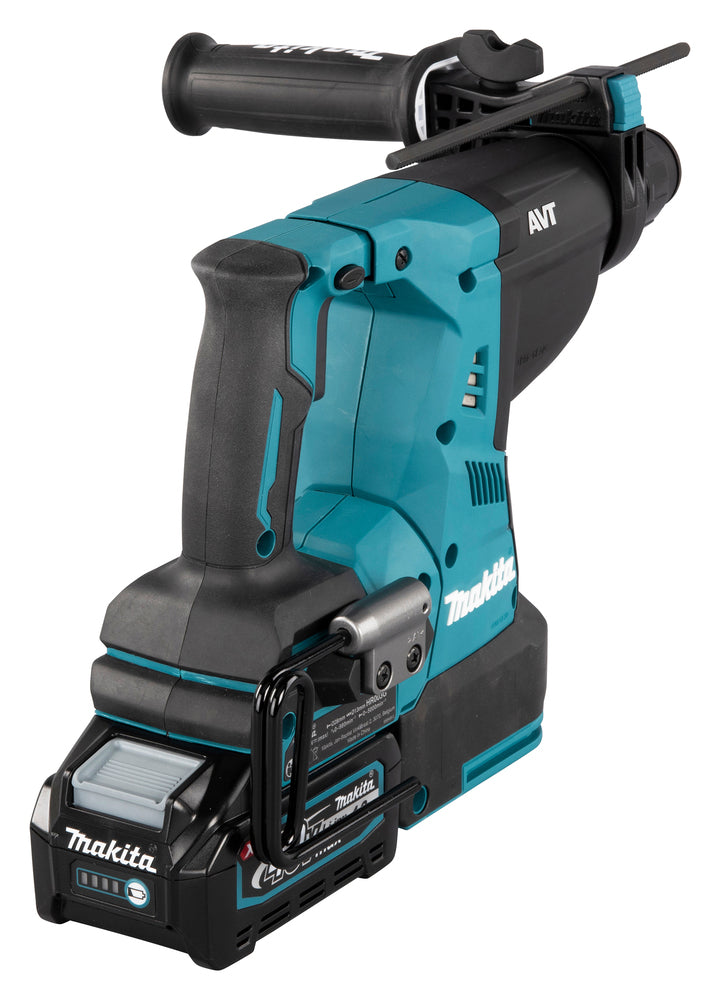

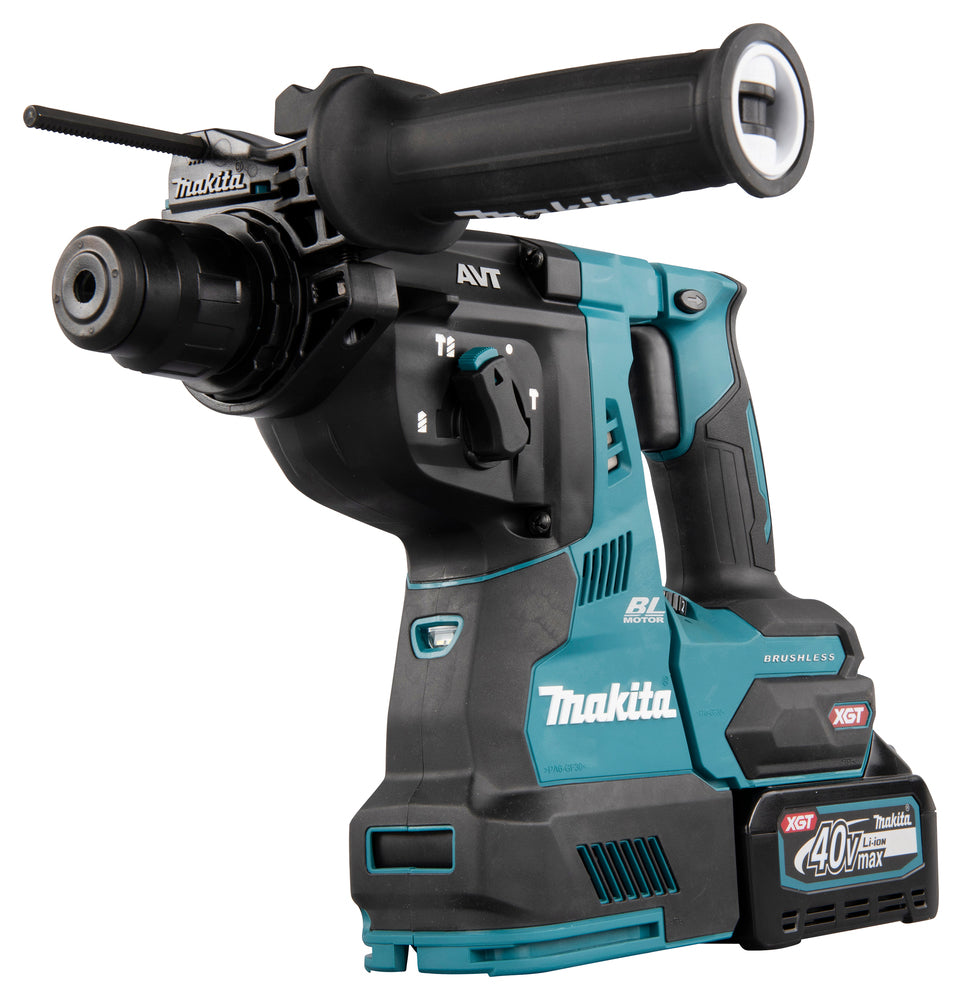

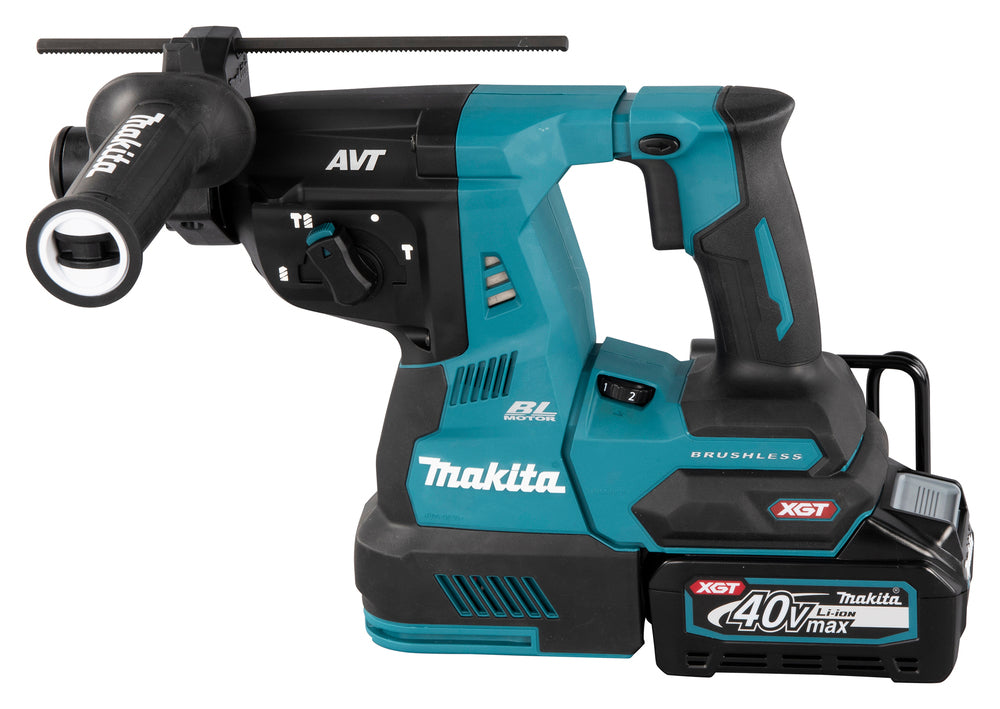

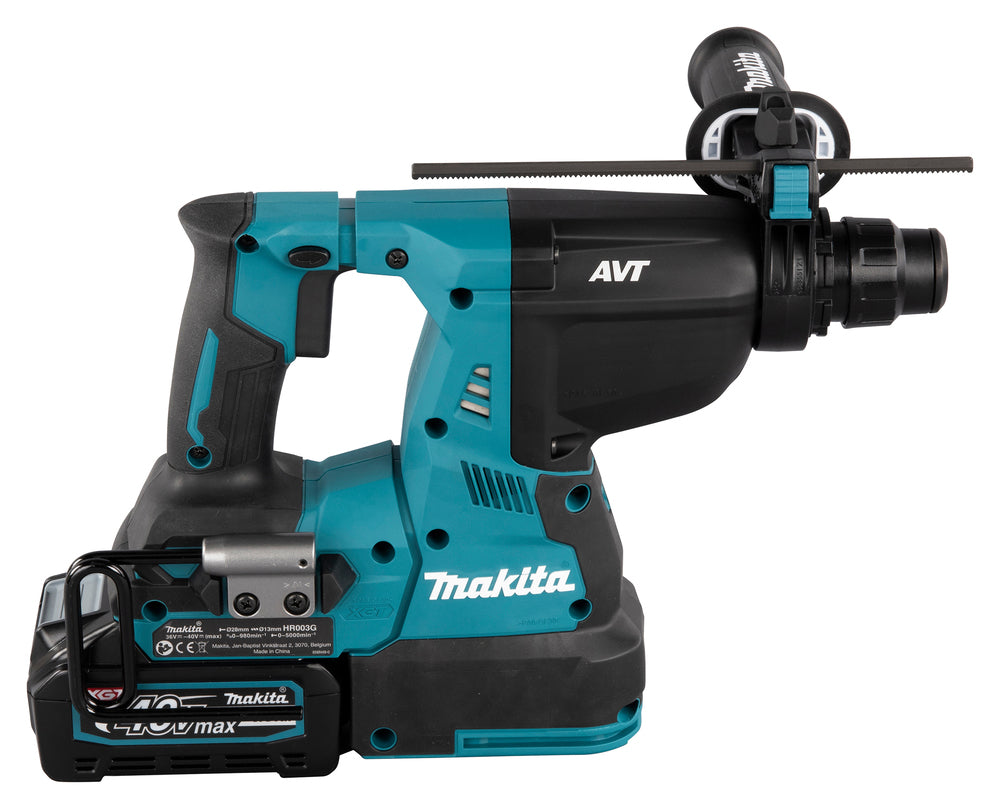

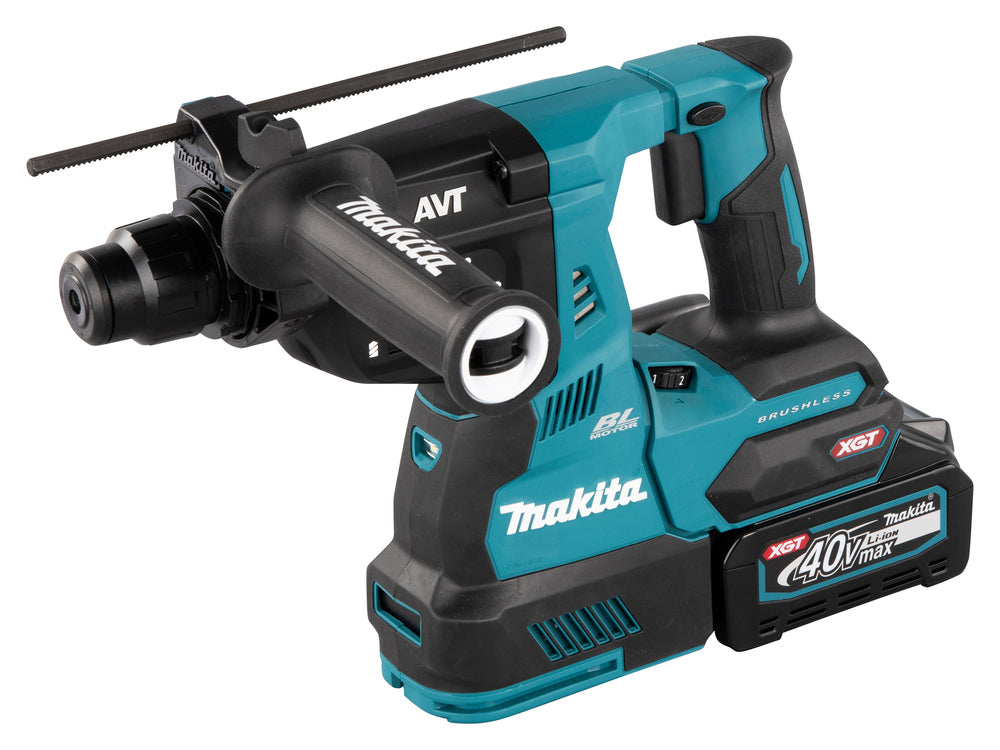

The HR003G is a 28mm SDS-Plus combination hammer providing high-efficiency drilling in concrete. It delivers 2.8 Joules of impact energy and features three operation modes: Rotation Only, Hammering with Rotation, and Hammering Only.
- 2.8 Joules of impact energy for fast concrete drilling
- AVT (Anti-Vibration Technology) for lower operator fatigue
- AWS (Auto-start Wireless System) Bluetooth ready

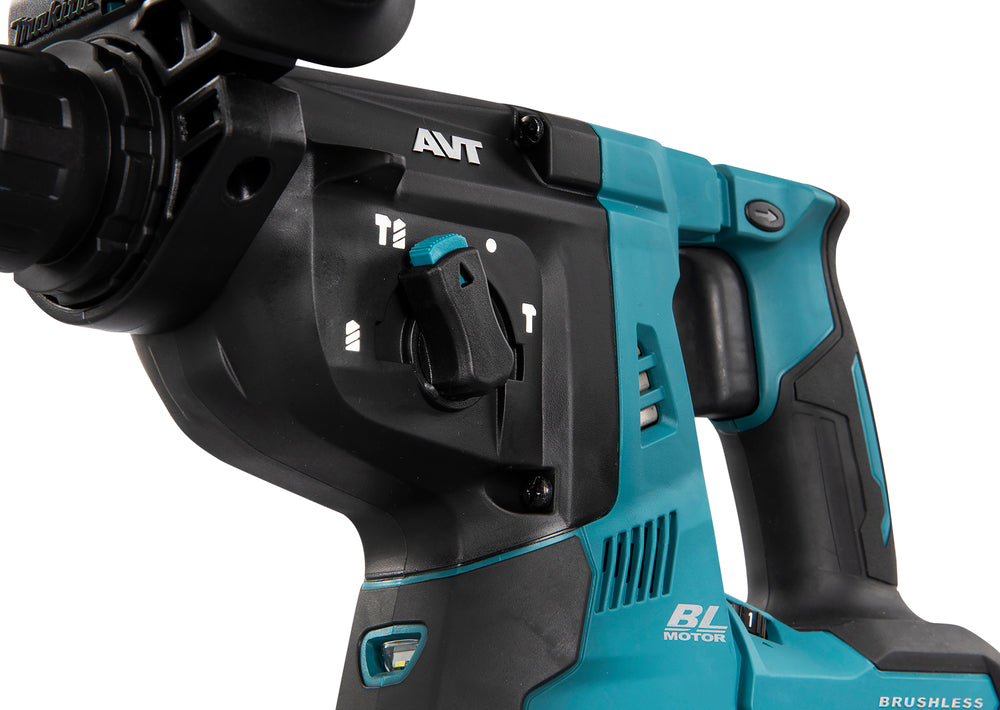

- 3-mode operation for drilling, hammer drilling, and chiselling
- Constant speed control under load
Technical Data
| Vibration Level (3 axes), Drilling | 2,5 m/s² |
|---|---|
| Drilling diameter with TCT core bit | 54 mm |
| Tool weight with battery (EPTA) | 3,9 - 5,5 kg |
| Max. Drilling Diameter in Steel | 13 mm |
| Max. Drilling Diameter in Wood | 32 mm |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Vibration Level (3 axes), Impact Drilling | 15,0 m/s² |
| Optimum Drilling Diameter Range in Concrete | 10.0-18 mm |
| Battery Voltage | 40 V |
| Brushless Motor | YES |
| Sound Pressure Level | 92 dB(A) |
| Impact Energy | 2,8 J |
| Vibration Uncertainty (K Factor) | 2,5 m/s² |
| Vibration: Chiselling | 11,2 m/s² |
| Product Dimensions (L x W x H): | 358 x 102 x 238 mm |
| Impacts per Minute (IPM) | 0 - 5000 min⁻¹ |
| System | XGT 40Vmax/80V max |
| Sound Power Level (LWA) | 103 dB(A) |
| Product net weight (new) | 3,1 kg |
Includes

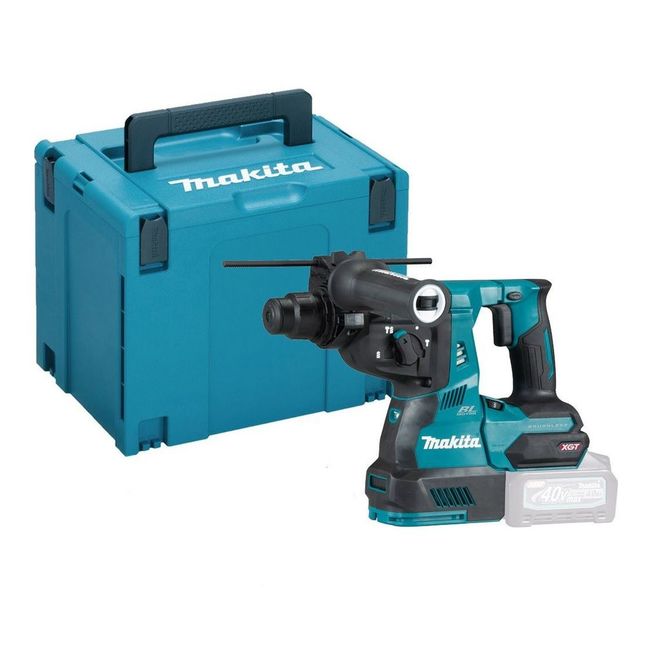

- 1x HR003GZ01 40V XGT SDS-Plus Combination Hammer (bare unit, no battery or charger)
- 1x Makita Carry Case
