Description

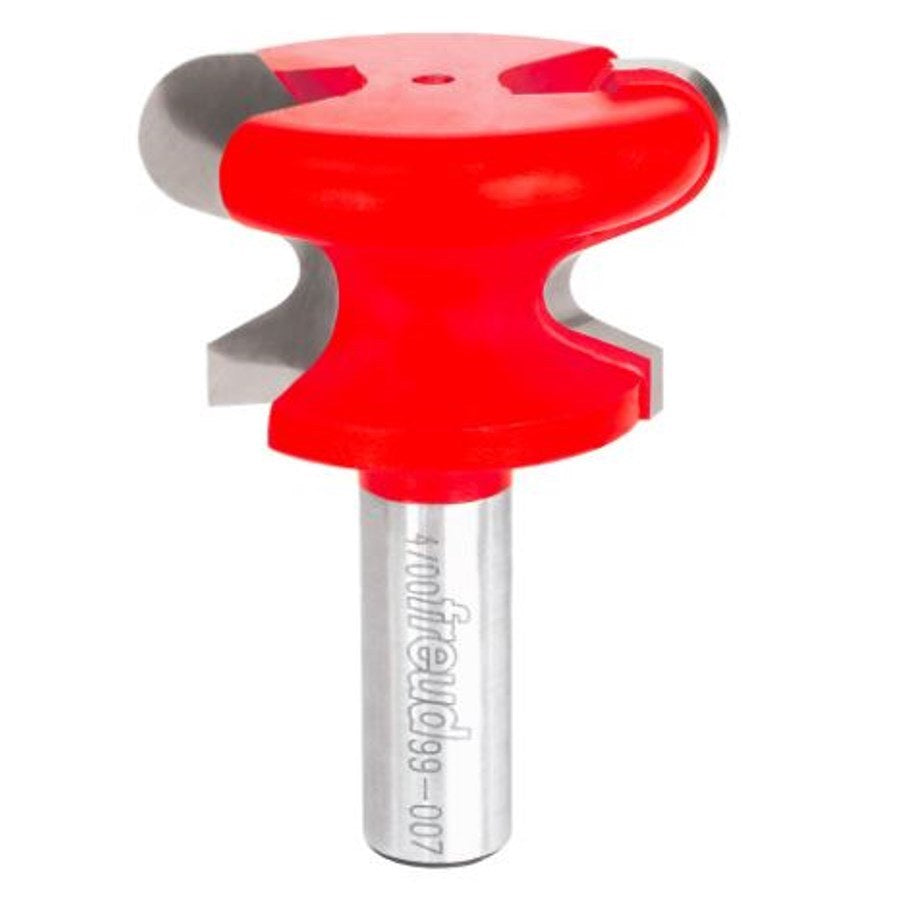

The Freud handle strip cutter with a 12 mm shank, model 99-00712P, is a versatile tool designed for manufacturing finger pull grooves commonly found on modern cabinet doors. Its high-quality construction makes it suitable for use on milling tables and various materials including softwood, hardwood, plywood, and wood-based panels.
- TiCo carbide technology: Enables sharper cutting edges, flawless results, and significantly longer service life.
- Perma-SHIELD coating: Reduces heat buildup, protects against corrosion, prevents resin residue for easier tool cleaning.
Technical Data
| Shaft (A) | 12 mm |
| Blade diameter (mm) | 47.0 mm |
| Total height (H mm) | 66.7 mm |
| Length (L mm) | 66.7 mm |
| Number of HM cutting edges | 2 |
| Max. speed (rpm) | 16,000 rpm |
| Cutting height (h mm) | 28.7 mm |
| Radius (R1 mm) | 3.2 mm |
| Radius (R2 mm) | 6.35 mm |
Includes

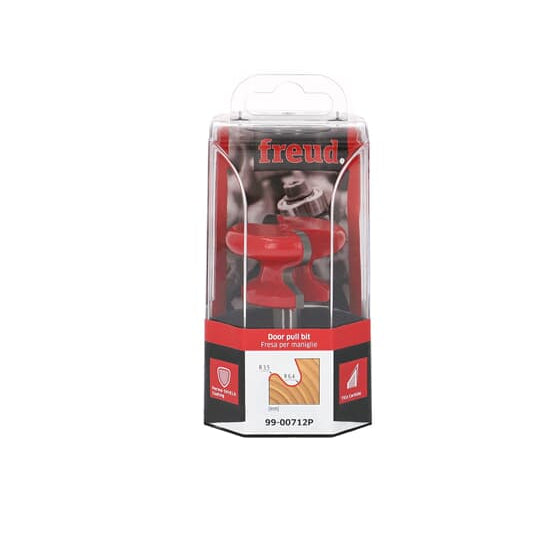

- 1x Freud handle strip cutter with 12 mm shank 99-00712P
