Description

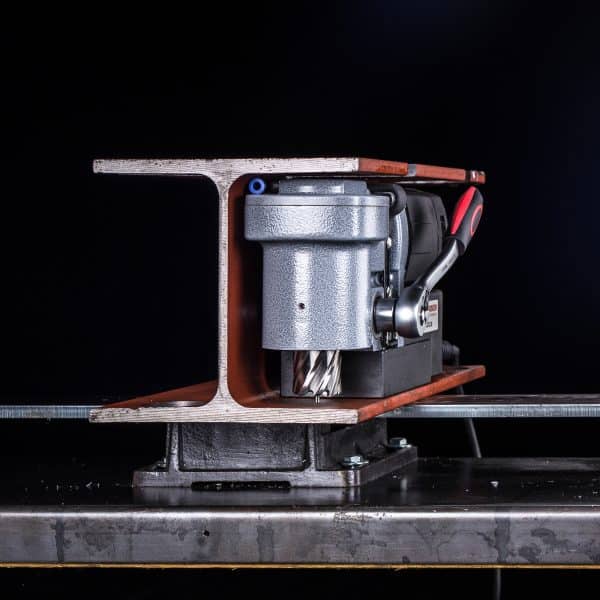

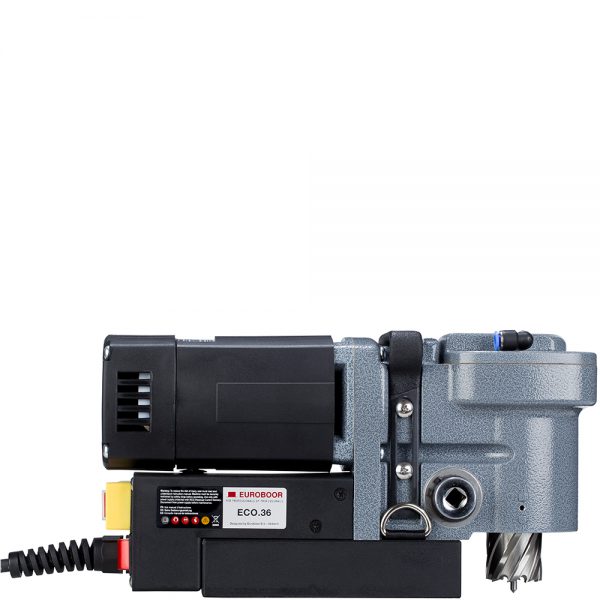

The Euroboor ECO.36 magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm in height. This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc. The portable ECO.36 is equipped with a powerful magnet, user friendly Quick Connect cutter fitment system, and easy release / lock feed handle for both left and right operation.
- Removable and slidable safety guard

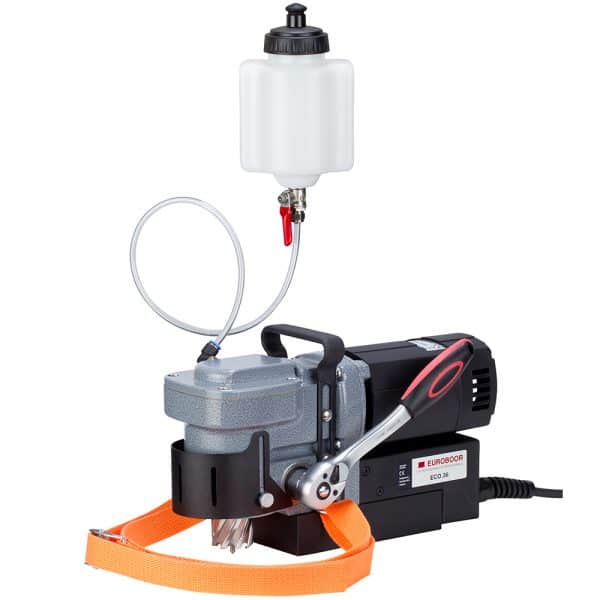

- Lubrication bottle with magnet attachment
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Technical Data
| Connection | |
| minimum diameter annular cutters (mm) | 12 |
| maximum diameter annular cutters (mm) | 36 |
| minimum diameter countersinking (mm) | 10 |
| maximum diameter countersinking (mm) | 40 |
| minimum diameter twist drills (mm) | 1 |
| maximum diameter twist drills (mm) | 14 |
| connection 1 model | inside |
| connection 1 size (mm) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (mm) | 40 |
| magnet length (mm) | 160 |
| magnet width (mm) | 80 |
| magnet height (mm) | 37 |
| length (L2 / mm) | 310 |
| width (mm) | 135 |
| height (mm) | 165 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | grease |
| magnetic force (kilogram) | 1200 |
| electric rotation speed adjustment | no |
| nett weight (kilogram) | 10.3 |
| system of measurement | mm (metric) |
| application |
drilling, countersinking
|
| Performance | |
| no-load rotation speed gear 1 (RPM) | 700 |
| load rotation speed gear 1 (RPM) | 400 |
| corner drilling at 90 degrees (mm, center to edge) | 53 |
| corner drilling at 45 degrees (mm, center to edge) | 60 |
| corner drilling at 0 degrees (mm, center to edge) | 50 |
| Supply | |
| motor power (Watt) | 1050 |
| total power (Watt) | 1100 |
| power supply frequency (Hz) | 50 - 60 |
| power supply current | AC |
| power supply connection |
EU plug according CEE 7/7
|
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 - 240 |
Includes
1 x ECO.36 magnetic drilling machine
1 x safety guard
1 x ratchet feed handle
1 x hex key 3 mm
1 x lubrication system
1 x safety strap
1 x user manual
1 x safety ear protection
1 x safety goggles
1 x safety glove
