Description

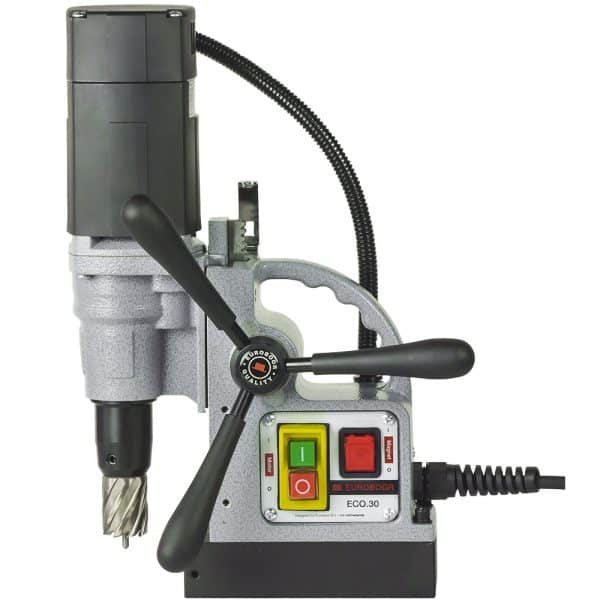

The Euroboor ECO.30 is the lightest ø 30 mm machine in the market. Due to its small size the Euroboor ECO.30 is the ideal magnetic core drilling machine to drill holes in tight and narrow spaces. This machine measures barely 27.5 cm in length and weighs only 8.5 kg. With a power of 900 W this small ECO.30 magnetic core drilling machine cuts holes in metal easily and quickly.
- Direct spindle drive
- Integrated tool cooling and lubrication
- One-speed gearbox
Technical Data
| Connection | |
| minimum diameter annular cutters (mm) | 12 |
| maximum diameter annular cutters (mm) | 30 |
| minimum diameter countersinking (mm) | 10 |
| maximum diameter countersinking (mm) | 35 |
| minimum diameter twist drills (mm) | 1 |
| maximum diameter twist drills (mm) | 13 |
| connection 1 model | inside |
| connection 1 size (mm) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (mm) | 90 |
| magnet length (mm) | 160 |
| magnet width (mm) | 80 |
| magnet height (mm) | 37 |
| minimum height (mm) | 293 |
| maximum height (mm) | 383 |
| length (L2 / mm) | 275 |
| width (mm) | 190 |
| height (mm) | 383 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | grease |
| magnetic force (kilogram) | 1200 |
| electric rotation speed adjustment | no |
| nett weight (kilogram) | 8.5 |
| system of measurement | mm (metric) |
| application |
drilling, countersinking
|
| Performance | |
| no-load rotation speed gear 1 (RPM) | 775 |
| load rotation speed gear 1 (RPM) | 400 |
| Supply | |
| motor power (Watt) | 900 |
| total power (Watt) | 950 |
| power supply frequency (Hz) | 50 - 60 |
| power supply current | AC |
| power supply connection |
EU plug according CEE 7/7
|
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 - 240 |
Includes
1 x ECO.30 magnetic drilling machine
1 x IBC.70 pilot pin
1 x safety guard
3 x handles
1 x hex key 2.5 mm
1 x hex key 3 mm
1 x hex key 4 mm
1 x hex key 5 mm
1 x lubrication system
1 x safety chain
1 x user manual
1 x safety ear protection
1 x safety goggles
1 x safety gloves
