Description

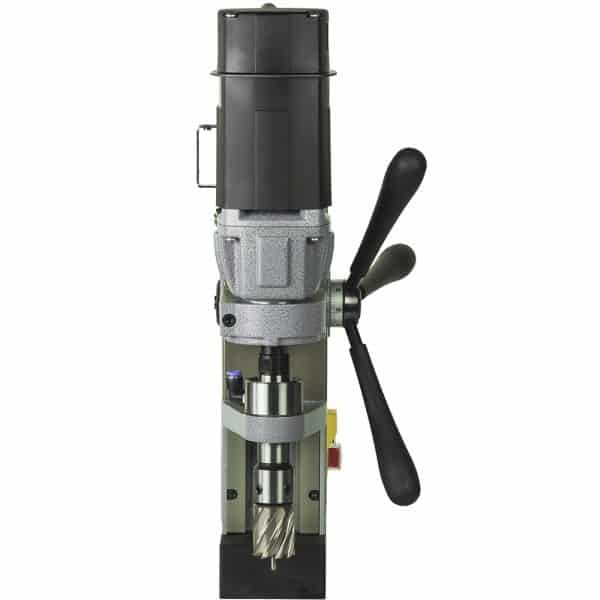

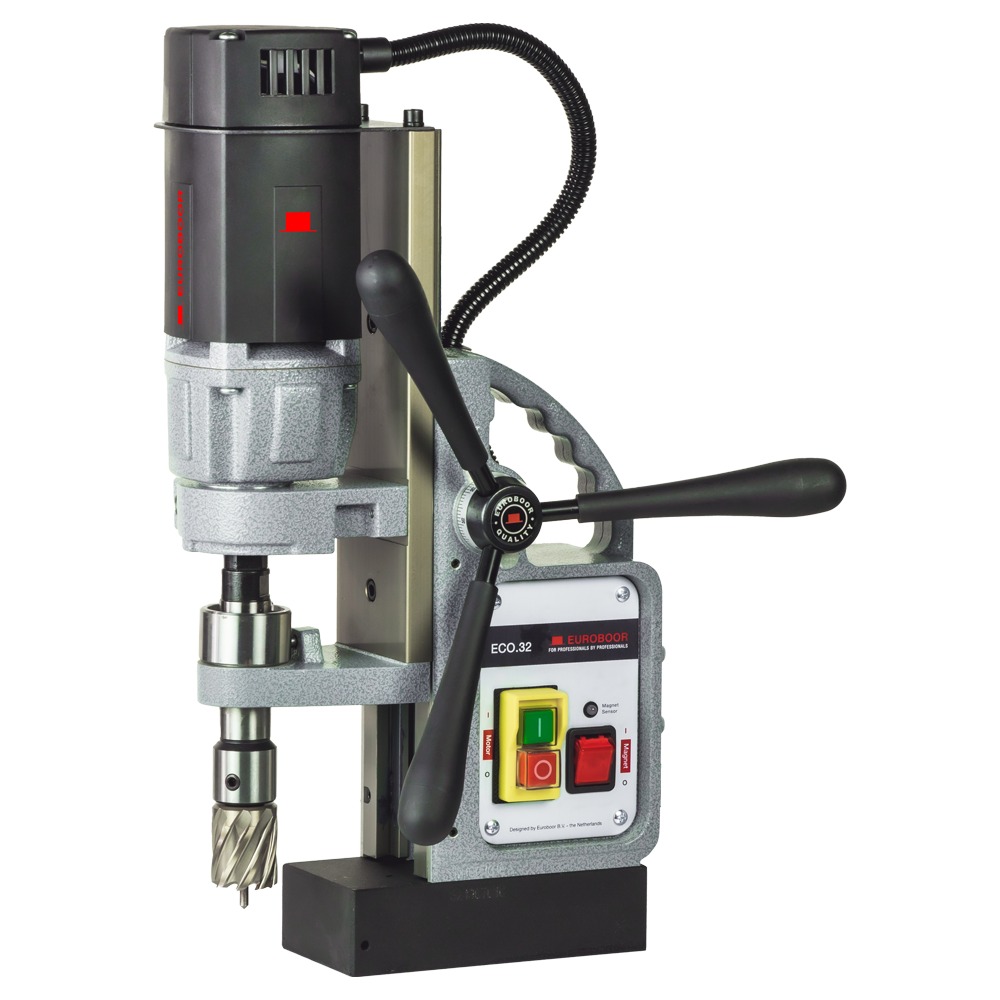

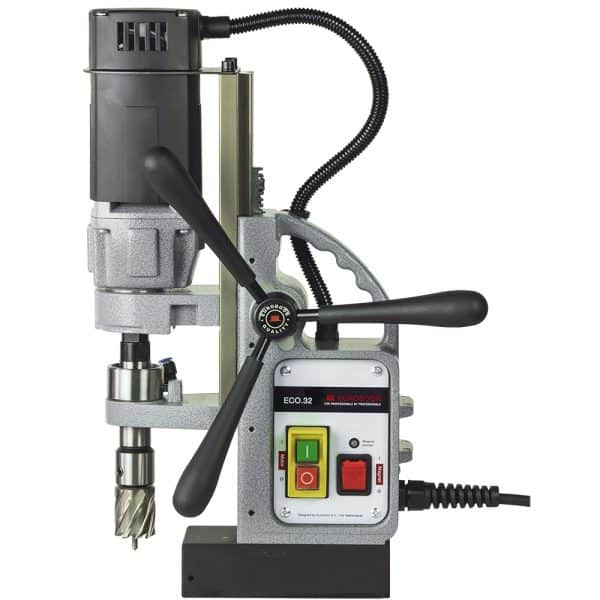

The compact Euroboor ECO.32 magnetic core drilling machine has a powerful single speed 1,000 W motor. This portable magnetic core drilling machine is suitable for the use with Weldon twist drills up to ø 13 mm and countersinks up to 40 mm. This light and reliable machine is a true addition for every workplace.
- One-speed gearbox
- Detachable spindle drive
- Integrated tool cooling and lubrication
Technical Data
| Connection | |
| minimum diameter annular cutters (mm) | 12 |
| maximum diameter annular cutters (mm) | 32 |
| minimum diameter countersinking (mm) | 10 |
| maximum diameter countersinking (mm) | 40 |
| minimum diameter twist drills (mm) | 1 |
| maximum diameter twist drills (mm) | 13 |
| connection 1 model | inside |
| connection 1 size (mm) | 19.05 |
| connection 1 type | Weldon |
| Dimensions | |
| stroke (mm) | 150 |
| magnet length (mm) | 160 |
| magnet width (mm) | 80 |
| magnet height (mm) | 42 |
| minimum height (mm) | 370 |
| maximum height (mm) | 512 |
| length (L2 / mm) | 320 |
| width (mm) | 210 |
| height (mm) | 512 |
| Properties | |
| rotation direction | clockwise |
| type of gear box lubrication | grease |
| magnetic force (kilogram) | 1500 |
| electric rotation speed adjustment | no |
| nett weight (kilogram) | 11 |
| system of measurement | mm (metric) |
| application |
drilling, countersinking
|
| Performance | |
| no-load rotation speed gear 1 (RPM) | 775 |
| load rotation speed gear 1 (RPM) | 400 |
| Supply | |
| motor power (Watt) | 1000 |
| total power (Watt) | 1050 |
| power supply frequency (Hz) | 50 - 60 |
| power supply current | AC |
| power supply connection |
EU plug according CEE 7/7
|
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 - 240 |
Includes
1 x ECO.32 Magnetic drilling machine
1 x safety guard
3 x handles
1 x hex key 2.5 mm
1 x hex key 3 mm
1 x hex key 4 mm
1 x hex key 5 mm
1 x lubrication system
1 x safety chain
1 x bottle (200 ml) of IBO.10 cutting oil
1 x user manual
1 x safety ear protection
1 x safety goggles
1 x safety gloves
