Description

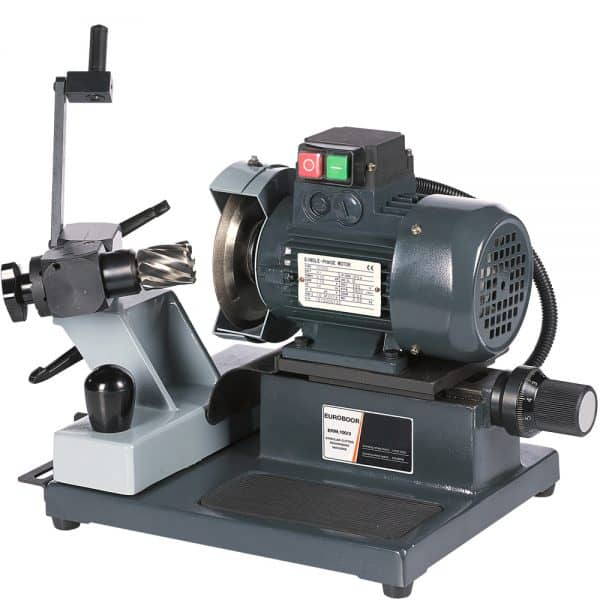

The Euroboor ERM.100/3 sharpening machine sharpens HSS cutters between ø 12 mm (1/2″) and 44 mm (1 3/4″) in cutting depths between 25 mm (1″) and 55 mm (2 3/16″) with great ease. The laser guided cutter alignment ensures correct positioning of the cutting edge to the wheel where the easy angle adjustments makes alignment to the original geometry easy and simple.
- For HSS cutters from ø 12 – 44 mm
- For HSS cutters in cutting depths of 25 – 55 mm
- Easy angle adjustment
- Simple alignment to original geometry
- Laser guided cutter alignment
- Motor positioning
Technical Data
| Connection | |
| connection 1 model | inside |
| connection 1 size (mm) | 19.05 |
| connection 1 type | Weldon |
| connection 2 model | inside |
| connection 2 size (mm) | 31.75 |
| connection 2 type | Weldon |
| Dimensions | |
| length (L2 / mm) | 480 |
| width (mm) | 300 |
| height (mm) | 320 |
| Properties | |
| nett weight (kilogram) | 28 |
| system of measurement | mm (metric) |
| application | resharpening |
| Performance | |
| rotation speed gear 1 (RPM) | 2800 |
| Supply | |
| motor power (Watt) | 250 |
| power supply frequency (Hz) | 50 - 60 |
| power supply current | AC |
| power supply connection |
EU plug according CEE 7/7
|
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 - 240 |
| Other | |
| maximum noise emission (dBa) | 70 |
Includes
CBN Grinding wheel (Resharping) for HSS - ERM3.0001
Index plate T4/T8 & T5/T10 - ERM3.0009
Index plate T6 & T7 - ERM3.0008
Index plate T9 - ERM3.0010
