Description
With the Einhell TC-SM 216 drag, crosscut and miter saw the ambitious DIY enthusiast is ideally equipped for cutting and crosscutting jobs in the home, workshed or garage. With a 1,600 W power rating the saw blade (Ø 216 external x ø 30 internal) has plenty of power to cut through material. This sturdy saw has a smooth draw function for wide workpieces.

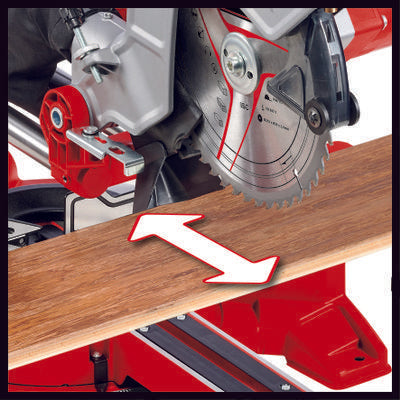

- Smoothly running drag function for wide workpieces

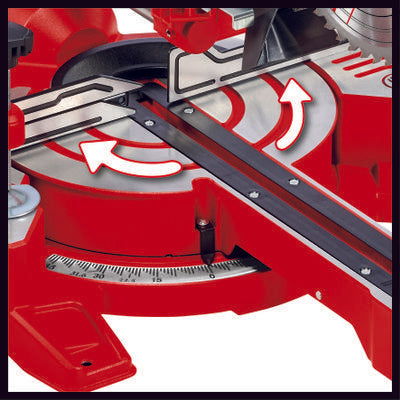

- Turntable with precise quick angle setting for angular cuts
- Turntable with accurate locking positions for all common angles

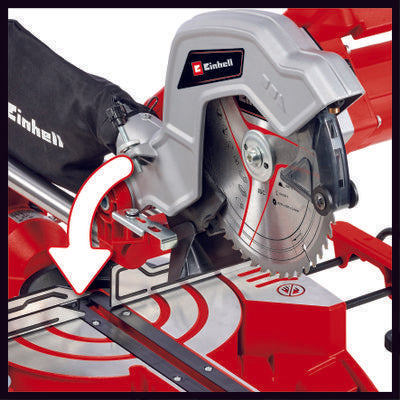

- Saw head tilts to the left for perfect mitre cuts

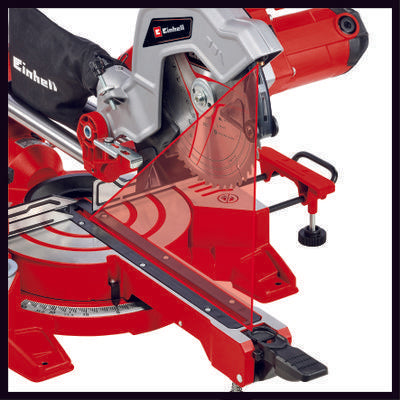

- The integrated laser is a welcome help for exactly cutting

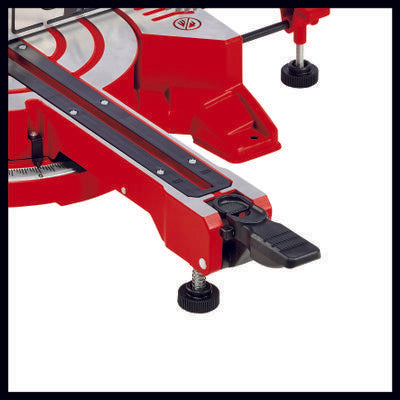

- Workpiece supports on both sides for long workpieces
- High-grade carbide-tipped precision saw blade for the best cuts

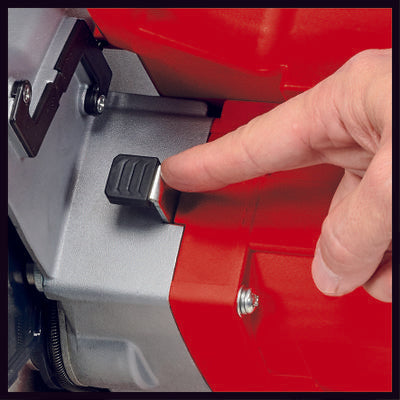

- Spindle lock for an easy and fast saw blade change
- Clamping device for holding the workpiece securely in position
- Well readable scales for the angles and width

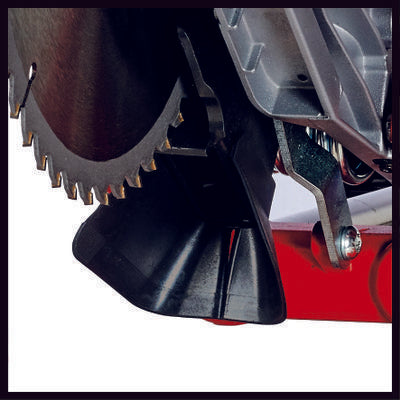

- Dust funnel behind the saw blade for improved saw dust absorption
Technical Data
| Cutting depth 45° x 45° | 35 mm |
| Cutting depth 90° x 90° | 65 mm |
| Cutting width 45° x 45° | 215 mm |
| Cutting width 90° x 90° | 305 mm |
| Idle speed max. | 5200 min^-1 |
| Number of saw blade 1 teeth | 48 Pcs |
| Product weight | 12.74 Kg |
| Saw blade 1 diameter | 216 mm |
| Saw blade 1 type | HM |
| Saw blade holder diameter | 30 mm |
| Suction connection diameter | 36 mm |
Includes
