Description

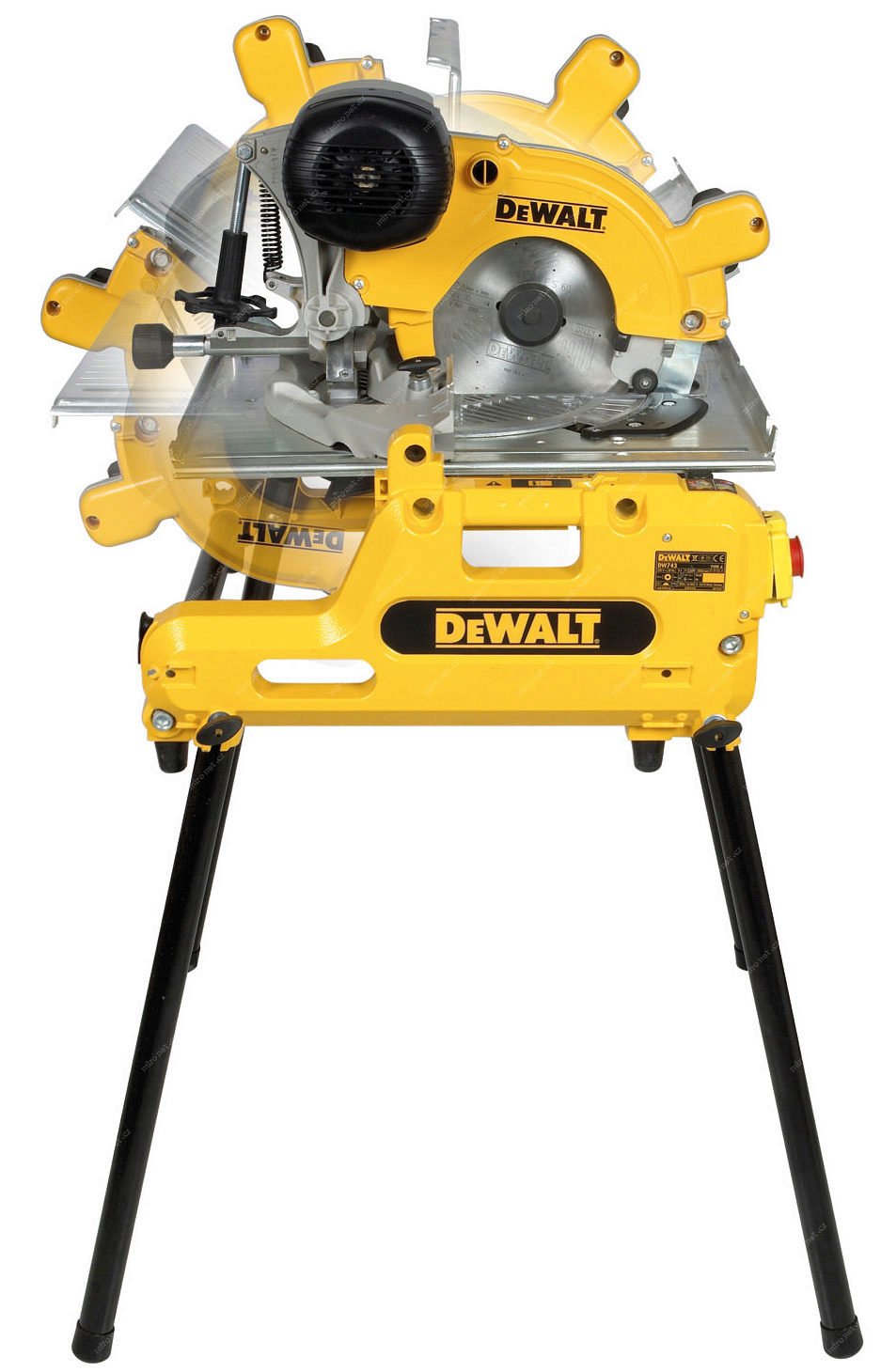

The classic TGS flip-over saw. Based on the original Elu design.
Can be used as a table saw or a mitre saw by simply flipping over the motor and blade. Ideal for cutting aluminium due to its Brushless Motor!
Before you compare this "Flip-Over" saw with our competitors, check if it is Brushless!
- The classic TGS flip-over bevelling saw
- New high output heavy duty high torque induction motor (brushless) provides years of maintenance free use, suitable for workshop applications where low noise characteristics are desirable
- Rapid tool free transformation from a table saw to a mitre saw provides flexibility in a range of site and workshop applications
- Handle mechanism allows the guard to retract automatically in mitre mode allowing safe and easy use
- Three way extractor connection facility for efficient dust extraction
- Integrated carry handles provide greater portability
- Updated design for maximum cutting capacity across the range of mitre and bevel angles
Technical Data
| GTIN | 5035048161951 |
| BRAND | DEWALT |
| RATING | Industrial |
| INPUT POWER | 2000W |
| OUTPUT POWER | 1550W |
| BLADE DIAMETER | 250mm |
| BLADE BORE | 30mm |
| NO LOAD SPEED (1ST) | 2850rpm |
| BEVEL CAPACITY [DEG] | 45 ° |
| MITRE CAPACITY [RIGHT/LEFT] | 45 / 45 ° |
| DEPTH OF CUT AT 90º | 0 - 70 mm |
| CUTTING CAPACITY AT 90°/45° (W X H) | 150 × 20 mm |
| CUTTING CAPACITY AT 90°/90° (W X H) | 140 × 68 mm |
| CUTTING CAPACITY AT 90°/90° (W X H) | 180 × 20 mm |
| CUTTING CAPACITY AT 45°/90° (W X H) | 95 × 70 mm |
| CUTTING CAPACITY AT 45°/90° (W X H) | 120 × 46 mm |
| CUTTING CAPACITY AT 90°/45° (W X H) | 70 × 95 mm |
| MAX. CUTTING CAPACITY AT 45°/45° | - mm |
| LENGTH (CM) | 70 |
| WIDTH (CM) | 67 |
| HEIGHT (CM) | 75 |
| WEIGHT (KG) | 37 |
Includes
1 x Saw
1 x TCT tooth saw blade
1 x Parallel fence
1 x Push stick
4 x Detachable legs
1 x Saw blade guard
1 x Assembly tool
1 x Material Clamp
