Description

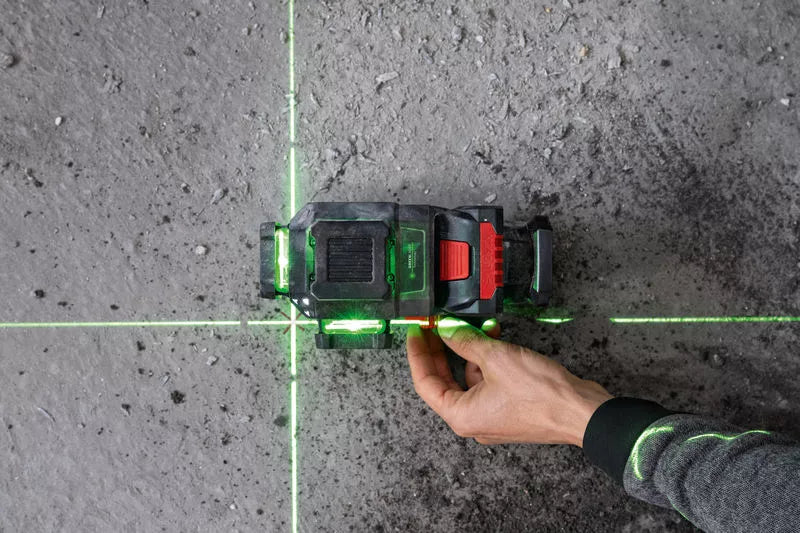

The unstoppable 18V line laser is designed for high precision in tough working conditions. This versatile tool offers compatibility with 18V, 12V, and alkaline C-cell power sources, ensuring continuous use without downtime. With its robust construction, rubber-enforced housing, and IP65 rating, the laser delivers reliable performance even in the harshest environments. The integrated mount, strong magnets, and pivot fine adjustment make secure mounting and precise alignment a breeze, making it ideal for demanding jobsites requiring accuracy and durability.
- Works with 18V, 12V, and alkaline C-cell power sources for flexibility
- Robust rubber-enforced housing with IP65 rating for protection against dust and water
- Integrated mount with strong magnets for easy and secure positioning

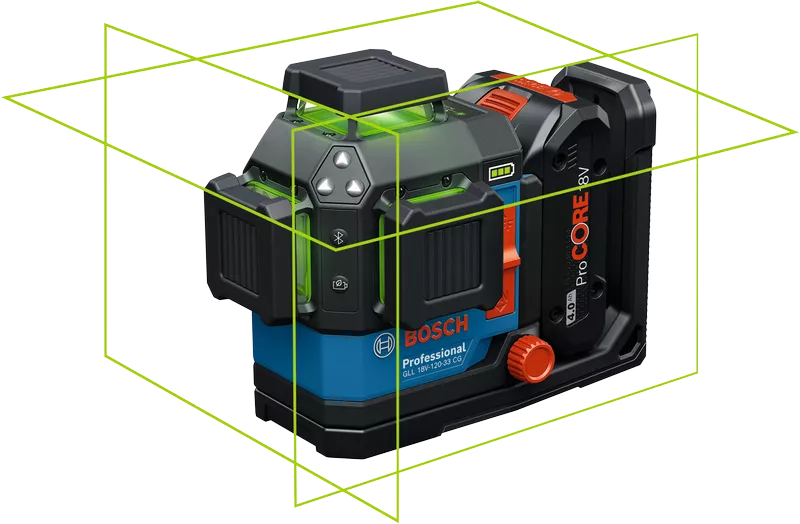

- Green laser lines for better visibility, covering 3 x 360° lines
- Accurate self-levelling within ± 4° with a fast levelling time of 3 seconds
- Compatible with LR 7 laser receivers for extended working range up to 120m with a receiver
Technical Data
| Battery voltage | 18.0 V / 12.0 V |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | Up to 35 m |
| Working range with receiver | Up to 120 m |
| Accuracy | ± 0.3 mm/mᵃ |
| Self-levelling range | ± 4° |
| Levelling time | 3 s |
| Dust and splash protection | IP65 (except battery or adapter) |

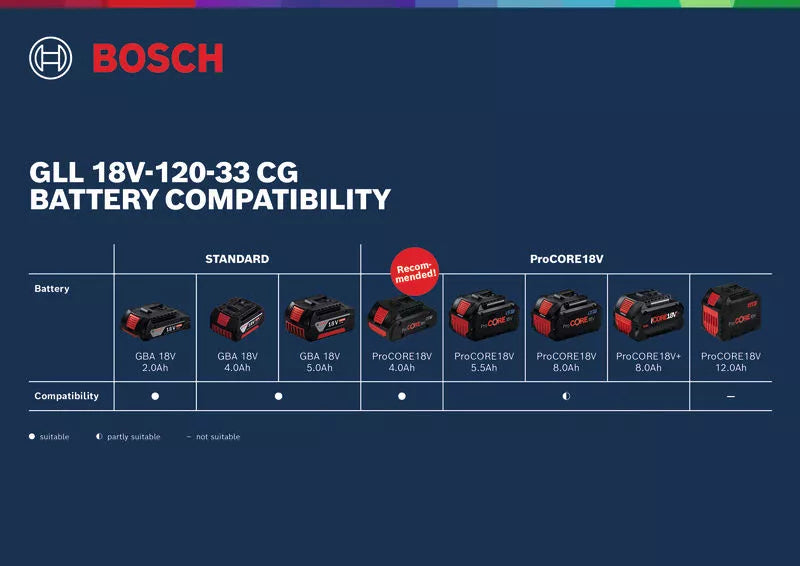

| Power supply | 18V / 12V Li-Ion battery or 4 x 1.5 V LR14 (C) |
| Operating time | 20 h (18V 4Ah), 8 h (12V 2Ah), 8 h (C-cell in energy-saving mode) |
| Tripod thread | 1/4", 5/8" |
| Weight | 1.3 kg (without battery), 1.9 kg (with 4.0 Ah battery) |
| Projection | 3 x 360° line |

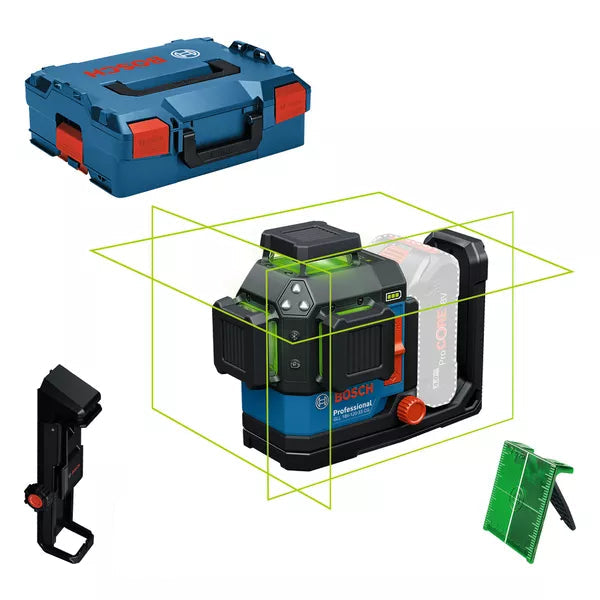

Includes
- L-BOXX 136 1 600 A01 2G0

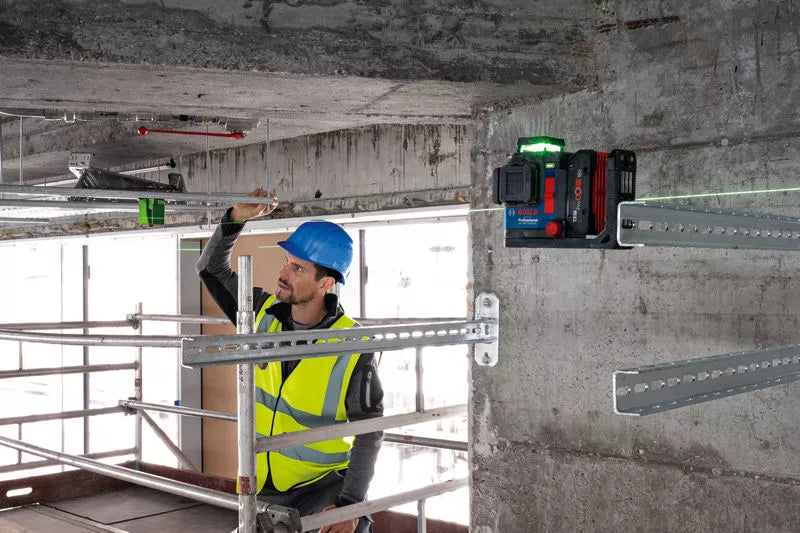

- Ceiling clip DK 20 Professional 1 608 M00 C4C
- Laser target plate
