Description

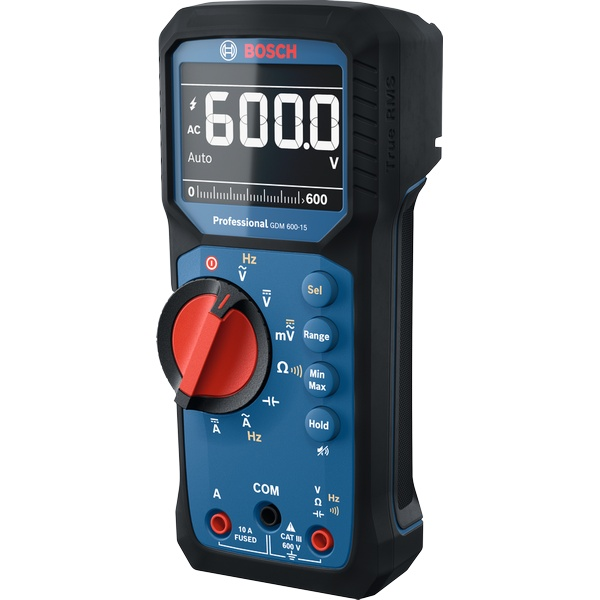

The GDM 600-15 Digital Multimeter is a highly efficient and durable measuring instrument designed for professional and industrial applications. Featuring an inverted LCD display and True RMS precision, it ensures accurate readings across a wide range of electrical measurements. With an IP65 rating, this multimeter is built to withstand tough job site conditions, providing impact resistance and water protection. Designed for one-handed operation, it includes a kickstand and magnetic hanging solution for hands-free use.
- True RMS Precision: Ensures accurate voltage, current, and resistance measurements.
- Durable Construction: IP65-rated housing for water and dust resistance.
- Versatile Measurement Functions: Includes frequency, continuity, resistance, and capacitance testing.
- Compact and Ergonomic Design: Ideal for one-handed use.

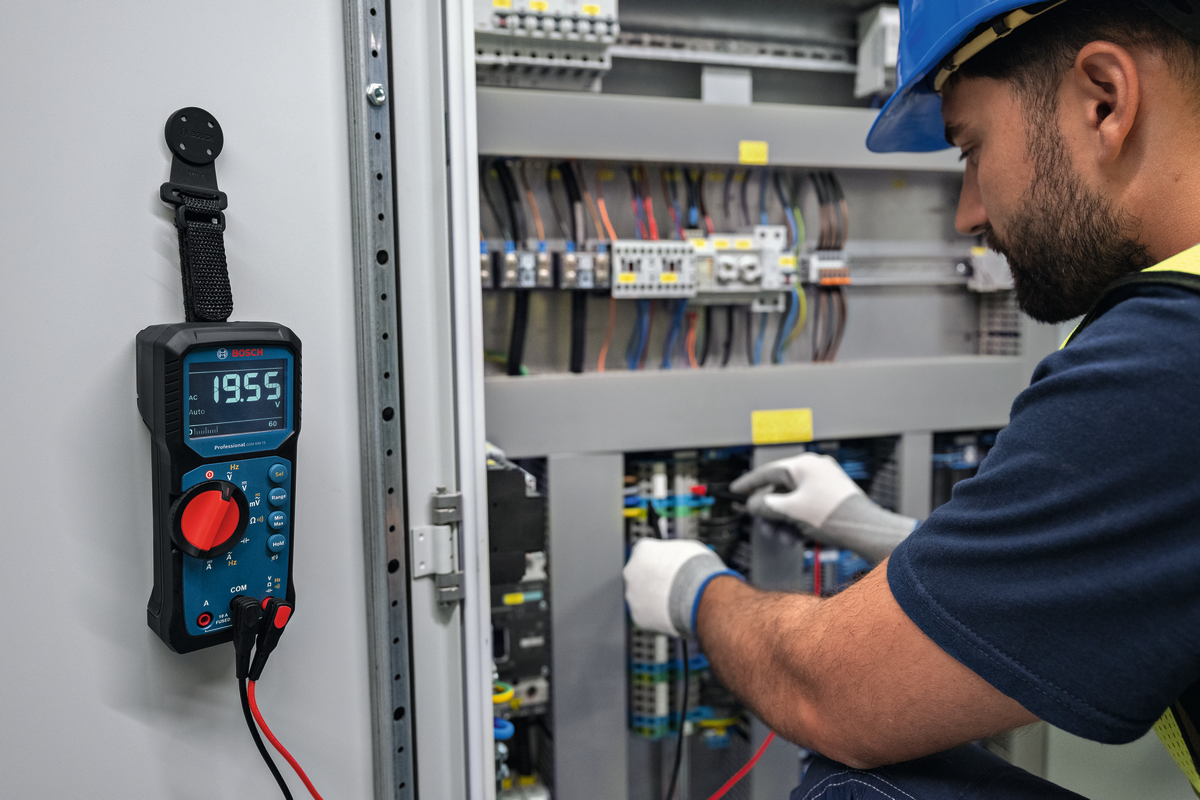

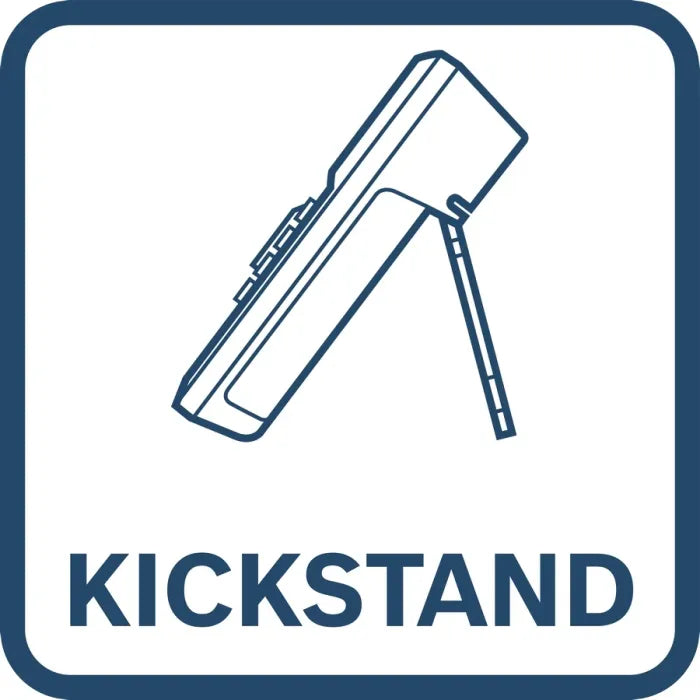

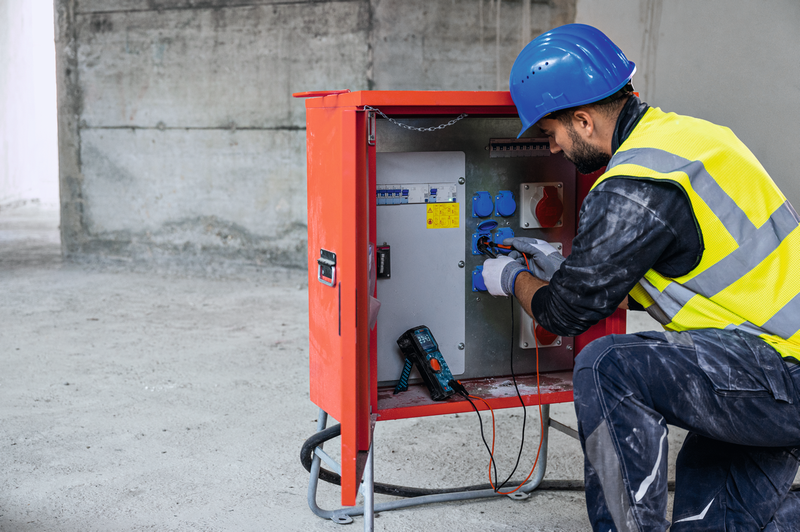

- Hands-Free Operation: Kickstand and magnetic hanging solution allow convenient placement during testing.
- Min/Max/Average Recording: Helps track voltage and current fluctuations.
- Safety Class CAT II 1000V: Provides protection for various electrical applications.
Technical Data
| IP Protection | IP65 |
| Display Type | Inverted LCD |
| Acoustic Feedback | Yes |

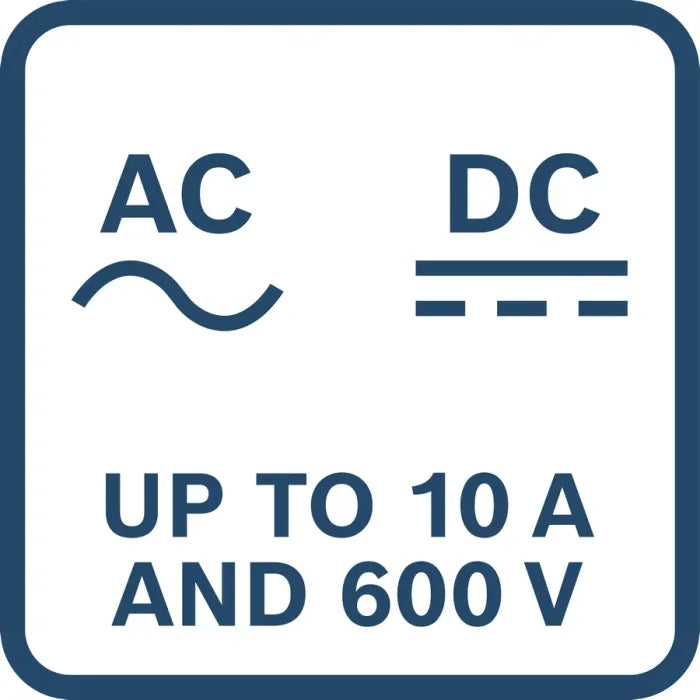

| AC Voltage | 600V (±1.0% + 3) |
| AC Voltage Resolution | 0.1mV |
| AC Current | 10A (±1.5% + 3) |
| AC Current Resolution | 0.001A |
| DC Voltage | 600V (±0.5% + 2) |
| DC Voltage Resolution | 0.1mV |
| DC Current | 10A (±1.0% + 3) |
| DC Current Resolution | 0.001A |
| Resistance Measuring Range | 40MΩ (±2.0% + 5) |
| Resistance Resolution | 0.01MΩ |
| Capacitance | 1000µF (±1.9% + 2) |
| Continuity | Yes |
| Continuity Resolution | 0.1Ω |
| Continuity Accuracy | ±1.0% + 5 |
| Frequency Measuring Range | 50kHz (ACV) / 2kHz (ACA) |
| Frequency Resolution | 0.01Hz |
| Frequency Accuracy | ±0.1% + 2 |
| True RMS | Yes |
| Safety Class | CAT II 1000V |
| SKU | 0 601 077 300 |
| EAN | 4053423330106 |

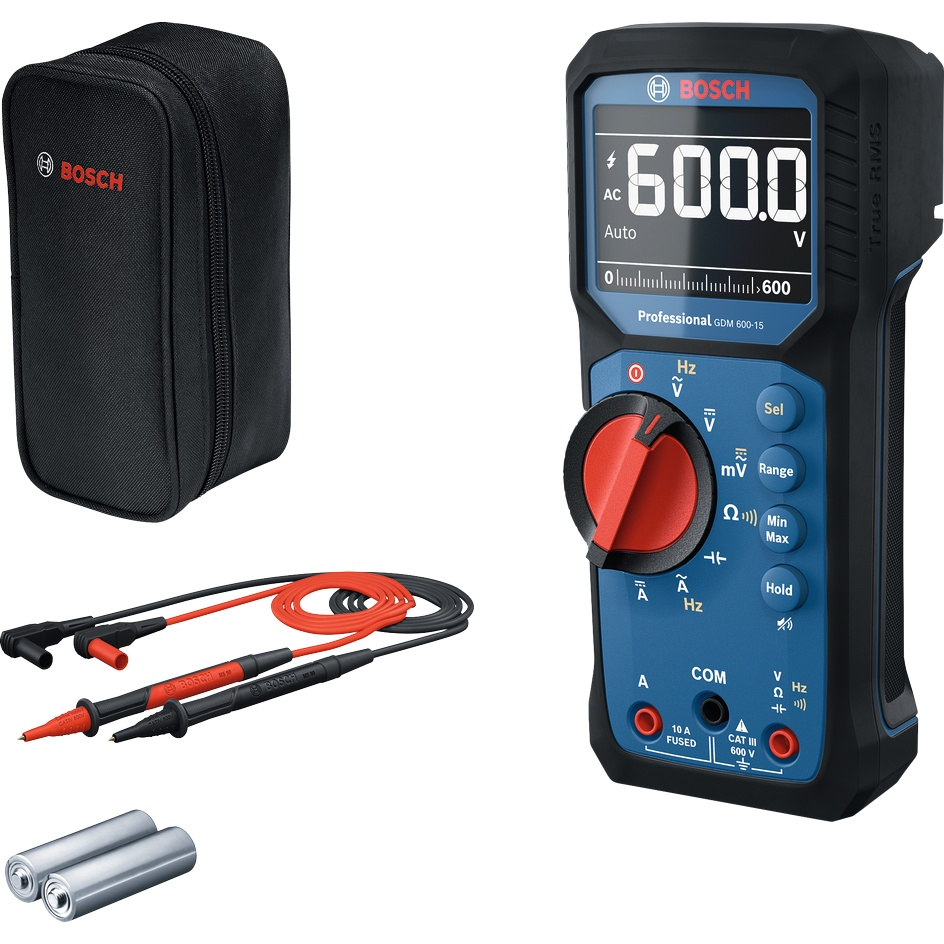

Includes
- (1) GDM 600-15 Digital Multimeter

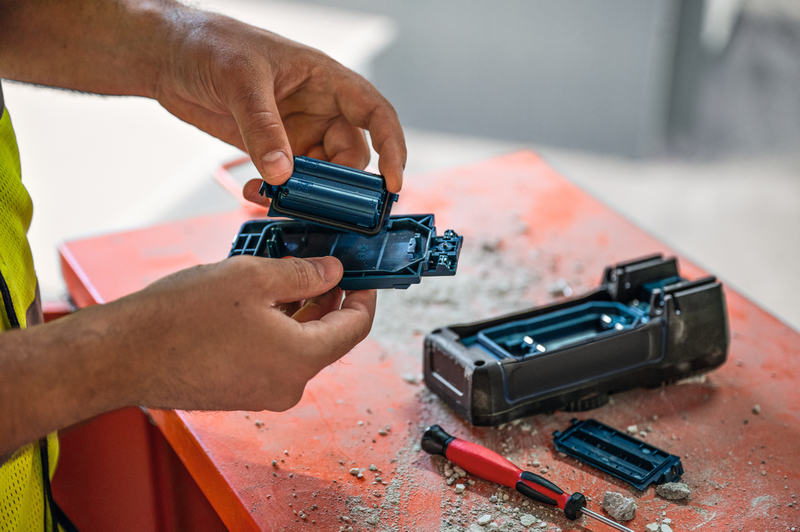

- 2x 1.5 V LR6 batteries (AA)
- 1x MS 90 Professional test leads (1 600 A03 8D2)
- 1x Protective pouch
