Description
The Bosch Professional Detector Wallscanner D-tect 200 C 0601081600 is the wallscanner for exceptional results: top performance and easy documentation
- Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
- Multiple views flexibly offer best results in various situations

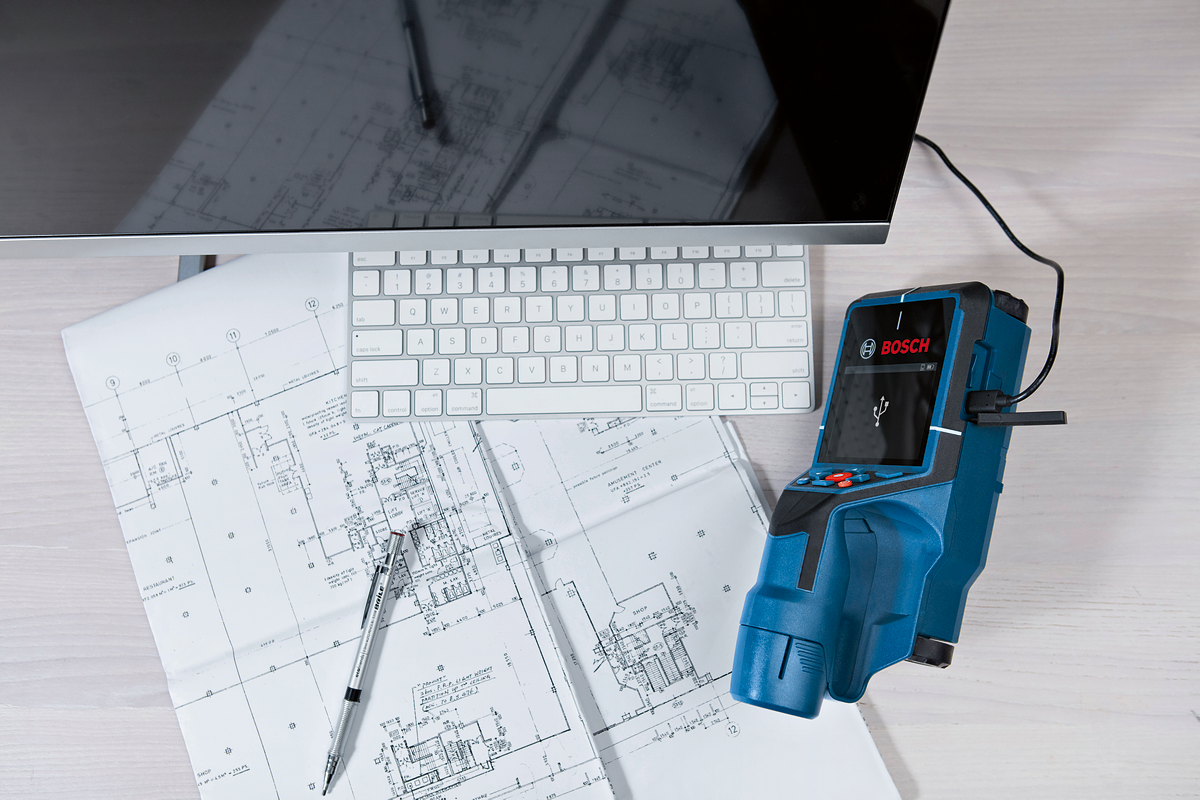

- Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C™ and SD card slot
Technical Data
| Battery voltage | 12 |
| Bosch Radar Technology | yes |
| Detectable objects | magnetic metals (e.g. iron) non-magnetic metals (e.g. copper) live cables non-live cables Empty plastic pipes water-filled plastic pipes wooden substructures |
| Max. detection depth | 200 mm |
| Detection depth, dry concrete, max. | 200 mm |
| Detection depth, early age concrete, max. | 60 mm |
| Detection depth, other wall types, max. | 80 mm |
| Detection depth, wooden substructures, max. | 38 mm |
| Accuracy | ± 5 mm* (*plus use-dependent deviation) |
| Views | Object view Spot view Signal View 2D Signal View |
| Wall types | Brick/Universal Concrete Drywall Panel Heating Early age concrete Horizontal coring brick Vertical coring brick |
| Dust and splash protection | IP 5X |
| Documentation via | USB-C SD-Card |
| Updatable | yes |
| Material identification | Live cable Magnetic metal Non-magnetic metal Non-metal material |
| Power supply | 12 V Li-Ion battery 4 x 1.5 V LR6 (AA) 4 x 1.2 V HR06 (AA) |
| Weight, approx. | 0.7 kg |
| Additional function | Leakage detection, distance measurement |
Includes
4 x 1.5 V LR6 battery (AA)
Battery adapter 1600A017HF/1600A017HH
Hand strap
Pouch
USB-C Cable
