Description

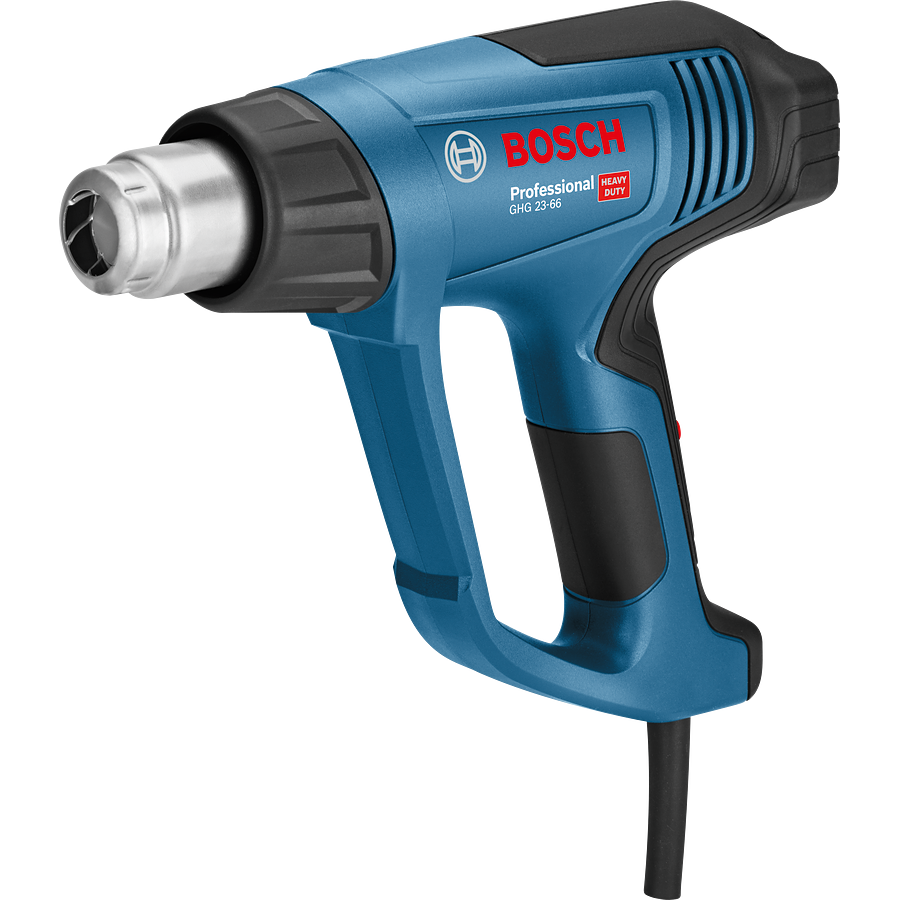

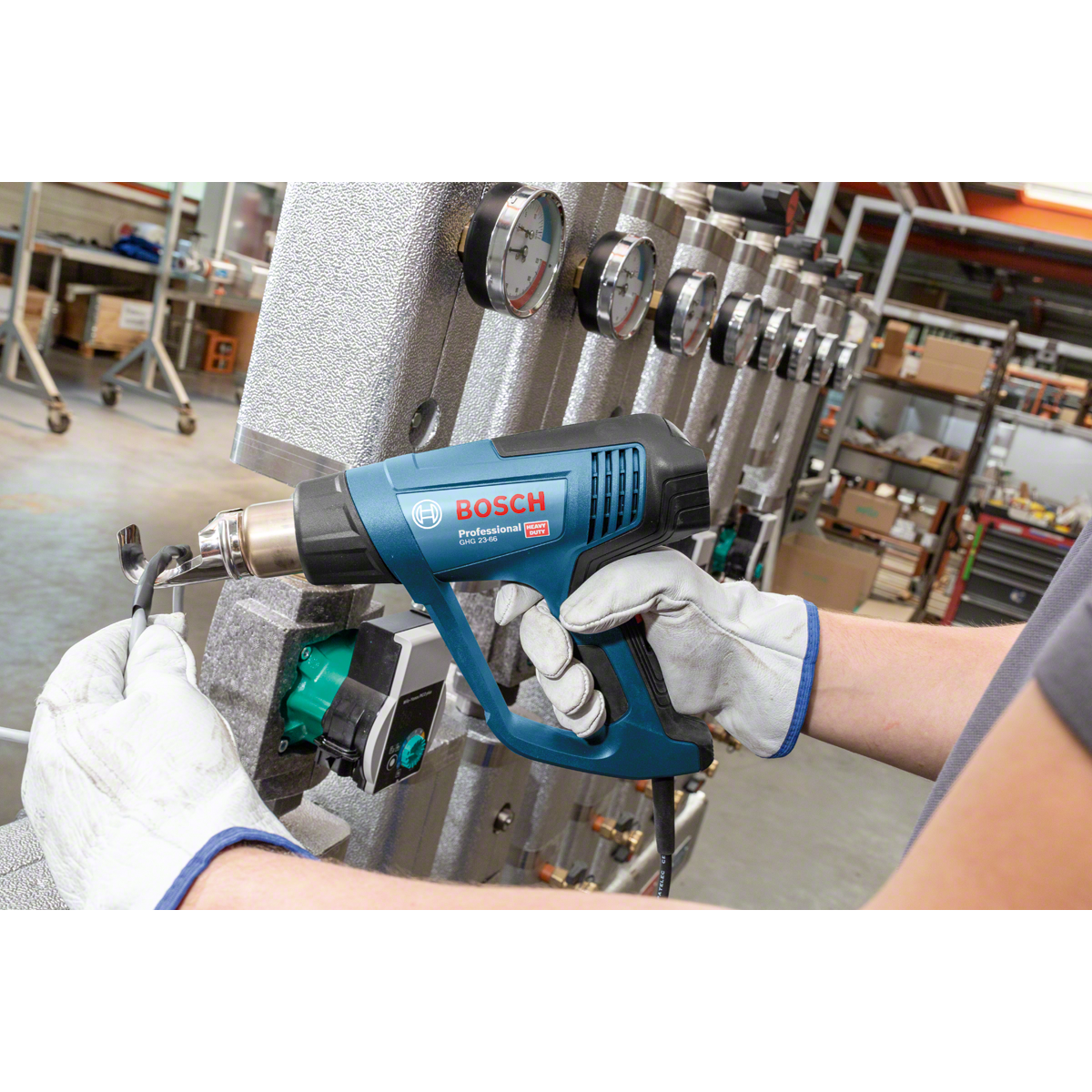

The GHG 23-66 Professional heat gun offers complete control over temperature and airflow, making it ideal for various tasks including plastic and pipe welding, desoldering, and tube shrinking. It boasts a long service life thanks to its automatic thermal protection function.
- 10 adjustable airflow stages
- Digitally adjustable temperature settings in steps of 10°C
- Four customizable programs that are memorized for convenience
- Achieves up to 650°C
- Automatic thermal protection function for extended lifespan
Technical Data
| Parameter | Value |
|---|---|
| Rated input power | 2.300 W |
| Weight | 0,7 kg |
| Tool dimensions (width) | 86 mm |
| Tool dimensions (length) | 245 mm |
| Tool dimensions (height) | 201 mm |
| Working temperature | 50 – 650 °C |
| Airflow | 150 – 500 l/min |
| Continuously variable temperature control | ✓ |
| Cold stage, 50°C | ✓ |
| Control, airflow continuous | ✓ |
| Sound pressure level | 65 dB(A) |
| Sound power level | 76 dB(A) |
| Uncertainty K | 3 dB |
Includes
- Glass protection nozzle 75 mm PHG-N3 1 609 390 452
- Heat shrink tubing set 1 609 201 812
- L-BOXX 136 1 600 A01 2G0
- Reduction nozzle, 9 mm 1 609 201 797
- Reflector nozzle, 32 x 33 mm 1 609 390 453
- Surface nozzle 50 mm 1 609 201 795
- Welding shoe, 10 mm 1 609 201 798
