Description

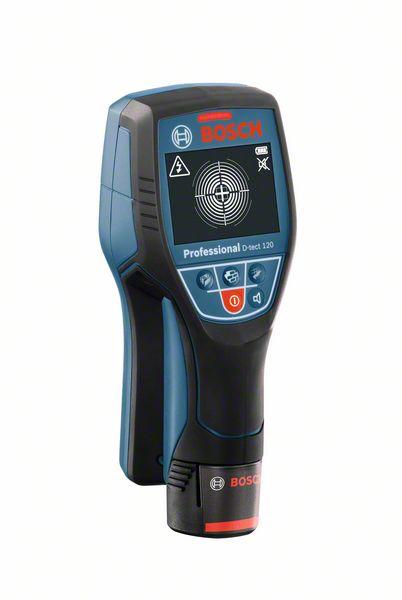

The Bosch Professional D-Tect 120 Wall scanner 0601081303 is an Intuitive radar scanner for almost all materials.
- Spot measurement provides accurate detection on narrow surfaces
- Centre finder offers visual guidance, to clearly identify the precise location of the object's center.
- Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries
Technical Data
| Battery voltage | 12 |
| Bosch Radar Technology | yes |

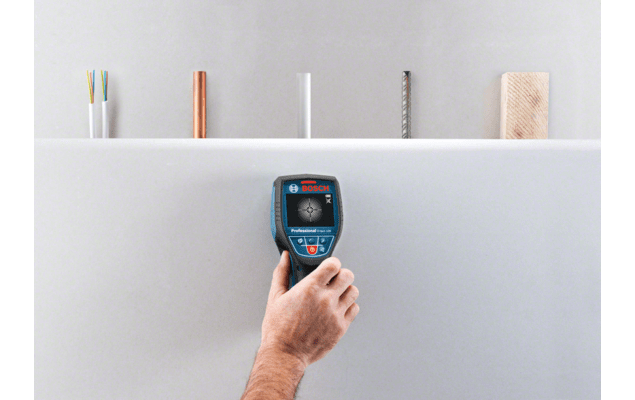

| Detectable objects | magnetic metals (e.g. iron) non-magnetic metals (e.g. copper) live cables non-live cables water-filled plastic pipes wooden substructures |
| Max. detection depth | 120 mm |
| Detection depth, magnetic metal, max. | 120 mm |
| Detection depth, non-magnetic metal, max. | 120 mm |
| Detection depth, live cables, max. | 60 mm |
| Detection depth, wooden substructures, max. | 38 mm |
| Accuracy | ± 10 mm* (*plus use-dependent deviation) |
| Views | Spot view |
| Wall types | Concrete Drywall Universal |
| Material identification | Live cable |
| Power supply | 12 V Li-ion or 4 x 1.5 V LR6 (AA) |
| Automatic deactivation, approx. | 5 minutes |
| Weight, approx. | 0.5 kg |
| Additional function | Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator |

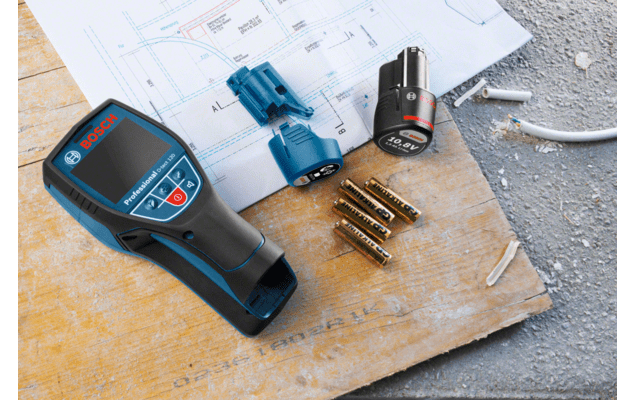

Includes

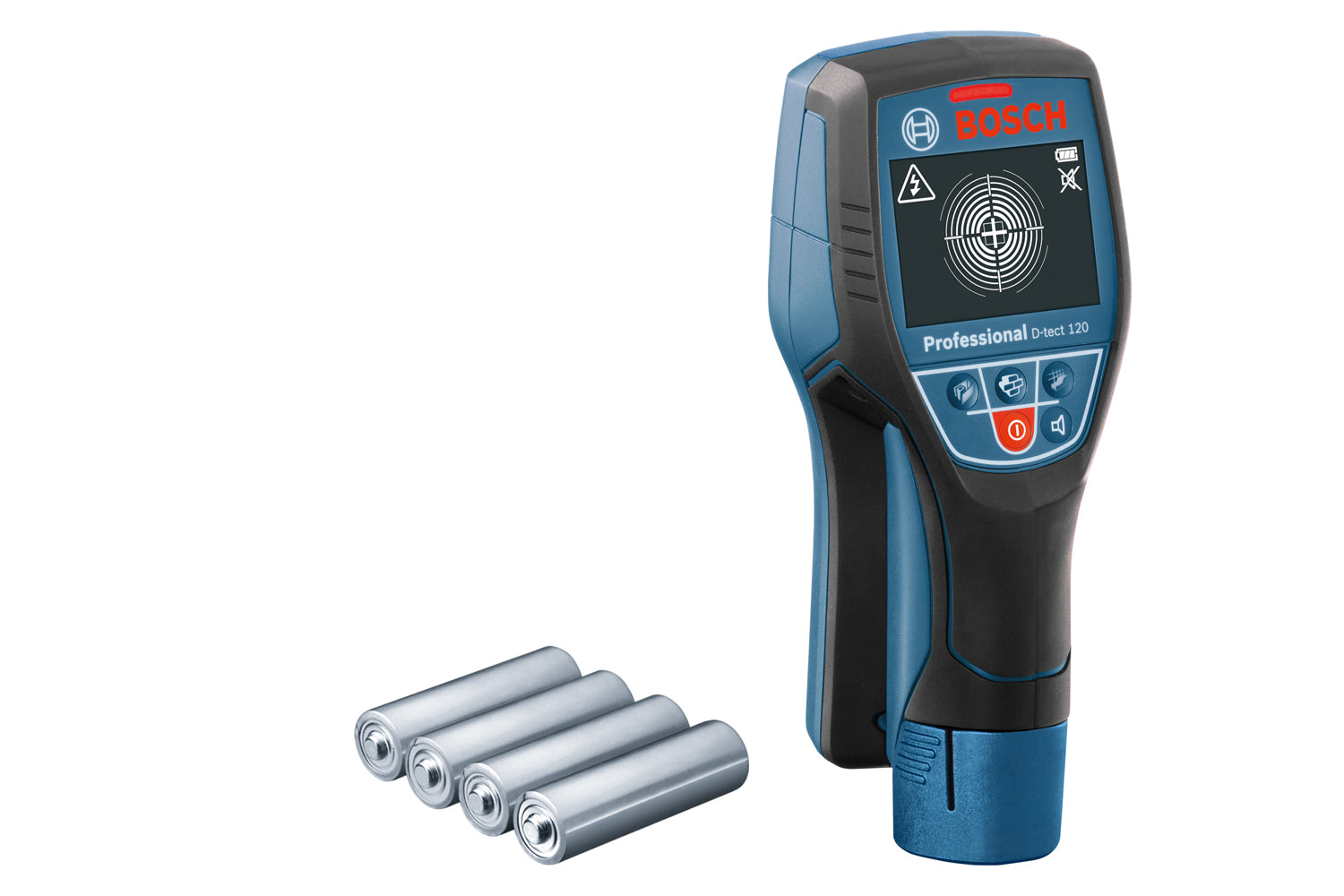

4 x 1.5 V LR6 battery (AA)
AA1 alkaline battery adapter 1 608 M00 C1B
Pouch
