Description

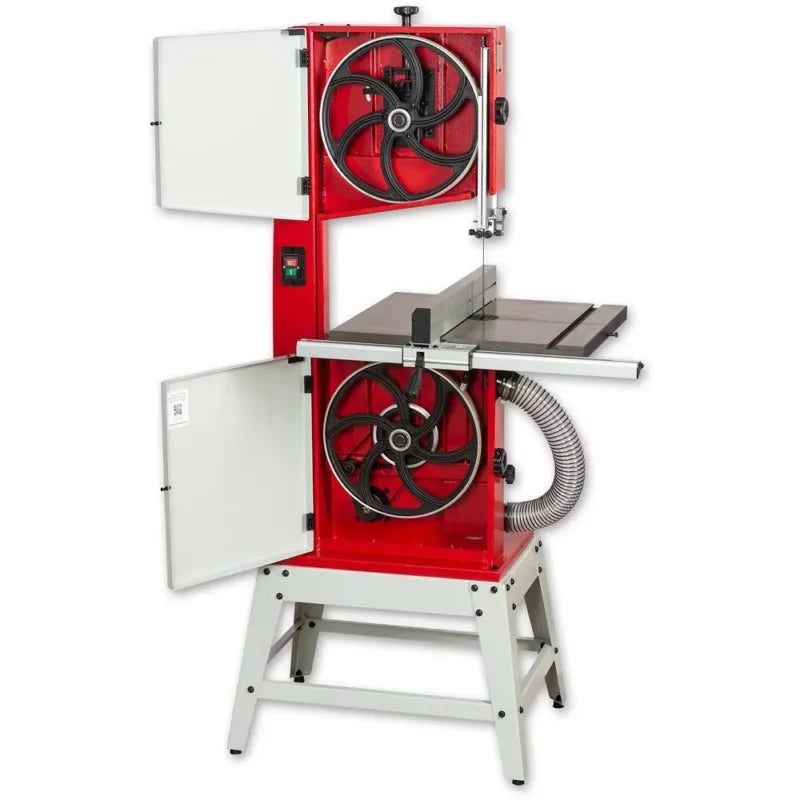

The Axminster AW2606B Bandsaw brings a powerful, large-capacity cutting solution to your workshop. Designed for both resawing thick timber and slicing thin veneers with precision, this machine offers versatility for a wide range of woodworking tasks. A quiet and reliable alloy-bodied induction motor drives the bandsaw through a multi V-belt, with two selectable blade speeds to suit different cutting applications.
- Large depth of cut: 200mm with a 360mm width of cut

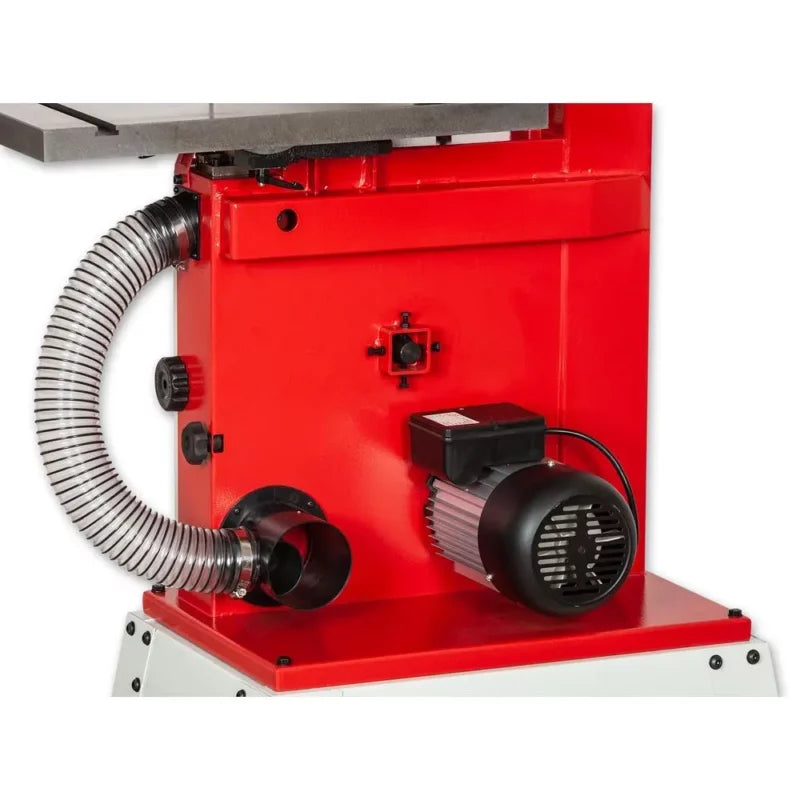

- Powerful 1.1kW induction motor for smooth operation
- Two blade speeds for optimal cutting performance

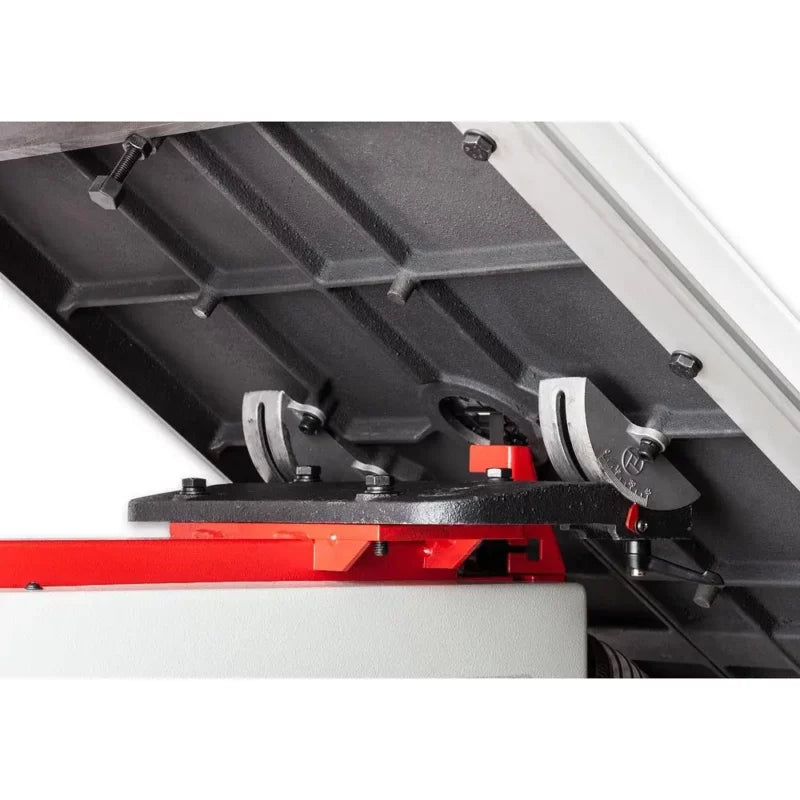

- Strong fabricated steel frame with a cast iron table

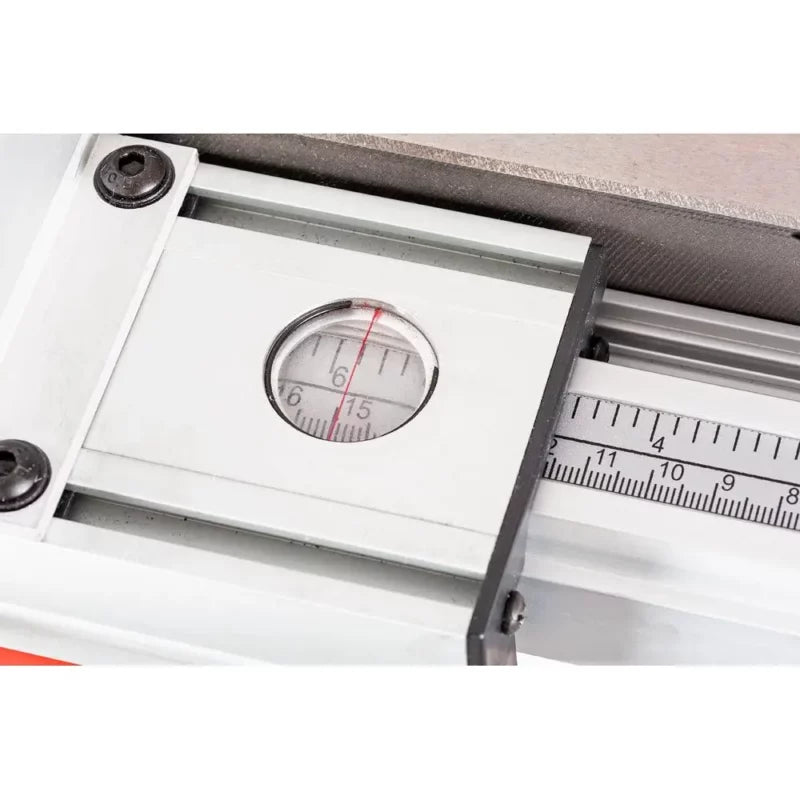

- Rigid, quick-locking rip fence for precise alignment

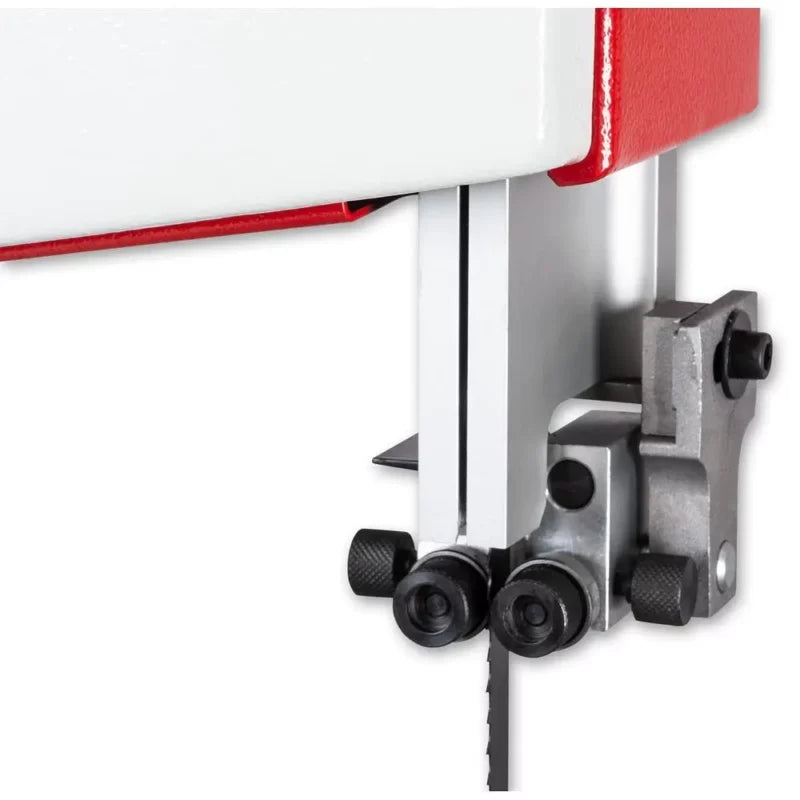

- Bearing guides for enhanced blade support and accuracy
- Rack and pinion system for easy upper blade guide adjustment
- Interconnected dual dust extraction points with a 100mm outlet
- Supplied with a splayed leg steel stand and UK-made general-purpose blade
Technical Data
| Model | AW2606B |
| Power | 1.1 kW |
| Voltage | 230 V |
| Rating | Home Workshop |
| Bandsaw Blade Length | 2,606 mm (102.3/4″) |
| Bandsaw Wheel Diameter | 370 mm |
| Blade Speed | 600 & 840 m/min |
| Blade Width (Min - Max) | 6 mm to 19 mm |
| Max Cutting Height | 200 mm |
| Max Width of Cut | 360 mm |
| Max Width of Cut with Fence | 260 mm |
| Dust Extraction Outlet | 100 mm |
| Min Extraction Airflow Required | 1,000 m³/hr |
| Table Size | 485 mm x 550 mm |
| Table Tilt | 0° – 45° |
| Table Height | 1,060 mm |
| T-Slot Size | 19 mm x 9.5 mm (3/4″ x 3/8″) |
| Overall Dimensions (L × W × H) | 980 mm × 760 mm × 1,740 mm |
| Nett Weight | 85 kg |
| Sound Power Level (LwA) [Uncertainty K] | 98.5 dB(A) [3.0 dB] |
| Sound Pressure Level (LpA) [Uncertainty K] | 84 dB(A) [3.0 dB] |
| EAN Barcode | 5052511126309 |
Includes
- AW2606B Bandsaw
- Splayed leg steel stand with rubber feet
- UK-made general-purpose 1/2″ x 4tpi blade
