Description
The Axminster Workshop AW216TS Table Saw is a robust and stable table saw ideal for home workshops, offering a fantastic cutting capacity of up to 65mm. This table saw features a quiet running 1,100W induction motor and comes with a right hand side table and rear extension table as standard. The ground cast iron table allows smooth workpiece movement across the table while the rigid rip fence offers maximum support for various cuts including straight, mitred, and bevel cuts. The dust extraction system is highly efficient from both above and below the table, making cleanup easy.
- Cast iron table with full length rip fence

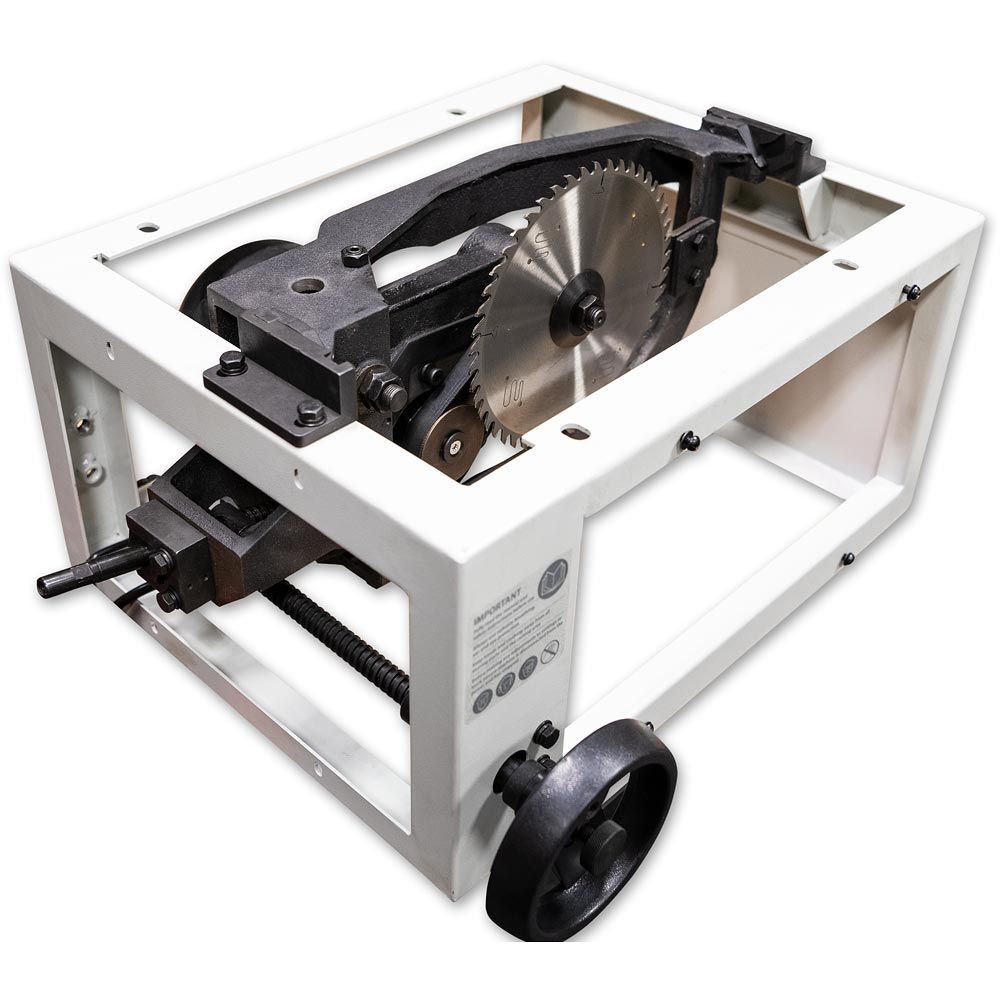

- Smooth control for blade tilt and depth of cut (max 65mm)
- Supplied with R/H extension and rear support tables for precision and efficiency

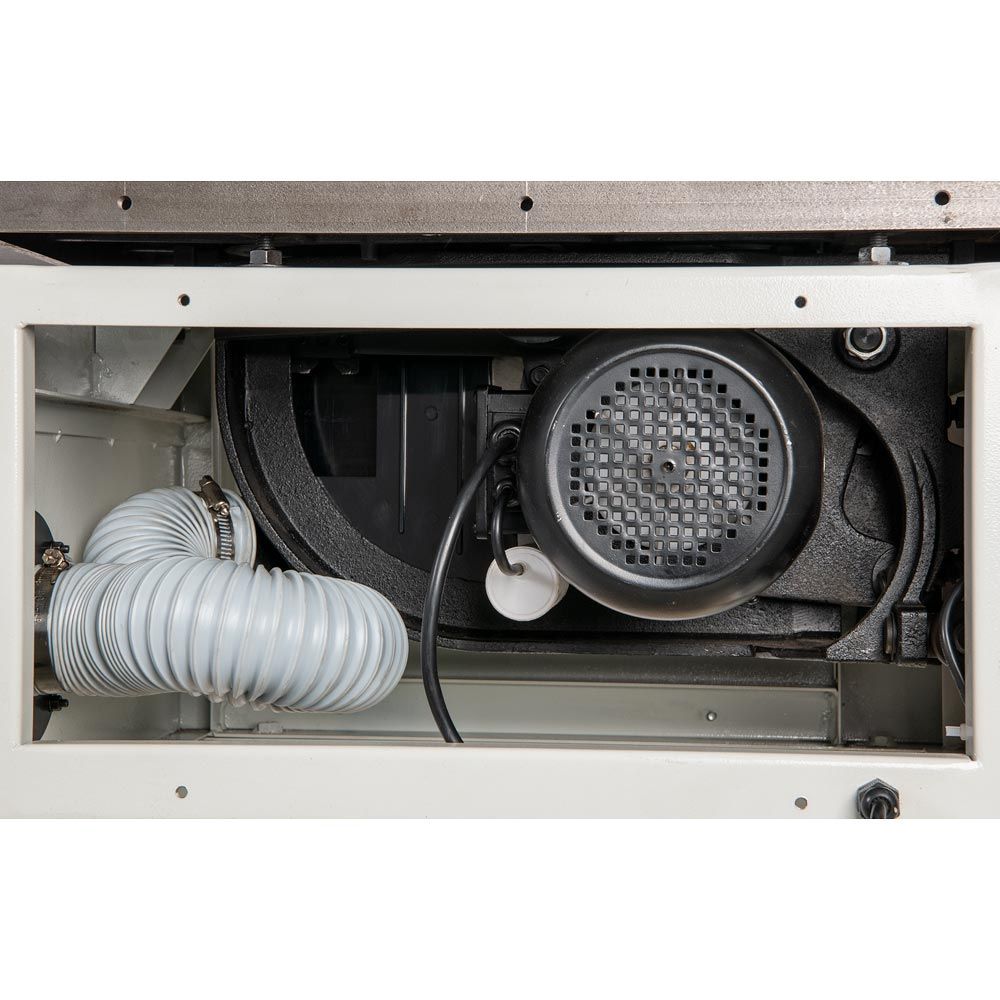

- Quiet running 1,100W induction motor
- 216mm Axcaliber Premium 48 Tooth noise reducing blade

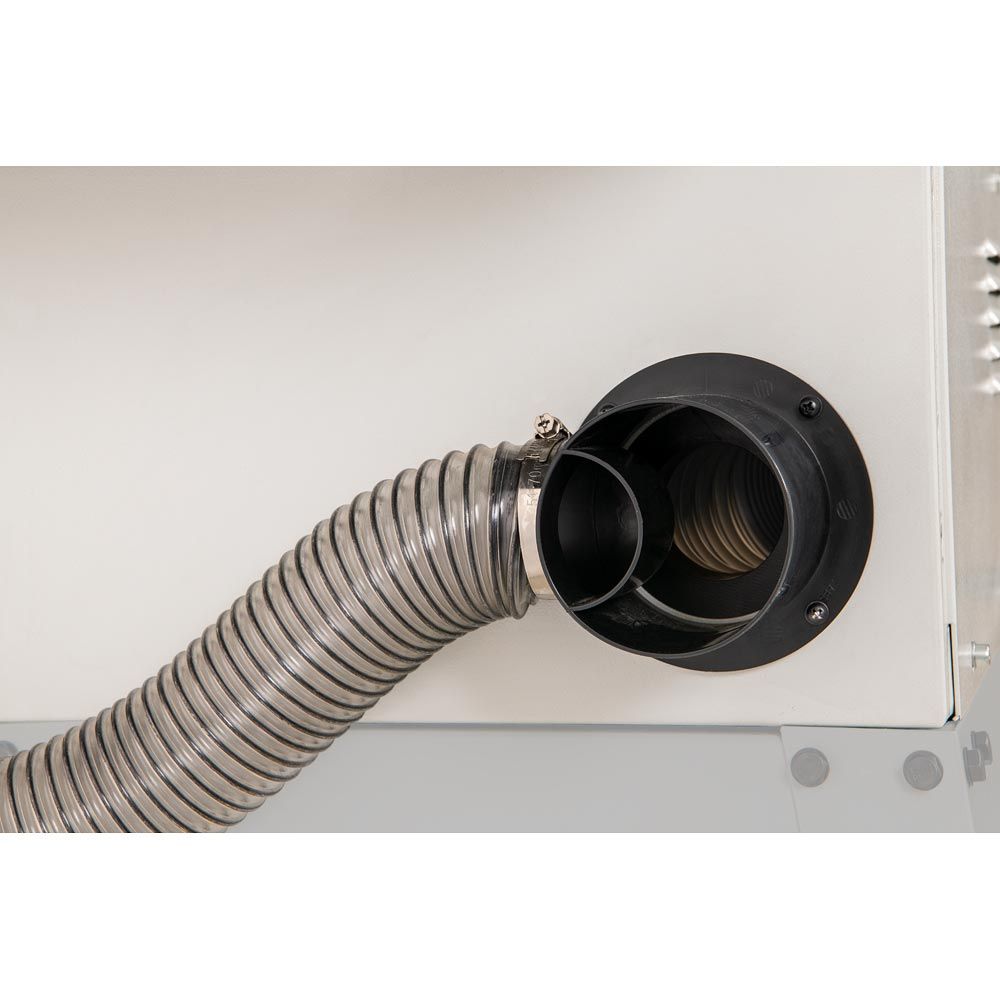

- Dust extraction from above and below the table
Technical Data:
| Parameter | Value |
|---|---|
| Blade Diameter | 216 mm |
| Blade RPM | 4,000 rpm |
| Blade Tilt | 0° to 45° |
| Bore Size | 30 mm |
| Dust Extraction Outlet | 100 mm |
| Max Depth of Cut @ 45º | 45 mm |
| Max Depth of Cut @ 90º | 65 mm |
| Max Width of Cut with Fence | 370 mm |
| Min Extraction Airflow Required | 850 m³/hr |
| Model | AW216TS |
| Nett Weight | 70 kg |
| Overall L x W x H | 670 mm x 695 mm x 420mm |
| Plug Fitted | UK 3 pin plug |
| Power | 1.1 kW |
| Rating | Home Workshop |
| Riving Knife Thickness | 2.2 mm |
| Sound Pressure Level LpA [Uncertainty K] | 81 dB(A) [1.5 dB] |
| T Slot Size | 19 mm x 9.5 mm (3/4" x 3/8") |
| Table Height | 320 mm (bench mounted) |
| Table Size | 400 mm x 570 mm |
| Table Size With Extensions | 675 mm x 570 mm |
| Voltage | 230 V |
Includes:
- 1x Axminster Workshop AW216TS Table Saw
- 1x 216mm Axcaliber Premium 48 Tooth noise reducing blade
- Instructions for use and maintenance manual
