Description

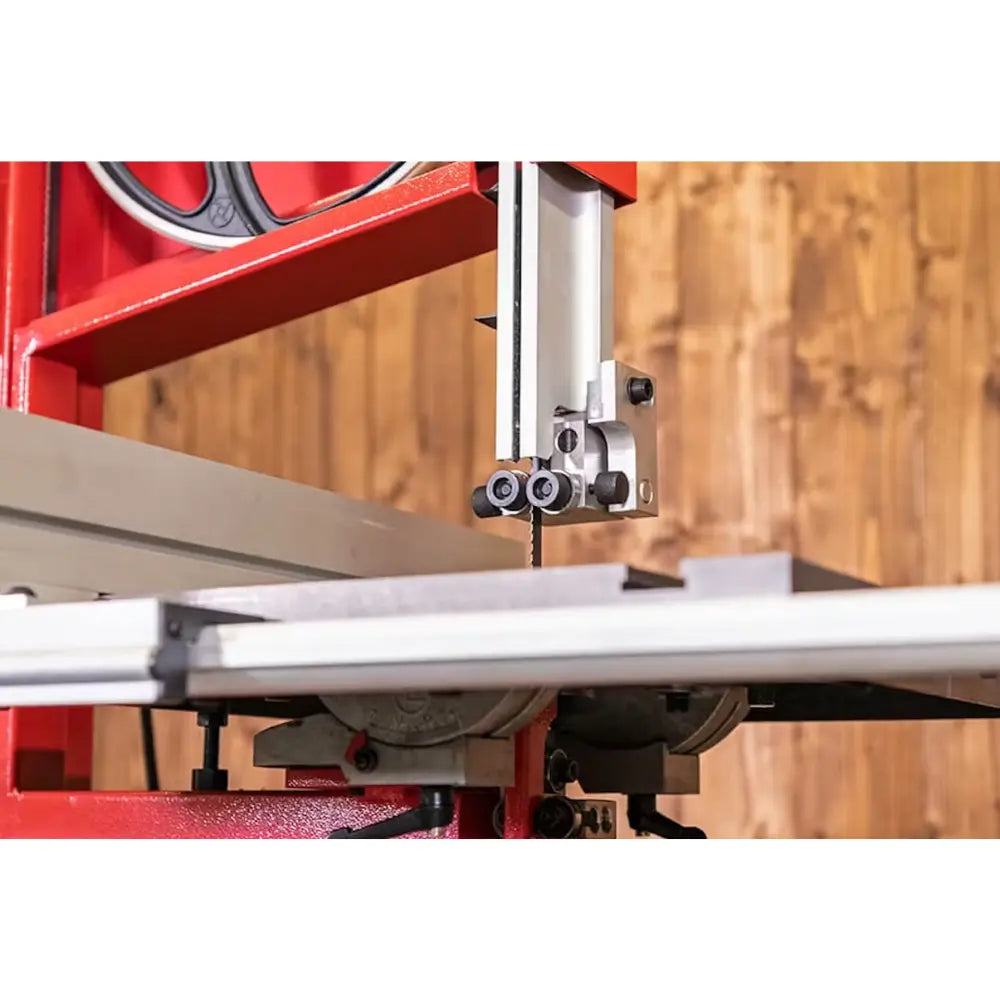

The AW1950B Compact Bandsaw offers advanced features typically found in larger machines, making it an excellent choice for home workshops and small professional spaces. With a 135mm maximum depth of cut and 260mm width of cut, this bandsaw provides precision and power. It features a strong welded steel frame and a cast iron table with a rear extension for added support. The adjustable rip fence ensures accuracy, while the ball-bearing blade guides offer superior blade stability.
- 135mm depth of cut and 260mm width of cut for versatile applications.
- Rigid welded steel construction for enhanced accuracy and durability.
- Dual-speed blade operation (660 & 840 m/min) for different materials.
- Integrated dual-port dust extraction system for cleaner operation.
- Rack and pinion upper blade guide adjustment for easy positioning.
Technical Data
| Model | AW1950B |
| Bandsaw Blade Length | 1,950 mm (77") |
| Bandsaw Wheel Diameter | 270 mm |
| Blade Speed | 660 & 840 m/min |
| Blade Width (Min – Max) | 6 mm to 13 mm |
| Max Cutting Height | 135 mm |
| Max Width of Cut | 260 mm |
| Max Width of Cut with Fence | 185 mm |
| Dust Extraction Outlet | 63 mm |
| Min Extraction Airflow Required | 390 m³/hr |
| Power | 550 W |
| Rating | Home Workshop |
| Overall Dimensions (L × W × H) | 790 mm × 620 mm × 1,570 mm |
| Nett Weight | 39 kg |
| Sound Power Level (LwA) [Uncertainty K] | 90 dB(A) [1.5 dB] |
| EAN Barcode | 5052511124541 |
Includes
- (1) AW1950B Compact Bandsaw
- (1) Steel Leg Stand with Rubber Feet
- (1) UK-Made Blade (10mm x 6 TPI Skip Tooth)
